BYM07-50 thru BYM07-400, EGL34A thru EGL34G
Vishay General Semiconductor
Surface Mount Glass Passivated Ultrafast Rectifier
FEATURES
• Cavity-free glass-passivated junction
• Ideal for automated placement
• Ultrafast reverse recovery time
• Low switching losses, high efficiency
• Meets environmental standard MIL-S-19500
• Meets MSL level 1, per J-STD-020C, LF max peak
of 260 °C
• Solder Dip 260 °C, 40 seconds
• Component in accordance to RoHS 2002/95/EC
and WEEE 2002/96/EC
TYPICAL APPLICATIONS
For use in high frequency rectification and free-
wheeling application in switching mode converters and
inverters for consumer, computer, automotive and
telecommunication.
MAJOR RATINGS AND CHARACTERISTICS
I
F(AV)
V
RRM
I
FSM
t
rr
V
F
T
j
max.
0.5 A
50 V to 400 V
10 A
50 ns
1.25 V, 1.35 V
175 °C
®
*Glass-plastic encapsulation
is covered by
Patent No. 3,996,602,
brazed-lead assembly to
Patent No. 3,930,306
ted*
aten
P
DO-213AA (GL34)
MECHANICAL DATA
Case:
DO-213AA, molded epoxy over glass body
Epoxy meets UL 94V-0 flammability rating
Terminals:
Matte tin plated leads, solderable per
J-STD-002B and JESD22-B102D
E3 suffix for commercial grade, HE3 suffix for high
reliability grade (AEC Q101 qualified)
Polarity:
Two bands indicate cathode end - 1st band
denotes device type and 2nd band denotes repetitive
peak reverse voltage rating
MAXIMUM RATINGS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Fast efficient device: 1st band is Green
Polarity color bands (2nd Band)
Maximum repetitive peak
reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified
current at T
T
= 75 °C
Peak forward surge current 8.3 ms
single half sine-wave superimposed
on rated load
Maximum full load reverse current, full
cycle average at T
A
= 55 °C
Operating junction and storage
temperature range
Document Number 88580
30-Jun-06
V
RRM
V
RMS
V
DC
I
F(AV)
SYMBOL BYM07-50 BYM07-100 BYM07-150 BYM07-200 BYM07-300 BYM07-400 UNIT
EGL34A
Gray
50
35
50
EGL34B
Red
100
70
100
EGL34C
Pink
150
105
150
0.5
EGL34D
Orange
200
140
200
EGL34F
Brown
300
210
300
EGL34G
Yellow
400
280
400
V
V
V
A
I
FSM
10
A
I
R(AV)
T
J
, T
STG
50
- 65 to + 175
µA
°C
www.vishay.com
1
BYM07-50 thru BYM07-400, EGL34A thru EGL34G
Vishay General Semiconductor
ELECTRICAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
TEST CONDITIONS SYMBOL
BYM07-50 BYM07-100 BYM07-150 BYM07-200 BYM07-300 BYM07-400
EGL34A
EGL34B
EGL34C
5.0
50
EGL34D
EGL34F
EGL34G
UNIT
Maximum DC
reverse current at T
A
= 25 °C
rated DC blocking T
A
= 125 °C
voltage
(1)
Maximum
instantaneous
at 0.5 A
(1)
forward voltage
Max. reverse
recovery time
Typical junction
capacitance
Note:
at I
F
= 0.5 A,
I
R
= 1.0 A,
I
rr
= 0.25 A
at 4.0 V, 1 MHz
I
R
µA
V
F
1.25
1.35
V
t
rr
50
ns
C
J
7.0
pF
(1) Pulse test: 300 µs pulse width, 1 % duty cycle
THERMAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Maximum thermal resistance
(1, 2)
Note:
(1) Thermal resistance from junction to ambient, 0.24 x 0.24" (6.0 x 6.0 mm) copper pads to each terminal
(2) Thermal resistance from junction to terminal, 0.24 x 0.24" (6.0 x 6.0 mm) copper pads to each terminal
SYMBOL
R
θJA
R
θJT
BYM07-50 BYM07-100 BYM07-150 BYM07-200 BYM07-300 BYM07-400
EGL34A
EGL34B
EGL34C
EGL34D
150
70
EGL34F
EGL34G
UNIT
°C/W
ORDERING INFORMATION
PREFERRED P/N
EGL34D-E3/98
EGL34D-E3/83
UNIT WEIGHT (g)
0.036
0.036
PREFERRED PACKAGE CODE
98
83
BASE QUANTITY
2500
9000
DELIVERY MODE
7" Diameter Plastic Tape & Reel
13" Diameter Plastic Tape & Reel
www.vishay.com
2
Document Number 88580
30-Jun-06
BYM07-50 thru BYM07-400, EGL34A thru EGL34G
Vishay General Semiconductor

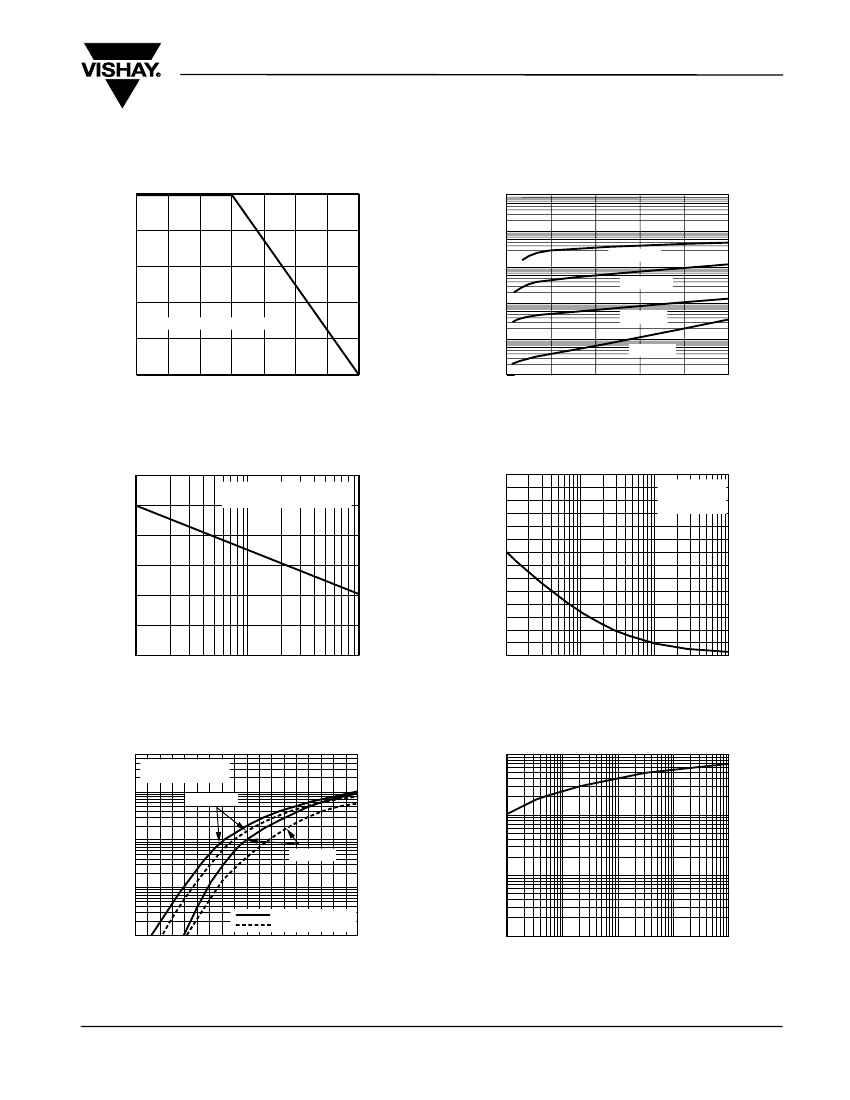

RATINGS AND CHARACTERISTICS CURVES
(T
A
= 25 °C unless otherwise noted)
0.5
100
Average Forward Rectified Current (A)
0.4
Instantaneous Reverse Leakage
Current (µA)
10
T
j
= 150 °C
1
T
j
= 125 °C
0.1
T
j
= 75 °C
0.01
T
j
= 25 °C
0.001
0.3
0.2
Resistive or Inductive Load
0.1
0
0
25
50
75
100
125
150
175
0
20
40
60
80
100
Terminal Temperature (°C)
Percent of Rated Peak Reverse
Voltage
(%)
Figure 1. Forward Current Derating Curve
Figure 4. Typical Reverse Characteristics
12
35
T
j
= T
j
max.
8.3
ms Single Half Sine-Wave
30
T
j
= 25 °C
f = 1.0 MHz
V
sig
= 50 mVp-p
Peak Forward Surge Current (A)
Junction Capacitance (pF)
1
10
100
10
8
25
20
15
10
5
0
0.1
6
4
2
0
1
10
100
Number
of Cycles at 60 Hz
Reverse
Voltage
(V)
Figure 2. Maximum Non-Repetitive Peak Forward Surge Current
Figure 5. Typical Junction Capacitance
50
100
10
T
j
= 150 °C
Transient Thermal Impedance (°C/W)
Instantaneous Forward Current (A)
Pulse
Width
= 300
µs
1
%
Duty Cycle
10
1
T
j
= 25 °C
1
0.1
EGL34A – EGL34D
EGL34F & EGL34G
0.01
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
2.0
0.1
0.01
0.1
1
10
100
Instantaneous Forward
Voltage
(V)
t - Pulse Duration (s)
Figure 3. Typical Instantaneous Forward Characteristics
Figure 6. Typical Transient Thermal Impedance
Document Number 88580
30-Jun-06
www.vishay.com
3
BYM07-50 thru BYM07-400, EGL34A thru EGL34G
Vishay General Semiconductor
PACKAGE OUTLINE DIMENSIONS
in inches (millimeters)
DO-213AA (GL34)
SOLDERABLE ENDS
1st BAND
2nd BAND
Mounting Pad Layout
0.079 MAX
(2.0) MAX
D2
D1 =
0.066
0.060
(1.676)
(1.524)
0.079 MAX
(2.0) MAX
0.049 MIN
(1.25) MIN
0.022 (0.559)
0.016 (0.406)
0.145 (3.683)
0.131 (3.327)
D2 = D1
+ 0
- 0.008 (0.20)
0.177 REF
(4.5) REF
1st
band
denotes type and polarity
2nd
band
denotes
voltage
type
www.vishay.com
4
Document Number 88580
30-Jun-06
