TECHNICAL DATA SHEET
1/3

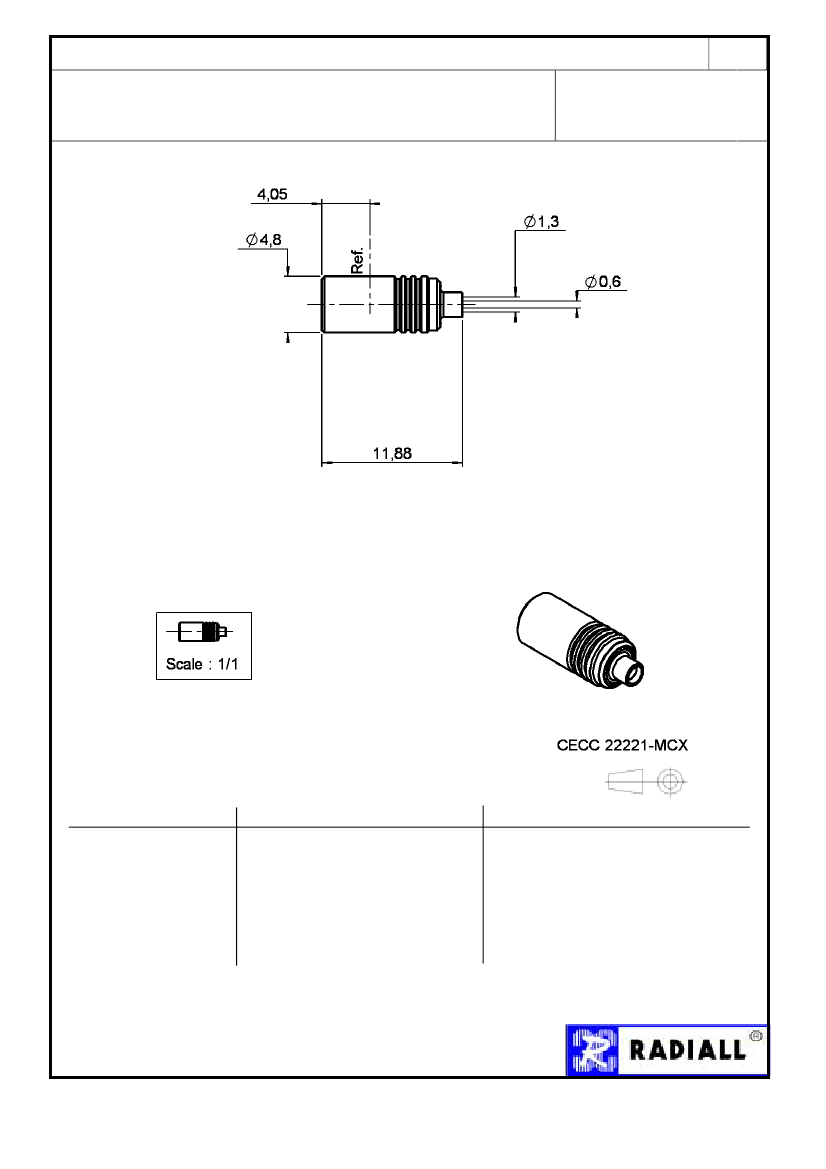

STRAIGHT JACK SOLDER TYPE
CABLE .047
R113.221.020
Series :
MCX
All dimensions are in mm.
.
pn
.
ao
COMPONENTS
BODY
CENTER CONTACT
OUTER CONTACT
INSULATOR
GASKET
OTHERS PARTS
-
-
MATERIALS
BRASS
BERYLLIUM COPPER
-
PTFE
-
-
-
-
PLATINGS
(µm)
BBR 2
.GOLD 1.3 OVER NICKEL 2
-
-
-
-
Issue : 0108 D
In the effort to improve our products, we reserve the right to make changes judged to be
necessary.
TECHNICAL DATA SHEET
2/3
STRAIGHT JACK SOLDER TYPE
CABLE .047
R113.221.020
Series :
MCX
PACKAGING
Standard
100
Unit
-
Other
Contact us
SPECIFICATION
ELECTRICAL CHARACTERISTICS
Impedance
50
Ω
Frequency
0-3
GHz
VSWR
1.35 + 0,0000
x F(GHz) Maxi
Insertion loss
NA
√F(GHz)
dB Maxi
RF leakage
-(
NA
- F(GHz)) dB Maxi
Voltage rating
175
Veff Maxi
Dielectric withstanding voltage
500
Veff mini
Insulation resistance
1000
MΩ mini
Stripping
CABLE ASSEMBLY
a
2,70
b
0,00
c
0,00
d
0,00
e
2,10
f
0,00
mm
Assembly instruction
:
Recommended cable(s)
UT47 M17/151-00001
MECHANICAL CHARACTERISTICS
Center contact retention
Axial force – Mating end
Axial force – Opposite end
Torque
NA
N mini
NA
N mini
NA
N.cm mini
Cable retention
- pull off
- torque
43
N mini
NA
N.cm
TOOLING
Part Number Description
.
.
R282.740.020 SOLDERING
MOUNTING
Hexagon
.
Recommended torque
Mating
Panel nut
Clamp nut
A/F clamp nut
Mating life
Weight
NA
NA
NA
0,0000
N.cm
N.cm
N.cm
mm
OTHERS CHARACTERISTICS
-
0
Cycles mini
0,9450
g
ENVIRONMENTAL
Operating temperature
Hermetic seal
Panel leakage
-55/+115
° C
NA
Atm.cm3/s
NA
Issue : 0108 D
In the effort to improve our products, we reserve the right to make changes judged to be
necessary.
TECHNICAL DATA SHEET
3/3
STRAIGHT JACK SOLDER TYPE
CABLE .047
COMPONENT
Contact
R113.221.020
Series :
MCX

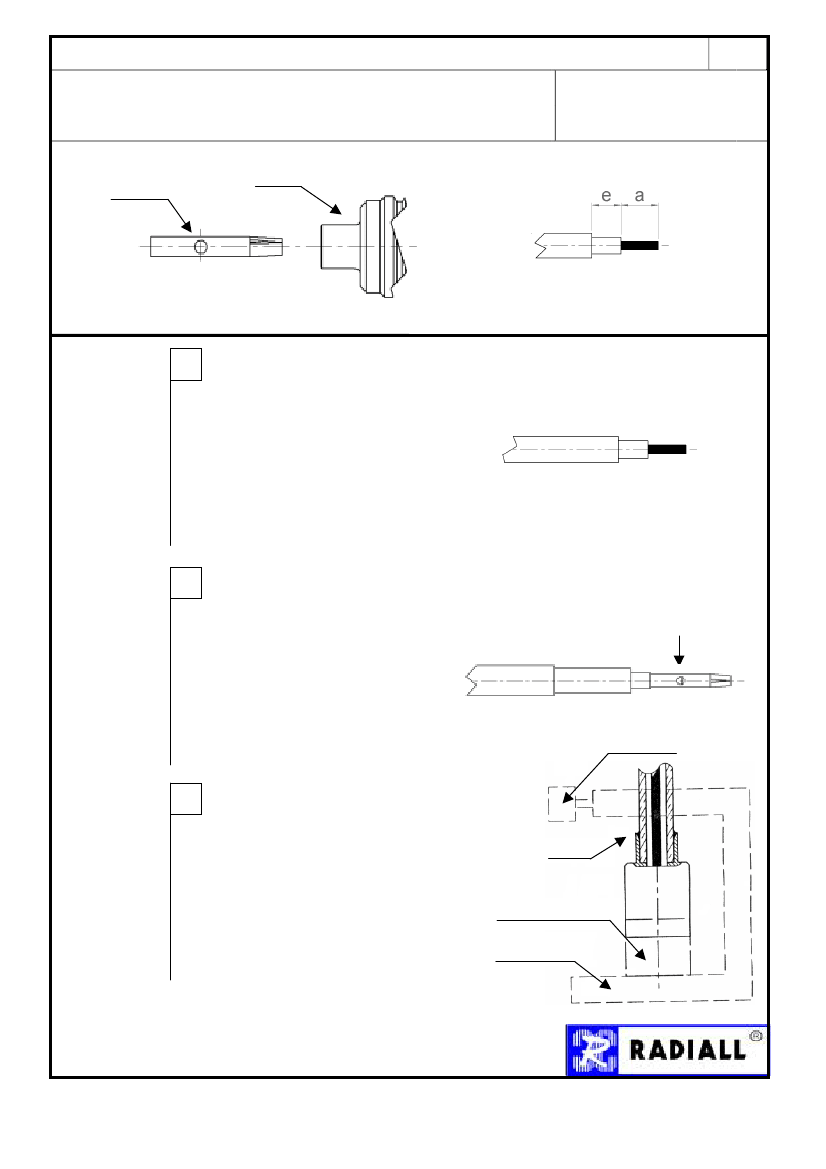

STRIPPING DIMENSIONS
Body
We recommend a thermal preconditionning cable.
1
Cable stripping.
2
Tin centre contact solder pot.
Solder centre contact on cable inner conductor.
Clean solder.
Soudure
Tightening
3
Introduce cable into the connector body until
concat with the body shoulder.
Place the sub assembly into the assembly jig
R282 740 020 (or equivalent).
We advice to connect a female receptable to the
connector prior to solder the body in order to
respect right centre contact position.
Tighten the sub assembly.
Solder body on the cable.
Let the assembly cool down before removing it
from the jig.
Clean solder.
Solder
Male connector
Assembly jig
