DS2012RN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> DS2012RN

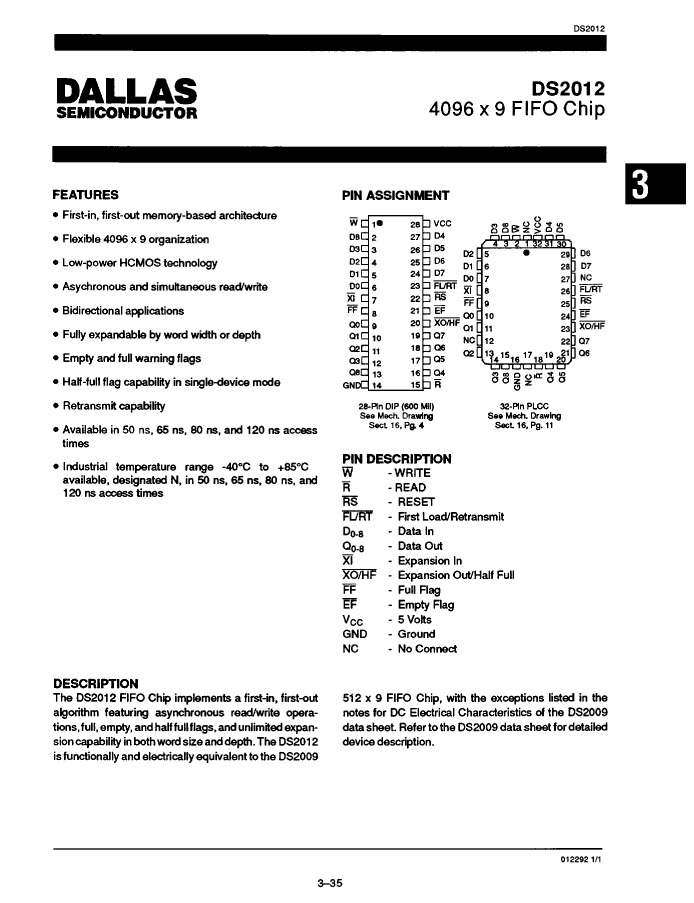

DS2012RN: DescriptionFIFO, 4KX9, 120ns, Asynchronous, CMOS, PQCC32; Categorystorage storage; File Size30KB，1 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric Compare View All

DS2012RN Overview

FIFO, 4KX9, 120ns, Asynchronous, CMOS, PQCC32

DS2012RN Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Maxim
Reach Compliance Code	not_compliant
Maximum access time	120 ns
Maximum clock frequency (fCLK)	7.14 MHz
JESD-30 code	R-PQCC-J32
JESD-609 code	e0
memory density	36864 bit
Memory IC Type	OTHER FIFO
memory width	9
Number of terminals	32
word count	4096 words
character code	4000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	4KX9
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC32,.5X.6
Package shape	RECTANGULAR
Package form	CHIP CARRIER
power supply	5 V
Certification status	Not Qualified
Maximum standby current	0.002 A
Maximum slew rate	0.12 mA
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Base Number Matches	1

Preview

Download Datasheet

View All

DS2012RN Related Products

	DS2012RN	DS2012RN-65	DS2012RN-80	DS2012N
Description	FIFO, 4KX9, 120ns, Asynchronous, CMOS, PQCC32	FIFO, 4KX9, 65ns, Asynchronous, CMOS, PQCC32	FIFO, 4KX9, 80ns, Asynchronous, CMOS, PQCC32	FIFO, 4KX9, 120ns, Asynchronous, CMOS, PDIP28,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant
Maximum access time	120 ns	65 ns	80 ns	120 ns
Maximum clock frequency (fCLK)	7.14 MHz	12.5 MHz	10 MHz	7.14 MHz
JESD-30 code	R-PQCC-J32	R-PQCC-J32	R-PQCC-J32	R-PDIP-T28
JESD-609 code	e0	e0	e0	e0
memory density	36864 bit	36864 bit	36864 bit	36864 bit
Memory IC Type	OTHER FIFO	OTHER FIFO	OTHER FIFO	OTHER FIFO
memory width	9	9	9	9
Number of terminals	32	32	32	28
word count	4096 words	4096 words	4096 words	4096 words
character code	4000	4000	4000	4000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
organize	4KX9	4KX9	4KX9	4KX9
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	QCCJ	QCCJ	DIP
Encapsulate equivalent code	LDCC32,.5X.6	LDCC32,.5X.6	LDCC32,.5X.6	DIP28,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	IN-LINE
power supply	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum standby current	0.002 A	0.002 A	0.002 A	0.002 A
Maximum slew rate	0.12 mA	0.12 mA	0.12 mA	0.12 mA
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	J BEND	J BEND	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	2.54 mm
Terminal location	QUAD	QUAD	QUAD	DUAL
Base Number Matches	1	1	1	1
Maker	Maxim	Maxim	Maxim	-
