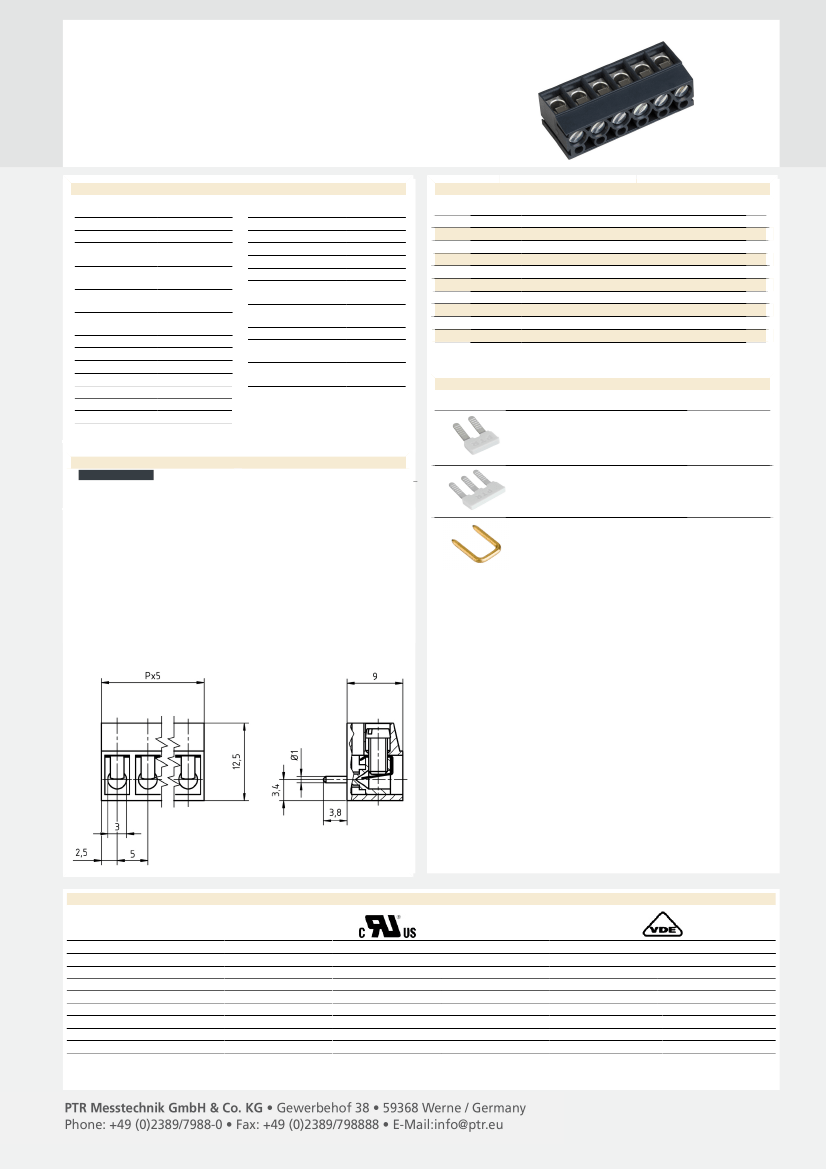

Wire Guard |
Spacing 5.0 mm
AK100/..DS-5.0-H-GREY -BL
Technical Data
Wire Sizes
Solid min
solid max
Stranded (flexible)
min
Stranded (flexible)
max
0.2 mm²
4.0 mm²
0.2 mm²
2.5 mm²
Insulating Material
Material
Flammability Class
Temperatures
Operating Temperature
Wave Soldering Process
Soldering Temperature,
recommended
Peak Soldering Time,
recommended
Reflow Process
Soldering Temperature,
recommended
Peak Soldering Time,
recommended
Leere Zeile
-
-
265 °C
3-4 s
-30 °C - 105 °C
PA 6.6
UL 94 V-0
Order Data (Spacing 5.0 mm)
Poles
2
3
4
5
6
7
8
9
10
11
12
Width (mm)
10.00
15.00
20.00
25.00
30.00
35.00
40.00
45.00
50.00
55.00
60.00
Article Designation
AK100/2DS-5.0-H-GREY -BL
AK100/3DS-5.0-H-GREY -BL
AK100/4DS-5.0-H-GREY -BL
AK100/5DS-5.0-H-GREY -BL
AK100/6DS-5.0-H-GREY -BL
AK100/7DS-5.0-H-GREY -BL
AK100/8DS-5.0-H-GREY -BL
AK100/9DS-5.0-H-GREY -BL
AK100/10DS-5.0-H-GREY -BL
AK100/11DS-5.0-H-GREY -BL
AK100/12DS-5.0-H-GREY -BL
Article Number
50100022150G
50100032150G
50100042150G
50100052150G
50100062150F
50100072150F
50100082150E
50100092150E
50100102150E
50100112150E
50100122150E
PU
250
250
250
250
200
200
100
100
100
100
100
Stranded with Ferrule 0.2 mm²
min
Stranded with Ferrule 2.5 mm²
max
Dimensions
Stripped Length
PCB Hole Diameter
Materials
Clamp
Wire Guard
Screw
Brass
Stainless Steel
Steel
6.0 mm
1.3 mm
Accessories
Figure
Designation
Bridge, 2-pole, insulated, BRI/2-5.0/5.08-
LIGHT GREY
Article Number
50000000006
Colours
RAL7016
GREY , RAL7016
Colours according to RAL, there may be variations on colour due to production conditions.
Special colours on request.
Bridge, 3-pole, insulated, BRI/3-5.0/5.08-
LIGHT GREY
50000000007
Bridge, 2-pole, BR/2-5.0/5.08-L7.0
50000000008
Ratings
Usegroup
Rated Voltage
Rated Current
Rated Wire Size
solid
stranded
Torque
Screw Size
Test Voltage
B
300 V
20 A
AWG 22-12
AWG 22-12
0.45 Nm
M3
1.6 kV
C
-
-
-
-
-
-
-
D
300 V
10 A
AWG 22-12
AWG 22-12
0.45 Nm
M3
1.6 kV
min
0.5 mm²
0.5 mm²
250 V
24 A
max
2.5 mm²
2.5 mm²
0.50 Nm
M3
2.0 kV
www.ptr.eu
