Power cable - SAC-4P-M12MSL/ 5,0-105 - 1425027
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

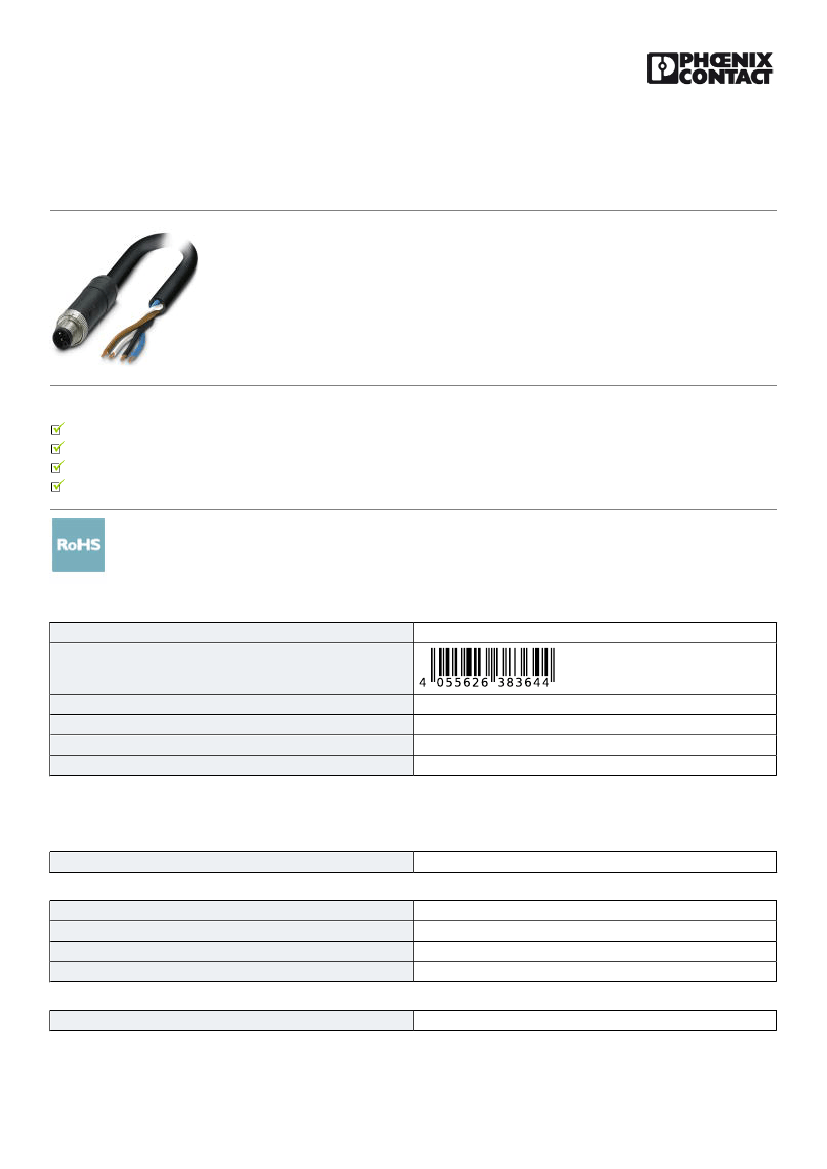

Power cable, 4-position, PUR halogen-free, black-gray RAL 7021, Plug straight M12, L-coded, on free cable
end, cable length: 5 m
Your advantages
Easy and safe: 100% electrically tested plug-in components
High-performance: DC connectors for up to 12 A and 63 V DC
Our standard: robust halogen-free PUR cable
Key Commercial Data
Packing unit
GTIN
GTIN
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
4055626383644
558.010 g
85444290
Poland
1 pc
Technical data
Dimensions
Length of cable
5m
Ambient conditions
Ambient temperature (operation)
Degree of protection
-25 °C ... 85 °C (Plug / socket)
IP65
IP67
IP68
General
Rated current at 40°C
12 A
01/06/2019 Page 1 / 6
https://www.phoenixcontact.com/in/products/1425027
Power cable - SAC-4P-M12MSL/ 5,0-105 - 1425027
Technical data
General
Rated voltage
Number of positions
Color handle area
Insulation resistance
Coding
Standards/regulations
Status display
Protective circuit/component
Overvoltage category
Degree of pollution
Insertion/withdrawal cycles
Torque
63 V DC
4
black
≥ 100 MΩ
L - Power
M12 connector IEC 61076-2-111
No
unwired
III
3
≥ 100
0.4 Nm (M12 connector)
Material
Flammability rating according to UL 94
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
V0
CuSn
Ni/Au
PA
PA
Zinc die-cast, nickel-plated
Standards and Regulations
Standard designation
Standards/regulations
Flammability rating according to UL 94
M12 connector
IEC 61076-2-111
V0
Cable
Cable type
Cable type (abbreviation)
Cable abbreviation
UL AWM style
Conductor cross section
AWG power supply
Conductor structure, voltage supply
Core diameter including insulation
Thickness, insulation
Wire colors
Overall twist
Length of twist, overall twist
External sheath, color
Outer sheath thickness
External cable diameter D
PUR halogen-free black
PUR
Li9YV1-11Y
20233 / 10493 (80°C/300 V)
4x 1.5 mm²
16
78x 0.15 mm
2.35 mm ±0.05 mm
≥ 0.25 mm
brown, white, blue, black
4 wires, twisted
90 mm
black-gray RAL 7021
approx. 1.3 mm
8.4 mm ±0.25 mm
01/06/2019 Page 2 / 6
https://www.phoenixcontact.com/in/products/1425027
Power cable - SAC-4P-M12MSL/ 5,0-105 - 1425027
Technical data
Cable
Minimum bending radius, fixed installation
Minimum bending radius, flexible installation
Number of bending cycles
Minimum bending radius, drag chain applications
Traversing path
Traversing rate
Acceleration
Cable weight
Outer sheath, material
Material conductor insulation
Conductor material
Insulation resistance
Conductor resistance
Nominal voltage, cable
Test voltage, cable
Flame resistance
5xD
10 x D
4000000
10 x D
10 m
3 m/s
10 m/s²
109 kg/km
PUR
PP
Bare Cu litz wires
≥ 1 GΩ*km (at 20 °C)
≤ 13 Ω/km (at 20 °C)
≤ 300 V AC
≥ 3000 V AC (Spark test)
According to UL 758/1581 (Cable Flame)
according to UL 758/1581 FT1
According to DIN EN 60332-1-2
Halogen-free
Resistance to oil
Other resistance
in accordance with DIN VDE 0472 part 815
in accordance with DIN EN 50267-2-1
According to DIN EN 60811-2-1, 168 h at 100°C
According to UL 758, 168 h at 60°C
Hydrolysis and microbe resistant as per VDE 0282 section 10
Low adhesion
abrasion-resistant
Resistant to salt water
Ambient temperature (operation)
-50 °C ... 80 °C (cable, fixed installation)
-30 °C ... 80 °C (cable, flexible installation)
Environmental Product Compliance
REACh SVHC
China RoHS
Lead 7439-92-1
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
01/06/2019 Page 3 / 6
https://www.phoenixcontact.com/in/products/1425027
Power cable - SAC-4P-M12MSL/ 5,0-105 - 1425027

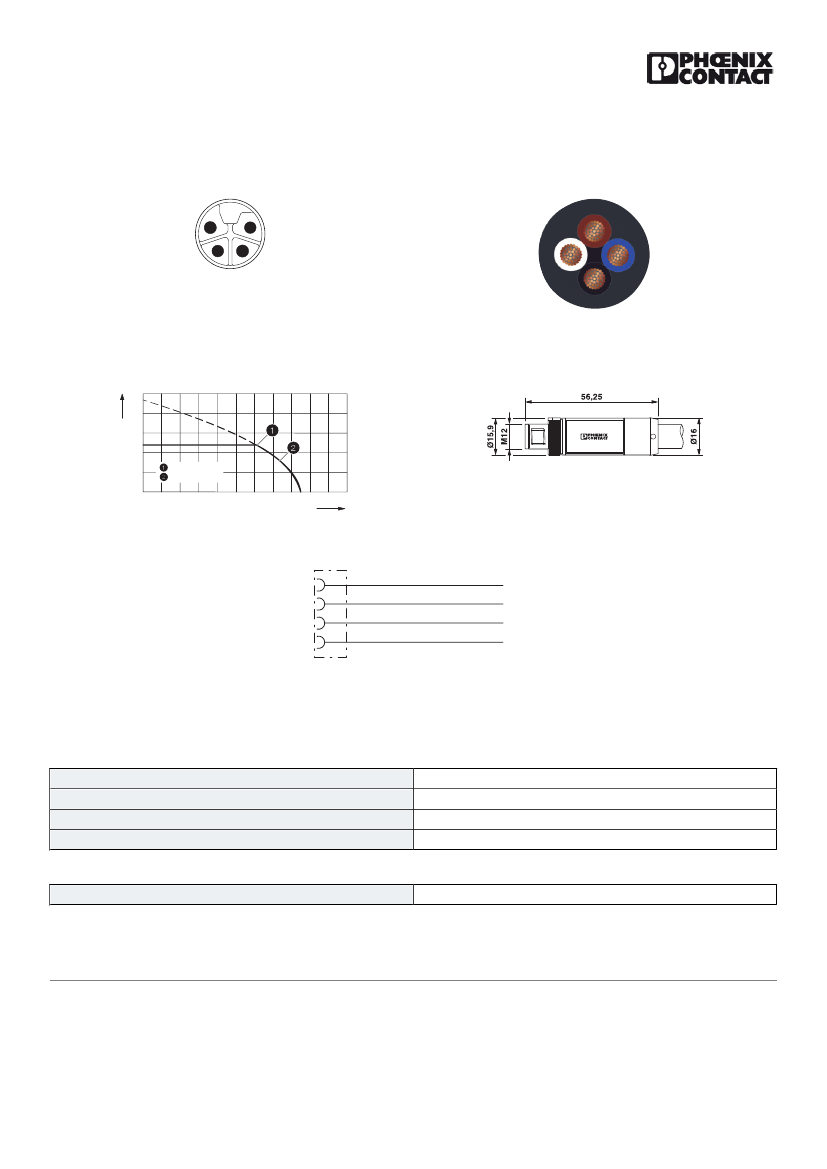

Schematic diagram
4
1
3
2
Cable cross section
Pin assignment M12 male connector, 4-pos.
PUR halogen-free black [PUR]
Diagram
I [A]
25
20
15
10
5
0
0
10
20
30
40
50
60
70
80
90 100 110
T [°C]
Dimensional drawing
= Plug
= Socket
Plug, M12 x 1, straight, shielded
Circuit diagram
1
2
4
3
BN
WH
BK
BU
Contact assignment of the M12 plug
Classifications
eCl@ss
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 9.0
27061801
27279200
27279218
27060311
ETIM
ETIM 6.0
EC001855
Approvals
Approvals
Approvals
UL Listed / cUL Listed / EAC / cULus Listed
01/06/2019 Page 4 / 6
https://www.phoenixcontact.com/in/products/1425027
Power cable - SAC-4P-M12MSL/ 5,0-105 - 1425027
Approvals
Ex Approvals
Approval details
UL Listed
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
63 V
16 A
14
E468743
cUL Listed
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
63 V
16 A
14
E468743
EAC
RU C-
DE.AI30.B.01102
cULus Listed
Accessories
Accessories
Protective cap
Sealing cap - PROT-M12 FS - 1560251
M12 sealing cap for unoccupied M12 plugs of the sensor/actuator cable, flush-type plugs and I/O devices in the field
Screwdriver tools
01/06/2019 Page 5 / 6
