5TT80: DescriptionElectric Fuse, Slow Blow, 0.08A, 250VAC, 100A (IR), Inline/holder,; CategoryCircuit protection Circuit protection; File Size92KB，2 Pages; ManufacturerBel Fuse

Download Datasheet Parametric Compare View All

5TT80 Overview

Electric Fuse, Slow Blow, 0.08A, 250VAC, 100A (IR), Inline/holder,

5TT80 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
ECCN code	EAR99
Fusing characteristics	SLOW
body height	20 mm
Body length or diameter	5.1 mm
Circuit protection type	ELECTRIC FUSE
Joule integral nominal
Installation features	INLINE/HOLDER
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
method of packing	BULK
physical size	5.1mm x 20mm
Rated breaking capacity	100 A
Rated current	0.08 A
Rated voltage (AC)	250 V
Guideline	CE; CSA; UL
surface mount	NO
Terminal surface	NICKEL
Terminal shape	END CAP
Base Number Matches	1

Preview

Download Datasheet

View All

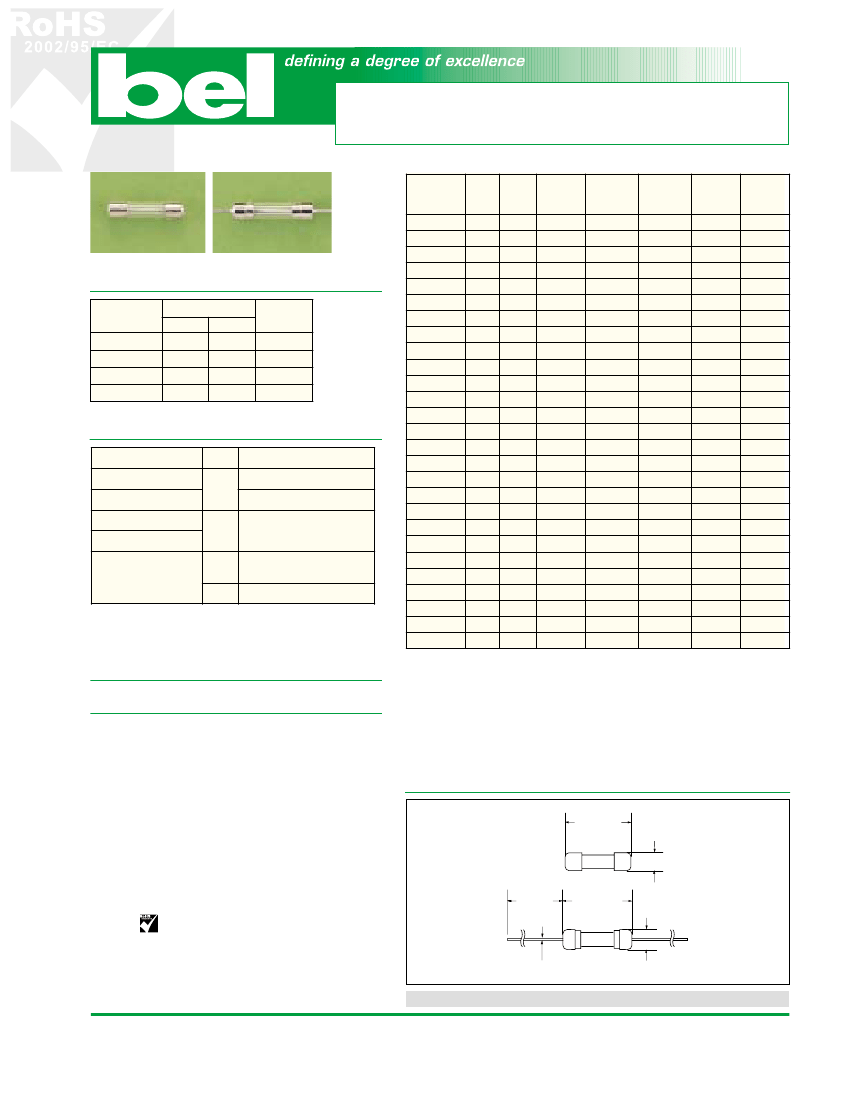

Type 5TT / 5TTP

5TTD0405

W5TTD0405-A

5 x 20mm Glass Tube

RoHS Compliant

Slow Blow Fuse Series

Catalog

Number

RoHS

Suffix

Ampere

Rating

Typical

Cold

Resistance

(ohm)

Volt-drop

@100%

(Volt) max.

Melting I

< 10 mSec

Sec)

Melting I

@10

Sec)

Maximum

Power

Dissipation

(W)

5TT (P) 80

5TT (P) 100

5TT (P) 125

5TT (P) 160

Electrical Characteristics

Testing current

100%

135%

200%

Blow Time

Minimum

Maximum

(UL/CSA STD. 248-14)

5TT (P) 200

5TT (P) 250

5TT (P) 300

5TT (P) 400

5TT (P) 500

5TT (P) 600

5TT (P) 700

5TT (P) 750

5TT (P) 1

5TT (P) 1.25

5TT (P) 1.5

5TT (P) 1.6

5TT (P) 2

5TT (P) 2.5

5TT (P) 3

5TT (P) 3.15

5TT (P) 4

5TT (P) 5

5TT (P) 6

5TT (P) 6.3

5TT (P) 7

5TT (P) 8

5TT (P) 10

Amp range

80mA - 10A

80mA - 3A

3.1A - 10A

4 Hrs.

N/A

5 sec

3 sec

N/A

1 Hr

30 sec

Approvals

Safety Agency Approvals

VrßSpc

Type

5TT / 5TTP

Amp range / Volt @ I.R. ability

50mA

- 3A / 250V AC @ 100A

50mA

- 8A / 125V AC @ 10,000A

Listed File No. E20624

Certified File No. LR39772

Recognized File No. E20624

5TT / 5TTP

Acceptance File No. LR39772

10A / 125V AC @ 1,000A

File No. JET1037-31003-1001,

5TT / 5TTP

JET1037-31003-1003

File No. JET1037-31003-1002

5TT

- 5A / 125V AC @ 500A

>5A

- 15A / 125V AC @ 300A

RoHS Compliant Product

For RoHS Compliant Version, add suffix “R” after catalog number

80mA

100mA

125mA

160mA

200mA

250mA

300mA

400mA

500mA

600mA

700mA

750mA

1.25A

1.5A

1.6A

2.5A

3.15A

6.3A

10A

22.2

15.0

10.2

6.9

4.7

3.2

2.1

1.4

1.0

0.66

0.55

0.49

0.30

0.21

0.15

0.14

0.09

0.06

0.04

0.038

0.029

0.020

0.015

0.013

0.011

0.009

0.006

3.3

2.8

2.3

2.0

1.7

1.4

1.2

1.0

0.86

0.73

0.67

0.64

0.52

0.44

0.34

0.37

0.32

0.27

0.23

0.22

0.19

0.16

0.14

0.13

0.12

0.11

0.09

0.14

0.21

0.31

0.48

0.72

1.09

1.6

2.5

3.8

4.6

5.2

8.6

103

157

180

218

264

319

467

0.10

0.15

0.22

0.34

0.51

0.78

1.18

1.8

2.7

4.2

5.1

5.8

9.6

119

180

260

317

387

472

703

0.42

0.45

0.48

0.51

0.55

0.58

0.62

0.66

0.70

0.75

0.78

0.79

0.85

0.91

0.96

0.97

1.03

1.10

1.17

1.25

1.33

1.40

1.41

1.46

1.51

1.61

Consult manufacturer for other ratings

Operating Temperature

-55ºC to +125ºC

Physical Specification

Materials

5A and less:

Glass body / Nickel Plated Brass Caps

Lead wire: Tin plated Copper, Diameter 0.032"

6A and above:

Ceramic body / Nickel Plated Brass Caps

Lead wire: Tin plated Copper, Diameter 0.040"

Marking

On fuse:

“bel”, “5TT”, “Current Rating”, “Voltage Rating”,

“Appropriate Safety Logos”, “✔” (RoHS Version)

On label:

“bel”, “5TT”or “5TTP”, “Current Rating”,“Voltage

Rating”, “Interrupting Rating”, “Appropriate Safety Logos”,

and “

”+ suffix “R” for RoHS Version

Voltage on fuse:

250V for 100mA to 3A; 125V for rating above 3A

Packaging

1. In bulk:

5TT

- 1,000 pcs per box;

5TTP

- 500 pcs per box

2. On Axial Tape & Reel:

1,500 pcs per reel

3.Tape & Reel specification:

per EIA-296-E & IEC 286-1@ 10mm Pitch and 63.5mm inside Tape Spacing

Mechanical Dimensions

Specifications subject to change without notice

5TT

0.787"

0.02"

(20

0.5mm)

0.20"

0.004"

(5.1

0.1mm)

5TTP

1.5"

0.08"

(38.1

2mm)

0.827"

0.02"

(21.0

0.5mm)

0.217"

0.004"

(5.5

0.1mm)

SEE LEAD SIZE LISTED IN “ MATERIAL”

ORDERING INFORMATION SEE PAGES 67 & 68

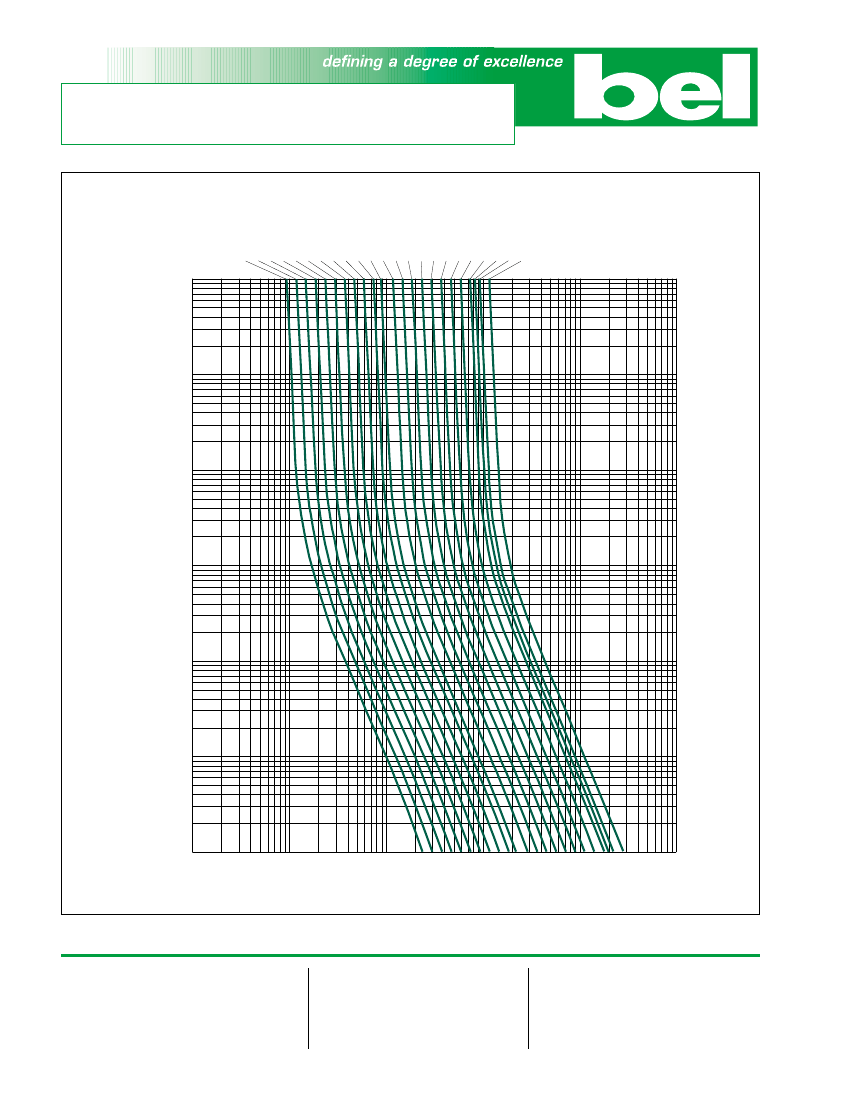

Bel Fuse Inc.

206 Van Vorst Street, Jersey City, NJ 07302 • Tel: 201-432-0463 • Fax: 201-432-9542 • E-Mail: belfuse@belfuse.com

Website: www.belfuse.com
