SF1141B-2
75.00 MHz
Pb
•
•
•
•
•
Designed for SDARS IF Receiver
Low Insertion Loss
5.0 X 7.0 mm Surface-Mount Case
Differential Input and Output
Complies with Directive 2002/95/EC (RoHS)
SAW Filter
Absolute Maximum Ratings
Rating
Maximum Incident Power in Passband
Max. DC voltage between any 2 terminals
Storage Temperature Range
Max Soldering Profile
Value
+10
30
-40 to +105
265°C for 10 s
Units
dBm
VDC
°C
SMP-03
Electrical Characteristics
Characteristic
Nominal Center Frequency
Passband
Sym
f
C
IL
BW
1
GDV
1, 2, 3
T
A
1
40
30
-40
Notes
1
±6.35
1, 2
75
45
36
Min
Typ
75.000
12.5
±7.43
Max
16.0
1.5
200
Units
MHz
dB
MHz
dB
P-P
ns
P-P
dB
+105
250 ohms

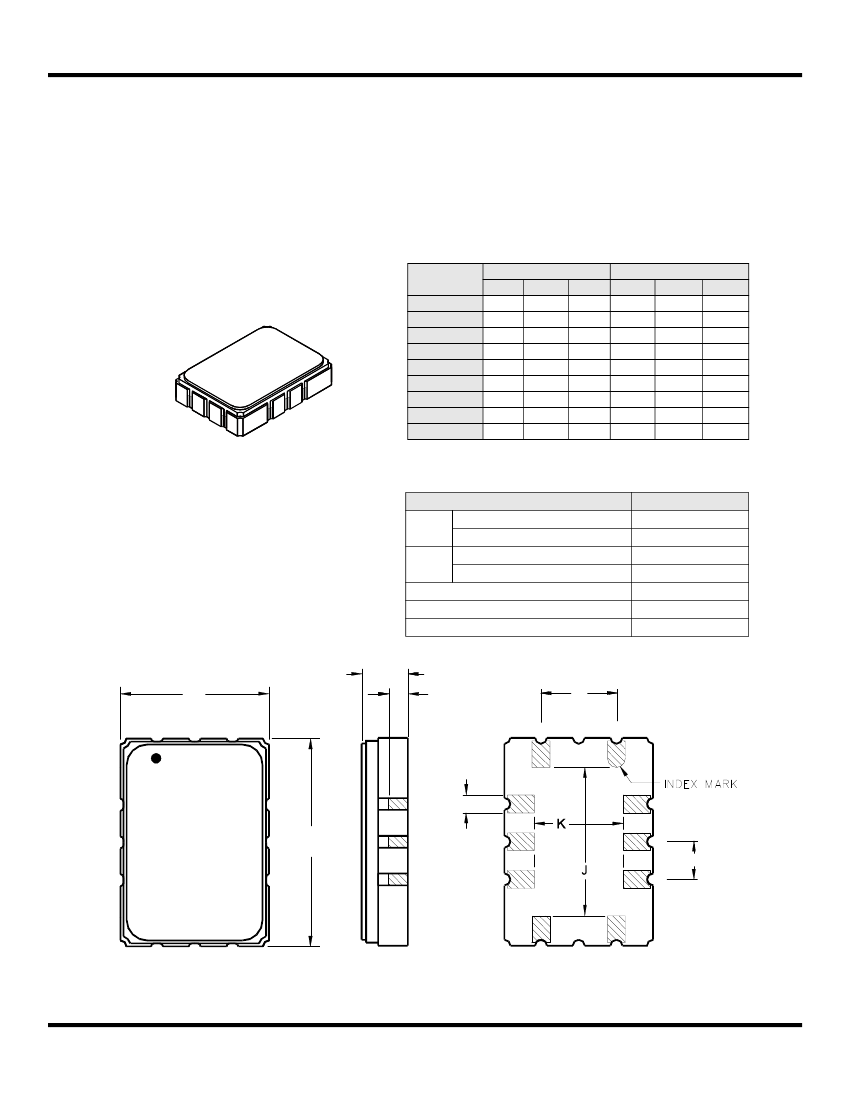

SMP-03 7 x 5 mm Nominal Footprint
RFM SF1141B-2 YYWWS
°C
Insertion Loss at fc
1dB Passband
Fast Amplitude Ripple over fc ±6.35 MHz
Group Delay Variation over fc ±6.35 MHz
Rejection
fc-18.8 to fc-10.95 and FC+18.8 to FC+100 MHz
fc+10.95 to fc+18.8 MHz
Operating Temperature Range
Differential Input and Output Impedance
Case Style
Lid Symbolization (YY=year, WW=week, S=shift) See note 4
6
Electrical Connections
Connection
Port 1 Hot
Port 1 Ground Return
Port 2 Hot
Port 2 Ground Return
Case Ground
Terminals
10
1
5
6
All Others
Notes:
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
Unless noted otherwise, all specifications apply over the operating temperature range with filter soldered to the specified demonstration board with impedance matching to
50
Ω
and measured with 50
Ω
network analyzer.
Unless noted otherwise, all frequency specifications are referenced to the nominal center frequency, fc.
Rejection is measured as attenuation below the minimum IL point in the passband. Rejection in final user application is dependent on PCB layout and external impedance
matching design. See Application Note No. 42 for details.
"LRIP" or "L" after the part number indicates "low rate initial production" and "ENG" or "E" indicates "engineering prototypes."
The design, manufacturing process, and specifications of this filter are subject to change.

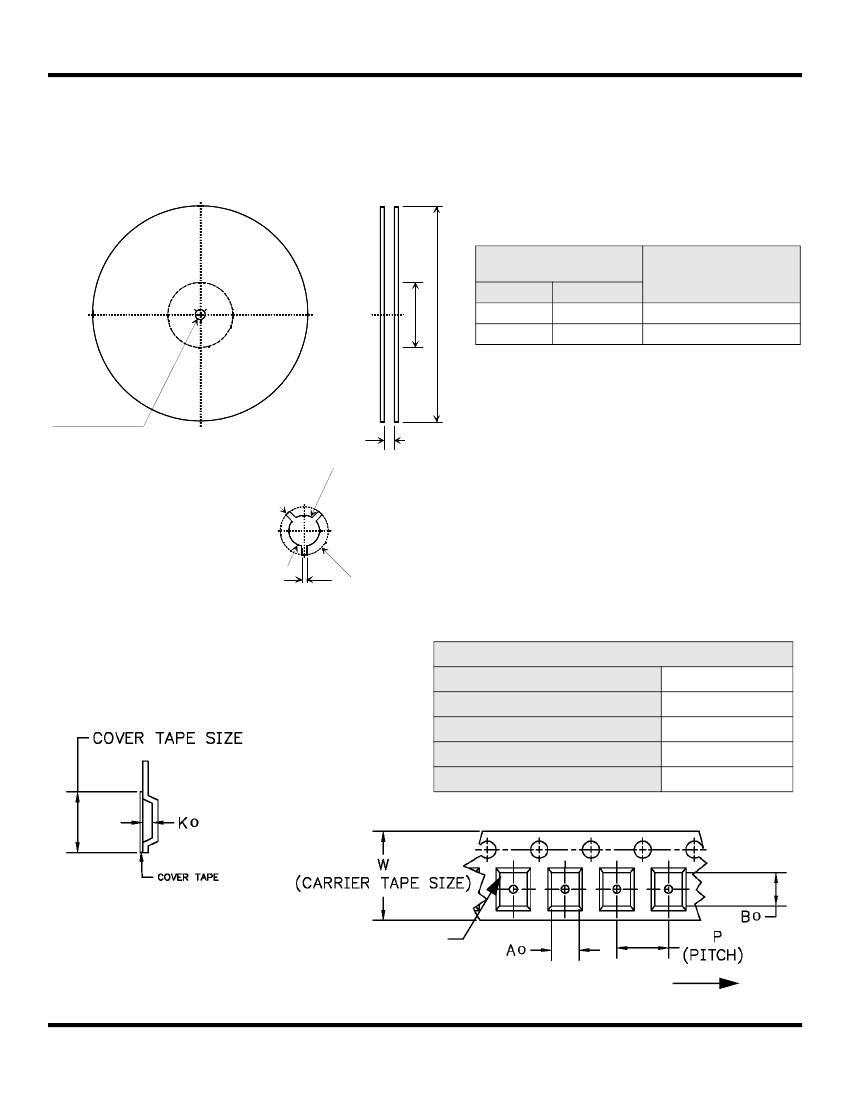

Tape and Reel Standard ANSI / EIA 481.
Either Port 1 or Port 2 may be used for either input or output in the design. However, impedances and impedance matching may vary between Port 1 and Port 2, so that
the filter must always be installed in one direction per the circuit design.
US and international patents may apply.
RFM, stylized RFM logo, and RF Monolithics, Inc. are registered trademarks of RF Monolithics, Inc.
©Copyright 1999, RF Monolithics Inc.
Electrostatic Sensitive Device. Observe precautions for handling.
RF Monolithics, Inc.
Phone: (972) 233-2903
Fax: (972) 387-8148
RFM Europe
Phone: 44 1963 251383
Fax: 44 1963 251510
©1999 by RF Monolithics, Inc. The stylized RFM logo are registered trademarks of RF Monolithics, Inc.
E-mail: info@rfm.com
http://www.rfm.com
SF1141B-2-012606-Ver1.1
