Features
•
•
•
Industry's first TotalCMOS™ PLD - both CMOS design
and process technologies
Fast Zero Power (FZP™) design technique provides
ultra-low power and very high speed
3V, In-System Programmable (ISP) using a JTAG
interface
- On-chip supervoltage generation
- ISP commands include: Enable, Erase, Program,
Verify
- Supported by multiple ISP programming platforms
- 4-pin JTAG interface (TCK, TMS, TDI, TDO)
- JTAG commands include: Bypass, Idcode
High-speed pin-to-pin delays of 7.5 ns
Ultra-low static power of less than 100
µA
5V tolerant I/Os to support mixed voltage systems
100% routable with 100% utilization while all pins and
all macrocells are fixed
Deterministic timing model that is extremely simple to
use
Up to 20 clocks available
Support for complex asynchronous clocking
Innovative XPLA™ architecture combines high-speed
with extreme flexibility
1000 erase/program cycles guaranteed
20 years data retention guaranteed
Logic expandable to 37 product terms
Advanced 0.35µ E
2
CMOS process
Security bit prevents unauthorized access
Design entry and verification using industry standard
and Xilinx CAE tools
Reprogrammable using industry standard device
programmers
Innovative Control Term structure provides either sum
terms or product terms in each logic block for:
- Programmable 3-state buffer
- Asynchronous macrocell register preset/reset
- Up to two, asynchronous clocks
Programmable global 3-state pin facilitates "bed of
nails" testing without using logic resources
Available in TQFP and VQFP packages
Available in both commercial and industrial grades
Industrial grade operates from 2.7V to 3.6V
Description
The XCR3128A CPLD (Complex Programmable Logic
Device) is a member of the CoolRunner
®
family of CPLDs
from Xilinx. These devices combine high speed and zero
power in a 128 macrocell CPLD. With the FZP design tech-
nique, the XCR3128A offers true pin-to-pin speeds of 7.5
ns, while simultaneously delivering power that is less than
100
µA
at standby without the need for ‘turbo bits' or other
power-down schemes. By replacing conventional sense
amplifier methods for implementing product terms (a tech-
nique that has been used in PLDs since the bipolar era)
with a cascaded chain of pure CMOS gates, the dynamic
power is also substantially lower than any competing
CPLD. These devices are the first TotalCMOS PLDs, as
they use both a CMOS process technology
and
the pat-
ented full CMOS FZP design technique.
The Xilinx FZP CPLDs utilize the patented XPLA
(eXtended Programmable Logic Array) architecture. The
XPLA architecture combines the best features of both PLA
and PAL type structures to deliver high-speed and flexible
logic allocation that results in superior ability to make
design changes with fixed pinouts. The XPLA structure in
each logic block provides a fast 7.5 ns PAL path with five
dedicated product terms per output. This PAL path is joined
by an additional PLA structure that deploys a pool of 32
product terms to a fully programmable OR array that can
allocate the PLA product terms to any output in the logic
block. This combination allows logic to be allocated effi-
ciently throughout the logic block and supports as many as
37 product terms on an output. The speed with which logic
is allocated from the PLA array to an output is only 1.5 ns,
regardless of the number of PLA product terms used, which
results in worst case t
PD
's of only 9 ns from any pin to any
other pin. In addition, logic that is common to multiple out-
puts can be placed on a single PLA product term and
shared across multiple outputs via the OR array, effectively
increasing design density.
The XCR3128A CPLDs are supported by industry standard
CAE tools (Cadence/OrCAD, Exemplar Logic, Mentor, Syn-
opsys, Synario, Viewlogic, and Synplicity), using text
(ABEL, VHDL, Verilog) and/or schematic entry. Design ver-
ification uses industry standard simulators for functional
and timing simulation. Development is supported on per-
sonal computer, Sparc, and HP platforms. Device fitting
uses a Xilinx developed tool, XPLA Professional (available
on the Xilinx web site).
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
DS035 (v1.2) August 10, 2000
www.xilinx.com
1-800-255-7778
1
R
XCR3128A: 128 Macrocell CPLD with Enhanced Clocking
The XCR3128A CPLD is electrically reprogrammable using
industry standard device programmers from vendors such
as Data I/O, BP Microsystems, SMS, and others. The
XCR3128A also includes an industry-standard, IEEE
1149.1, JTAG interface through which In-System Program-
ming (ISP) and reprogramming of the device are sup-
ported.
Logic Block Architecture
Figure 2
illustrates the logic block architecture. Each logic
block contains control terms, a PAL array, a PLA array, and
16 macrocells. The six control terms can individually be
configured as either SUM or PRODUCT terms, and are
used to control the preset/reset and output enables of the
16 macrocells’ flip-flops. In addition, two of the control
terms can be used as clock signals (see Macrocell Archi-
tecture section for details). The PAL array consists of a pro-
grammable AND array with a fixed OR array, while the PLA
array consists of a programmable AND array with a pro-
grammable OR array. The PAL array provides a high speed
path through the array, while the PLA array provides
increased product term density.
Each macrocell has five dedicated product terms from the
PAL array. The pin-to-pin t
PD
of the XCR3128A device
through the PAL array is 7.5 ns. If a macrocell needs more
than five product terms, it simply gets the additional product
terms from the PLA array. The PLA array consists of 32
product terms, which are available for use by all 16 macro-
cells. The additional propagation delay incurred by a mac-
rocell using one or all 32 PLA product terms is just 1.5 ns.
So the total pin-to-pin t
PD
for the XCR3128A using six to 37
product terms is 9 ns (7.5 ns for the PAL + 1.5 ns for the
PLA).
XPLA Architecture
Figure 1
shows a high-level block diagram of a 128 macro-
cell device implementing the XPLA architecture. The XPLA
architecture consists of logic blocks that are interconnected
by a zero-power Interconnect Array (ZIA). The ZIA is a vir-
tual crosspoint switch. Each logic block is essentially a
36V16 device with 36 inputs from the ZIA and 16 macro-
cells. Each logic block also provides 32 ZIA feedback paths
from the macrocells and I/O pins.
From this point of view, this architecture looks like many
other CPLD architectures. What makes the CoolRunner
family unique is what is inside each logic block and the
design technique used to implement these logic blocks.
The contents of the logic block will be described next.
MC0
MC1
I/O
MC15
16
16
16
16
LOGIC
BLOCK
36
36
LOGIC
BLOCK
MC0
MC1
I/O
MC15
MC0
MC1
I/O
MC15
16
16
ZIA
LOGIC
BLOCK
36
36
LOGIC
BLOCK
16
16
LOGIC
BLOCK
36
36
LOGIC
BLOCK
MC0
MC1
I/O
MC15
MC0
MC1
I/O
MC15
16
16
MC0
MC1
I/O
MC15
16
16
MC0
MC1
I/O
MC15
16
16
16
16
LOGIC
BLOCK
36
36
LOGIC
BLOCK
MC0
MC1
I/O
MC15
SP00464
Figure 1: Xilinx XPLA CPLD Architecture
DS035 (v1.2) August 10, 2000
www.xilinx.com
1-800-255-7778
2
R
XCR3128A: 128 Macrocell CPLD with Enhanced Clocking
36 ZIA INPUTS
CONTROL
5
6
PAL
ARRAY
PLA
ARRAY
(32)
SP00435A

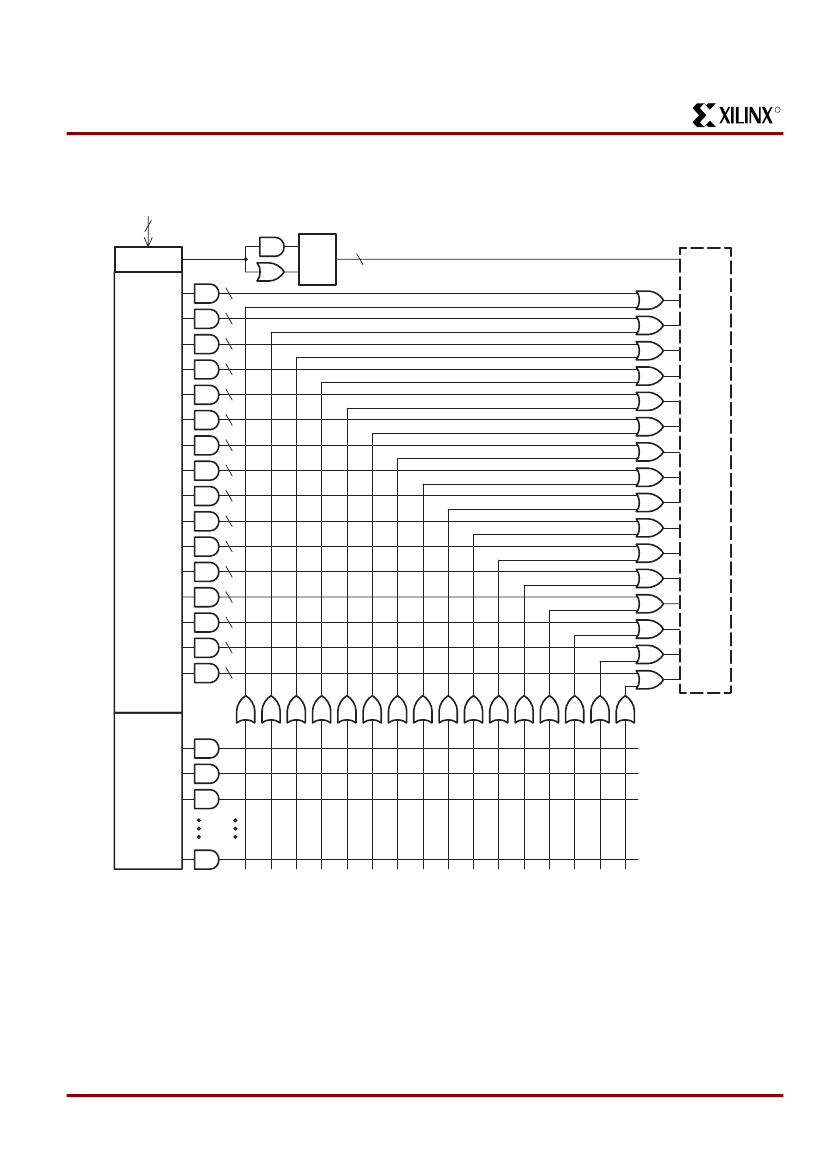

Figure 2: Xilinx XPLA Logic Block Architecture
3
www.xilinx.com
1-800-255-7778
DS035 (v1.2) August 10, 2000
TO 16 MACROCELLS
R
XCR3128A: 128 Macrocell CPLD with Enhanced Clocking
Macrocell Architecture
Figure 3
shows the architecture of the macrocell used in
the CoolRunner XCR3128A. The macrocell can be config-
ured as either a D- or T-type flip-flop or a combinatorial logic
function. A D-type flip-flop is generally more useful for
implementing state machines and data buffering while a
T-type flip-flop is generally more useful in implementing
counters. Each of these flip-flops can be clocked from any
one of six sources. Four of the clock sources (CLK0, CLK1,
CLK2, CLK3) are connected to low-skew, device-wide clock
networks designed to preserve the integrity of the clock sig-
nal by reducing skew between rising and falling edges.
Clock 0 (CLK0) is designated as a "synchronous" clock and
must be driven by an external source. Clock 1 (CLK1),
Clock 2 (CLK2), and Clock 3 (CLK3) can be used as "syn-
chronous" clocks that are driven by an external source, or
as "asynchronous" clocks that are driven by a macrocell
equation. CLK0, CLK1, CLK2, and CLK3 can clock the
macrocell flip-flops on either the rising edge or the falling
edge of the clock signal. The other clock sources are two of
the six control terms (CT2 and CT3) provided in each logic
block. These clocks can be individually configured as either
a PRODUCT term or SUM term equation created from the
36 signals available inside the logic block. The timing for
asynchronous and control term clocks is different in that the
t
CO
time is extended by the amount of time that it takes for
the signal to propagate through the array and reach the
clock network, and the t
SU
time is reduced.
The six control terms of each logic block are used to control
the asynchronous Preset/Reset of the flip-flops and the
enable/disable of the output buffers in each macrocell. Con-
trol terms CT0 and CT1 are used to control the asynchro-
nous Preset/Reset of the macrocell’s flip-flop. Note that the
Power-on Reset leaves all macrocells in the "zero" state
when power is properly applied, and that the Preset/Reset
feature for each macrocell can also be disabled. Control
terms CT2 and CT3 can be used as a clock signal to the
flip-flops of the macrocells, and as the Output Enable of the
macrocell’s output buffer. Control terms CT4 and CT5 can
be used to control the Output Enable of the macrocell’s out-
put buffer. Having four dedicated Output Enable control
terms ensures that the CoolRunner devices are PCI com-
pliant. The output buffers can also be always enabled or
always disabled. All CoolRunner devices also provide a
Global 3-state (GTS) pin, which, when enabled and pulled
Low, will 3-state all the outputs of the device. This pin is
provided to support "In-Circuit Testing" or "Bed-of-Nails"
testing.
There are two feedback paths to the ZIA: one from the mac-
rocell, and one from the I/O pin. The ZIA feedback path
before the output buffer is the macrocell feedback path,
while the ZIA feedback path after the output buffer is the I/O
pin feedback path. When the macrocell is used as an out-
put, the output buffer is enabled, and the macrocell feed-
back path can be used to feedback the logic implemented
in the macrocell. When the I/O pin is used as an input, the
output buffer will be 3-stated and the input signal will be fed
into the ZIA via the I/O feedback path, and the logic imple-
mented in the buried macrocell can be fed back to the ZIA
via the macrocell feedback path. It should be noted that
unused inputs or I/Os should be properly terminated (see
the section on Terminations in this data sheet and the appli-
cation note
Terminating Unused I/O Pins in Xilinx XPLA1
and XPLA2 CoolRunner CPLDs.
TO ZIA
PAL
PLA
D/T
INIT
(P or R)
CT0
CT1
GND
Q
CLK0
CLK0
CLK1
CLK1
CLK2
CLK2
CLK3
CLK3
GTS
GND
CT4
CT5
V CC
GND
CT2
CT3
SP00558
Figure 3: XCR3128A Macrocell Architecture
DS035 (v1.2) August 10, 2000
www.xilinx.com
1-800-255-7778
4
R
XCR3128A: 128 Macrocell CPLD with Enhanced Clocking
Simple Timing Model
Figure 4
shows the CoolRunner Timing Model. The Cool-
Runner timing model looks very much like a 22V10 timing
model in that there are three main timing parameters,
including t
PD
, t
SU
, and t
CO
. In other competing architec-
tures, the user may be able to fit the design into the CPLD,
but is not sure whether system timing requirements can be
met until after the design has been fit into the device. This is
because the timing models of competing architectures are
very complex and include such things as timing dependen-
cies on the number of parallel expanders borrowed, shar-
able expanders, varying number of X and Y routing
channels used, etc. In the XPLA architecture, the user
knows up front whether the design will meet system timing
requirements. This is due to the simplicity of the timing
model.
INPUT PIN
t
PD_PAL
= COMBINATORIAL PAL ONLY
t
PD_PLA
= COMBINATORIAL PAL + PLA
OUTPUT PIN
INPUT PIN
REGISTERED
t
SU_PAL
= PAL ONLY
t
SU_PLA
= PAL + PLA
D
Q
REGISTERED
t
CO
OUTPUT PIN
GLOBAL CLOCK PIN
SP00553
Figure 4: CoolRunner Timing Model
5
www.xilinx.com
1-800-255-7778
DS035 (v1.2) August 10, 2000
京公网安备 11010802033920号
EEWORLD
