ZWS30-12/JA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> ZWS30-12/JA

ZWS30-12/JA: Descriptionswitching power supplies 30w 12v 2.5A; CategoryPower/power management; File Size462KB，2 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com; Environmental Compliance

Download Datasheet Parametric View All

ZWS30-12/JA Overview

switching power supplies 30w 12v 2.5A

ZWS30-12/JA Parametric

Parameter Name	Attribute value
Manufacture	TDK-Lambd
Product Category	Switching Power Supplies
RoHS	Yes
Produc	Switching Supplies
Open Frame/Enclosed	Open Frame
Output Power Rating	30 W
Input Voltage	85 VAC to 265 VAC
Number of Outputs	1 Outpu
Output Voltage-Channel 1	12 V
Output Current-Channel 1	2.5 A
Commercial/Medical	Commercial
Approvals	UL60950-1, EN60950-1
Unit Weigh	12 g

Preview

Download Datasheet

View All

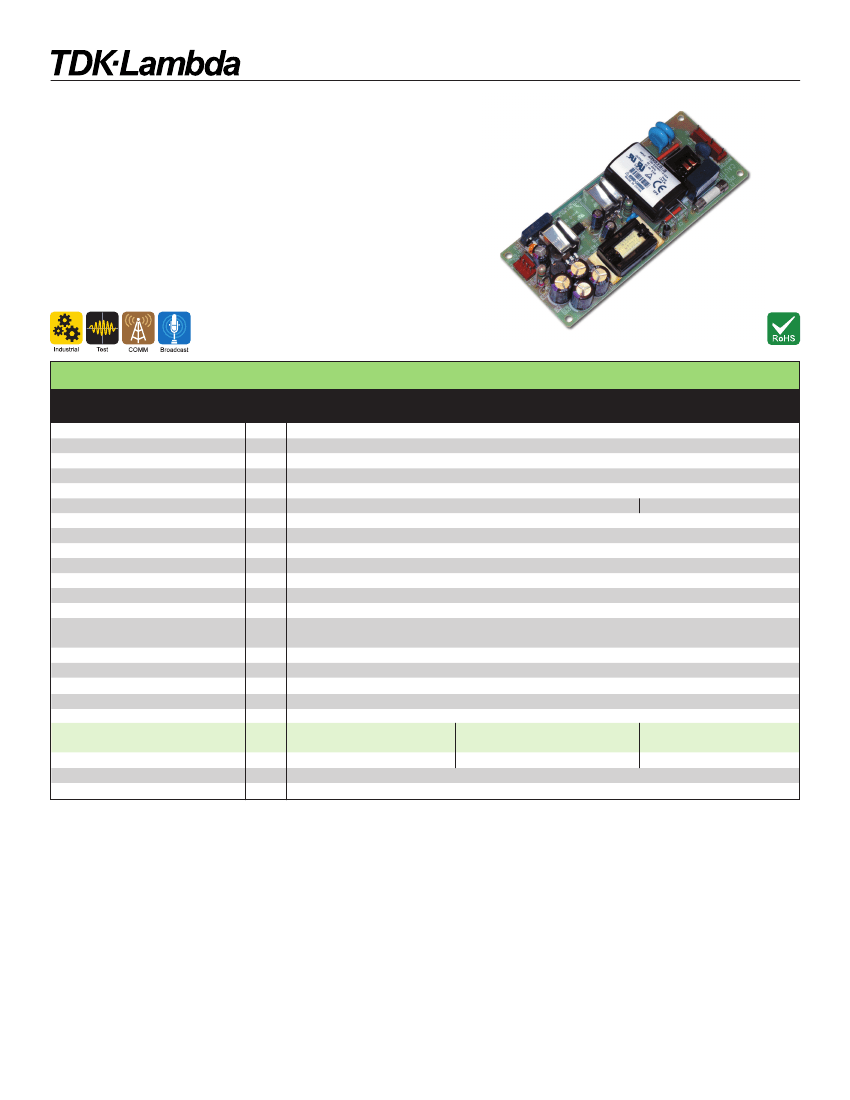

ZWS Series

Single Output, 3.3W to 50W Power Supplies

Features

Universal Input (85 - 265VAC)

Input transient protected

2 year warranty

High quality design

Peak Power capability

Key Market Segments & Applications

Speciﬁcations

Model

AC Input Voltage range

DC Input Voltage range

Inrush Current (100/200VAC) (1)

Temperature Coefﬁcient

Overcurrent Protection (2)

Overvoltage Protection

Hold Up Time (Typ) @ 100VAC

Remote Sense

Operating Temperature

Storage Temperature

Humidity (non condensing)

Cooling

Withstand Voltage

Isolation Resistance

Vibration (non operating)

Shock

Safety Agency Approvals

Conducted & Radiated

Recommended EMI Filter

Weight (Typ)

Size (WxHxD)

Warranty

°C

yrs

ZWS15

ZWS50

ZWS30

85-265VAC (47-440Hz)

110 - 330VDC

15 / 30

<0.02%/ºC

~125%

~140% diode clamp

~115 - 130%, manual reset

None

(open frame) -10ºC~+60ºC, derate linearly to 70% load from 50ºC~60ºC

(with cover) Additional derating applies, please consult Installation Manual

-30 to +85ºC

10 - 95% RH

Convection

Input to Ground 2kVAC (20mA), Input to Output 3kVAC (20mA),

Output to Ground 500VAC (100mA) for 1 min.

>100M at 25°C & 70%RH, Output to Ground 500VDC

10 - 55Hz (1 minute sweep), 19.6m/s

constant X, Y, Z 1 hour

< 196.1 m/s

UL60950-1, CSA60950-1, EN60950-1, CE Mark

EN55022-B, FCC Class B, VCCI-B

RSEL-20R5W

RSEL-2001W

RSEL-2002W

120/120

140/270

370

See Outline Drawings

2 years

ZWS5

ZWS10

Notes:

(1) 25°C ambient (cold start)

(2) Avoid prolonged operartion in overload

1-800-526-2324 • www.us.tdk-lambda.com/lp/

113

Disclaimer: us.tdk-lambda.com/lp/legal.htm
