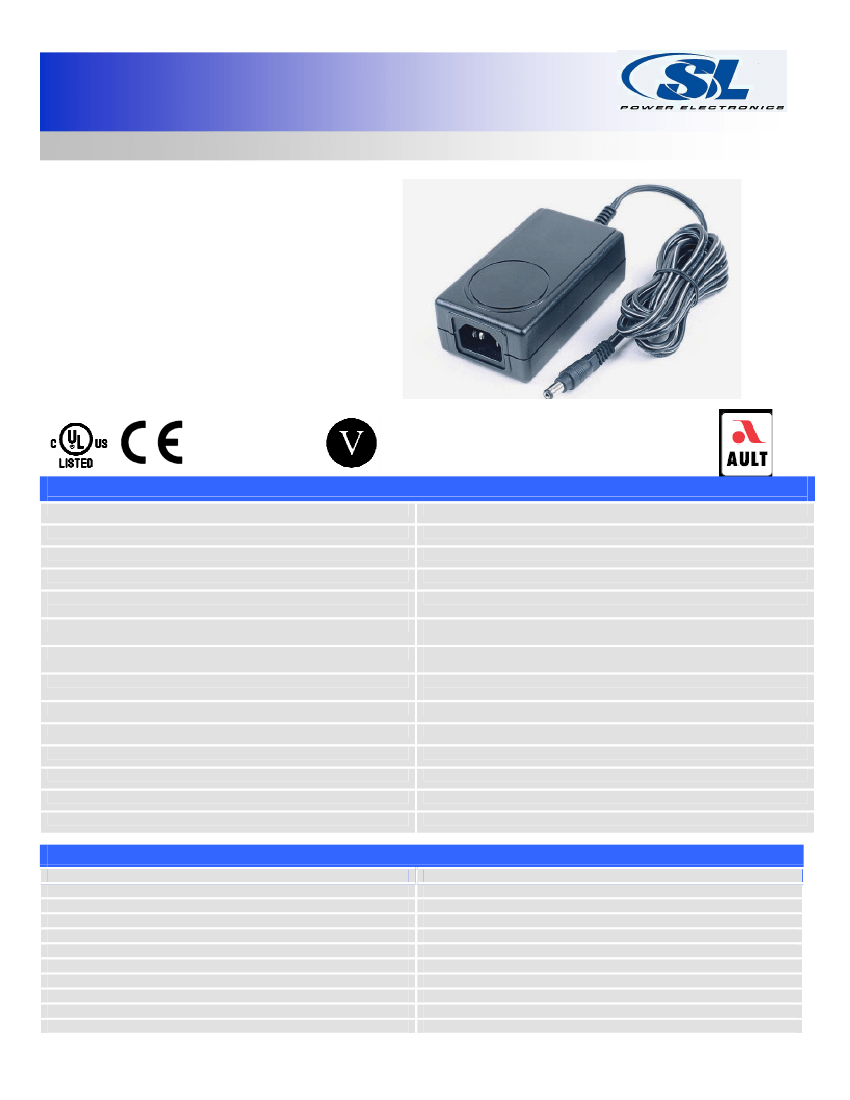

CENB1040
Universal 40 Watt Series
ITE Switch-Mode Power Supply
•
100-240VAC Universal Input
•
Meets EISA2007, CEC Efficiency Level V,
3 Year Warranty
EU (EC) No 278/2009 Phase II
•
Desktop Style
•
Limited Power Source
•
Certified to UL/EN60950-1, 2nd Edition
•
5V to 48V Single Output Models, up to 40W
•
Modified and Custom Designs Available
•
Regulated Output with Low Ripple
•
No Load Power Consumption <0.3W
•
Impact-Resistant Polycarbonate Enclosure
RoHS
Specifications
AC Input
Input Current
Inrush Current
Input Fuse
Efficiency
Output Voltage
Output Power
Ripple and Noise
Line & Load Voltage Regulation
Transient Response
Minimum Load
Case Material
Case Dimensions
Weight
LPS
All Specifications are typical at nominal input, full load at 25
°
C unless otherwise stated.
MTBF
Hold-up Time
Overload Protection
Short Circuit Protection
Topology
Safety Standards
EMC
Dielectric Withstand
Operating Temperature
Storage Temperature
Relative Humidity
Altitude
Output Cable
Output Connector
>100,000 hours (calculated)
18 ms min. @ 115Vac, 60 ms @ 230 Vac
Hiccup Mode
Hiccup Mode
Switching – Fixed Frequency Flyback
EN/IEC/CSA/UL60950-1, 2
nd
Edition, LPS
See chart below
Input-Output: 4,242Vdc
Input-GND: 1,500 Vac, Output-GND: 500Vdc
0° to 40°C, no derating
-30 to +85°C
5% to 95%, non-condensing
0 to 10,000 ft
#18AWG
(UL1185), 1,500mm, 2 conductor
2.5mm barrel type (Ault #3), center positive (+)
100VAC: 1.1A
100-240VAC, -/-10%, 47-63 Hz, 1∅
60 A peak, 264 V, cold start
3.15A, 250V Internal Primary Current Fuse is provided
Meets EISA2007, CEC Efficiency Level V,
EU (EC) No 278/2009 Phase II
See chart
See chart
1% pk-pk max., 20MHz BW
Line: +/- 1%, Load: +/-5%
500µs max., 50% load step, typical
Not required
Black 94V0 Polycarbonate
102 x 60 x 32mm. See outline drawing
250g
EMC Specifications
Conducted Emissions
Radiated Emissions
Line Frequency Harmonics
Voltage Fluctuations/Flicker
Static Discharge Immunity
Radiated RF Immunity
EFT/Burst Immunity
Line Surge Immunity
Conducted RF Immunity
Power Frequency Magnetic Field Immunity
Voltage Dip Immunity
EN55022 Class B, FCC Part 15, Class B.
EN55022 Class B, FCC Part 15, Class B.
EN61000-3-2, Class A
EN61000-3-3
EN61000-4-2, 6kV Contact Discharge, 8kV air discharge
EN61000-4-3, 3V/m.
EN61000-4-4, 2kV/5kHz.
EN61000-4-5, 1kV differential, 2kV common-mode
EN61000-4-6, 3Vrms
EN61000-4-8, 3A/m
EN61000-4-11, Criteria B
______________________________________________________________________________________________________________________________
1 of 2
SL Power Electronics Corp
•
6050 King Drive Ventura, CA 93003
•
Phone 805.486.4565
•
Fax 858.712.2040
•
Email: info@slpower.com
•
www.slpower.com
CENB1040
Universal 40 Watt Series
ITE Switch Mode Power Supply
Model Number
Volts (V)
Output Current (max)
3 Year Warranty
Max Watts
Ripple (Vp-p max)
CENB1040A0503F01
5V
5.00 A
25.0 W
50mV
CENB1040A0903F01
9V
4.00 A
36.0 W
90mV
CENB1040A1203F01
12 V
3.40 A
40.8 W
120mV
CENB1040A1503F01
15 V
2.76 A
40.5 W
150mV
CENB1040A1803F01
18 V
2.20 A
39.6 W
180mV
CENB1040A2403F01
24 V
1.70 A
40.8 W
240mV
CENB1040A4803F01
48 V
0.83 A
39.8 W
480mV
Notes: Part numbers above include #3 output connector and IEC320 C14 grounded input receptacle. See below for other options.
Model Number Key
CENB 1 040 A VV 03 F 01
Model
Input Connector:
Output Connector:
Output Voltage:
Model
Output Pow er:
# of Outputs
Product Fam ily:
"01" = Standard. "02" and higher indicates a m odified m odel.
"F" = IEC320 C14 grounded, Other options available, see next page.
"03" = 2.5m m Barrel Type Connector. Other options available, contact factory.
"05" = 5Vdc, "12" = 12Vdc, "24" = 24Vdc, etc.
"A" = Original Configuration
"040" = 40 Watts
"1" = Single Output
"C" = Com m ercial/ITE/Industrial, "E" = External, "NB" = Model Series Designator
Input Receptacle Options
Output Connector
IEC320 - C14
IEC320 - C18
Class I
Class II
Grounded (F)
Ungro unde d ( Q )
IEC320 - C8
Class II
"Shaver" (N)

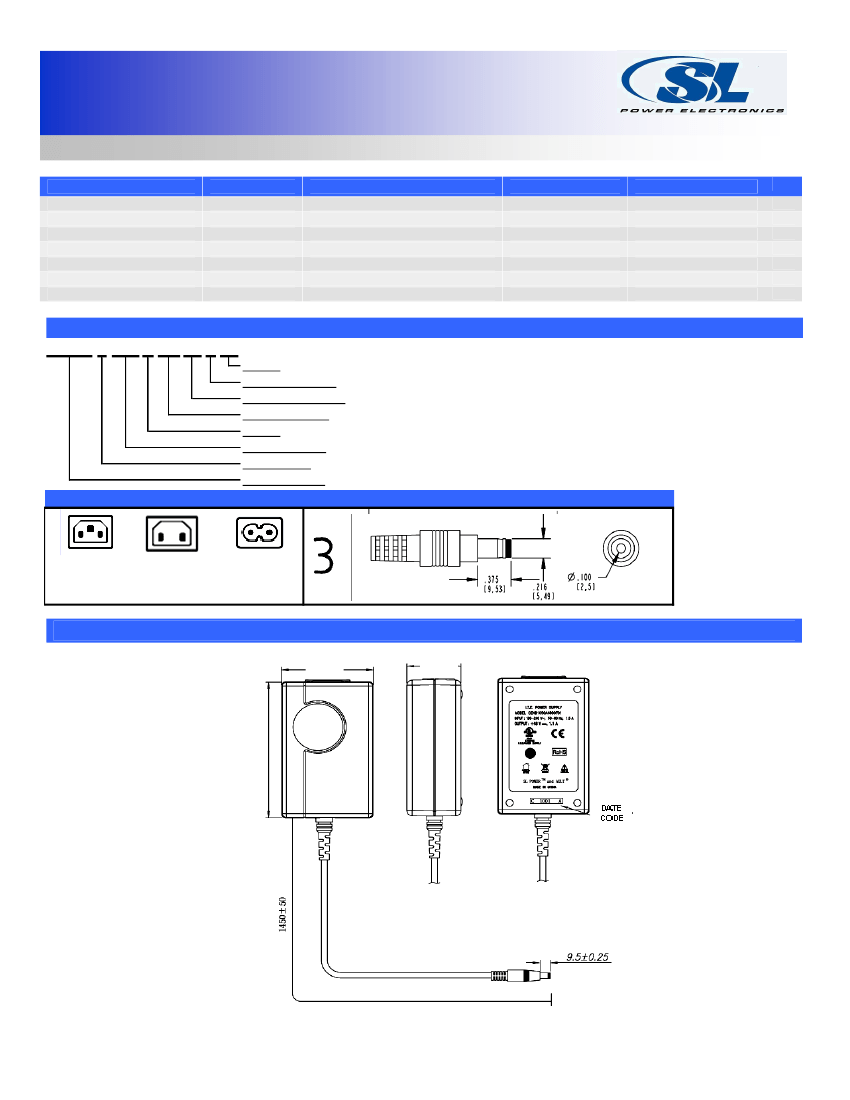

Outline Drawing
61
34
101
Dimensions are in mm
Data Sheet © 2010 SL Power Electronics Corp. The information and specifications contained herein are believed to be correct at the time of publication.
Rev. 12-22-2010
However, SL Power accepts no responsibility for consequences arising from reproduction errors or inaccuracies. Specifications are subject to change without notice.
______________________________________________________________________________________________________________________________
2 of 2
