In-Series RF Adapters
50 Ohm Type N, TNC, BNC, SMA

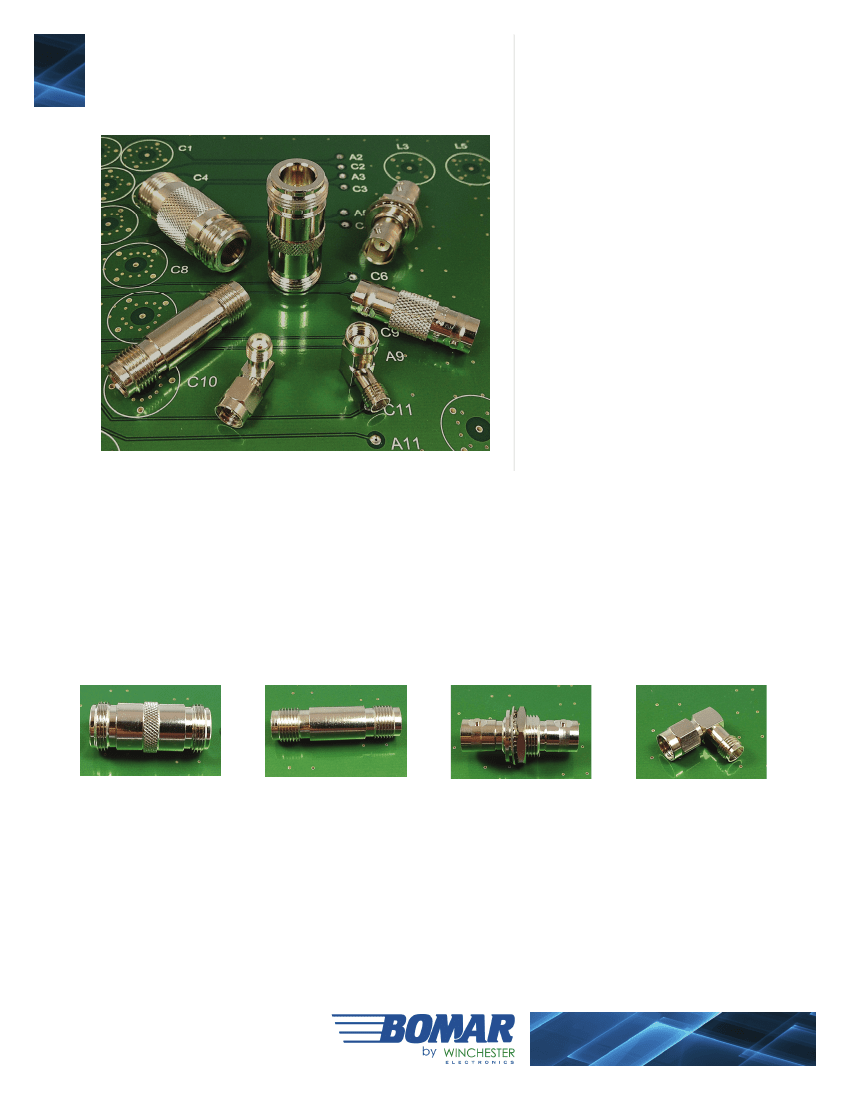

Product Description
Winchester’s Bomar brand of 50 Ohm
In-Series RF Adapters are available in all
popular RF Connector interfaces including
Type N, TNC, BNC, and SMA.
In-Series RF Adapters can be used as
“connector savers” to prevent wear-and-
tear on equipment connectors, to join
together two cable connectors of the same
gender, or to be installed in break-out
panels in a cabling installation.
In-Series Adapters are available in Inline,
Bulkhead, Isolated Bulkhead, Right-Angle,
and 3-port “T” configurations. In-Series
Adapters are also available in 75 Ohm,
and customer designs are available upon
request.
Type N
In-Series Adapters
TNC
In-Series Adapters
BNC
In-Series Adapters
SMA
In-Series Adapters
CONNECTING INNOVATION TO APPLICATION
®
Specifications
Electrical
Impedance:
Frequency Range:
Working Voltage:
Dielectric
Withstanding Voltage:
VSWR:
Contact Resistance:
Insulation Resistance:
Insertion Loss:
50Ω Ohms
50Ω DC – 1 GHz
500 VRMS at Sea Level
1500 VRMS at Sea Level
Consult Series Specifications
Center Contact:
≤
3 Milliohms
5000 Megohms Min
0.2 dB Max
Material
Bodies:
Female Contact:
Insulator:
Nickel / Gold (see table)
Beryllium Copper
Gold Plated
PTFE
Mechanica
l
Mating Cycles:
Center Contact:
500 Min
Captivated
Environmenta
l
Temperature Range:
- 40˚ C to +165˚ C
Part Numbers
Interface
BNC
BNC
BNC
BNC
BNC
SMA
SMA
SMA
SMA
TNC
TNC
TNC
TNC
TNC
TNC
Type N
Type N
Type N
Type N
Type N
Type N
Bomar Part Number
343A505
332A505
330A505
335A544
335R544
930A524
932A524
935A505
951A505
532A505
535A544
535R544
543A505
545A505
551A505
132A505
143A505
145A505
151A505
130A5011
132A5011
In-Series Adapter Description
“T” Adapter, Jack-Plug-Jack
Jack to Jack, Inline
Plug to Plug, Inline
Jack to Jack, Bulkhead
Jack to Jack, Bulkhead, Isolated Ground
Plug to Plug, Inline
Jack to Jack, Inline
Jack to Jack, Bulkhead
Plug to Jack, Right-Angle
Jack to Jack, Inline
Jack to Jack, Bulkhead
Jack to Jack, Bulkhead, Isolated
“T” Adapter, Jack-Plug-Jack
“T” Adapter, Jack-Jack-Jack
Plug to Jack, Right-Angle
Jack to Jack, Inline
“T” Adapter, Jack-Plug-Jack
“T” Adapter, Jack-Jack-Jack
Plug to Jack, Right Angle
Plug to Plug, Inline
Jack to Jack, Inline
Impedance
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
Body Material
Nickel / Gold
Nickel / Gold
Nickel / Gold
Nickel / Gold
Nickel / Gold
Gold / Gold
Gold / Gold
Gold / Gold
Gold / Gold
Nickel / Gold
Nickel / Gold
Nickel / Gold
Nickel / Gold
Nickel / Gold
Nickel / Gold
Nickel / Gold
Nickel / Gold
Nickel / Gold
Nickel / Gold
Tri Metal / Gold
Tri Metal / Gold
Drawing Number
SD343A505
SD332A505
SD330A505
SD335A544
SD335R544
SD930A524
SD932A524
SD935A505
SD951A505
SD532A505
SD535A544
SD535R544
SD543A505
SD545A505
SD551A505
SD132A505
SD143A505
SD145A505
SD151A505
SD130A5011
SD132A5011
