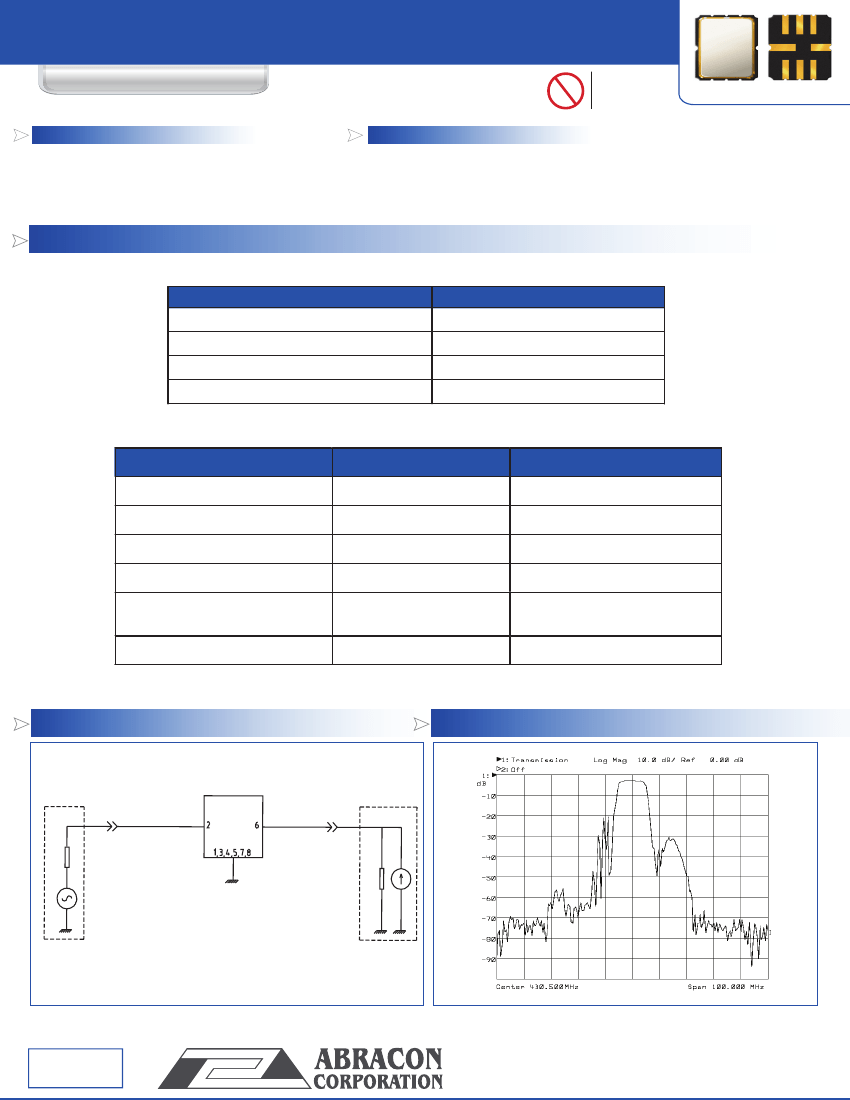

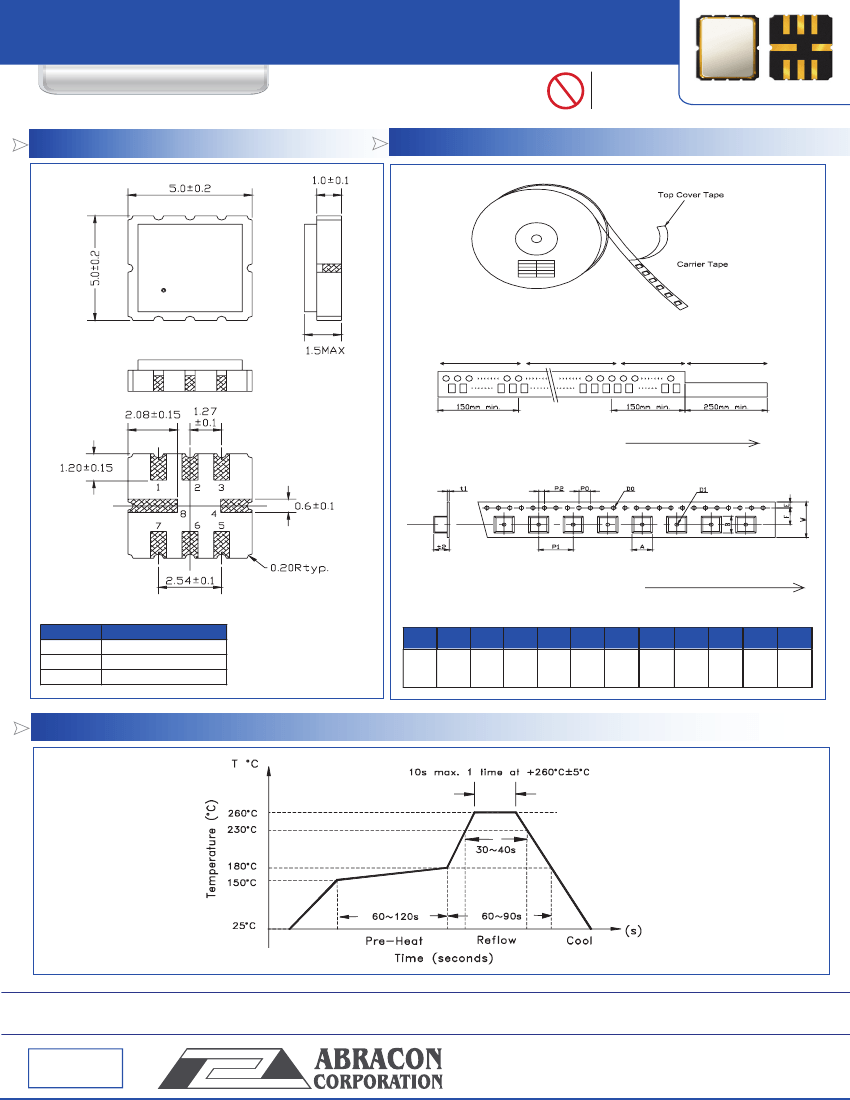

430.5MHz SMD SAW FILTER
AFS430.5W01-TE
FEATURES:
• Low loss
• 5.0 x 5.0 x 1.5mm seam sealed package
• IR-reflow capable
APPLICATIONS:
• Telecommunication
Pb
RoHS
Compliant
5.0 x 5.0 x 1.5mm
| | | | | | | | | | | | | | |
STANDARD SPECIFICATIONS:
MAXIMUM RATINGS
Item
Operation Temperature Range
Storage Temperature Range
DC Permissive Voltage
Maximum Input Power
ELECTRICAL CHARACTERISTICS
Value
-40°C to +80°C
-40°C to +85°C
12V DC max.
0 dBm
Item
Center Frequency (fo)
PassBand Width
Insertion Loss
Ripple
Stopband Attenuation
Terminating Impedance
Frequency (MHz)
430.5
fo±2.0
Passband
Passband
fo -100 ~ fo - 40.8
fo +40.8 ~ fo + 100
Specification
4.5 dB max.
2.0 dB max
55 dB min.
55 dB min.
150Ω/0pF
TEST CIRCUIT
FREQUENCY CHARACTERISTICS:
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
Revised: 12.23.09
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
430.5MHz SMD SAW FILTER
AFS430.5W01-TE
OUTLINE DIMENTSIONS:
TAPE & REEL:
Pb
RoHS
Compliant
Tape and reel (1,000pcs/reel)
5.0 x 5.0 x 1.5mm
| | | | | | | | | | | | | | |
Va can t
E nd
C om p one nts
C onta ine d
V aca nt
L ea der P art
S ta rt
T APE R U N N IN G D IR E C TION
DIMENSION AND PARTS DIRECTION
T A P E R U N N I N G D IR E C T IO N
Dimension : mm
Dimension : mm
Pin No.
Pin 2
Pin 6
Others
Function
Input
Output
Ground
W
12.0
±0.3
F
5.5
±0.1
E
1.75
±0.1
P0
4.0
±0.2
P1
8.0
±0.1
P2
2.0
±0.2
D0
Φ1.5
±0.1
D1
Φ1.5
±0.25
t1
0.31
max.
t2
1.95
max.
A
5.5
max.
B
5.5
max.
REFLOW PROFILE:
NOTE:
Abracon manufactured products are intended for general commercial and industrial use. For applications requiring
high reliability and/or presenting extreme operating environment, written consent & authorization from Abracon is required.
