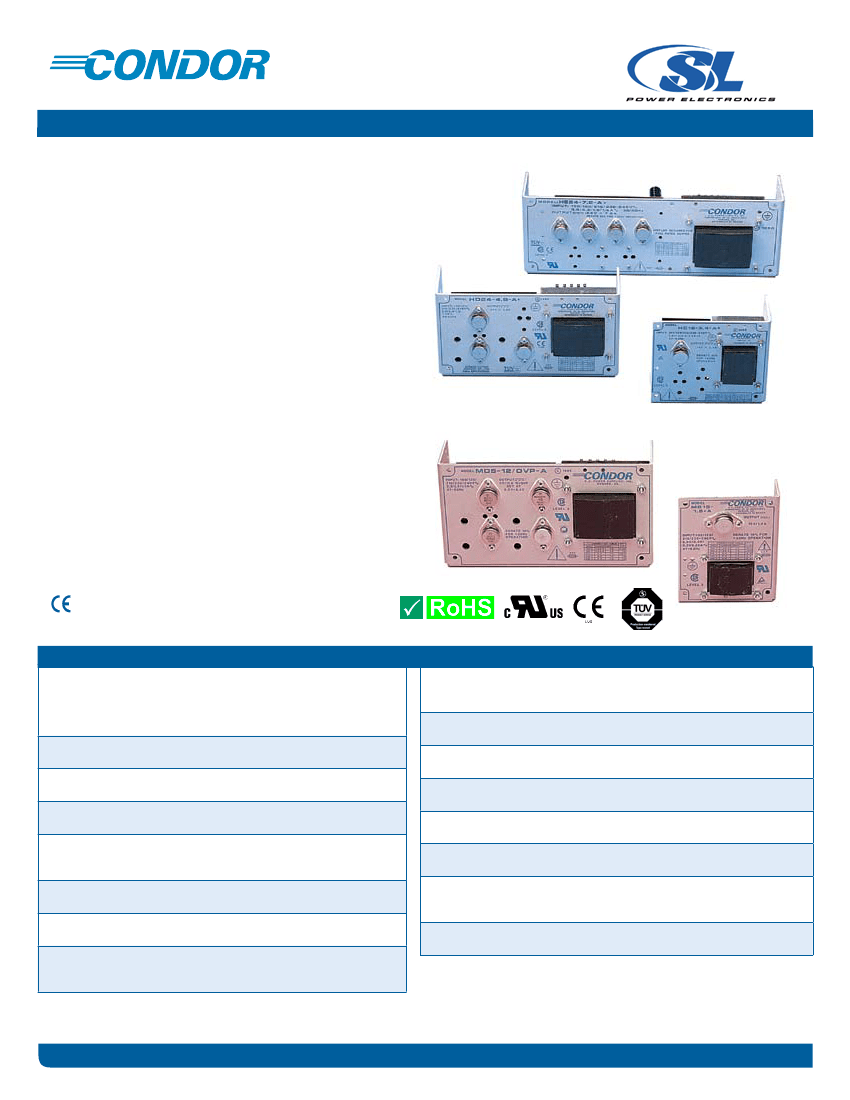

DC Power Supplies
Commercial/Medical
International + Linears
International + Linears
Summary:
• World-wide ac input ranges and safety
standards
• Industry standard packages
• Commercial UL/CSA TUV/IEC approved—
models to UL/CSA 60950; EN/IEC60950-1
• Burn-in with cycling; 3-year warranty
• Capacitors have highest CV & ripple current
ratings
• Medical Approved to UL2601-1/60601-1,
IEC60601-1 and CSA601.1
• Medical leakage 10 μA
• MTBF 200,000+ hours per MIL-HDBK-217D
(most units)
• All electrolytic caps rated at 105°C
• Transformer insulation meets Class F (155°C)
• Exceed FCC and CISPR22, Class B conducted
emissions
• RoHS Compliant models available (G suffix)
•
marked to LVD
SPECIFICATIONS
Ac Input
100, 120 and 240 Vac: +10%, -13%; 215 Vac: +12%, -11%; 47 to 63Hz. Toler-
ance for 230 Vac operation is +15%, -10%. Derate output current 10% for 50
Hz operation.
Dc Output
See voltage rating chart. Adjustment range ±5% minimum except HA series.
Line Regulation
±0.05% for a 10% change.
Load Regulation
± 0.05% for a 50% load change.
Output Ripple
3 mV +0.05% of output voltage, peak to peak maximum. All “3-terminal regu-
lator” outputs: 3 mV +0.2% peak to peak maximum.
Transient Response
<50 microseconds for 50% load change.
Short Circuit Protection
Automatic current limit/foldback.
Overvoltage Protection
Built-in on all 5 V models, set at 6.2 V ±0.4 V. Other models use optional over-
voltage protection.
Remote Sensing
Provided on all models; open sense lead protection built-in (except HA & HTAA
series).
Stability
±0.05% for 24 hours after warmup.
Temperature Rating
0 to 50°C full rated, derated linearly to 40% at 70°C.
Temperature Coefficient
±0.01%/°C maximum.
Efficiency
5 V units: 45%; 12 and 15 V units: 55%; 20 and 24 V units: 60%.
Logic Inhibit and Current-Share
F & G models.
Medical Stock and Vibration
Per Mil-Std-810D, Method 514.3, Category 1, Procedure 1.
Per Mil-Std-810D, Method 516.3, Procedure III.
Storage
-40 to +85 °C.
All specifications are typical at nominal input, full load at 25
O
C unless otherwise stated
Commercial Model (Dual)
HAA5-1.5-OV-A+G
HBB5-3-OV-A+G
HCC5-6-OV-A+G
HAA512-A+G
HBB512-A+G
HCC512-A+G **
HAA524-A+G **
HBB524-A+G
HCC524-A+G
HAD12-0.4-A+G
Medical Model
Output 1
5 V @ 1.5 A
5V@3A
5V@6A
Output 2
5 V @ 1.5 A
5V@3A
5V@6A
9 to 15 V (adj) @ 0.5 A
9 to 15 V (adj) @ 1.2 A
9 to 15 V (adj) @ 2.5 A
18 to 24 V (adj) @ 0.3 A
18 to 24 V (adj) @ 0.8 A
18 to 24 V (adj) @ 2 A
-12 V @ 0.4 A
-12 V @ 0.25 A
-15 V @ 0.2 A
-15 V @ 0.4 A
-15 V @ 0.8 A ***
-15 V @ 1.5 A ***
-15 V @ 3 A ***
-15 V @ 5 A ***
-18 to 24 V @ 0.4/0.6 A
+12 V @ 4 A

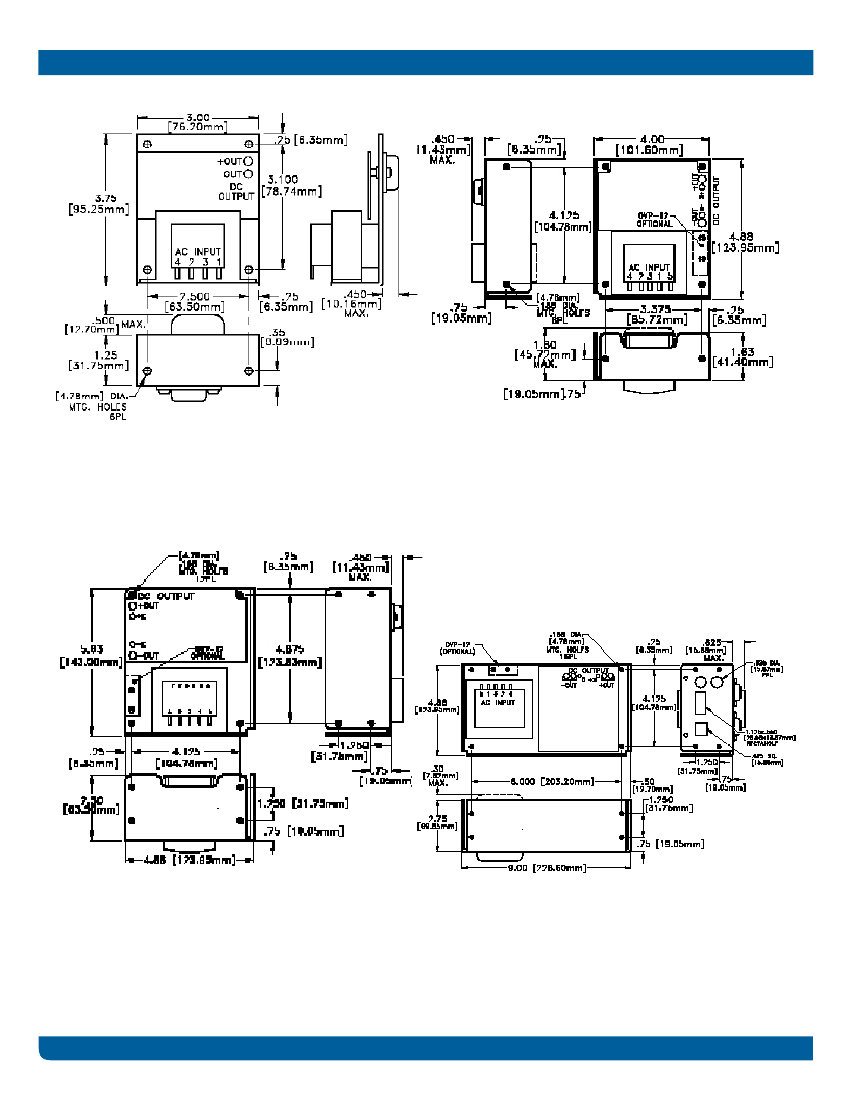

Case
AA
BB
CC
AA
BB
CC
AA
BB
CC
B
L
L
B
AA
BB
CC
E
AA
BB
MAA512-A
MBB512-A
MCC512-A
MAA524-A
MBB524-A
MCC524-A
MLL12-0.25-A
MLL15-0.2-A
5V@2A
5V@3A
5V@6A
5V@2A
5V@3A
5V@6A
+12 V @ 0.4 A
+12 V @ 0.25 A
+15 V @ 0.2 A
+15 V @ 0.4 A
+15 V @ 0.8 A
+15 V @ 1.5 A
+15 V @ 3 A
+15 V @ 5 A
+18 to 24 V @ 0.4/0.6 A
+5 V @ 2 A
HAD15-0.4-A+G
HAA15-0.8-A+G
HBB15-1.5-A+G
HCC15-3-A+G
HDD15-5-A+G
HAA24-0.6-A+G
CP323-A+G
** May require fan cooling
*** No. 2 output usable at -5 V, rate at 1/2 of 15 V current rating.
Commercial Model (Triple)
HTAA-16W-A+G
HBAA40W-A+G
HCBB105W-A+G **
HCAA60W-A+G
HCBB75W-A+G
CP131-A+G
HDBB105W-A+G *
HDCC150W-A+G *
MCAA60W-A
MCBB75W-A
Medical Model
MTLL-5W-A
MTAA-16W-A
MBAA40W-A
Output 1
5 V @ 0.5 A
5V@2A
5V@3A
5V@3A
5V@6A
5V@6A
5V@8A
5 V @ 12 A
5 V @ 12 A
MAA15-0.8-A
MBB15-1.5-A
MCC15-3-A
Output 2
+12 to 15 V @ 0.1 A
+12 to 15 V @ 0.4/0.4 A
+12 to 15 V @ 1/0.8 A
+12 to 15 V @ 3.4/3.0 A
+12 to 15 V @ 1/0.8 A
+12 to 15 V @ 1.7/1.5 A
+12 to 15 V @ 1.7/1.5 A
+12 to 15 V @ 1.7/1.5 A
+12 to 15 V @ 3.4/3 A
Output 3
-12 to 15 V @ 0.1 A***
-12 to 15 V @ 0.4/0.4 A***
-12 to 15 V @ 1/0.8 A***
-12 to 15 V @ 3.4/3.0 A***
-12 to 15 V @ 1/0.8 A***
-12 to 15 V @ 1.7/1.5 A***
-12 to 15 V @ 1.7/1.5 A***
-12 to 15 V @ 1.7/1.5 A***
-12 to 15 V @ 3.4/3 A***

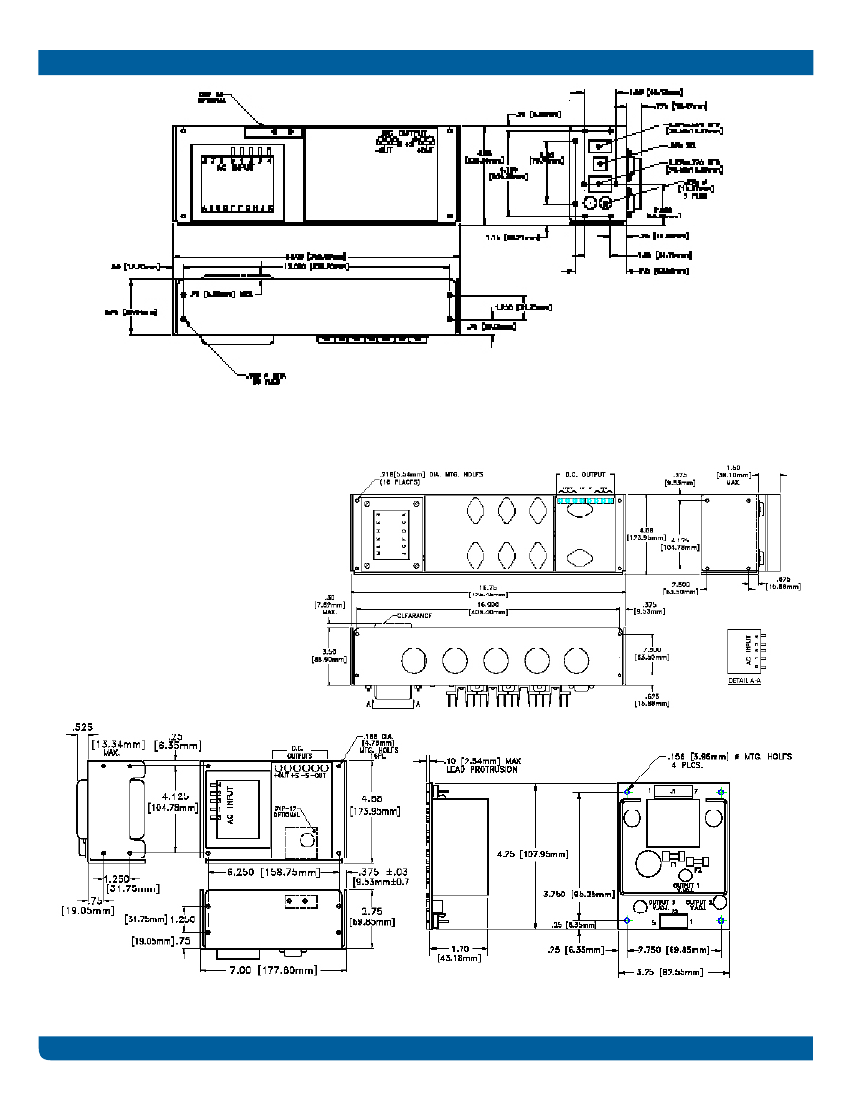

Case
L
AA
BAA
CBB
D
CBB
NBB
DBB
DCC
*Requires fan cooling
** May require fan cooling
***No. 3 output usable at -5 V, rate at 1/2 of 15 V current rating.
Outputs rated at 9 to 15V, 12 to 15V, or 18 to 24V are user adjustable outputs.
All outputs without + or - sign are isolated outputs and may be referenced as either a positive or negative output.
FIXED DISK SERIES
Both models without UL, CSA or TUV
Commercial Model (Dual)
CP379-A+G
CP498-A+G
Output 1
+5 V @ 6 A
+5 V @ 6 A
Output 2
+ 24 V @ 3.5/6 A PK
+ 12 V @ 5/10 A PK
Output 3
-5 or -12 @ 1.2 A
-12 V @ 0.5 A
Case
NBB
NBB
SL Power Electronics, Inc. 6050 King Drive, Bldg A, Ventura, CA, 93003, USA. Phone: (805) 486 4565 Fax: (805) 487 8911 Email: info@slpower.com. www.slpower.com Rev.
12/19/08. Data Sheet © 2008 SL Power Electronics, Inc. The information and specifications contained in this data sheet are believed to be correct at time of publication.
However, SL Power accepts no responsibility for consequences arising from reproduction errors or inaccuracies. Specifications are subject to change without notice.
