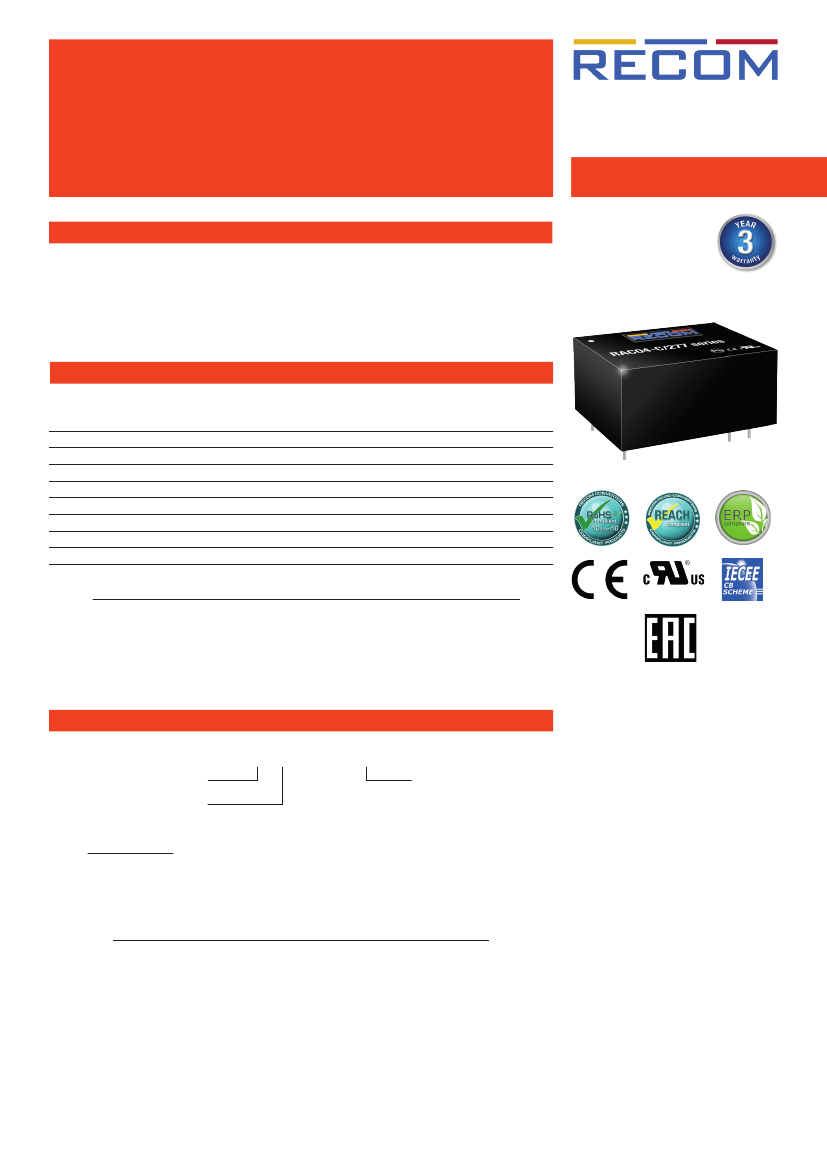

Features
Regulated
Converter
Description
•
•
•
•
•
50mW max. no load power consumption
High efficiency up to 79%
Isolated Output 3.75kVAC / 1 minute
SCP, OVP protection
Wide operating temperature range:
-40°C to +80°C (only with suffix „-E“)
• Universal input 80-305VAC
AC/DC Converter
RAC04-C/277
RAC
4 Watt
Single and
Dual Output
The RAC04-xxS_DC/277 series are fully certified single and dual regulated AC/DC converters in an encapsulated
PCB-mount package style with 3.75kVAC isolation and very low stand-by power consumption. The modules are
suitable for worldwide use due to their wide input voltage range from 80VAC to 305VAC. Possible uses include
home automation, standby applications and industrial controls.
Selection Guide
Part
Number
RAC04-3.3SC/277
(3)
RAC04-05SC/277
(3)
RAC04-12SC/277
(3)
RAC04-15SC/277
(3)
RAC04-24SC/277
(3)
RAC04-0512DC/277
(3)
RAC04-05DC/277
(3)
RAC04-12DC/277
(3)
Input
Voltage Range
[(VAC]
80-305
80-305
80-305
80-305
80-305
80-305
80-305
80-305
Output
Voltage
[VDC]
3.3
5
12
15
24
5/12
±5
±12
Output
Current
[mA]
1200
800
333
267
167
720/33
±400
±166
Efficiency
typ.
[%]
72
75
78
79
79
75
76
78
Max. Capacitive
Load
(1,2)
[µF)
10000
7200
1000
820
220
4700/100
±3300
±680
Notes:
Note1: Measured @ 230VAC/50Hz/Ta 25°C with constant resistant mode at full load
Note2: If used @115VAC/60Hz with full load, max. capacitive load is less, please contact
TechsupportAT@recom-power.com for detailed information
E224736
Model Numbering
RAC04-__ _C/277 -_
Output Voltage
Single
or
Dual
Ordering Examples:
e.g. RAC04-3.3SC/277-E, Single Output, with
-40°
to +80°C operating temperature range
e.g. RAC04-05DC/277, Dual Output with standard operating temperature range
Temperature
(3)
IEC/EN60950-1 certified
IEC/EN62368-1 certified
UL60950-1 certified
CSA/CAN 22.2 60950-1-07 certified
CB Report
EN55032 compliance
EN55024 compliance
Notes:
Note3: with suffix “-E” for -40°C to +80°C operating temperature range
without suffix standard operating temperature range (-25°C to +80°C)
www.recom-power.com
REV.: 5/2018
PA-1
RAC04-C/277
AC/DC Converter
Specifications
(measured @ Ta= 25°C, nom. Vin, full load and after warm-up unless otherwise stated)
BASIC CHARACTERISTICS
Parameter
Input Voltage Range
(4)
Input Current
Inrush Current
No load Power Consumption
Input Frequency Range
Minimum Load
Hold-up time
Internal Operating Frequency
115VAC
230VAC
cold start at +25°C
115VAC
230VAC
47Hz
±5% / ±0%
0%
15ms
67kHz
Series
Condition
Min.
80VAC
113VDC
Typ.
277VAC
390VDC
Max.
305VAC
430VDC
98mA
64mA
15A
30A
50mW
440Hz
80-305VAC, 50/60Hz
AC input
RAC04-0512DC/277(-E)
all others
115VAC
full load
200mVp-p
Output Ripple and Noise
(5)
Notes:
Note4: Refer to line derating graph on page 5
Note5: Ripple and Noise is measured at 20MHz bandwidth and with a 47µF low-ESR electrolytic capacitor in parallel with a 0.1µF ceramic
capacitor across output

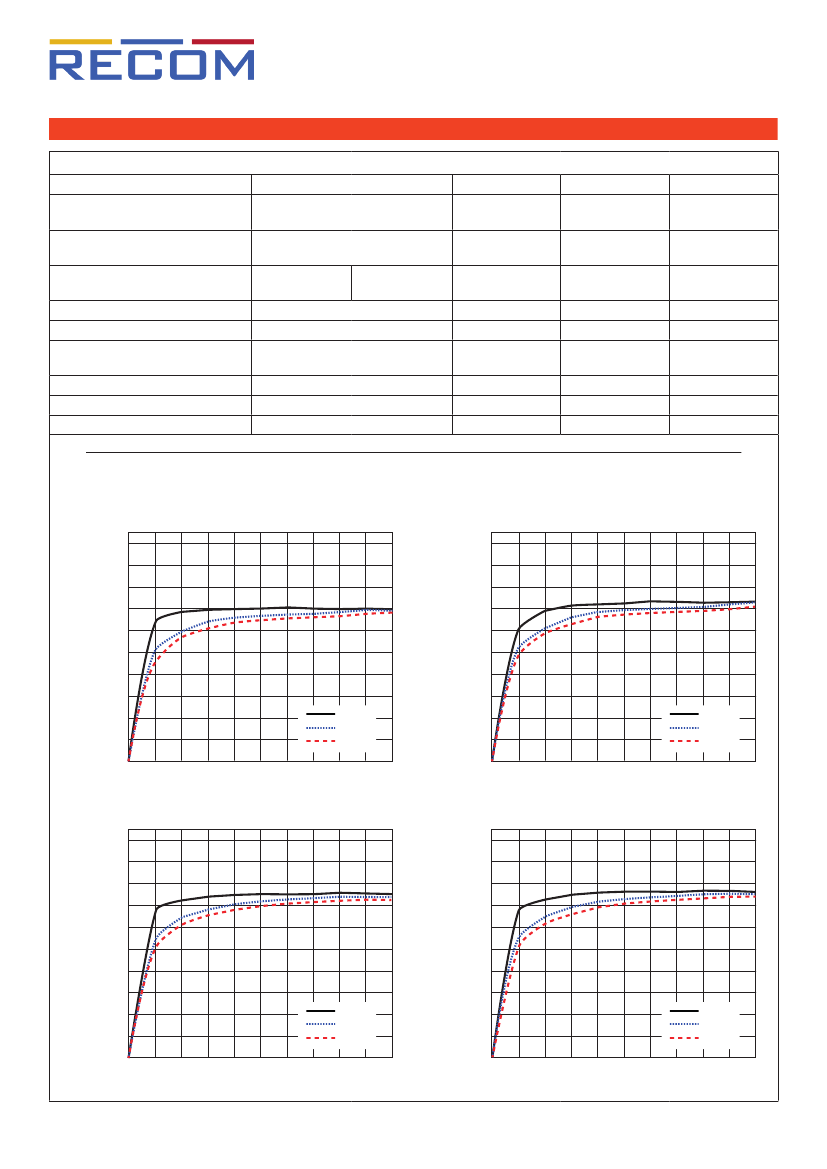

Efficiency vs. Load
100
90
80
RAC04-3.3SC/277 (-E)
100
90
80
RAC04-05SC/277 (-E)
Efficiency [%]
60
50
40
30
20
10
0
0
10
20
30
40
50
60
70
115VAC
230VAC
277VAC
80
90
100
Efficiency [%]
70
70
60
50
40
30
20
10
0
0
10
20
30
40
50
60
70
115VAC
230VAC
277VAC
80
90
100
Output Load [%]
Output Load [%]
RAC04-12SC/277 (-E)
100
90
80
100
90
80
RAC04-15SC/277 (-E)
Efficiency [%]
60
50
40
30
20
10
0
0
10
20
30
40
50
60
70
115VAC
230VAC
277VAC
80
90
100
Efficiency [%]
70
70
60
50
40
30
20
10
0
0
10
20
30
40
50
60
70
115VAC
230VAC
277VAC
80
90
100
Output Load [%]
www.recom-power.com
continued on next page
REV.: 5/2018
Output Load [%]
PA-2
RAC04-C/277
AC/DC Converter
Specifications
(measured @ Ta= 25°C, nom. Vin, full load and after warm-up unless otherwise stated)

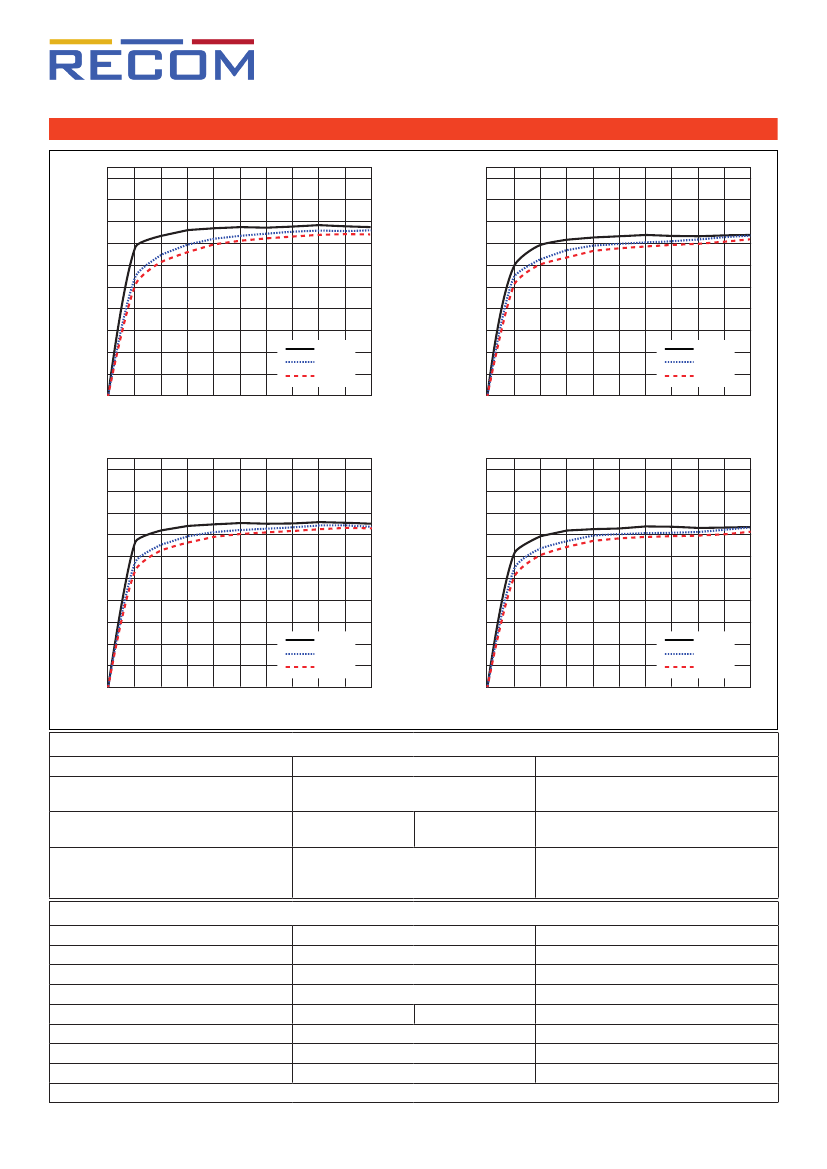

RAC04-24SC/277 (-E)
100
90
80
100
90
80
Series
RAC04-05DC/277 (-E)
Efficiency [%]
60
50
40
30
20
10
0
0
10
20
30
40
50
60
70
115VAC
230VAC
277VAC
80
90
100
Efficiency [%]
70
70
60
50
40
30
20
10
0
0
10
20
30
40
50
60
70
115VAC
230VAC
277VAC
80
90
100
Output Load [%]
Output Load [%]
RAC04-12DC/277 (-E)
100
90
80
100
90
80
RAC04-15DC/277 (-E)
Efficiency [%]
60
50
40
30
20
10
0
0
10
20
30
40
50
60
70
115VAC
230VAC
277VAC
80
90
100
Efficiency [%]
70
70
60
50
40
30
20
10
0
0
10
20
30
40
50
60
70
115VAC
230VAC
277VAC
80
90
100
Output Load [%]
Output Load [%]
REGULATIONS
Parameter
Output Accuracy
Line Regulation
Load Regulation
(5V minimum load 5% @12V full load)
Condition
RAC04-0512DC/277(-E)
all others
90-305VAC
RAC04-0
Value
±2.0% / ±10.0% typ.
±2.0% typ.
±0.2% / ±1.0% typ.
±0.2% typ.
1.0% typ.
1.0% / 5.0% typ.
0.5% typ.
3.3V, 5V
RAC04-0512DC/277(-E)
all others
PROTECTIONS
Parameter
Input Fuse
(6)
Type
Value
T1A slow blow type
automatic recovery
OVC II
Short Circuit Protection (SCP)
Over Voltage Category
Isolation Voltage
Isolation Resistance
Insulation Grade
Leakage Current
277VAC / 50Hz
continued on next page
www.recom-power.com
REV.: 5/2018
I/P to O/P
tested for 1 minute
3.75kVAC
100MΩ min.
reinforced
0.25mA max.
PA-3
RAC04-C/277
AC/DC Converter
Specifications
(measured @ Ta= 25°C, nom. Vin, full load and after warm-up unless otherwise stated)
Notes:
Note6: Refer to local wiring regulations if input over-current protection is also required
Note7: To measure the output ripple and noise short runs by 0.1µF/50V & 47µF/50V @20MHz, nominal input and full load
Note8: An external MOV is required for 230VAC operation. (MOV model: shall comply with IEC 61051-2) e.g. Epcos S14 Series
Series
Protection Circuit
VACin (L)
FUSE
+Vout
MOV
0.1µF/50V
47µF/50V
VACin (N)
-Vout
ENVIRONMENTAL
Parameter
230VAC
Operating Temperature Range
with suffix “-E”
Maximum Case Temperature
Thermal Impedance
Operating Altitude
Operating Humidity
Pollution Degree
Vibration
MTBF
according to MIL-HDBK-217F, G.B
+25°C
non-condensing
@ natural convection 0.1m/s
Condition
full load
refer to derating graph
full load
refer to derating graph
Value
-25°C to +65°C
-25°C to +80°C
-40°C to +65°C
-40°C to +80°C
+90°C
10°C/W
2000m
95%, RH max.
PD2
MIL-STD-202G
500 x 10
3
hours
Derating Graph
(@ Chamber and natural convection 0.1m/s)
RAC04-xxS(D)C/277
100
90
80
100
90
80
RAC04-xxS(D)C/277-E
Output Load [%]
60
50
40
30
20
10
0
-25 -20
0
20
40
60
65
80 90
Output Load [%]
70
70
60
50
40
30
20
10
0
-40
-20
0
20
40
60
65
80 90
Ambient Temperature [°C]
Ambient Temperature [°C]
continued on next page
www.recom-power.com
REV.: 5/2018
PA-4
RAC04-C/277
AC/DC Converter
Specifications
(measured @ Ta= 25°C, nom. Vin, full load and after warm-up unless otherwise stated)
Line Derating
100
90
80
Series
Output Load [%]
70
60
50
40
30
20
10
0
80
305
Input Voltage [VAC]
SAFETY AND CERTIFICATIONS
Certificate Type
Information Technology Equipment, General Requirements for Safety (CB Scheme)
Information Technology Equipment, General Requirements for Safety (LVD)
Information Technology Equipment, General Requirements for Safety
Audio/video, information and communication technology equipment - Safety
requirements
EAC
RoHs2
Report / File Number
1310055-1-CB-M1
1605077-04
E224736-A18
AL106051
RU-AT.03.67361
Standard
IEC60950-1:2005, 2nd Edition + A1:2009
EN60950-1:2006 + A2:2013
IEC60950-1:2005 2nd Edition + A2:2013
UL No. 60950-1, 2nd Edition, 2011
CAN/CSA C22.2 No. 60950-1-07, 2nd Edition, 2011
EN62368-1:2014
IEC62368-1:2014 2nd Edition
TP TC 004/020, 2011
RoHs-2011/65/EU + AM-2015/863
EMC Compliance
Electromagnetic compatibility of multimedia equipment - Emission requirements
Information technology equipment - Immunity characteristics - Limits and
methods of measurement
ESD Electrostatic discharge immunity test
Radiated, radio-frequency, electromagnetic field immunity test
Fast Transient and Burst Immunity
Surge Immunity
Immunity to conducted disturbances, induced by radio-frequency fields
Power Magnetic Field Immunity
Voltage Dips and Interruptions
Report / File Number
T160225D10-E
Air: ±2, 4, 8kV
Contact: ±4kV
3V/m
AC Power Port: ±1kV
AC Power Port: L-N ±1kV
AC Power Port: 3V
50Hz, 1A/m
Voltage Dips: >95%
Voltage Dips: 30%
Interruptions: >95%
Standard / Criterion
EN55032, Class B
EN55024:2010
IEC61000-4-2:2008, Criteria A
IEC61000-4-3:2010, Criteria A
IEC61000-4-4:2004 + A1:2010, Criteria A
IEC61000-4-5:2005, Criteria A
IEC61000-4-6:2008, Criteria A
IEC61000-4-8:2009, Criteria A
IEC61000-4-11:2004, Criteria A
IEC61000-4-11:2004, Criteria A
IEC61000-4-11:2004, Criteria B
DIMENSION and PHYSICAL CHARACTERISTICS
Parameter
Material
Dimension (LxWxH)
Weight
continued on next page
www.recom-power.com
REV.: 5/2018
PA-5
Type
case
potting
PCB
Value
black plastic (UL94 V-0)
silicone (UL94 V-0)
FR4 (UL94 V-0)
36.7 x 27.2 x 17.1mm
41g typ.
