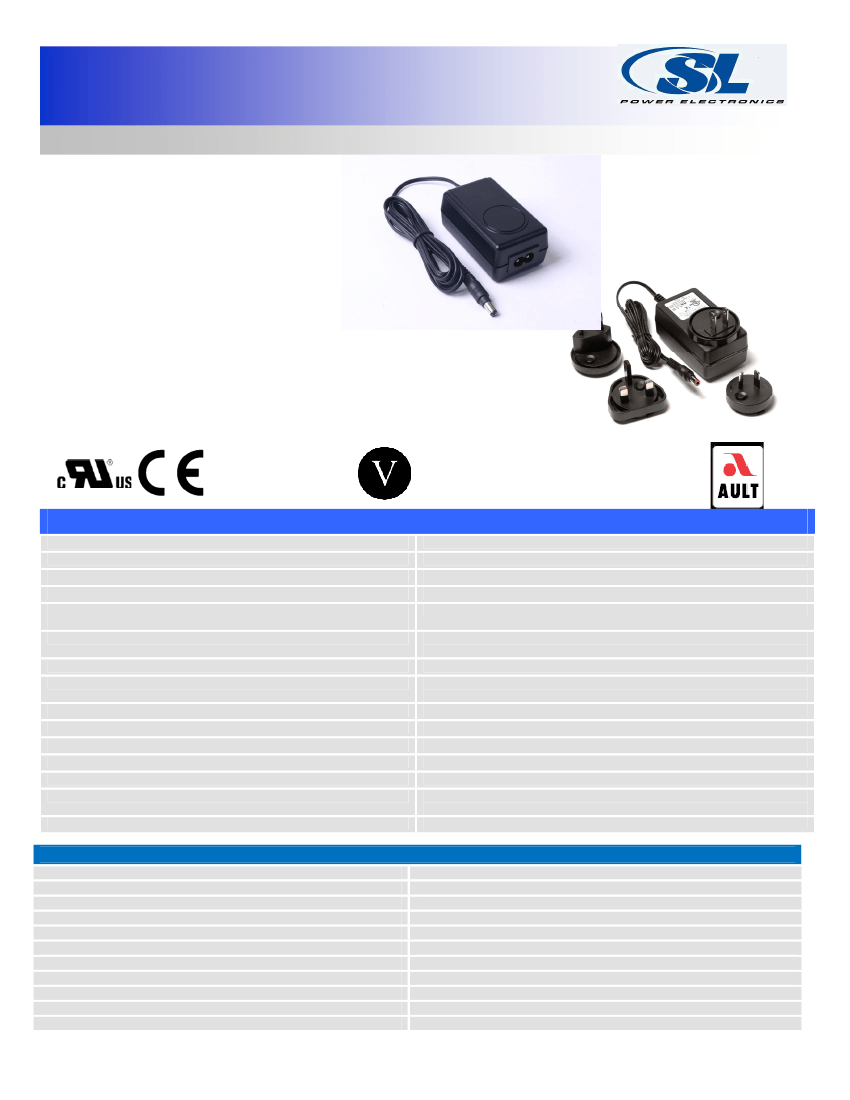

MENB1020
Universal 20 Watt Series
Medical Switch-Mode Power Supply
•
100-240VAC Universal Input Range
•
Meets EISA2007, CEC Efficiency Level V,
3 Year Warranty
EU (EC) No 278/2009 Phase II
•
Desktop & Wall Plug Styles
•
5V to 48V Single Output Models, up to 20W
•
Modified and Custom Designs Available
•
Regulated Output with Low Ripple
•
Impact-Resistant Polycarbonate Enclosure
•
No load Power Consumption <0.3W
•
Limited Power Source
•
Certified to UL/EN60601-1
RoHS
Specifications
AC Input
Input Current
Inrush Current
Input Fuse
Efficiency
Output Voltage
Output Power
Ripple and Noise
Line & Load Voltage Regulation
Minimum Load
Transient Response
Case Dimensions
Case Material
Weight
All Specifications are typical at nominal input, full load at 25
°
C unless otherwise stated.
100-240Vac, -/-10%, 47-63 Hz, 1∅
100Vac: 0.45A
Inrush limiting provided, 60 A peak
Internal Primary Current Fuse provided: 3.15A, 250Vac
Meets EISA2007, CEC Efficiency Level V,
EU (EC) No 278/2009 Phase II
See chart
See chart
1% pk-pk max., 20MHz BW
Line: +/- 1%, Load: +/-5%
Not required
500 us max, 50% load step
84 X 47 X 32mm. See outline drawing
Black 94V0 Polycarbonate
150g
MTBF
Hold-up Time
Overload Protection
Short Circuit Protection
Topology
Safety Standards
EMC, Radiated & Conducted
Dielectric Withstand
Operating Temperature
Storage Temperature
Relative Humidity
Altitude
Turn-on Time
Output Cable
100,000 hours (calculated)
18 ms min. @ 115Vac, 60 ms min. @ 230 Vac
Hiccup Mode
Hiccup Mode
Switching – Fixed Frequency Flyback
EN/IEC/CSA/UL60601-1
See chart below
Input-Output: 5,656VDC,
Input-Ground: 1,500Vac, Output-Ground: 500Vdc
0° to 40°C, no derating
-30 to +85°C
5% to 95%, non-condensing
0 to 10,000 ft
2 sec max, 115/230 Vac
5V – 9V outputs: #18AWG (SPT-1), 1500mm, 2 conductor
12V – 48V outputs: #20AWG (UL1185), 1500mm, 2 conductor
Output Connector
2.5mm barrel type (Ault #3), center contact (+)
EMC Specifications
Conducted Emissions
Radiated Emissions
Line Frequency Harmonics
Voltage Fluctuations/Flicker
Static Discharge Immunity
Radiated RF Immunity
EFT/Burst Immunity
Line Surge Immunity
Conducted RF Immunity
Power Frequency Magnetic Field Immunity
Voltage Dip Immunity
EN55011 Class B, FCC Part 15, Class B.
EN55011 Class B, FCC Part 15, Class B.
EN61000-3-2, Class A
EN61000-3-3
EN61000-4-2, 6kV Contact Discharge, 8kV air discharge
EN61000-4-3, 3V/m.
EN61000-4-4, 2kV/5kHz.
EN61000-4-5, 1kV differential, 2kV common-mode
EN61000-4-6, 3Vrms
EN61000-4-8, 3A/m
EN61000-4-11, Criteria A
______________________________________________________________________________________________________________________________
SL Power Electronics Corp
•
6050 King Drive Ventura, CA 93003
•
Phone 805.486.4565
•
Fax 858.712.2040
•
Email: info@slpower.com
•
www.slpower.com
1 of 2
MENB1020
Universal 20 Watt Series
ITE Switch Mode Power Supply
Medical Switch Mode Power Supply
Model Number
Volts (V)
Output Current (max)
3 Year Warranty
Warranty
3 Year
Max Watts
Ripple (Vp-p max)
MENB1020A0303F01
3.3 V
3.00 A
9.9 W
50 mV
MENB1020A0503F01
5V
3.00 A
15.0 W
50 mV
MENB1020A0603F01
6V
2.50 A
15.0 W
60 mV
MENB1020A0703F01
7.5 V
2.00 A
15.0 W
75 mV
MENB1020A0903F01
9V
2.00 A
18.0 W
90mV
MENB1020A1203F01
12 V
1.50 A
18.0 W
120mV
MENB1020A1403F01
14 V
1.20 A
16.8 W
140mV
MENB1020A1503F01
15 V
1.20 A
18.0 W
150mV
MENB1020A1803F01
18 V
1.00 A
18.0 W
180mV
MENB1020A2403F01
24 V
0.75 A
18.0 W
240mV
MENB1020A4803F01
48 V
0.40 A
19.2 W
440mV
Notes: Part numbers above include #3 output connector and IEC320 C14 grounded input receptacle. See below for other options.
Model Number Key
MENB 1 020 A VV 03 F 01
Model
Input Connector:
Output Connector:
Output Voltage:
Model
Output Pow er:
# of Outputs
Product Fam ily:
Desktop
"01" = Standard. "02" and higher indicates a m odified m odel.
"F" = IEC320 C14 grounded, Other options available, see below
"03" = 2.5m m Barrel Type Connector. Other options available, contact factory.
"05" = 5Vdc, "12" = 12Vdc, "24" = 24Vdc, etc.
"A" = Original Configuration
"020" = 20 Watts
"1" = Single Output
"M" = Medical, "E" = External, "NB" = Model Series Designator
AC Input Receptacle Options
Wall-Plug
Output Connector
IEC320 - C14
Class I
Grounded
IEC320 - C18
Class II
Ungro unde d
IEC320 - C8
Class II
"Shaver"
N. Am erica
Japan
Int e rc ha nga ble
Fixed
N. Am erica
Japan
Europe
Fixed
United
Kingdom
Fixed
Australia
Fixed
(F)
Notes:
(Q)
(N)
(B)
(C)
(M)
(G)
(H)
1. Ault #3 Connector, center contact (+).
2. Connector is Sw itchcraft 760 plug or equivalent.
Mating connector is Sw itchcraft 712A or equivalent.
3. Other connector options are available. Contact your local
SL Pow er Representative for details.
1. For desktop options, choose applicable letter above.
Notes:
2. For Wall-Plug options, choose the applicable letter above and the unit w ill be fitted w ith
the receptacle chosen. The N. A. blade version (B) w ill be an interchangeable blade.
The other options (C), (M), (G), and (H) w ill be fixed blades m olded in the case.
3. Blade Kit is available w hich w ill include one each of a EU, UK, and Australian blade. Kit part #
is KT1027K. These can be used w ith the (B) version, to allow blades to be changed.

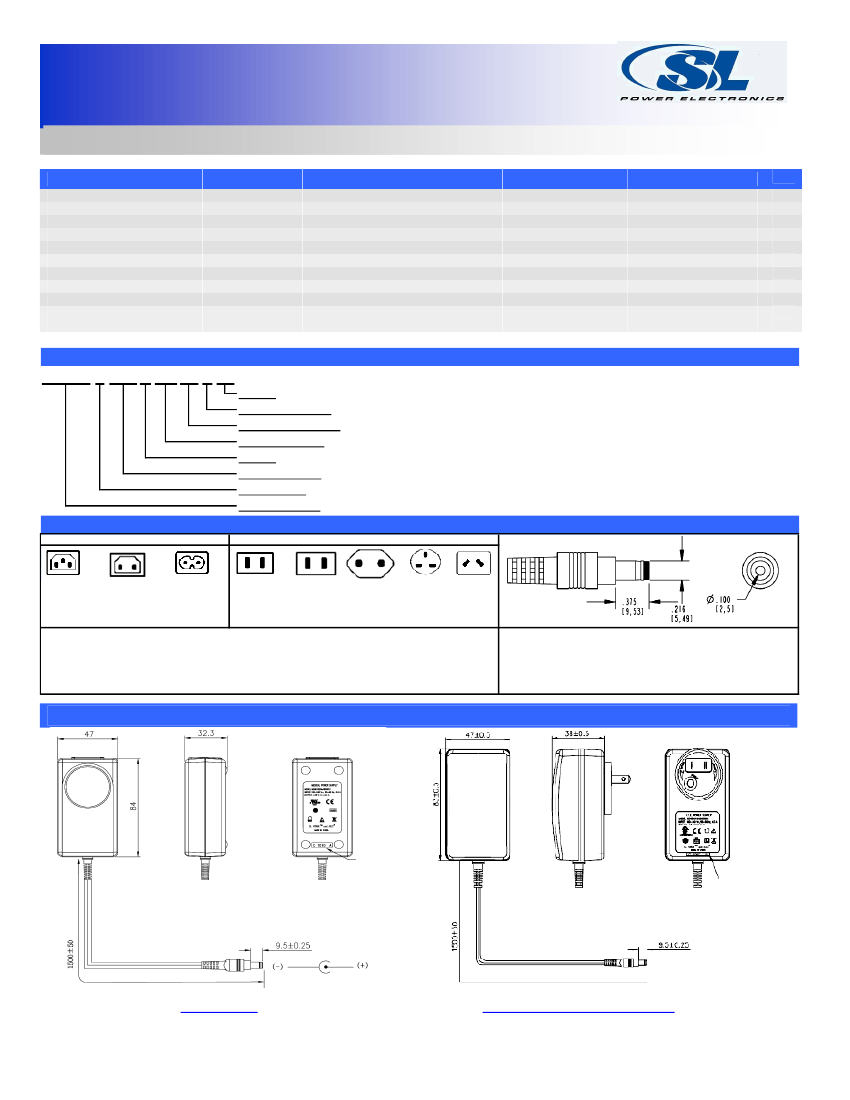

Outline Drawing
DATE
CODE
DATE
CODE
Desktop Style
Wall-plug Style (Option “B” shown)
Data Sheet © 2010 SL Power Electronics Corp. The information and specifications contained herein are believed to be correct at the time of publication.
Rev. 12-22-2010
However, SL Power accepts no responsibility for consequences arising from reproduction errors or inaccuracies. Specifications are subject to change without notice.
______________________________________________________________________________________________________________________________
SL Power Electronics Corp
•
6050 King Drive Ventura, CA 93003
•
Phone 805.486.4565
•
Fax 858.712.2040
•
Email: info@slpower.com
•
www.slpower.com
2 of 2
