4813TC-725GLD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> 4813TC-725GLD

4813TC-725GLD: DescriptionGeneral Purpose Inductor, 7200uH, 2%, 1 Element, Ferrite-Core, SMD, ROHS COMPLIANT; CategoryPassive components inductor; File Size181KB，1 Pages; ManufacturerCOILCRAFT; Websitehttp://www.coilcraft.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

4813TC-725GLD Overview

General Purpose Inductor, 7200uH, 2%, 1 Element, Ferrite-Core, SMD, ROHS COMPLIANT

4813TC-725GLD Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	COILCRAFT
Reach Compliance Code	compliant
ECCN code	EAR99
core material	FERRITE
DC Resistance	83 Ω
Nominal inductance(L)	7200 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Manufacturer's serial number	4813TC
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Minimum quality factor (at nominal inductance)	42
self resonant frequency	0.3 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.125 MHz
Tolerance	2%
Base Number Matches	1

Preview

Download Datasheet

View All

Document 596

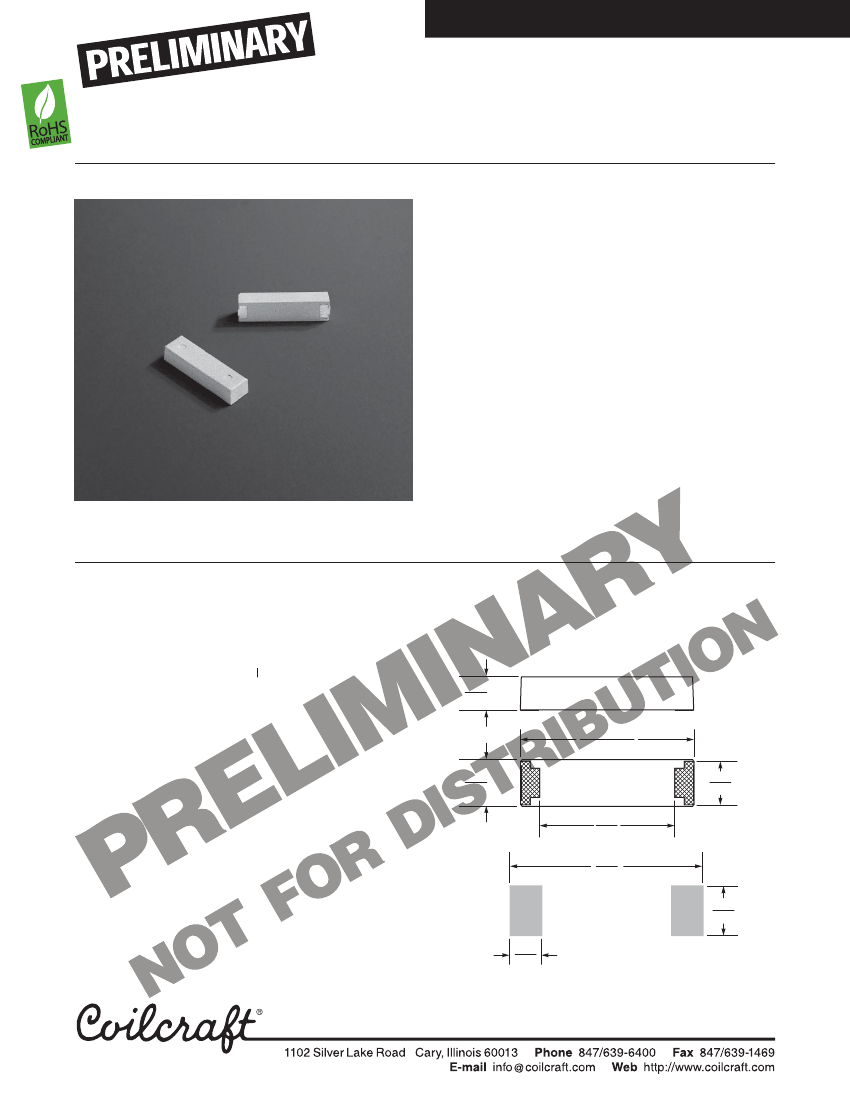

RFID Transponder Coils – 4813TC

• Designed for RFID applications at 125 kHz

• The coil is totally encased providing great durability and

shock resistance

• Operating temperature range to 125°C; ideal for use in

many automotive applications

Core material

Ferrite

Terminations

RoHS compliant matte tin over nickel over phos

bronze. Other terminations available at additional cost.

Ambient temperature

–40°C to +125°C

Storage temperature

Component: –55°C to +125°C.

Packaging: –55°C to +80°C

Resistance to soldering heat

Max three 40 second reflows at

+260°C, parts cooled to room temperature between cycles

Moisture Sensitivity Level (MSL)

1 (unlimited floor life at <30°C /

85% relative humidity)

Mean Time Between Failures (MTBF)

One billion hours

PCB washing

Only pure water or alcohol recommended

Part number

4813TC-404GL_

4813TC-105GL_

4813TC-245GL_

4813TC-495GL_

4813TC-725GL_

Inductance

at 125 kHz

±2% (mH)

0.40

1.00

2.38

4.90

7.20

Q min

29.8

16.0

52.0

47.0

42.0

Read

distance

(inches/cm)

TBD

Sensitivity

(mV/µT)

9.75

18.0

24.0

49.5

76.5

Matching

capacitor

(pF)

TBD

DCR max

(Ohms)

9.4

SRF typ

(kHz)

2400

850

650

400

300

1. When ordering, please specify

packaging

code:

4813TC-725XGLD

Packaging: D

= 13″ machine-ready reel. EIA-481 embossed plastic

tape.

= Less than full reel. In tape, but not machine ready.

To have a leader and trailer added ($25 charge),

use code letter D instead.

2. Inductance and Q measured using Agilent/HP 4192A impedance

analyzer at 125 kHz. For recommended test procedures, contact

Coilcraft.

3. Read distance measured using the KEELOQ

Transponder

Evaluation Kit part number DM303005 from Microchip. Distance was

recorded as the voltage across the resonant circuit dropped below

10 mV.

4. Sensitivity measured in accordance with Coilcraft application note

“Measuring Sensitivity of Transponder Coils.”

5. Matching capacitor value required for parallel resonant circuit

operating at 125 kHz.

6. DCR measured on micro-ohmmeter.

7. SRF measured using Agilent/HP 8753D network analyzer.

8. Electrical specifications at 25°C.

See Qualification Standards section for environmental and test data.

Refer to Doc 362 “Soldering Surface Mount Components” before soldering.

0.095 max

2,41

0.487 ±0.005

12,37 ±0,127

0.133 max

3,38

0.375

9,53

0.500

12,70

0.124

3,15

Recommended

Land Pattern

0.072

1,83

0.140

3,56

Terminations:

Matte tin over nickel over phos bronze

These parts are preproduction products for electrical evaluation

only. Specification subject to change without notice.

Document 596

Revised 08/08/07
