DV74LS273D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> DV74LS273D

DV74LS273D: DescriptionD Flip-Flop, LS Series, 1-Func, Positive Edge Triggered, 8-Bit, True Output, TTL, PDSO20, PLASTIC, SOP-20; Categorylogic logic; File Size359KB，2 Pages; ManufacturerAVG [AVG Semiconductors(HITEK)]

Download Datasheet Parametric Compare View All

DV74LS273D Overview

D Flip-Flop, LS Series, 1-Func, Positive Edge Triggered, 8-Bit, True Output, TTL, PDSO20, PLASTIC, SOP-20

DV74LS273D Parametric

Parameter Name	Attribute value
Maker	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	SOIC
package instruction	SOP,
Contacts	20
Reach Compliance Code	unknown
Base Number Matches	1

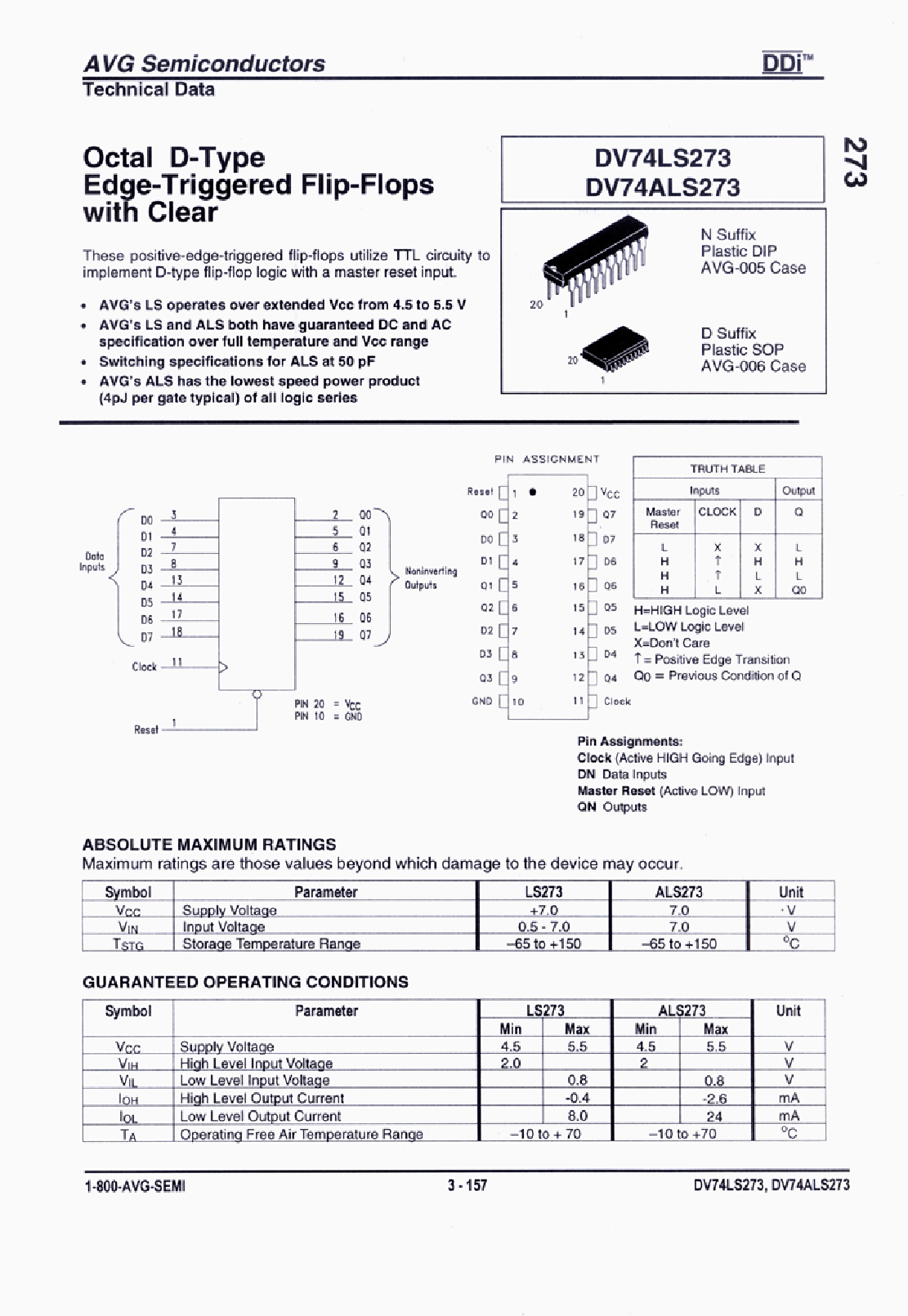

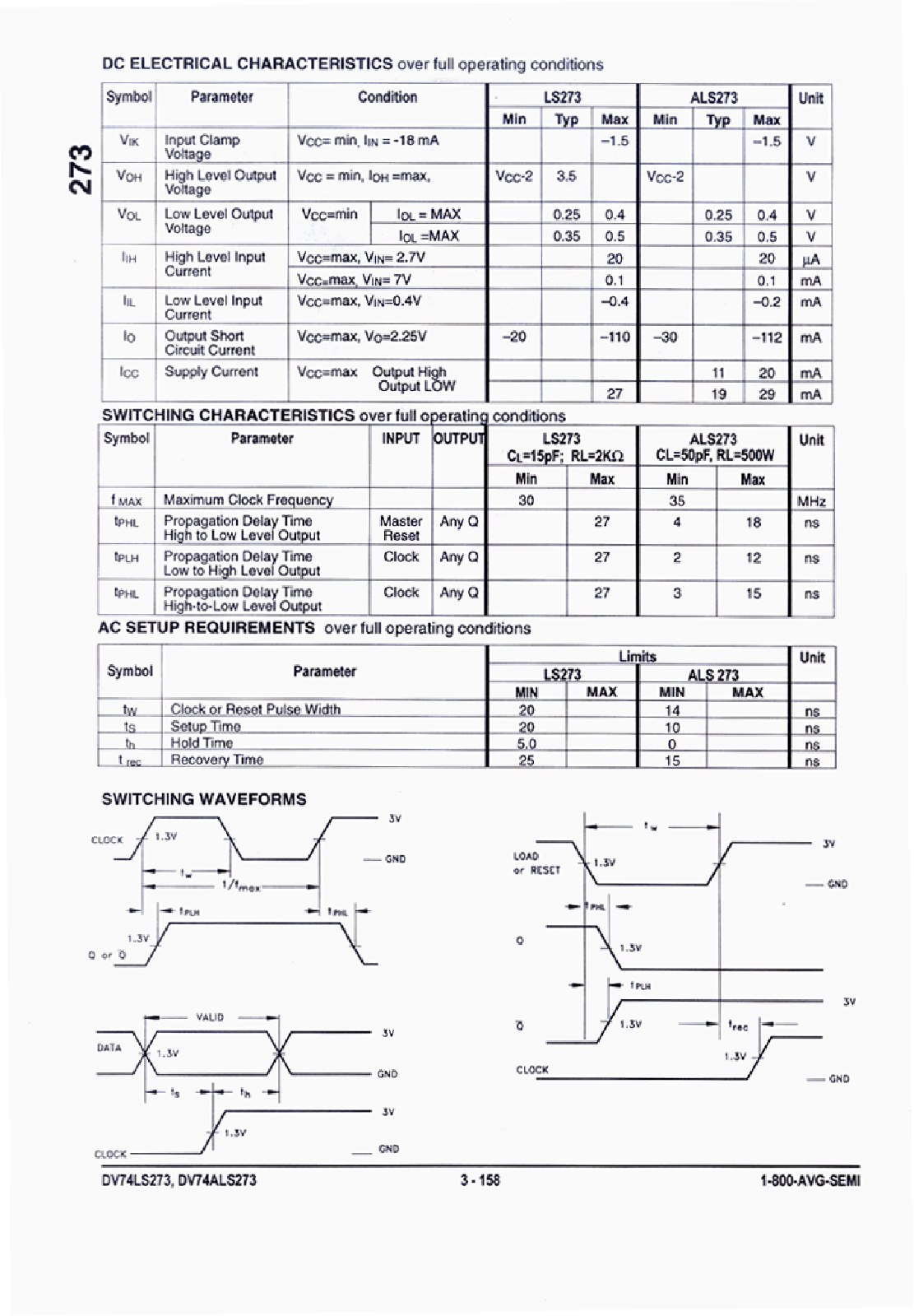

Preview

Download Datasheet

View All

DV74LS273D Related Products

	DV74LS273D	DV74LS273N	DV74ALS273N
Description	D Flip-Flop, LS Series, 1-Func, Positive Edge Triggered, 8-Bit, True Output, TTL, PDSO20, PLASTIC, SOP-20	D Flip-Flop, LS Series, 1-Func, Positive Edge Triggered, 8-Bit, True Output, TTL, PDIP20, PLASTIC, DIP-20	D Flip-Flop, ALS Series, 1-Func, Positive Edge Triggered, 8-Bit, True Output, TTL, PDIP20, PLASTIC, DIP-20
Maker	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	SOIC	DIP	DIP
package instruction	SOP,	DIP,	DIP,
Contacts	20	20	20
Reach Compliance Code	unknown	unknown	unknown
Base Number Matches	1	1	-
series	-	LS	ALS
JESD-30 code	-	R-PDIP-T20	R-PDIP-T20
length	-	26.415 mm	26.415 mm
Load capacitance (CL)	-	15 pF	50 pF
Logic integrated circuit type	-	D FLIP-FLOP	D FLIP-FLOP
Number of digits	-	8	8
Number of functions	-	1	1
Number of terminals	-	20	20
Maximum operating temperature	-	70 °C	70 °C
Minimum operating temperature	-	-10 °C	-10 °C
Output polarity	-	TRUE	TRUE
Package body material	-	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	-	DIP	DIP
Package shape	-	RECTANGULAR	RECTANGULAR
Package form	-	IN-LINE	IN-LINE
Maximum supply current (ICC)	-	27 mA	29 mA
propagation delay (tpd)	-	27 ns	15 ns
Certification status	-	Not Qualified	Not Qualified
Maximum seat height	-	4.57 mm	4.57 mm
Maximum supply voltage (Vsup)	-	5.5 V	5.5 V
Minimum supply voltage (Vsup)	-	4.5 V	4.5 V
Nominal supply voltage (Vsup)	-	5 V	5 V
surface mount	-	NO	NO
technology	-	TTL	TTL
Temperature level	-	COMMERCIAL	COMMERCIAL
Terminal form	-	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	-	2.54 mm	2.54 mm
Terminal location	-	DUAL	DUAL
Trigger type	-	POSITIVE EDGE	POSITIVE EDGE
width	-	7.62 mm	7.62 mm
minfmax	-	30 MHz	35 MHz
