AP20T15GP-HF
Halogen-Free Product
Advanced Power
Electronics Corp.
▼
Simple Drive Requirement
▼
Lower On-resistance
▼
Fast Switching Characteristic
▼
Halogen Free & RoHS Compliant Product
G
N-CHANNEL ENHANCEMENT MODE
POWER MOSFET
D
BV
DSS
R
DS(ON)
I
D
150V
70mΩ
22.2A
S
Description
AP20T15 series are from Advanced Power innovated design and
silicon process technology to achieve the lowest possible on-
resistance and fast switching performance. It provides the designer
with an extreme efficient device for use in a wide range of power
applications.
The TO-220 package is widely preferred for all commercial-industrial
through hole applications. The low thermal resistance and low
package cost contribute to the worldwide popular package.
G
D
S
TO-220(P)
Absolute Maximum Ratings
Symbol
V
DS
V
GS
I
D
@T
C
=25℃
I
D
@T
C
=100℃
I
DM
P
D
@T
C
=25℃
P
D
@T
A
=25℃
T
STG
T
J
Parameter
Drain-Source Voltage
Gate-Source Voltage
Continuous Drain Current, V
GS
@ 10V
Continuous Drain Current, V
GS
@ 10V
Pulsed Drain Current
1
Total Power Dissipation
Total Power Dissipation
Storage Temperature Range
Operating Junction Temperature Range
Rating
150
+20
22.2
14
60
89.2
2
-55 to 150
-55 to 150
Units
V
V
A
A
A
W
W
℃
℃
Thermal Data
Symbol
Rthj-c
Rthj-a
Parameter
Maximum Thermal Resistance, Junction-case
Maximum Thermal Resistance, Junction-ambient
Value
1.4
62
Units
℃/W
℃/W
Data and specifications subject to change without notice
1
201309273
AP20T15GP-HF
Electrical Characteristics@T
j
=25
o
C(unless otherwise specified)
Symbol
BV
DSS
R
DS(ON)
Parameter
Drain-Source Breakdown Voltage
Static Drain-Source On-Resistance
2
Test Conditions
V
GS
=0V, I
D
=250uA
V
GS
=10V, I
D
=15A
V
GS
=4.5V, I
D
=10A
V
GS(th)
g
fs
I
DSS
I
GSS
Q
g
Q
gs
Q
gd
t
d(on)
t
r
t
d(off)
t
f
C
iss
C
oss
C
rss
R
g
Gate Threshold Voltage
Forward Transconductance
Drain-Source Leakage Current
Gate-Source Leakage
Total Gate Charge
Gate-Source Charge
Gate-Drain ("Miller") Charge
Turn-on Delay Time
Rise Time
Turn-off Delay Time
Fall Time
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
Gate Resistance
V
DS
=V
GS
, I
D
=250uA
V
DS
=10V, I
D
=15A
V
DS
=120V, V
GS
=0V
V
GS
=+20V, V
DS
=0V
I
D
=15A
V
DS
=120V
V
GS
=10V
V
DS
=75V
I
D
=15A
R
G
=3.3Ω
V
GS
=10V
V
GS
=0V
V
DS
=25V
f=1.0MHz
f=1.0MHz
Min.
150
-
-
1
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Typ.
-
-
-
-
21
-
-
48
7.5
18
12
30
33
40
125
100
1.7
Max. Units
-
70
120
3
-
25
+100
77
-
-
-
-
-
-
-
-
3.4
V
mΩ
mΩ
V
S
uA
nA
nC
nC
nC
ns
ns
ns
ns
pF
pF
pF
Ω
2100 3360
Source-Drain Diode
Symbol
V
SD
t
rr
Q
rr
Parameter
Forward On Voltage
2
Reverse Recovery Time
Reverse Recovery Charge
Test Conditions
I
S
=15A, V
GS
=0V
I
S
=10A, V
GS
=0V
dI/dt=100A/µs
Min.
-
-
-
Typ.
-
40
80
Max. Units
1.3
-
-
V
ns
nC
Notes:
1.Pulse width limited by Max. junction temperature.
2.Pulse test
THIS PRODUCT IS SENSITIVE TO ELECTROSTATIC DISCHARGE, PLEASE HANDLE WITH CAUTION.
USE OF THIS PRODUCT AS A CRITICAL COMPONENT IN LIFE SUPPORT OR OTHER SIMILAR SYSTEMS IS NOT AUTHORIZED.
APEC DOES NOT ASSUME ANY LIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCT OR CIRCUIT DESCRIBED
HEREIN; NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT RIGHTS, NOR THE RIGHTS OF OTHERS.
APEC RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE TO ANY PRODUCTS HEREIN TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN.
2
AP20T15GP-HF
60
30
T
C
= 25 C
50
o
I
D
, Drain Current (A)
40
I
D
, Drain Current (A)
10V
7.0V
6.0V
5.0V
T
C
= 150
o
C
20
10V
7.0V
6.0V
5.0V
V
G
= 4.0V
30
20
10
V
G
= 4.0V
10
0
0
4
8
12
16
20
0
0
2
4
6
8
10
12
V
DS
, Drain-to-Source Voltage (V)
V
DS
, Drain-to-Source Voltage (V)

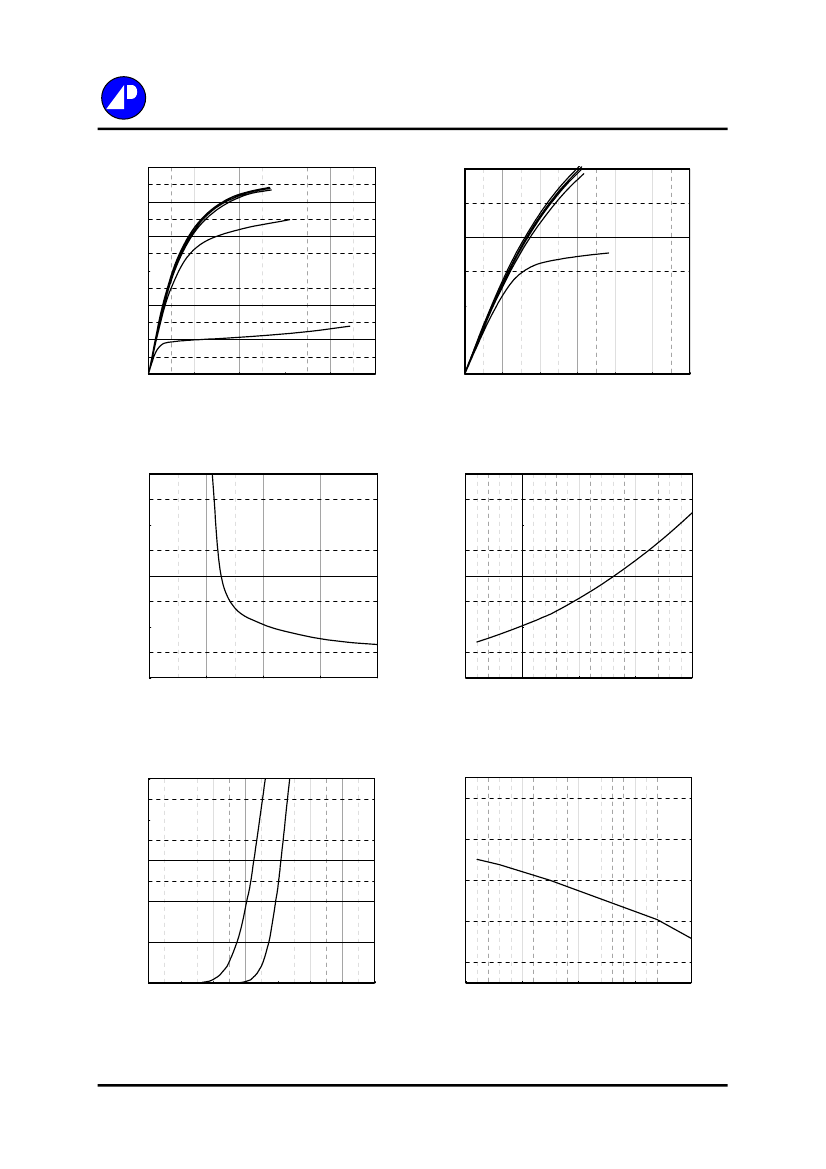

Fig 1. Typical Output Characteristics
Fig 2. Typical Output Characteristics
90
3.2
I
D
=10A
T
C
=25 C
R
DS(ON)
(m
Ω
)
80
o
I
D
=15A
V
G
=10V
Normalized R
DS(ON)
2.4
70
1.6
60
0.8
50
2
4
6
8
10
0.0
-50
0
50
100
150
V
GS
Gate-to-Source Voltage (V)
T
j
, Junction Temperature ( C)
o
Fig 3. On-Resistance v.s. Gate Voltage
Fig 4. Normalized On-Resistance
v.s. Junction Temperature
2.0
20
I
D
=250uA
16
1.6
Normalized V
GS(th)
I
S
(A)
12
1.2
T
j
=150 C
8
o
T
j
=25 C
o
0.8
4
0.4
0
0
0.2
0.4
0.6
0.8
1
1.2
1.4
0.0
-50
0
50
100
150
V
SD
, Source-to-Drain Voltage (V)
T
j
, Junction Temperature ( C)
o
Fig 5. Forward Characteristic of
Reverse Diode
Fig 6. Gate Threshold Voltage v.s.
Junction Temperature
3
AP20T15GP-HF
12
3200
f=1.0MHz
I
D
=15A
V
DS
=120V
V
GS
, Gate to Source Voltage (V)
10
2400
8
C
iss
C (pF)
1600
6
4
800
2
0
0
10
20
30
40
50
60
0
1
5
9
13
17
21
25
C
oss
C
rss
29
Q
G
, Total Gate Charge (nC)
V
DS
,Drain-to-Source Voltage (V)

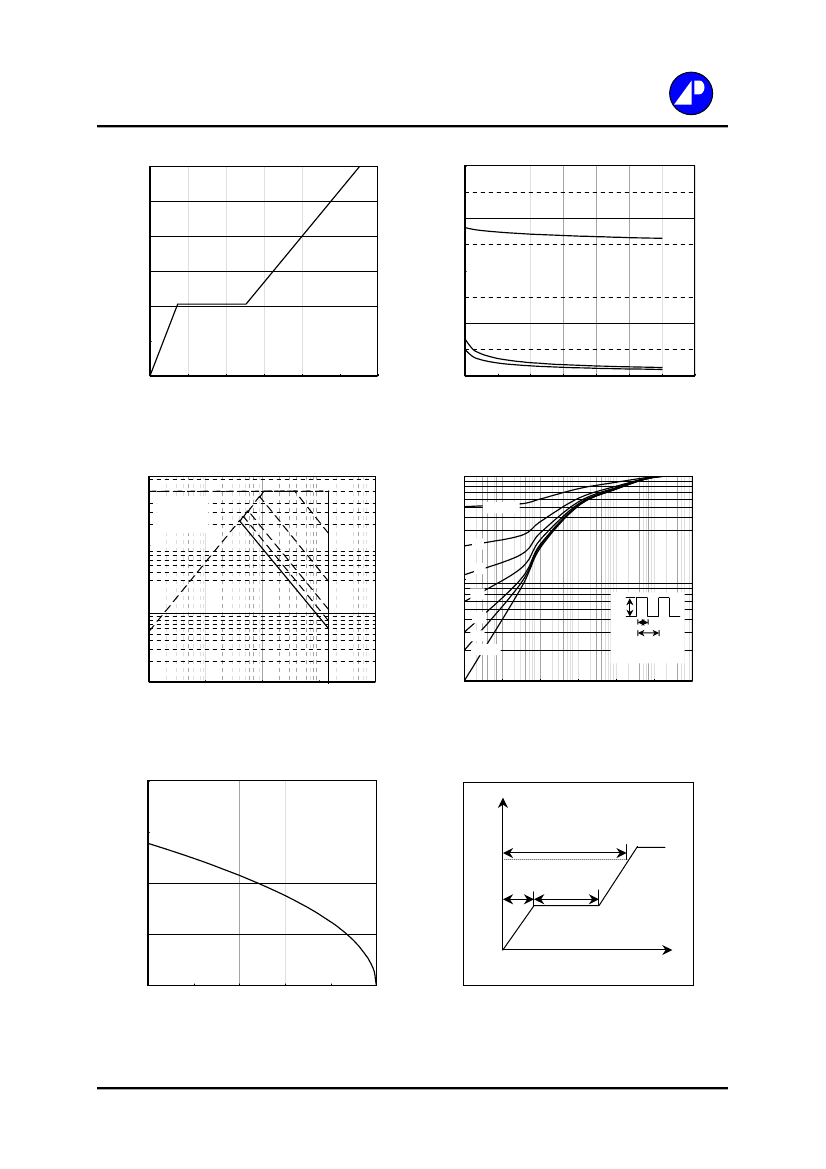

Fig 7. Gate Charge Characteristics
Fig 8. Typical Capacitance Characteristics
100
1
Normalized Thermal Response (R
thjc
)
Operation in this area
limited by R
DS(ON)
Duty factor=0.5
100us
I
D
(A)
10
0.2
0.1
1ms
1
0.1
0.05
10ms
100ms
DC
T
C
=25
o
C
Single Pulse
P
DM
0.02
t
T
0.01
Single Pulse
Duty factor = t/T
Peak T
j
= P
DM
x R
thjc
+ T
C
0.1
0.1
1
10
100
1000
0.01
0.00001
0.0001
0.001
0.01
0.1
1
10
V
DS
, Drain-to-Source Voltage (V)
t , Pulse Width (s)
Fig 9. Maximum Safe Operating Area
Fig 10. Effective Transient Thermal Impedance
32
V
G
I
D
, Drain Current (A)
24
Q
G
10V
16
Q
GS
Q
GD
8
Charge
0
25
50
75
100
125
150
Q
T
C
, Case Temperature (
o
C)
Fig 11. Maximum Continuous Drain
Current v.s. Case Temperature
Fig 12. Gate Charge Waveform
4
