PAC-P060W-01 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> PAC-P060W-01

PAC-P060W-01: Descriptiondesktop AC adapters 19v/3.4A 60w AC/DC power adapter kit; CategoryPower/power management; File Size2MB，2 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

PAC-P060W-01 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PAC-P060W-01	-	-	View	Buy Now

PAC-P060W-01 Overview

desktop AC adapters 19v/3.4A 60w AC/DC power adapter kit

PAC-P060W-01 Parametric

Parameter Name	Attribute value
Manufacture	ARBOR Technology
Product Category	Desktop AC Adapters
RoHS	Yes
Mounting Style	Desk
Number of Outputs	1
Output Power Rating	60 W
Output Voltage-Channel 1	12 V
Output Current-Channel 1	5 A
DC Output Connec	Barrel Plug
AC Plug included/required	Included
Commercial/Medical	Commercial

Preview

Download Datasheet

View All

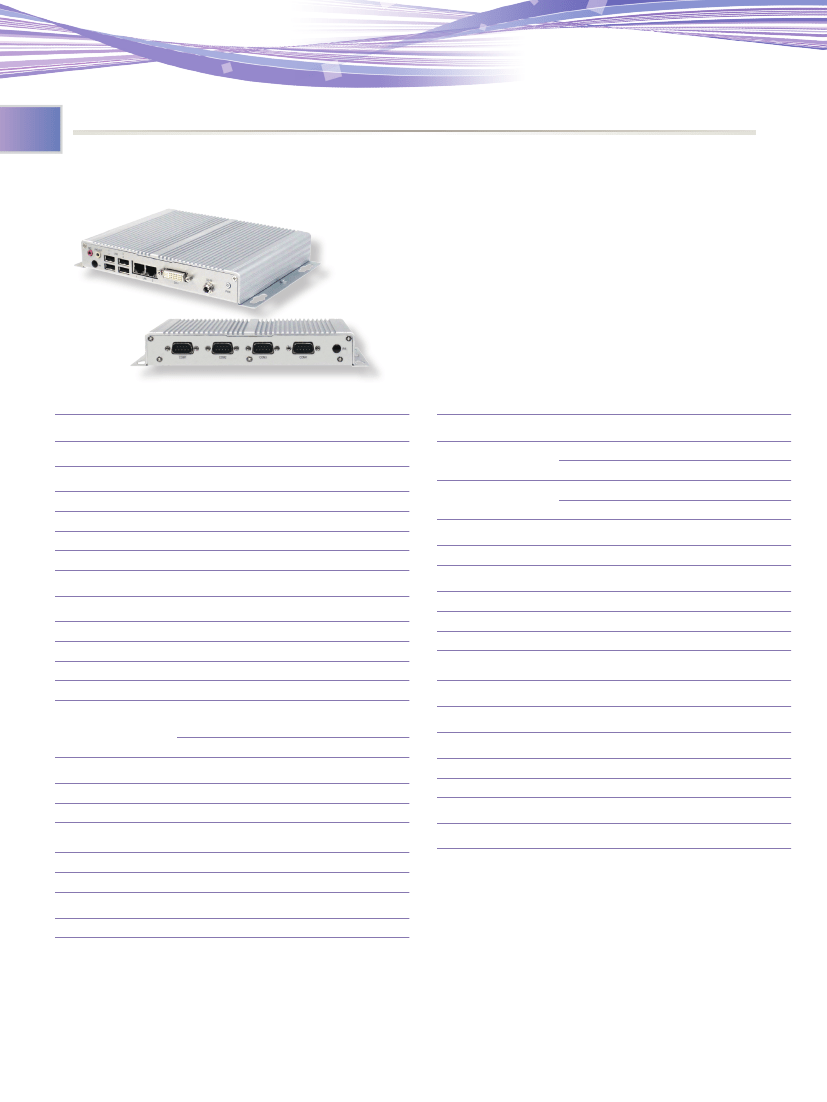

ARES-1500-A10/B10

Robust Box PC with AMD G-T40N Platform

Features

•

Fanless Design

Ultra Low Profile Enclosure

AMD G-T40N Dual-Core 1GHz Processor

Rich I/O (4 x USB, 4 x COM, 2 x GbE LAN, DVI-I, 2 x Mini-card)

Fanless with Aluminum Chassis Design Suitable for Harsh

Environment

•

Optional WiFi or 3G Connection supported

•

Slim, Compact & Cable-free Design

System

CPU

Memory

Chipset

Graphics

LAN Chipset

Watchdog Timer

Soldered onboard AMD G-T40N Dual Core 1.0GHz

processor

1 x 204-pin DDR3 SO-DIMM socket, supporting

800/1066MHz SDRAM up to 4GB

AMD A50M

Integrated AMD G-Series

2 x Realtek 8111 GbE controllers

1~255 levels reset

Power Requirement

Power Input

Power Consumption

A10: DC 12V input by 2.5mm power jack

B10: DC 9-36V by 3-pin terminal block

Max. 20W for A10

Max. 25W for B10

Storage

Type

1 x mSATA socket

I/O

Serial Port

USB Port

LAN

Video Port

Audio

Expansion Bus

4 x RS-232 ports

(One is RS-232/422/485 configurable.)

4 x USB 2.0 ports

2 x RJ-45 ports for GbE

1 x DVI-I female connector for digital video output

Mic-in/Line-out

2 x Mini-card sockets for optional WiFi or HSUPA

module. (One is interconnected with a SIM card

socket)

1 x SIM socket

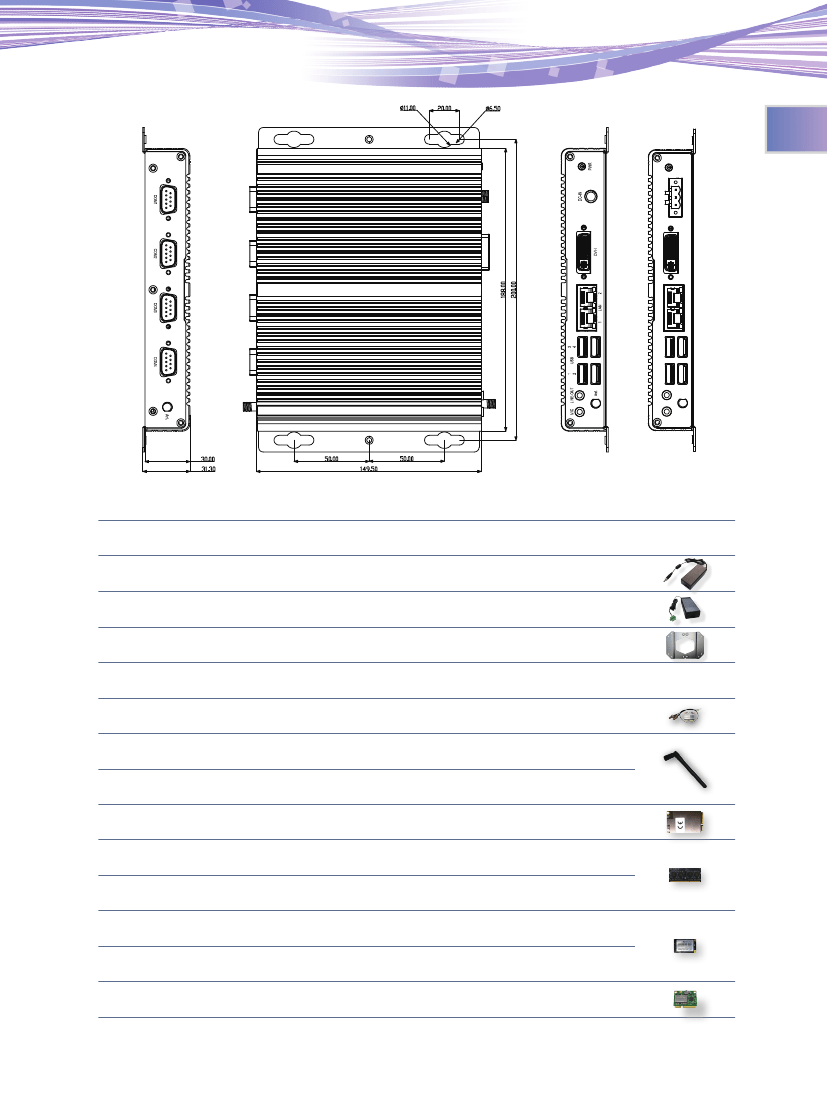

Mechanical

Construction

Mounting

Weight

Dimensions

(W x D x H)

Aluminum alloy

VESA-mount & wall-mount

1Kg (2.21lb)

188 x 149.5 x 30mm (7.4” x 5.88” x 1.18”)

OS Support

Windows XP Embedded / Windows Embedded Standard 7 WS7E

Windows Embedded Standard 7 WS7P

Ordering Information

ARES-1500-A10-16S2G

Box PC w/ 16GB SSD and 2GB memory

ARES-1500-A10

Barebone system w/o storage device and memory

Box PC w/ 16GB SSD, 2GB memory and wide-range

Barebone system w/o storage device, memory and

wide-range DC-in (9~36VDC)

Environmental

Operating Temp.

Storage Temp.

Operating

Humidity

Vibration

Shock

Certification

-25 ~ 55°C (-13 ~ 131°F), ambient w/ air flow

-35 ~ 65°C (-31 ~ 149°F)

10 ~ 95% @ 55°C (non-condensing)

3 Grms/5~500Hz/random operation

Operating 50G (11ms), Non-operating 80G with SSD

ARES-1500-B10-16S2G

DC-in (9~36VDC)

ARES-1500-B10

Qualification

CE, FCC Class A

All specifications are subject to change without notice.

PAC-P060W-01 Related Products

	PAC-P060W-01	ARES-1500-A10-16S2G	ARES-1500-B10-16S2G	ARES-1500-A10	ARES-1500-B10	PAC-P065W
Description	desktop AC adapters 19v/3.4A 60w AC/DC power adapter kit	embedded box computers rugged box PC amd G-t40n 1ghz ssd-ram	embedded box computers rugged box PC amd G-t40n ssd-ram 9-36v	embedded box computers rugged box PC amd G-t40n 1ghz	embedded box computers rugged box PC amd G-t40n 1ghz 9-36v	desktop AC adapters 19v/3.4A 65w AC/DC pwr supply pan-phx4
Manufacture	ARBOR Technology	ARBOR Technology	ARBOR Technology	ARBOR Technology	ARBOR Technology	ARBOR Technology
Product Category	Desktop AC Adapters	Embedded Box Computers	Embedded Box Computers	Embedded Box Computers	Embedded Box Computers	Desktop AC Adapters
RoHS	Yes	Yes	Yes	Yes	Yes	Yes
Processor Brand	-	AMD	AMD	AMD	AMD	-
Processor Type	-	AMD G-T40N	AMD G-T40N	AMD G-T40N	AMD G-T40N	-
Chipsets	-	AMD A50M	AMD A50M	AMD A50M	AMD A50M	-
Frequency	-	1 GHz	1 GHz	1 GHz	1 GHz	-
Memory Size	-	2 GB	2 GB	4 GB	4 GB	-
Memory Type	-	DDR3	DDR3	DDR3	DDR3	-
Interface Type	-	Ethernet, RJ-45, RS-232, USB	Ethernet, RJ-45, RS-232, USB	Ethernet, RJ-45, RS-232, USB	Ethernet, RJ-45, RS-232, USB	-
Operating Supply Voltage	-	12 V	9 V to 36 V	12 V	9 V to 36 V	-
Maximum Operating Temperature	-	+ 55 C	+ 55 C	+ 55 C	+ 55 C	-
Dimensions	-	188 mm x 149.5 mm x 30 mm	188 mm x 149.5 mm x 30 mm	188 mm x 149.5 mm x 30 mm	188 mm x 149.5 mm x 30 mm	-
Description/Functi	-	Box PC with 16 GB SSD and 2GB memory	Box PC with 16 GB SSD, 2GB memory and wide-range DC-in (9 V to 36 V)	Barebone system without storage device, memory	Barebone system without storage device, memory and wide range DC-in (9 V to 36 V)	-
Minimum Operating Temperature	-	- 25 C	- 25 C	- 25 C	- 25 C	-
Power Consumpti	-	20 W	25 W	20 W	25 W	-
