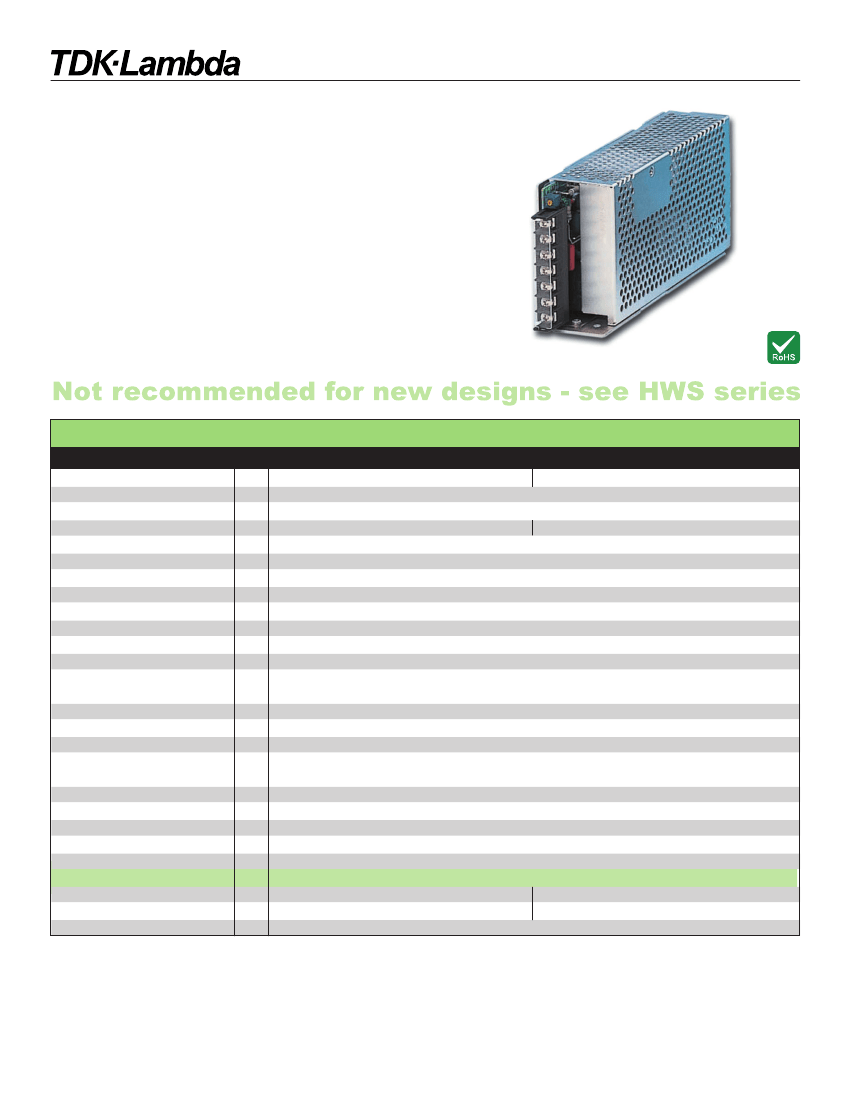

JWT Series
Triple Output Industrial Power Supplies
Features
u
u
u
u
u
5 Year Warranty
Power factor Corrected
Approved to VDE0160 Machinery Directive
Universal Input (85 - 265VAC)
Level B EMI
Key Market Segments & Applications
u
Factory Automation Process Control, NC-Machining, Automotive,
Packaging Equipment, Materials Handling,
Chemical Processing, Robots
u
Test & Measurement Burn-in & Test, Automated Test,
Instrumentation, Measurement, Detection
Specifications
Model
Max Output Power
Efficiency (Typ)
Input Voltage range
Input Current Typ
Inrush Current
Power Factor
Output Voltage Accuracy
Temperature Coefficient
Overcurrent Protection
Overvoltage Protection
Hold Up Time (Typ)
Leakage Current
Operating Temperature
Storage Temperature
Humidity
Cooling
Withstand Voltage
Isolation Resistance
Vibration (non operating)
Shock
Safety Agency Approvals
Conducted & Radiated EMI
Recommended EMI Filter
Weight (Typ)
Size (WxHxD)
Warranty
JWT75
W
%
-
A
A
-
-
-
-
V
ms
-
-
-
-
-
-
-
-
-
-
-
-
g
mm
-
75
100
JWT100
72
85 - 265VAC (47 - 63Hz) or 120 - 330VDC
1.2 / 0.6
1.4 / 0.7
14A at 100VAC, 28A at 200VAC input
Meets EN61000-3-2
V1 variable, V2 & V3 +/-5%
V1 & V2 <0.02%/ºC, V3 <0.03%/ºC
>105%
Main output only: 5.7 - 7V
20
0.75mA Max, 0.44mA typical at 230VAC
-10ºC to +65ºC, derate linearly to 50% load from 50ºC to 65ºC
-10ºC to +50ºC, derate linearly to 60% load from 40ºC to 50ºC with cover
-30 to +85ºC
30 - 90% RH (operating), 10 - 95% RH (non operating)
Convection
Input to Ground 2kVAC (20mA), Input to Output 3kVAC (20mA),
Output to Ground 500VAC (100mA) for 1 min.
>100M at 25ºC & 70%RH, Output to Ground 500VDC
10 - 55Hz (1 minute sweep), 2G constant X, Y, Z 1 hour
<20G
UL60950-1, CSA60950-1, EN60950-1, VDE0160, CE Mark, Built to meet DENTORI
EN55011 / EN55022-B, FCC Class B, VCCI-B
RSEL-2002W
600
720
42 x 92 x 188
48 x 92 x 203
Five Years
1-800-526-2324 • www.us.tdk-lambda.com/lp/
11
Disclaimer: us.tdk-lambda.com/lp/legal.htm
JWT Series
Model Selector
Model
JWT75-522/A
Output
Voltage
+5V
+12V
-12V
+5V
+15V
-15V
+5V
+12V
-5V
+5V
+12V
-12V
+5V
+15V
-15V
+5V
+12V
-5V
Adjust.
Range
5 - 5.25
-
-
5 - 5.25
-
-
5 - 5.25
-
-
5 - 5.25
-
-
5 - 5.25
-
-
5 - 5.25
-
-
Min
Current (A)
0.8
0
0
0.8
0
0
0.8
0
0
1.3
0
0
1.3
0
0
1.3
0
0
Max
Current (A)
8
4
0.5
8
3.2
0.5
8
4
0.5
13
5.5
1
13
4.5
1
13
5.5
1
Ripple
Load Reg (mV)Line Reg (mV) Noise (mV)
40
100
150
40
120
150
40
100
100
40
100
150
40
120
150
40
100
100
20
48
48
20
60
60
20
48
20
20
48
48
20
60
60
20
48
20
120
150
150
120
150
150
120
150
150
120
150
150
120
150
150
120
150
150
V1
V2
V3
JWT75-5FF/A V1
V2
V3
JWT75-525/A
V1
V2
V3
JWT100-522/A V1
V2
V3
JWT100-5FF/A V1
V2
V3
JWT100-525/A V1
V2
V3
Dimensions Table
Height (H)
JWT75
JWT100
1.65
1.89
Width (W)
3.62
3.62
Depth (D)
7.40
7.99
JWS Outline Drawing
W
Options
H
Suffix
Blank
/A
/B
/C
/R
Example
Description
Screw terminals, no cover
Screw terminals, cover (Standard US stock item)
Molex terminals, no cover
Molex terminals, cover
Remote On / Off
JWT75-525/RC
H
(BOTH SIDES)
FRONT VIEW
Other Industrial Products
HWS
JWS, JWS-P
DLP/DSP/DPP
NV175
15 to 1500W Single output
50W to 600W Single output
10 to 480W DIN Rail Single Output
175W Triple & Quad 3” x 5”
SIDE VIEW
W
For Additional Information, please visit
us.tdk-lambda.com/lp/products/jws-series.htm
MOUNTING SURFACE
D
See website for detailed drawing.
Not recommended for new designs - see HWS series
1-800-526-2324 • www.us.tdk-lambda.com/lp/
12
Revision A7: Feb 2012
