TL2200/S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> TL2200/S

TL2200/S: Descriptionelectronic battery C 7.2ah pres.contact; CategoryPower/power management; File Size109KB，1 Pages; ManufacturerAll Sensors

Download Datasheet Parametric Compare View All

TL2200/S Overview

electronic battery C 7.2ah pres.contact

TL2200/S Parametric

Parameter Name	Attribute value
Manufacture	Tadiran Batteries
Product Category	Electronic Battery
RoHS	Not Applicable
Battery Size	C
Output Voltage	3.6 V
Capacity	7.2 Ah
Chemistry	Lithium
Termination Style	Pressure Contacts
Rechargeable/Non-Rechargeable	Non-Rechargeable
Operating Temperature Range	- 55 C to + 85 C
Packaging	Tray
Factory Pack Quantity	30
Type	Electronic Batteries

Preview

Download Datasheet

View All

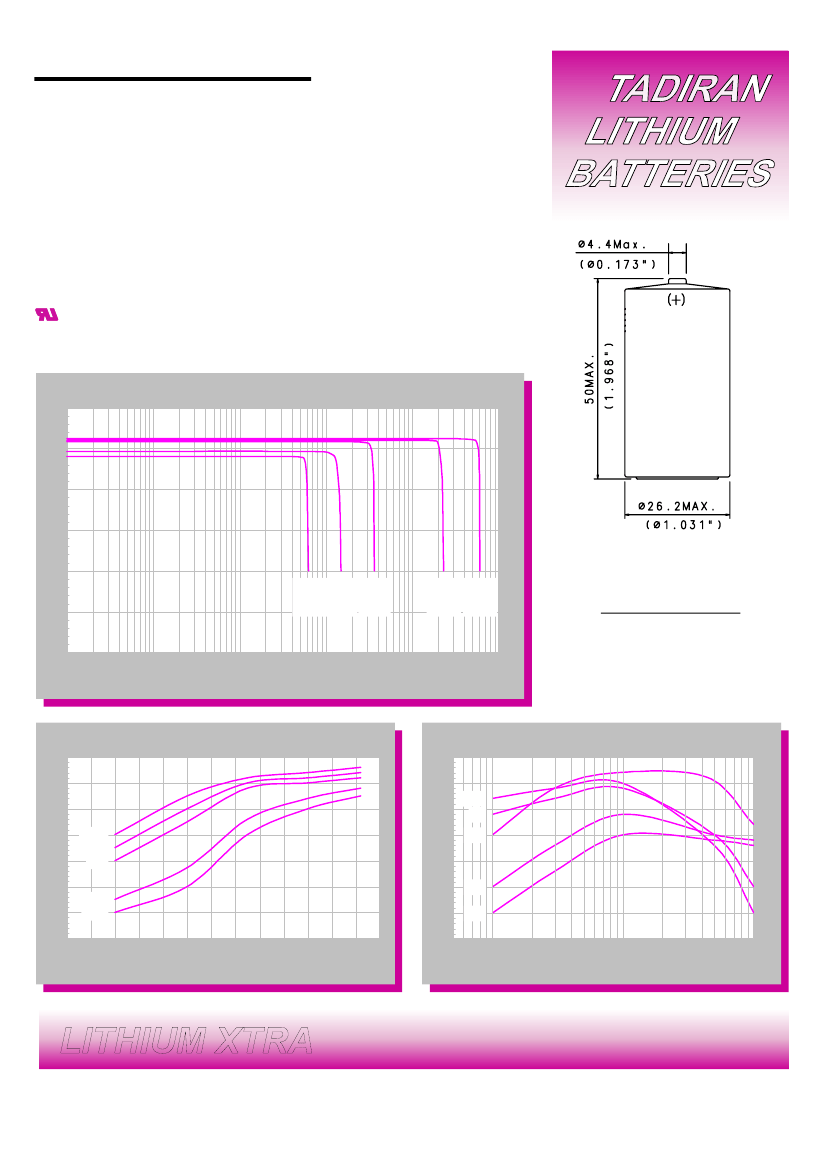

MODEL TL-2200

International size reference: C, ER26500

TECHNICAL DATA

(Typical values @+25ºC for batteries stored for one year or less)

Nominal capacity @ 2 mA, to 2V

Rated voltage

Maximum recommended continuous current

Maximum pulse current capability

Weight

Volume

Operating temperature range

U.L. Component Recognition, MH 12193

7.2 Ah

3.6 V

230 mA

400 mA

50.5g (1.78 oz)

26 cc

-55ºC to +85ºC

Volts

4.0

DISCHARGE CHARACTERISTICS @ +25ºC

3.5

3.0

2.5

2.0

330

Ω

680

Ω

1.8 KΩ

~10 mA ~5 mA ~2 mA

(6.2 Ah) (7.2 Ah) (7.2 Ah)

11 KΩ

36 KΩ

~0.3 mA ~0.1 mA

(6.9 Ah) (6.0 Ah)

1.5

AVAILABLE TERMINATIONS

SUFFIX- /S STANDARD

15-5120-21500

15-5120-31500

SUFFIX- /T SOLDER TABS

1.0

100

1000

10000

100000

Hours

Volts

3.7

3.6

3.5

3.4

3.3

3.2

VOLTAGE VS. TEMPERATURE

7.5

7.0

6.5

-30°C

0°C

25°C

CAPACITY VS. CURRENT

100

µA

300

µA

1 mA

6.0

5.5

5.0

50°C

72°C

5 mA

3.1

3.0

-50

10 mA

4.5

4.0

-30

-10

ºC

0.1

LITHIUM XTRA

Note: Any presentations in this data sheet concerning performance are for information purpose only and are not construed as

warranties either expressed or implied, of future performance.

Rev. B 04/03

TL2200/S Related Products

	TL2200/S	TL2200/T
Description	electronic battery C 7.2ah pres.contact	electronic battery C 7.2ah solder tabs
Manufacture	Tadiran Batteries	Tadiran Batteries
Product Category	Electronic Battery	Electronic Battery
RoHS	Not Applicable	Not Applicable
Battery Size	C	C
Output Voltage	3.6 V	3.6 V
Capacity	7.2 Ah	7.2 Ah
Chemistry	Lithium	Lithium
Termination Style	Pressure Contacts	Solder Tabs
Rechargeable/Non-Rechargeable	Non-Rechargeable	Non-Rechargeable
Operating Temperature Range	- 55 C to + 85 C	- 55 C to + 85 C
Packaging	Tray	Tray
Factory Pack Quantity	30	30
Type	Electronic Batteries	Electronic Batteries
