83-24-260-3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> 83-24-260-3

83-24-260-3: Descriptionlinear power supplies 24v @ 6A oem linear; CategoryPower/power management; File Size144KB，2 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

83-24-260-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	83-24-260-3	-	-	View	Buy Now

83-24-260-3 Overview

linear power supplies 24v @ 6A oem linear

83-24-260-3 Parametric

Parameter Name	Attribute value
Manufacture	Sola/Hevi-Duty
Product Category	Linear Power Supplies
RoHS	Yes
Produc	Linear Supplies
Output Power Rating	144 W
Input Voltage	104 VAC to 127 VAC, 208 VAC to 254 VAC
Number of Outputs	1
Output Voltage-Channel 1	24 VDC
Output Current-Channel 1	6 A
Commercial/Medical	Commercial
Mounting Style	Chassis
Length	178 mm
Width	168 mm
Heigh	127 mm
Dimensions	178 mm L x 168 mm W
Input Frequency	50 Hz to 60 Hz
Open Frame/Enclosed	Open Frame
Type	Power Supplies

Preview

Download Datasheet

View All

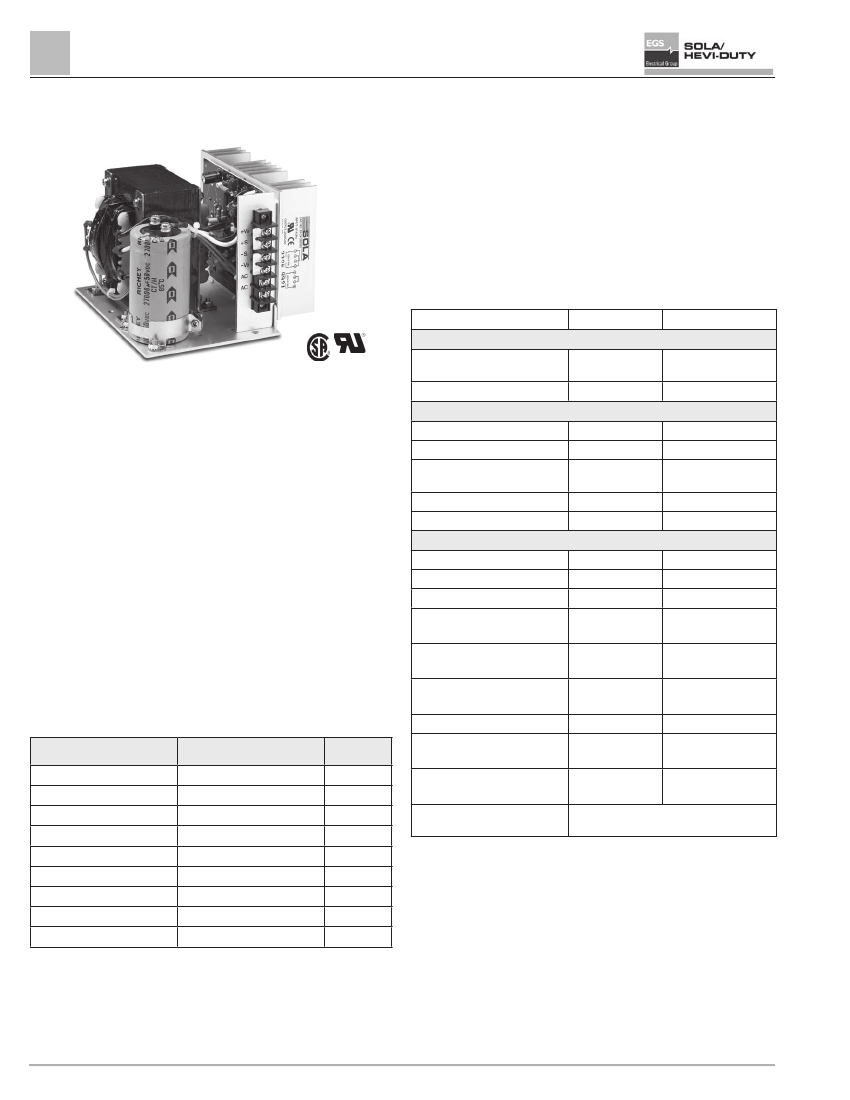

Power Supplies

Linear OEM – Single Output

Applications

• Microprocessor circuits

• Process controls

• Control circuits

• Noise sensitive circuits

• Instrumentation

• CNC machinery

• Analog circuits

Speciﬁcations

Parameter

UL 1950

E137632

Condition

Input

Limit

104-127 VAC

208-254 VAC

50-60 Hz

Input Voltage

Input Frequency

Output

Regulation Line & Load

Pard (Ripple and Noise)

Periodic Deviations

(Ripple)

Output Voltage Adjustment

Transient Recovery Time

Storage Ambient Temp.

Operating Ambient Temp.

Temp. Effect Coefﬁcient

Polarity

Short Circuit Protection

Maximum Allowable Lead

Drop for Remote Sensing

Maximum Output Current

Maximum Short Circui

Current

Input/Output Isolation

Cooling

50%-100% Load

General

Features

• Low noise output

• 115/230 VAC input

• Remote sensing

• Designed for both bench and rack use

• Completely protected short circuit proof; automatic

foldback.

• Current limiting – automatic reset

• Isolated ﬂoating output

• UL Recognized, CSA Certiﬁed

• Built-in OVP on 5 Volt models

• Terminal block on Case D models (24 V/6 A)

• One year warranty

±0.1%

0.1% pk/pk

10mv rms

±5% Minimum

Less than 50 msec

-40°C to +85°C

0°C to +50°C

0.03% °C

May be used

positive or negative

Protected with

Automatic Recovery

120% Rated Current

30% Rated Current

1000 Megohms

D.C., 2500 VAC

Forced air. 20 CFM required for full

rating Derate 30% without cooling

Selection Table

Catalog Number

83-05-230-3

83-12-218-3

83-24-212-3

83-05-260-3

83-12-250-3

83-24-225-3

83-05-312-3

83-12-310-3

83-24-260-3

Output 1

5 V @ 3.0 A

12 V @ 1.8 A

24 V @ 1.2 A

5V@6A

12 V @ 5 A

24 V @ 2.5 A

5 V @ 12 A

12 V @ 10 A

24 V @ 6 A

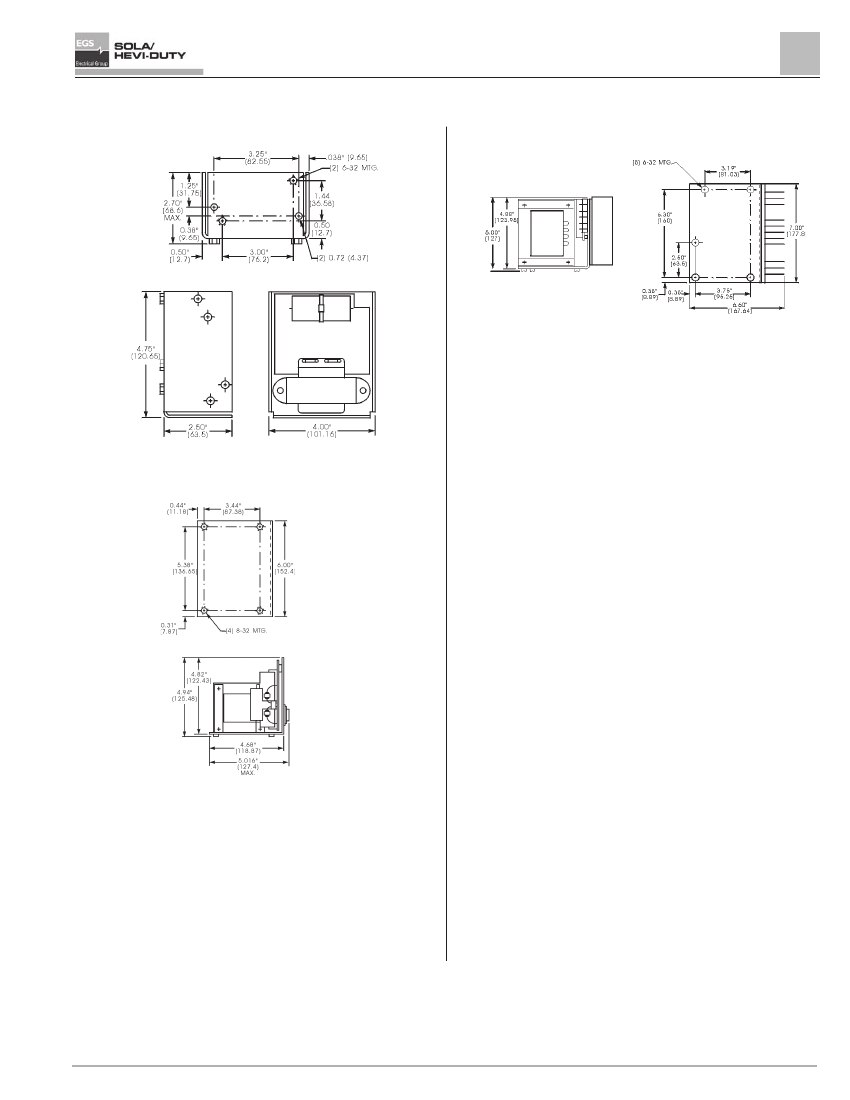

Case

114

Visit our website at www.solaheviduty.com or

contact

Technical Services

(800) 377-4384

with any questions.

83-24-260-3 Related Products

	83-24-260-3	83-24-225-3	83-24-212-3
Description	linear power supplies 24v @ 6A oem linear	linear power supplies 24v @ 2.5A	linear power supplies 24v @ 1.2A oem lnear
Manufacture	Sola/Hevi-Duty	Sola/Hevi-Duty	Sola/Hevi-Duty
Product Category	Linear Power Supplies	Linear Power Supplies	Linear Power Supplies
RoHS	Yes	Yes	Yes
Produc	Linear Supplies	Linear Supplies	Linear Supplies
Output Power Rating	144 W	60 W	29 W
Input Voltage	104 VAC to 127 VAC, 208 VAC to 254 VAC	104 VAC to 127 VAC, 208 VAC to 254 VAC	104 VAC to 127 VAC, 208 VAC to 254 VAC
Number of Outputs	1	1	1
Output Voltage-Channel 1	24 VDC	24 VDC	24 VDC
Output Current-Channel 1	6 A	2.5 A	1.2 A
Commercial/Medical	Commercial	Commercial	Commercial
Mounting Style	Chassis	Chassis	Chassis
Length	178 mm	152.4 mm	120.65 mm
Width	168 mm	127.4 mm	101.16 mm
Heigh	127 mm	125.48 mm	63.5 mm
Dimensions	178 mm L x 168 mm W	152.4 mm L x 127.4 mm W	120.65 mm L x 101.16 mm W
Input Frequency	50 Hz to 60 Hz	50 Hz to 60 Hz	50 Hz to 60 Hz
Open Frame/Enclosed	Open Frame	Open Frame	Open Frame
Type	Power Supplies	Power Supplies	Power Supplies
