PD15-0002-SMA datasheet, PDF - EEWORLD Datasheet

PD15-0002-SMA: Description0.4MHz - 400MHz RF/MICROWAVE SPLITTER, 1.5dB INSERTION LOSS; CategoryWireless rf/communication Radio frequency and microwave; File Size181KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

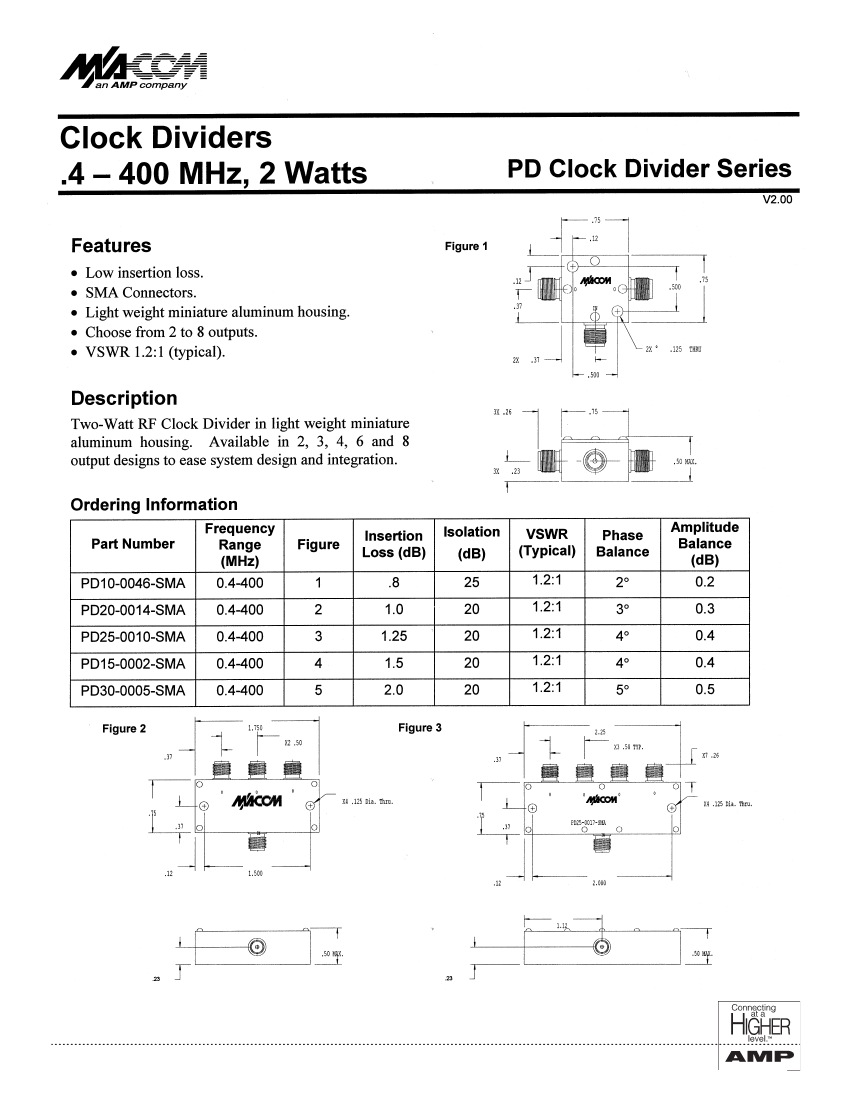

PD15-0002-SMA Overview

0.4MHz - 400MHz RF/MICROWAVE SPLITTER, 1.5dB INSERTION LOSS

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknow
Other features	SMA
structure	COAXIAL
Maximum input power (CW)	33.01 dBm
Maximum insertion loss	1.5 dB
Maximum operating frequency	400 MHz
Minimum operating frequency	0.4 MHz
RF/Microwave Device Types	SPLITTER
Maximum voltage standing wave ratio	1.2
Base Number Matches	1

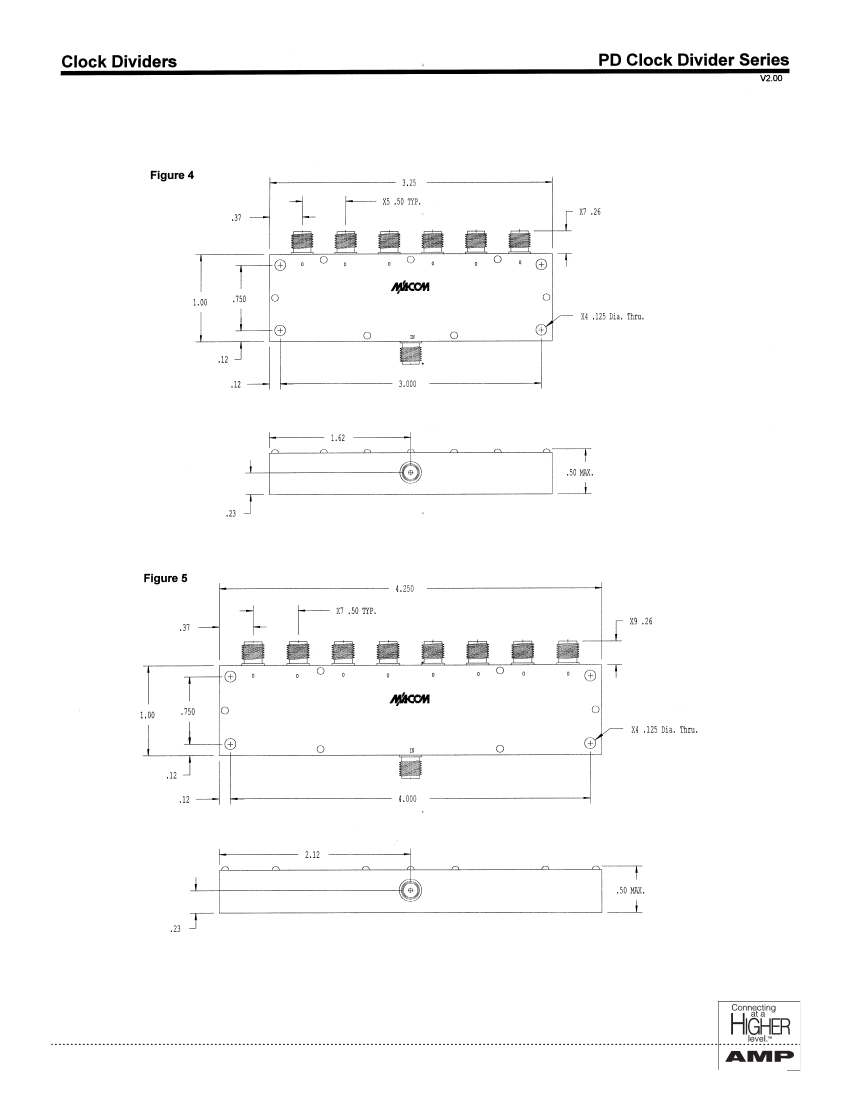

M/A-COM Division of AMP Incorporated

s

North America: Tel. (800) 366-2266, Fax (800) 618-8883

s

Asia/Paciﬁc: Tel. +85 2 2111 8088, Fax +85 2 2111 8087

s

Europe: Tel. +44 (1344) 869 595, Fax +44 (1344) 300 020

www.macom.com

AMP and Connecting at a Higher Level are trademarks.

Speciﬁcations subject to change without notice.

6-62

	PD15-0002-SMA	PD10-0046-SMA	PD30-0005-SMA	PD25-0010-SMA
Description	0.4MHz - 400MHz RF/MICROWAVE SPLITTER, 1.5dB INSERTION LOSS	0.4MHz - 400MHz RF/MICROWAVE SPLITTER, 0.8dB INSERTION LOSS	0.4MHz - 400MHz RF/MICROWAVE SPLITTER, 2dB INSERTION LOSS	0.4MHz - 400MHz RF/MICROWAVE SPLITTER, 1.25dB INSERTION LOSS
Reach Compliance Code	unknow	unknown	unknown	unknown
Other features	SMA	SMA	SMA	SMA
structure	COAXIAL	COAXIAL	COAXIAL	COAXIAL
Maximum input power (CW)	33.01 dBm	33.01 dBm	33.01 dBm	33.01 dBm
Maximum insertion loss	1.5 dB	0.8 dB	2 dB	1.25 dB
Maximum operating frequency	400 MHz	400 MHz	400 MHz	400 MHz
Minimum operating frequency	0.4 MHz	0.4 MHz	0.4 MHz	0.4 MHz
RF/Microwave Device Types	SPLITTER	SPLITTER	SPLITTER	SPLITTER
Maximum voltage standing wave ratio	1.2	1.2	1.2	1.2
Maker	TE Connectivity	-	TE Connectivity	TE Connectivity
