MC32869 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> MC32869

MC32869: DescriptionSpecial Switch, SPST, 0.05A, 12VDC, 4 PCB Hole Cnt, Solder Terminal, Through Hole-right Angle; CategoryMechanical and electronic products switch; File Size38KB，2 Pages; ManufacturerSPC Multicomp; Environmental Compliance

Download Datasheet Parametric Compare View All

MC32869 Overview

Special Switch, SPST, 0.05A, 12VDC, 4 PCB Hole Cnt, Solder Terminal, Through Hole-right Angle

MC32869 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
ECCN code	EAR99
Actuator color	BROWN
Actuator length	0.052 inch
Actuator stroke	0.254 mm
Actuator type	PUSHBUTTON
body width	7.1882 mm
body height	6.5532 mm
Body length or diameter	7.3914 mm
center contact material	STAINLESS STEEL
Maximum contact current (DC)	0.05 A
Contact (DC) maximum rated R load	0.05A@12VDC
Contact resistance	0.1 mΩ
Maximum contact voltage (DC)	12 V
Dielectric withstand voltage	250VAC V
Electrical life	1000000 Cycle(s)
End contact material	STAINLESS STEEL
Shell material	STEEL
Insulation resistance	100000000 Ω
Manufacturer's serial number	MC
Installation features	THROUGH HOLE-RIGHT ANGLE
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
PCB hole count	4
surface mount	NO
switch function	SPST
Terminal length	0.138 inch
Terminal material	BRASS
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

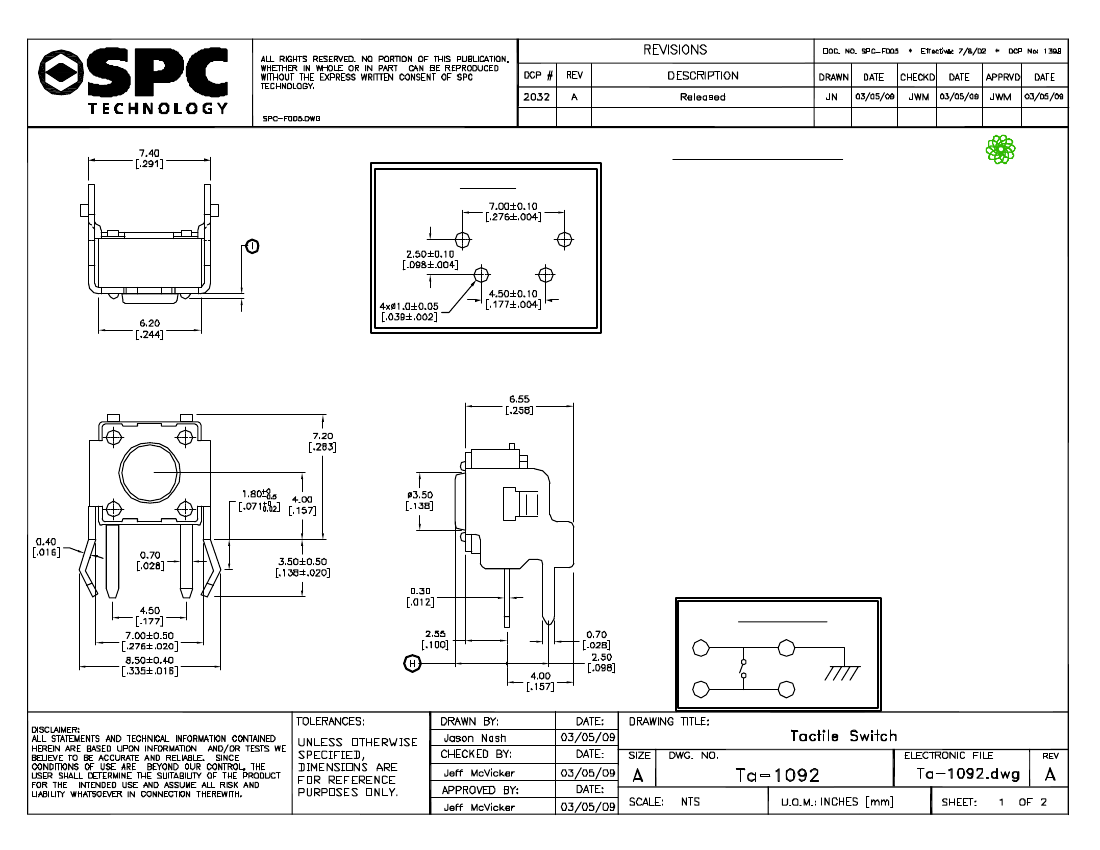

SPECIFICATION

P.C.B LAYOUT

RoHS

Compliant

MECHANICAL

-Operation Force: See Table

-Stroke Strength: Max 3kgf vertical static load

continuously for 15 sec.

-Stroke: (6x6) 0.25+0.2mm/-0.1mm

-Operation Temperature: -25°C to + 70°C

-Storage Temperature: -30°C to +80°C

ELECTRICAL

-Electrical Life: 1,000,000 cycles

-Rating: 50mA , 12 VDC

-Contact Resistance: 100m

Ω

max.

-Insulation Resistance: 100M

Ω

min. at 500VDC

-Dielectric Strength: 250VAC / 1 minute

-Contact Arrangement: SPST

MATERIALS

-COVER: Steel, Tin Plated

-BASE: UL94V-0 Nylon Thermoplastic

-STEM: UL94V-0 Nylon Thermoplastic

-CONTACT DISCO: See Table

-TERMINAL: Brass with silver plating

CIRCUIT DIAGRAM

Ground

Terminal

MC32869 Related Products

	MC32869	MC32837	MC32836	MC32870	MC32835	MC32871	MC32834	MC32838	MC32868
Description	Special Switch, SPST, 0.05A, 12VDC, 4 PCB Hole Cnt, Solder Terminal, Through Hole-right Angle	Special Switch, SPST, 0.05A, 12VDC, 4 PCB Hole Cnt, Solder Terminal, Through Hole-right Angle	Special Switch, SPST, 0.05A, 12VDC, 4 PCB Hole Cnt, Solder Terminal, Through Hole-right Angle	Special Switch, SPST, 0.05A, 12VDC, 4 PCB Hole Cnt, Solder Terminal, Through Hole-right Angle	Special Switch, SPST, 0.05A, 12VDC, 4 PCB Hole Cnt, Solder Terminal, Through Hole-right Angle	Special Switch, SPST, 0.05A, 12VDC, 4 PCB Hole Cnt, Solder Terminal, Through Hole-right Angle	Special Switch, SPST, 0.05A, 12VDC, 4 PCB Hole Cnt, Solder Terminal, Through Hole-right Angle	Special Switch, SPST, 0.05A, 12VDC, 4 PCB Hole Cnt, Solder Terminal, Through Hole-right Angle	Special Switch, SPST, 0.05A, 12VDC, 4 PCB Hole Cnt, Solder Terminal, Through Hole-right Angle
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknow	unknow	unknown	unknown	unknown	unknown	unknow	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Actuator color	BROWN	BROWN	BROWN	BLACK	BROWN	BROWN	BROWN	BROWN	BLACK
Actuator length	0.052 inch	0.367 inch	0.367 inch	0.142 inch	0.052 inch	0.142 inch	0.024 inch	0.142 inch	0.052 inch
Actuator type	PUSHBUTTON	PUSHBUTTON	PUSHBUTTON	PUSHBUTTON	PUSHBUTTON	PUSHBUTTON	STEM	PUSHBUTTON	PUSHBUTTON
body width	7.1882 mm	7.1882 mm	7.1882 mm	7.1882 mm	7.1882 mm	7.1882 mm	6.55 mm	7.1882 mm	7.1882 mm
body height	6.5532 mm	6.5532 mm	6.5532 mm	6.5532 mm	6.5532 mm	6.5532 mm	7.2 mm	6.5532 mm	6.5532 mm
Body length or diameter	7.3914 mm	7.3914 mm	7.3914 mm	7.3914 mm	7.3914 mm	7.3914 mm	7.4 mm	7.3914 mm	7.3914 mm
center contact material	STAINLESS STEEL	PHOSPHOR BRONZE	PHOSPHOR BRONZE	STAINLESS STEEL	PHOSPHOR BRONZE	STAINLESS STEEL	PHOSPHOR BRONZE	PHOSPHOR BRONZE	STAINLESS STEEL
Maximum contact current (DC)	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A
Contact (DC) maximum rated R load	0.05A@12VDC	0.05A@12VDC	0.05A@12VDC	0.05A@12VDC	0.05A@12VDC	0.05A@12VDC	0.05A@12VDC	0.05A@12VDC	0.05A@12VDC
Contact resistance	0.1 mΩ	0.1 mΩ	0.1 mΩ	0.1 mΩ	0.1 mΩ	0.1 mΩ	0.1 mΩ	0.1 mΩ	0.1 mΩ
Maximum contact voltage (DC)	12 V	12 V	12 V	12 V	12 V	12 V	12 V	12 V	12 V
Dielectric withstand voltage	250VAC V	250VAC V	250VAC V	250VAC V	250VAC V	250VAC V	250VAC V	250VAC V	250VAC V
Electrical life	1000000 Cycle(s)	1000000 Cycle(s)	1000000 Cycle(s)	1000000 Cycle(s)	1000000 Cycle(s)	1000000 Cycle(s)	1000000 Cycle(s)	1000000 Cycle(s)	1000000 Cycle(s)
End contact material	STAINLESS STEEL	PHOSPHOR BRONZE	PHOSPHOR BRONZE	STAINLESS STEEL	PHOSPHOR BRONZE	STAINLESS STEEL	BRASS	PHOSPHOR BRONZE	STAINLESS STEEL
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	NYLON	STEEL	STEEL
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
Installation features	THROUGH HOLE-RIGHT ANGLE	THROUGH HOLE-RIGHT ANGLE	THROUGH HOLE-RIGHT ANGLE	THROUGH HOLE-RIGHT ANGLE	THROUGH HOLE-RIGHT ANGLE	THROUGH HOLE-RIGHT ANGLE	THROUGH HOLE-RIGHT ANGLE	THROUGH HOLE-RIGHT ANGLE	THROUGH HOLE-RIGHT ANGLE
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
PCB hole count	4	4	4	4	4	4	4	4	4
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
switch function	SPST	SPST	SPST	SPST	SPST	SPST	SPST	SPST	SPST
Terminal length	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch
Terminal material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Actuator stroke	0.254 mm	0.254 mm	0.254 mm	0.254 mm	0.254 mm	0.254 mm	-	0.254 mm	0.254 mm
Manufacturer's serial number	MC	MC	MC	MC	MC	MC	-	MC	MC
Base Number Matches	1	1	1	1	1	1	-	-	-
Maker	-	-	SPC Multicomp	SPC Multicomp	SPC Multicomp	SPC Multicomp	SPC Multicomp	-	-
