POWER
Data Sheet
Total Power: 12 Watts
Input Voltage: 90 - 264 Vac
# of Outputs: Single
Special FeatureS
5 V and 12 V versions
Medical and ITE Safeties
Switching wallmount

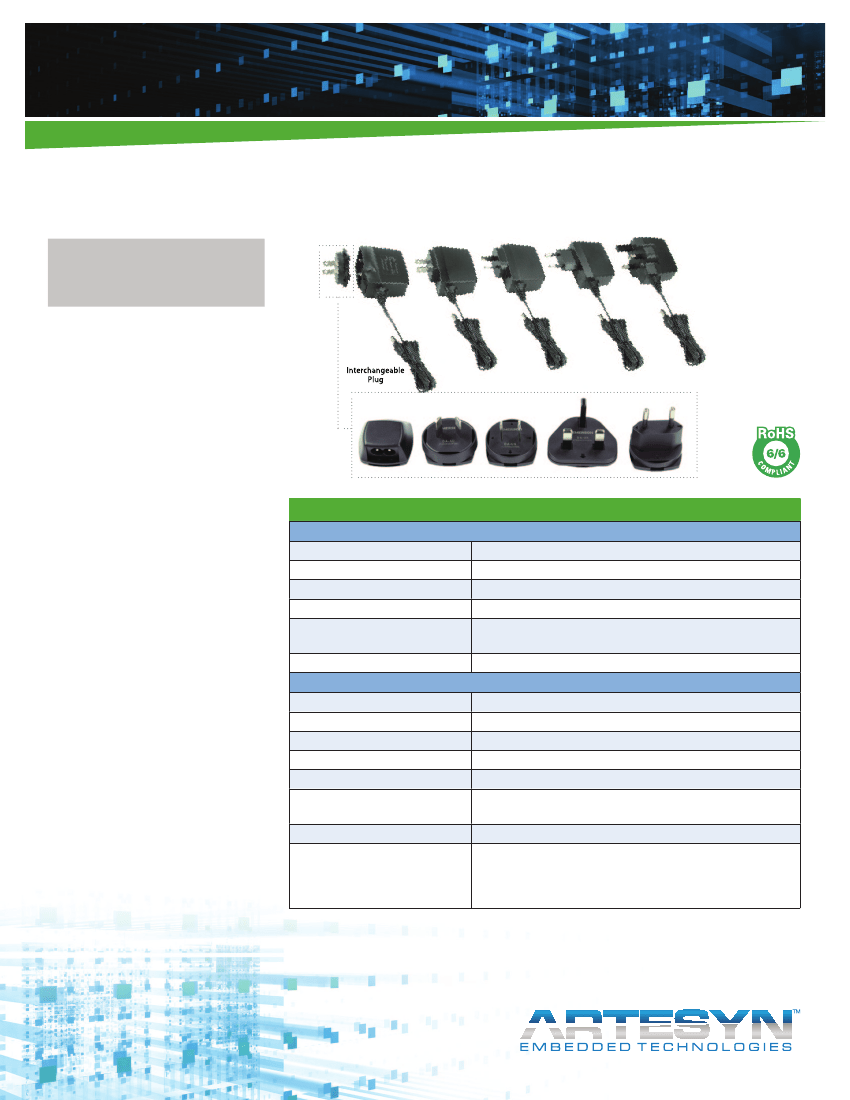

power supply
Available in interchangeable &
fixed ac plug configurations
CE Mark EMC, LVD & ErP 2011
Universal AC input
Fully regulated output
Overload and short circuit
protection
Thermal protection
Energy Star and CeC compliant
Efficiency level V
Constant voltage
High MTBF
Built in EMI filter
(CISPR 22 Class B)
DA12-M Series
12 Watts
Electrical Specifications
Input
Input range:
Frequency:
Inrush current:
Input current:
EMI/RFI:
Safety ground leakage current:
90 - 264 Vac (wide range)
47 - 63Hz
28 A @ 264 Vac
0.25 A rms @ 120 Vac; 0.15 A @ 240 Vac
FCC Part 15, Subpart B Class B & EN55022
(CISPR 22) Class B
100 μA @ 50/60 Hz, 264 Vac input
5.0 V and 12.0 V
± 5% @ constant voltage mode
12 W for 12 V models, 10 W for 5 V models
10 ms. typical at full load @ 230 Vac
Non-latching type
Output shortcircuit protection auto recover
Overload protected @ 150% above maximum rating
Auto recovery
DC cable with 2.5 mm x 5.5mm barrel plug, 2.1 mm x 5.5 mm
available on DC multi-plug version. For others please contact factory.
DC plug center +v
DC plug outer -v
SaFety
UL
cUL
TUV
AS/NZS
CB
CE
60950, 60601-1
60950, 60601-1
60950-1, 60601-1
60950-1, 60601-1
Certificate and report
EMC, LVD & ErP 2011
for EU & UK versions
Denan
<2000M, No Tropical
Output
Voltage (Vo):
Voltage regulation:
Maximum Power (Po):
Hold-up time:
Overvoltage protection:
Overload protection:
Overtemperature protection:
Output cable/connector
barrel polarity:
PSE
CCC
DA12-M Series Data Sheet
Environmental Specifications
Operating temperature:
Storage temperature:
Electromagnetic susceptibility:
Humidity:
Vibration:
0 ° to +40 °C ambient
-40 °C to +85 °C
Designed to meet EN55024
Operating; non-condensing 5% to 95% RH
Frequency/PSD: 5 - 350 Hz
0.0001 g
2
/Hz
350 - 500 Hz - 6dB/Oct.
500 Hz
0.00005 g
2
/Hz
Acceleration:
0.21 gRMS
Duration:
20 min per second
AC Plug Configuration for Fixed Plug
U.S. 2-prong
Europe 2-prong
United Kingdom 3-prong
Australia 2-prong
US
EU
UK
AU
AC Plug Configuration for Interchangeable Plug
U.S. 2-prong
Europe 2-prong
United Kingdom 3-prong
Australia 2-prong
C8 - 2 receptacle
Japan 2-prong
China 2-prong
Korea 2-prong
DA-US
DA-EU
DA-UK
DA-AU
DA-C8
DA-JP
DA-CH
DA-KR
DA12-M Series Data Sheet

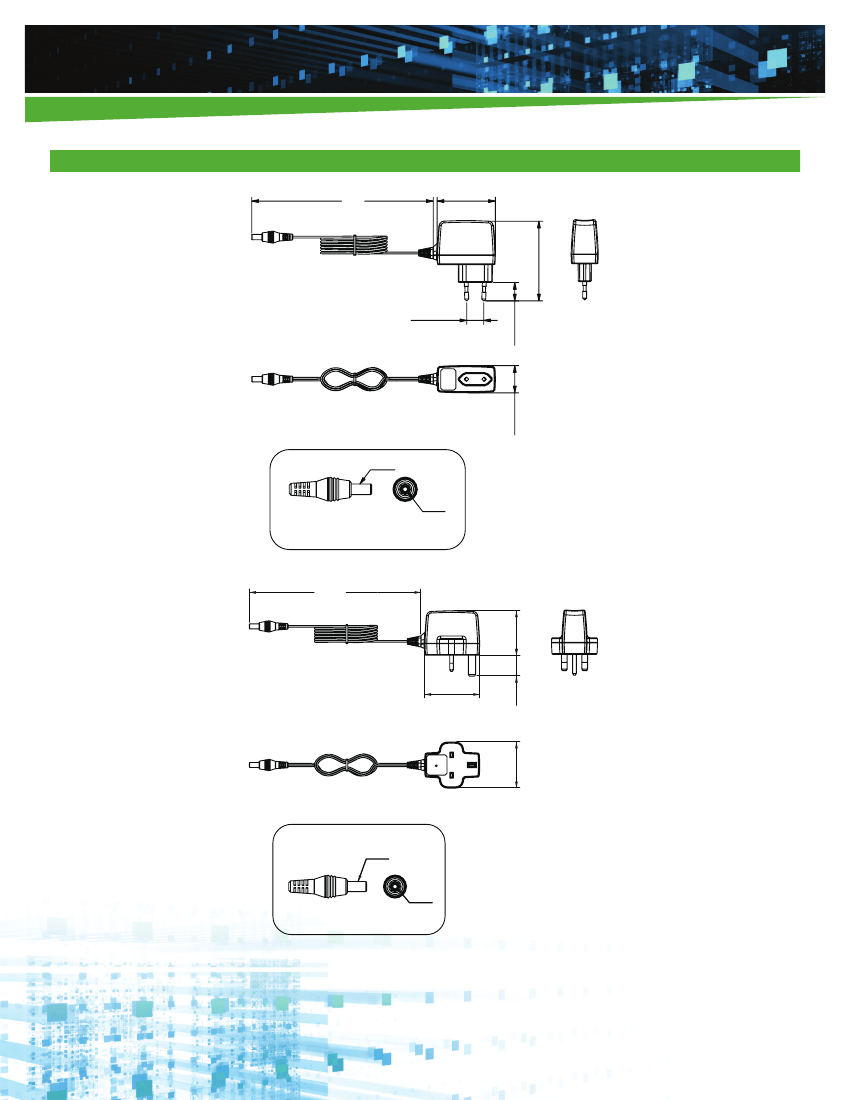

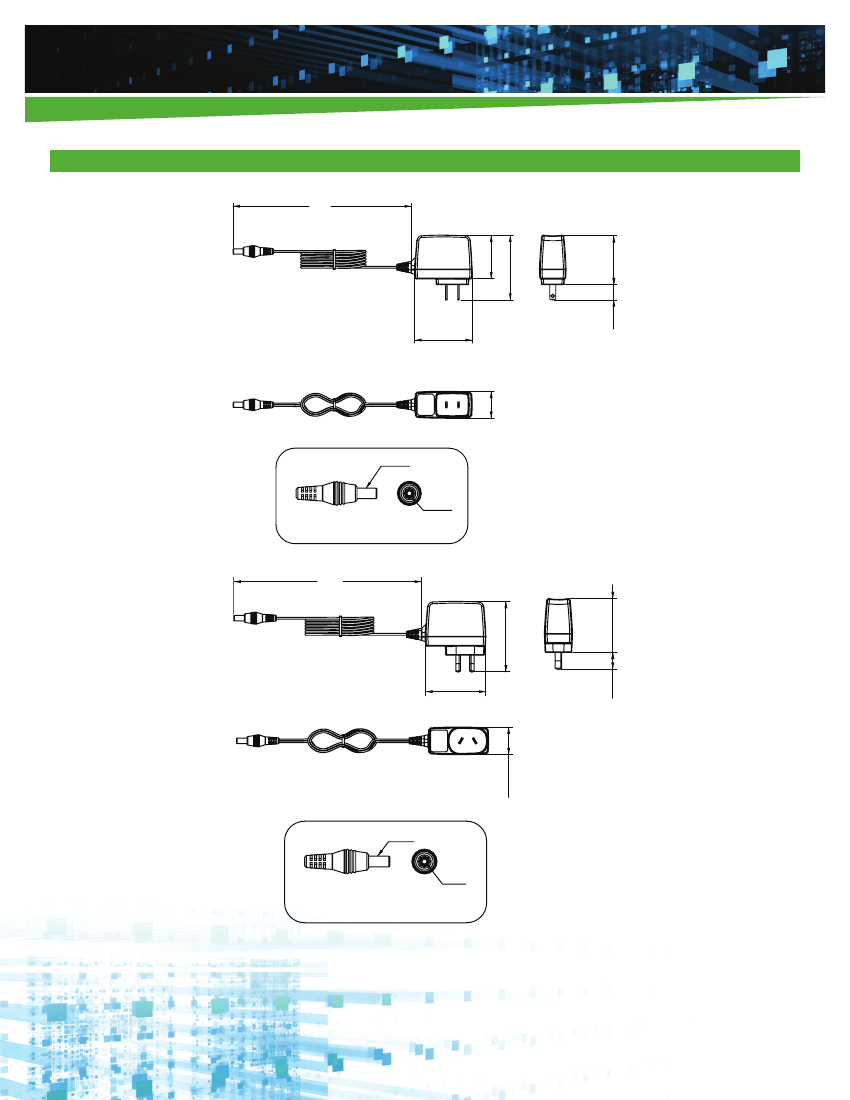

Mechanical Drawings

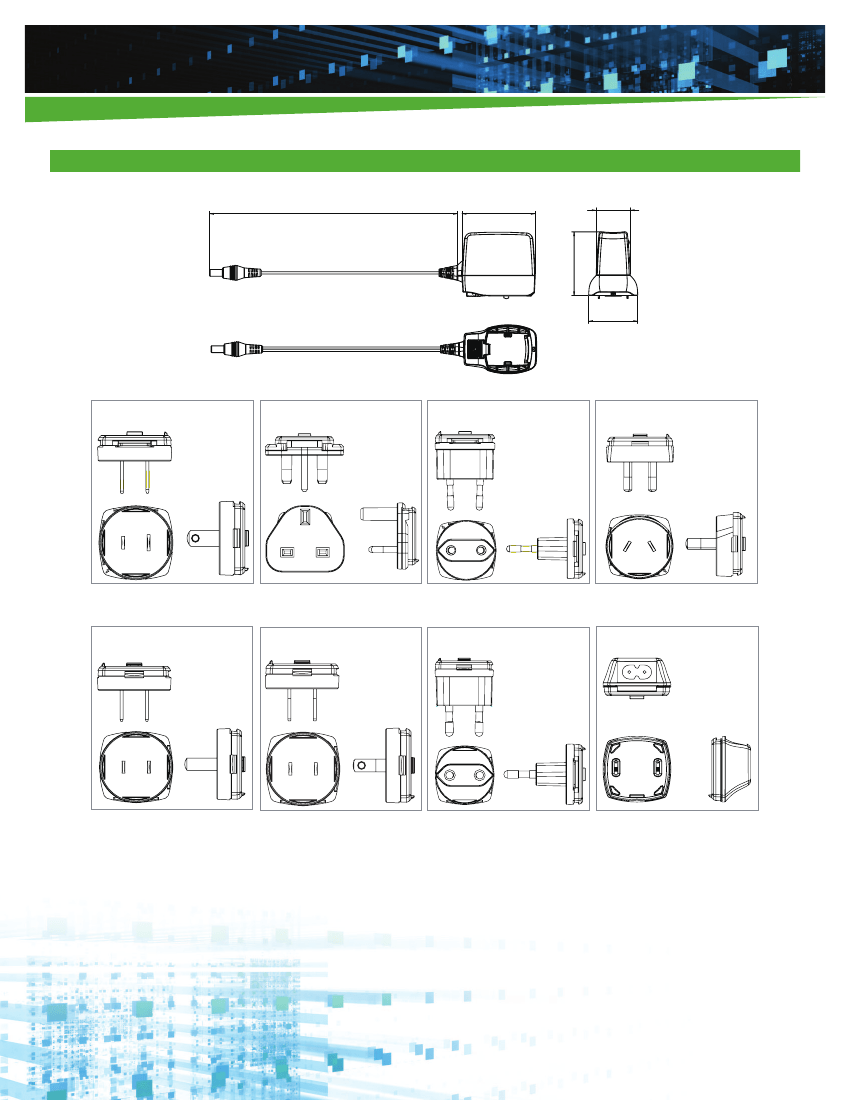

DA12-MP Interchangeable Plug Adapter
59”
(1500)
2.36”
(60)
1.10”
(28)
2.06”
(52.22)
1.58”
(40.18)
DA-US
DA-UK
DA-EU
DA-AU
*Can be inserted straight or 90˚
*Can be inserted straight or 90˚
DA-CH
DA-JP
DA-KR
DA-C8
*Can be inserted straight or 90˚
*Can be inserted straight or 90˚
Notes:
1. Specifications subject to change without notice.
2. All dimensions in inches (mm), tolerance is ± .02”.
3. Weight: 0.25 lb/0.114 kg
4. Warranty: 2 years
