RB-0505S/E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Power management> RB-0505S/E

RB-0505S/E: Descriptionisolated DC/DC converters 1W 05vin 05vout conv DC/DC; Categorysemiconductor Power management; File Size987KB，5 Pages; ManufacturerRECOM Power GmbH; Websitehttps://www.recom-power.com/; Environmental Compliance

Download Datasheet Parametric View All

RB-0505S/E Overview

isolated DC/DC converters 1W 05vin 05vout conv DC/DC

RB-0505S/E Parametric

Parameter Name	Attribute value
Manufacture	RECOM
Product Category	Isolated DC/DC Converters
RoHS	Yes
Output Powe	1 W
Input Voltage Range	4.5 V to 5.5 V
Input Voltage-nominal	5 VDC
Number of Outputs	1
Output Voltage-Channel 1	5 VDC
Output Current-Channel 1	200 mA
Packaging	Tube
Factory Pack Quantity	25

Preview

Download Datasheet

View All

Features

Unregulated

Converters

Description

•

High efficiency uo to 84% full load

Low deviation (10% - 100% load)

1kVDC and 2kVDC isolation option

UL60950-1 and EN/IEC60950-1 certified

-40°C to +100°C operating temperature range

1W SIP7 package

DC/DC Converter

RB/E

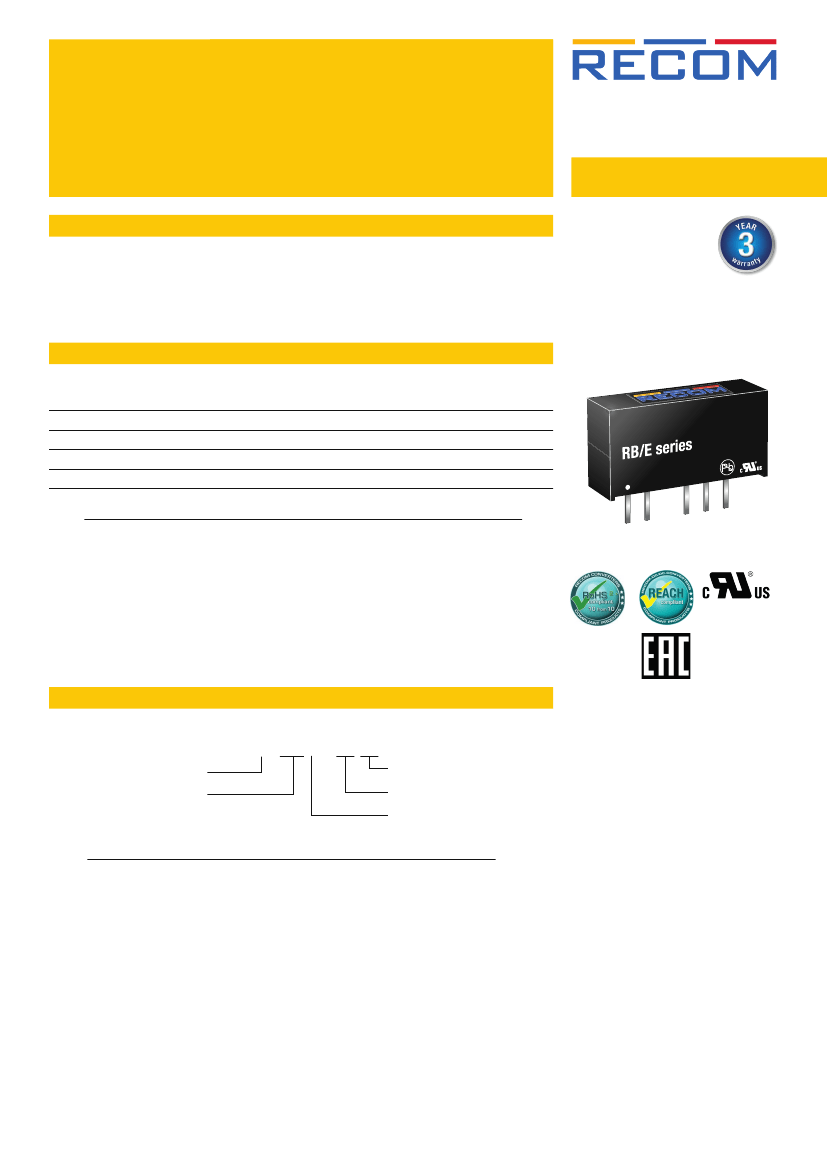

The RB/E series is an unregulated DC/DC converter in standard SIP7 package style. This series has been

designed to offer exceptionally high efficiency at low loads, an extended operating temperature range

and low deviation (10% to 100%). Uses include applications with restricted energy budget and industrial

applications where a high efficiency level is required.

1 Watt

SIP7

Single Output

Selection Guide

Part

Number

RB-3.305S/E

(3,4)

RB-0505S/E

(3,4)

RB-1205S/E

(3,4)

RB-2405S/E

(3,4)

nom. Input

Voltage

[VDC]

3.3

Output

Voltage

[VDC]

Output

Current

[mA]

200

Efficiency

typ.

(1)

[%]

max. Capacitive

Load

(2)

[µF]

2200

Notes:

Note1: Efficiency is tested at nominal input and full load at +25°C ambient

Note2: Max Cap Load is tested at nominal input and full resistive load and is defined as the

capacitive load that will allow start up in under 1s without damage to the converter

E358085

Model Numbering

RB- __ 05S/E

nom. Input Voltage

Output Voltage

Protection

(3)

Isolation Option

(4)

Single

Notes:

Note3: standard part is without continuous short circuit protection

add suffix „/P“ for continuous short circuit protection

Note4: add suffix „/H“ for 2kVDC isolation

or add suffix „/HP“ for 2kVDC isolation and continuous short circuit protection

Ordering Examples:

RB-1205S/E: 12VDC Input Voltage, 5VDC Output Voltage, Single Output

RB-3.305S/EP: 3.3VDC Input Voltage, 5VDC Output Voltage, Single Output with continuous short circuit protection

RB-0505S/EH: 5VDC Input Voltage, 5VDC Output Voltage, Single Output with 2kVDC isolation

RB-0505S/EHP: 5VDC Input Voltage, 5VDC Output Voltage, Single Output with 2kVDC isolation and continuous short circuit protection

UL60950-1 certified

CAN/CSA-C22.2 No 60950-1 certified

EN60950-1 certified

IEC60950-1 certified

www.recom-power.com

REV.: 1/2018

ECO-1
