SRS-0505: Descriptionisolated DC/DC converters 0.5W 5V/0-100ma W/emi filter; CategoryPower/power management The power supply circuit; File Size113KB，1 Pages; ManufacturerMEAN WELL; Websitehttp://www.meanwell.com; Environmental Compliance

Download Datasheet Parametric Compare View All

SRS-0505 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SRS-0505	-	-	View	Buy Now

SRS-0505 Overview

isolated DC/DC converters 0.5W 5V/0-100ma W/emi filter

SRS-0505 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	MEAN WELL
package instruction	,
Reach Compliance Code	compli
Samacsys Descripti	0.5W DC-DC Regulated Single Output Converte
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	5.5 V
Minimum input voltage	4.5 V
Nominal input voltage	5 V
JESD-30 code	R-XDMA-P8
length	22.6 mm
Number of functions	1
Output times	1
Number of terminals	8
Maximum operating temperature	60 °C
Minimum operating temperature	-25 °C
Maximum output voltage	5.15 V
Minimum output voltage	4.85 V
Nominal output voltage	5 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Maximum seat height	8.4 mm
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum total power output	0.5 W
Fine-tuning/adjustable output	NO
width	9.9 mm

Preview

Download Datasheet

View All

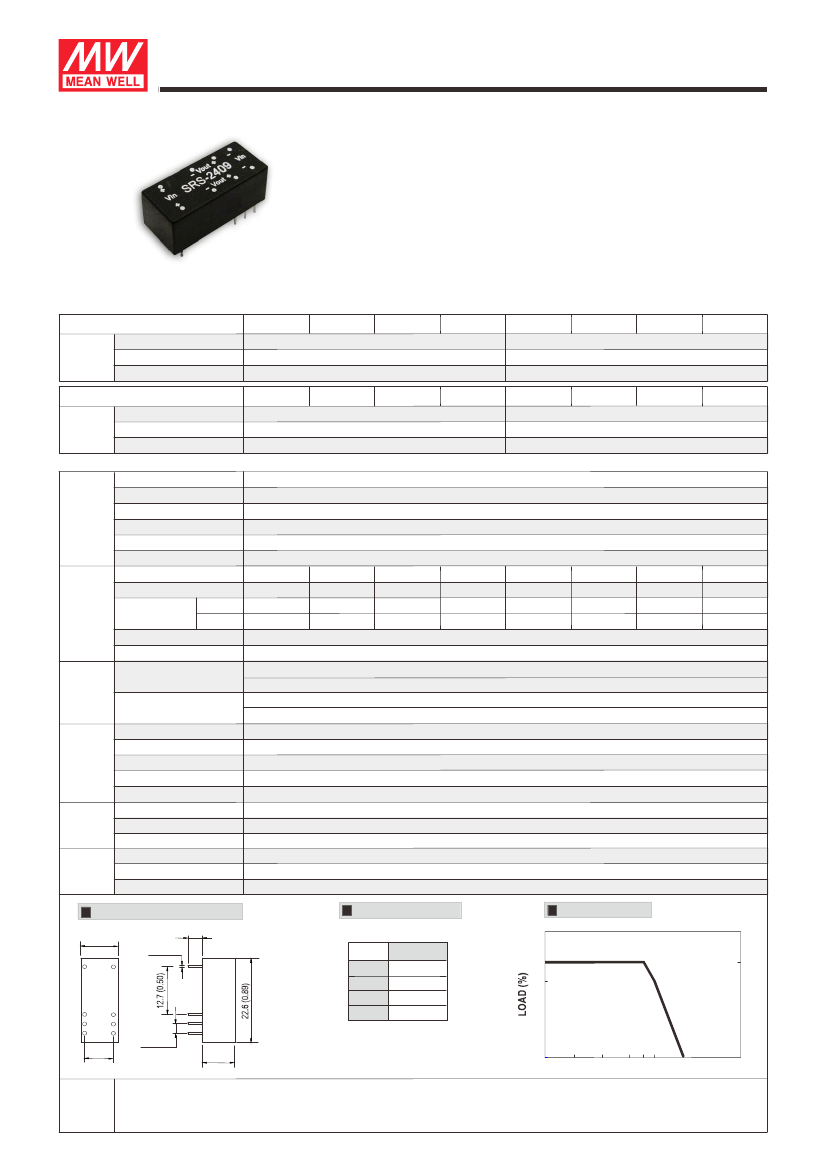

0.5W DC-DC Regulated Single Output Converter

■

Features :

‧

1000VDC I/O isolation

SRS

series

‧

Internal SMD technology

‧

Built-in EMI filter

‧

Cooling by free air convection

‧

Non-conductive plastic case

‧

Dual in line package

‧

100% burn-in test

‧

Low cost / High reliability

‧

2 years warranty

SELECTION GUIDE

ORDER NO.

DC VOLTAGE

OUTPUT

CURRENT RANGE

EFFICIENCY (TYP.)

ORDER NO.

DC VOLTAGE

OUTPUT

CURRENT RANGE

EFFICIENCY (TYP.)

SRS-0505

5V

0 ~ 100mA

60%

SRS-0512

12V

0 ~ 42mA

60%

0.5W

SRS-1212

SRS-2412

SRS-4812

SRS-1205

SRS-2405

SRS-4805

SRS-0509

9V

0 ~ 56mA

60%

SRS-0515

15V

0 ~ 34mA

60%

SRS-1215

SRS-2415

SRS-4815

SRS-1209

SRS-2409

SRS-4809

SPECIFICATION

RATED POWER

RIPPLE & NOISE (max.)

Note.2

100mVp-p

±1.0%

LINE REGULATION

LOAD REGULATION

VOLTAGE ACCURACY

SWITCHING FREQUENCY

VOLTAGE RANGE

NORMAL VOLTAGE

INPUT

INPUT CURRENT

FILTER

PROTECTION

OVERLOAD

PROTECTION

(Note. 4)

Note.3

±1.0%

OUTPUT

±

2.0%(Typ.)

50KHz min.

4.5 ~ 5.5V

5V

±

3.0%(max.)

10.8 ~ 13.2V

12V

72mA

15mA

21.6 ~ 26.4V

24V

36mA

9mA

43.2 ~ 52.8V

48V

19mA

5mA

4.5 ~ 5.5V

5V

175mA

37mA

10.8 ~ 13.2V

12V

72mA

15mA

21.6 ~ 26.4V

24V

36mA

9mA

43.2 ~ 52.8V

48V

19mA

5mA

Full load 175mA

No load 37mA

Capacitor type

Fuse recommended

150 ~ 350% rated output power

Protection type : Hiccup mode, recovers automatically after fault condition is removed

All output equipped with short circuit

Protection type : Hiccup mode, recovers automatically after fault condition is removed

-25 ~ +71

℃

(Refer to "Derating Curve")

20% ~ 90% RH non-condensing

SHORT CIRCUIT

WORKING TEMP.

WORKING HUMIDITY

ENVIRONMENT STORAGE TEMP., HUMIDITY

-25 ~ +105

℃

, 10 ~ 95% RH

±

0.03% /

℃

(0 ~ 50

℃

)

TEMP. COEFFICIENT

VIBRATION

10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes

I/P-O /P:1KVDC

WITHSTAND VOLTAGE

SAFETY &

ISOLATION RESISTANCE

I/P-O /P: 100M Ohms / 500VDC / 25

℃

/ 70% RH

EMC

80pF m ax.

ISOLATION CAPACITANCE

MTBF

600khrs min. MIL-HDBK-217F(25

℃

)

OTHERS

DIMENSION

22.6* 9.9*8.4mm or 0.89"*0.39"*0.33" inch (L* W*H)

WEIGHT

3.1g

Mechanical Specification

Unit: mm (inch)

Pin Configuration

Pin No.

1 & 16

6 & 11

7 & 10

8 & 9

Derating Curve

9.9 (0.39)

0.5 (0.02)

16

1

3.81 (0.15)

Output

+Vin

-Vout

+Vout

-Vin

100

80

BOTTOM

VIEW

11

10

9

6

7

8

2.54 (0.10)

7.62 (0.30)

8.4 (0.33)

-25

0

25

50 60 71

100

Ta (

℃

)

NOTE

1.All parameters are specified at normal input, rated load, 25

℃

70% RH ambient.

2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.

3.Load regulation is measured from 10% to 100% rated load.

4.Please prevent the converter from operating in overload or short circuit condition for more than 30 seconds.

File Name: SRS-SPEC 2014-04-23
