5186-15TB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5186-15TB

5186-15TB: DescriptionD Type Connector, 15 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size209KB，1 Pages; ManufacturerRatioplast Electronics

Download Datasheet Parametric Compare View All

5186-15TB Overview

D Type Connector, 15 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, Locking, Receptacle

5186-15TB Parametric

Parameter Name	Attribute value
Maker	Ratioplast Electronics
Reach Compliance Code	compliant
body width	0.494 inch
subject depth	0.469 inch
body length	1.213 inch
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	5186
Plug contact pitch	0.09 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN OVER COPPER
Terminal pitch	2.286 mm
Termination type	SOLDER
Total number of contacts	15
Base Number Matches	1

Preview

Download Datasheet

View All

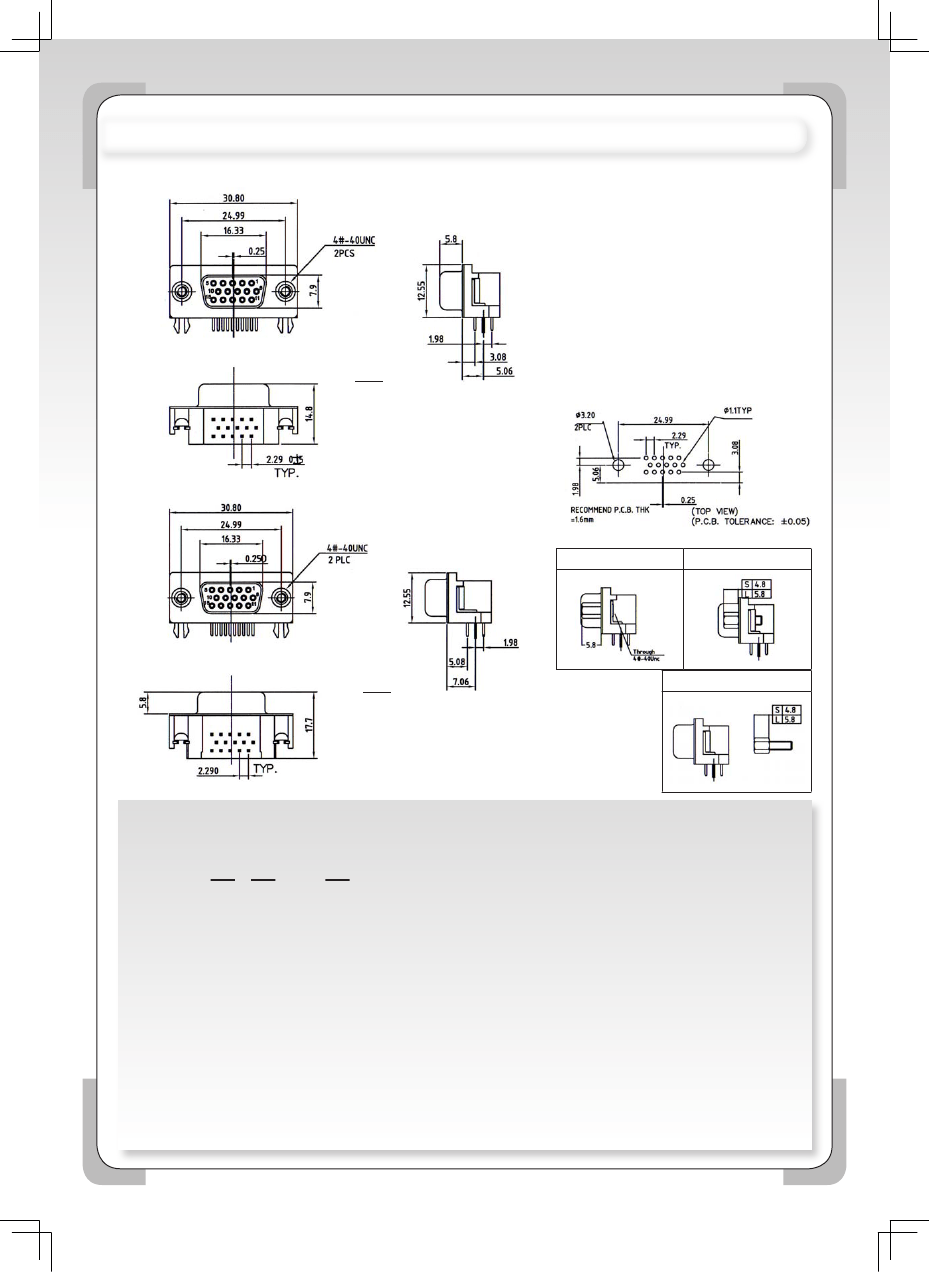

D-SUB. HIGH DENSITY FEMALE CONNECTOR RIGHT ANGLE TYPE

(OPTIONAL: 3.08MM & 5.08MM)

SPECIFICATIONS

Current Rating:

3.0 Amperes

Contact Resistance:

25mΩ Max.

Insulation Resistance:

1000MΩ Min. at 500V

Dielectric Voltage:

1000V at 1 Minute

Operating Temperature:

-55ºc to +105ºc

MATERIALS

5180

Insulator:

PBT, UL94V-0 Rated

Contact:

Brass

Shell:

Brass,Steel

Contact Plating:

Gold Over Nickel Plated

Shell Plating:

Tin Over Copper Plated

*RoHS & REACH compliant.

Recommended P.C.Board Layout (5180)

5186

ORDERING INFORMATION:

P/N 5 1 x x - 1 5 T B / x x

1. CONNECTOR TYPE:

"80" FEMALE WITH EXTENSION= 3.08MM

"86" FEMALE WITH EXTENSION= 5.08MM

2. NO. OF CONTACTS:

3. MOUNTING OPTION:

" " LOCKED SCREWS (4.8MM)

"N" WITHOUT SCREWS (5.8MM)

"NH" LOOSE SCREWS (4.8MM)

"NJ" ASSEMBLED SCREWS (4.8MM)

C0068

5186-15TB Related Products

	5186-15TB	5186-15TB/NH	5186-15TB/NJ	5186-15TB/N	5180-15TB	5180-15TB/N	5180-15TB/NJ	5180-15TB/NH
Description	D Type Connector, 15 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, Locking, Receptacle	D Type Connector, 15 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, Locking, Receptacle	D Type Connector, 15 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, Locking, Receptacle	D Type Connector, 15 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, Locking, Receptacle	D Type Connector, 15 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, Locking, Receptacle	D Type Connector, 15 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, Locking, Receptacle	D Type Connector, 15 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, Locking, Receptacle	D Type Connector, 15 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, Locking, Receptacle
Maker	Ratioplast Electronics	Ratioplast Electronics	Ratioplast Electronics	Ratioplast Electronics	Ratioplast Electronics	Ratioplast Electronics	Ratioplast Electronics	Ratioplast Electronics
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
body width	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch
subject depth	0.469 inch	0.469 inch	0.469 inch	0.469 inch	0.354 inch	0.354 inch	0.354 inch	0.354 inch
body length	1.213 inch	1.213 inch	1.213 inch	1.213 inch	1.213 inch	1.213 inch	1.213 inch	1.213 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact resistance	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	5186	5186	5186	5186	5180	5180	5180	5180
Plug contact pitch	0.09 inch	0.09 inch	0.09 inch	0.09 inch	0.09 inch	0.09 inch	0.09 inch	0.09 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
PCB row number	3	3	3	3	3	3	3	3
Number of rows loaded	3	3	3	3	3	3	3	3
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Rated current (signal)	3 A	3 A	3 A	3 A	3 A	3 A	3 A	3 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER
Terminal pitch	2.286 mm	2.286 mm	2.286 mm	2.286 mm	2.286 mm	2.286 mm	2.286 mm	2.286 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	15	15	15	15	15	15	15	15
