8579-1-15-01-09-84-10-0: DescriptionPCB Terminal; CategoryThe connector terminals; File Size100KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

8579-1-15-01-09-84-10-0 Overview

PCB Terminal

8579-1-15-01-09-84-10-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mill-Max
Reach Compliance Code	compliant
ECCN code	EAR99
Manufacturer's serial number	8579
terminal gender	FEMALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

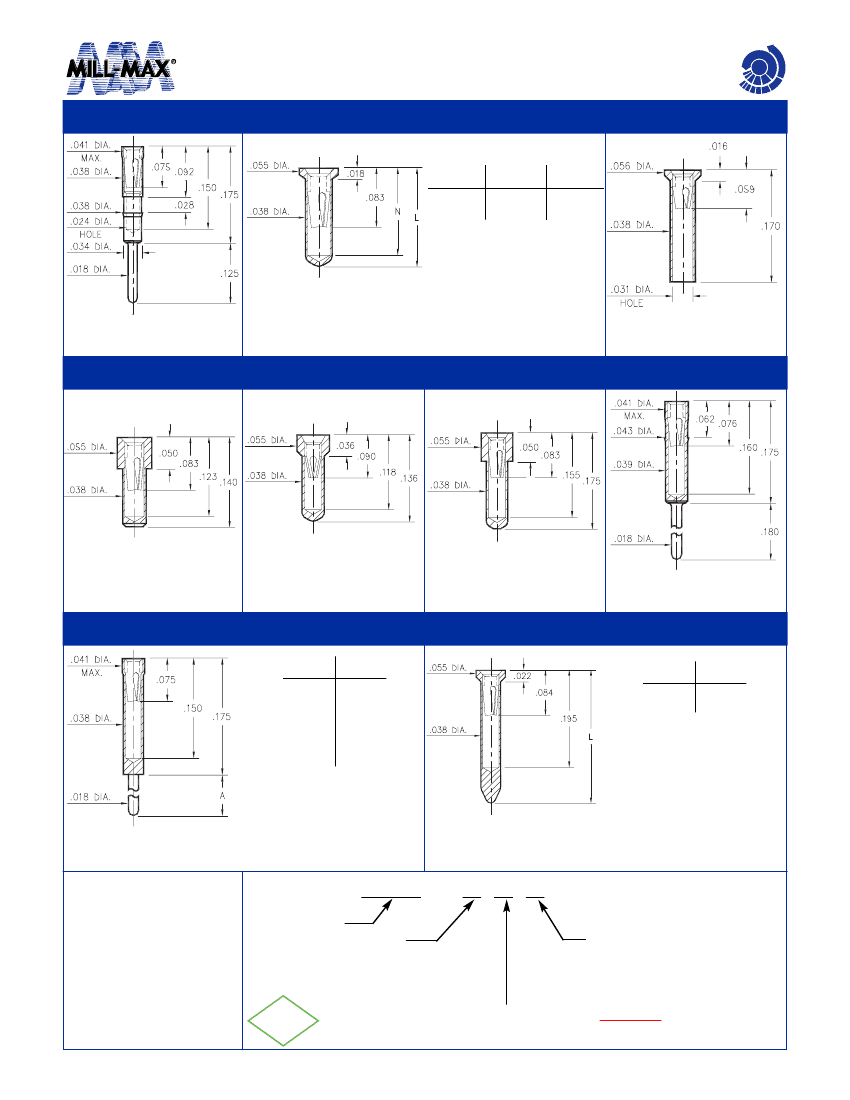

PIN RECEPTACLES

for .015” - .022” diameter pins

(see specific contact range on page 206)

CHI

PINS

0467

0552

Basic Part

Number

Length

Depth

5522

0552-1

0552-2

.136

.170

.120

.150

0552-X-15-XX-X1-XX-10-0

0467-0-15-XX-21-XX-04-0

Press-fit in .037 mounting hole

Solder mount in .040 min. mounting hole

Also available on 16mm wide carrier

tape: 1,500 parts per 13” reel.

Order as: 0552-X-57-XX-X1-XX-10-0

5522-0-15-XX-09-XX-10-0

Solder mount in .040 min.

mounting hole

0569

6023

6214

2086

0569-0-15-XX-X1-XX-10-0

Solder mount in .040 min

mounting hole

6023-0-15-XX-21-XX-10-0

Solder mount in .040 min

mounting hole

6214-0-15-XX-21-XX-10-0

Solder mount in .040 min

mounting hole

2086-0-15-XX-21-XX-04-0

Press-fit in .040 mounting hole

0461

Basic Part

Number

Length

8579

0461-0

0461-1

0461-2

0461-3

0461-4

0461-5

.400

.275

.180

.125

.060

.440

Basic Part

Number

Length

8579-0

8579-1

.234

.295

0461-X-15-XX-X1-XX-04-0

Solder mount in .020 min.

mounting hole

8579-0-15-XX-X1-XX-10-0

Solder mount in .040 min

mounting hole

SPECIFICATIONS

SHELL MATERIAL:

Brass Alloy 360, 1/2 Hard

CONTACT MATERIAL:

Beryllium Copper Alloy 172, HT

DIMENSION IN INCHES

TOLERANCES ON:

LENGTHS:

±.005

DIAMETERS: ±.002

ANGLES:

± 2°

ORDER CODE: XXXX - X - 15 - XX - XX - XX - XX - 0

BASIC PART #

SPECIFY SHELL FINISH:

200μ” TIN/LEAD OVER NICKEL

200μ” TIN OVER NICKEL

10μ” GOLD OVER NICKEL

SPECIFY CONTACT FINISH:

100μ” TIN/LEAD OVER NICKEL

100μ” TIN OVER NICKEL

30μ” GOLD OVER NICKEL

SELECT CONTACT

#09, #11 or #21

CONTACT (DATA ON PAGE 206)

w w w. m i l l - m a x . c o m

127

516-922-6000
