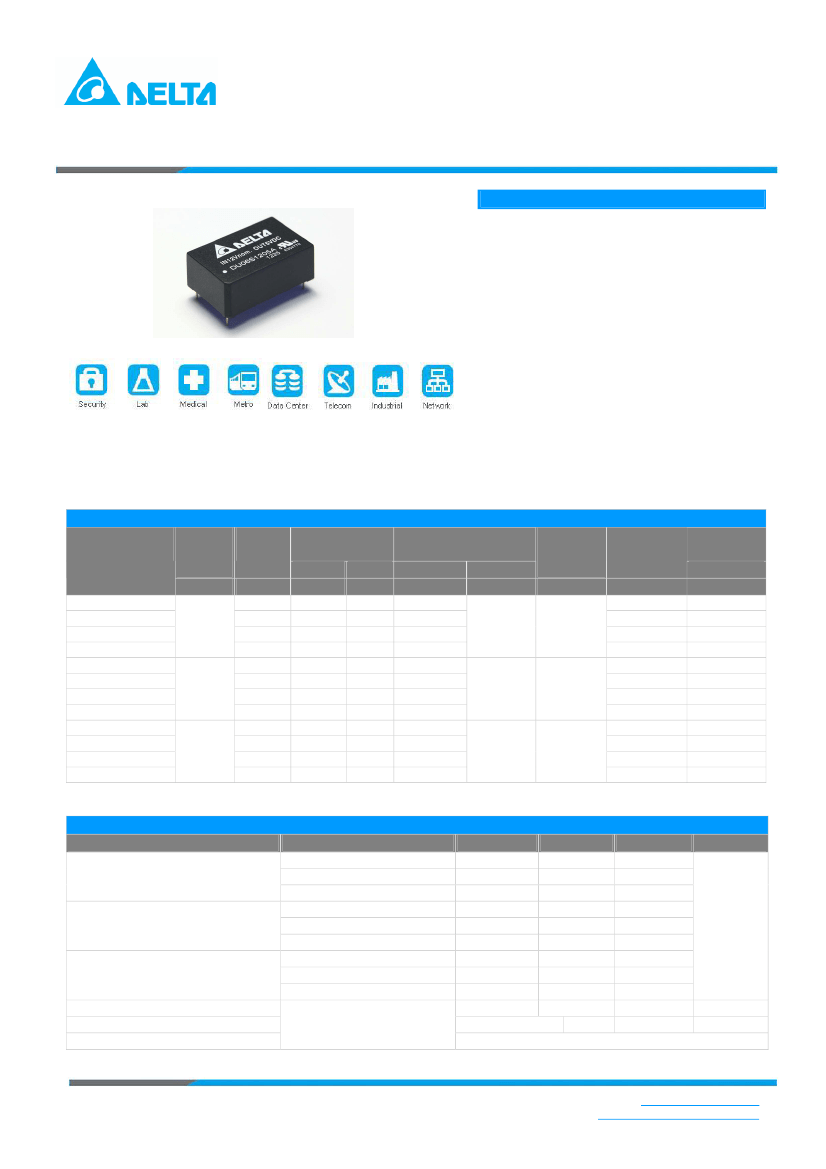

DU06S/D Series
6W DC/DC CONVERTER, DIP-Package, High Isolation
FEATURES
Efficiency up to 80%
Reinforced Insulation rated for 300VAC Working
Voltage
Isolation Voltage 4,000VACrms
UL/EN60601-1&EN60950-1 Safety Approval
Overload Protection
Fully regulated Output Voltage
Low Leakage Current
Operating Temperature Range –40°C to +75 °C
Complies with EN55022, class A
3 Years Product Warranty
The.DU06S/D series are miniature, DIP Package, isolated 6W DC/DC converters with 4,000VACrms isolation. It offers short
circuit protection and allows a wide operating temperature range of –40°C to +75°C. These isolated DC/DC converters are the latest
offering from a world leader in power systems technology and manufacturing
―
Delta Electronics, Inc. With creative design
technology and optimization of component placement, these converters possess outstanding electrical and thermal performance, as
well as extremely high reliability under highly stressful operating conditions..
Model List
Model
Number
Input
Voltage
(Range)
VDC
DU06S1205A
DU06S1212A
DU06D1212A
DU06D1215A
DU06S2405A
DU06S2412A
DU06D2412A
DU06D2415A
DU06S4805A
DU06S4812A
DU06D4812A
DU06D4815A
12
(9 ~ 18)
Output
Voltage
VDC
5
12
±12
±15
5
12
±12
±15
5
12
±12
±15
Output Current
Max.
mA
1000
500
±250
±200
1000
500
±250
±200
1000
500
±250
±200
Min.
mA
200
100
±50
±40
200
100
±50
±40
200
100
±50
±40
Input Current
@Max. Load
mA(typ.)
570
641
641
641
278
313
313
313
139
156
156
156
@No Load
mA(typ.)
30
Reflected
Ripple
Current
mA (typ.)
60
Max. capacitive
Load
uF
1000
470
220*
220*
1000
470
220*
220*
1000
470
220*
220*
Efficiency
(typ.)
@Max. Load
%
75
78
78
78
77
80
80
80
77
80
80
80
* For each output
24
(18 ~ 36)
20
30
48
(36 ~ 75)
10
15
Input Characteristics
Parameter
Input Surge Voltage (1 sec. max.)
Model
12V Input Models
24V Input Models
48V Input Models
12V Input Models
24V Input Models
48V Input Models
12V Input Models
24V Input Models
48V Input Models
All Models
Min.
Typ.
Max.
Unit
-0.7
25
---
-0.7
50
---
-0.7
100
---
7
8
9
VDC
13
15
18
30
33
36
---
---
8.5
---
---
16
---
---
34
---
---
3000
mW
---
---
2500
mW
Compliance to EN55022,class A and FCC part 15,class A
Start-Up Voltage
Under Voltage Shutdown
Short Circuit Input Power
Internal Power Dissipation
Conducted EMI
DS_DU06S/D_07192012
E-mail: DCDC@delta.com.tw
http://www.delta.com.tw/dcdc
P1
Output Characteristics
Parameter
Output Voltage Accuracy
Output Voltage Balance
Line Regulation
Load Regulation
Ripple & Noise (20MHz)
Ripple & Noise (20MHz)
Ripple & Noise (20MHz)
Transient Recovery Time
Transient Response Deviation
Temperature Coefficient
Over Load Protection
Short Circuit Protection
Foldback
25% Load Step Change
Dual Output, Balanced Loads
Vin=Min. to Max.
Io=25% to 100%
5V Output Models
Other Output Models
Over Line, Load & Temp.
Conditions
Min.
---
---
---
---
---
---
---
---
---
---
---
120
Continuous
Typ.
±0.5
±0.5
±0.3
±0.5
75
100
---
---
300
±3
±0.02
150
Max.
±1.0
±2.0
±0.5
±1.0
100
150
180
25
500
±6
±0.05
---
Unit
%
%
%
%
mV
P-P
mV
P-P
mV
P-P
mV rms
uS
%
%/℃
%
Isolation, Safety Standards
Parameter
I/O Isolation Voltage (rated)
I/O Isolation Test Voltage
Leakage Current
I/O Isolation Resistance
I/O Isolation Capacitance
Safety Standards
Conditions
60 Seconds
Flash tested for 1 Second
240VAC, 60Hz
500 VDC
100KHz, 1V
Min.
4000
6000
---
10
Typ.
---
---
---
---
Max.
---
---
2
---
Unit
VACrms
V
PK
uA
GΩ
pF
Safety Approvals
---
7
13
cUL/UL60950-1, CSA C22.2 No. 60950-1-03
UL60601-1,CSA C22.2 No.601-1,
IEC/EN 60950-1, IEC/EN 60601-1
IEC60950-1 CB report, cUL/UL 60950-1 certificate
UL60601-1 UL certificate
General Characteristics
Parameter
Switching Frequency
MTBF(calculated)
MIL-HDBK-217F@25℃, Ground
Benign
Conditions
Min.
---
700,000
Typ.
150
---
Max.
---
---
Unit
KHz
Hours
Recommended Input Fuse
12V Input Models
1200mA Slow-Blow Type
24V Input Models
600mA Slow-Blow Type
48V Input Models
300mA Slow-Blow Type
Environmental Characteristics
Parameter
Operating
Derating)
Temperature
Range
(with
Conditions
Ambient
Min.
-40
---
-50
---
Free-Air convection
---
260
℃
Max.
+75
+95
+125
95
Unit
℃
℃
℃
% rel. H
Case Temperature
Storage Temperature Range
Humidity (non condensing)
Cooling
Lead Temperature (1.5mm from case for
10Sec.)
DS_DU06S/D_07192012
E-mail: DCDC@delta.com.tw
http://www.delta.com.tw/dcdc
P2
Power Derating Curve
Notes
1
2
3
4
5
6
Specifications typical at Ta=+25℃, resistive load, nominal input voltage and rated output current unless otherwise noted.
Transient recovery time is measured to within 1% error band for a step change in output load of 75% to 100%.
Ripple & Noise measurement bandwidth is 0-20 MHz.
These power converters require a minimum output loading to maintain specified regulation, operation under no-load conditions will
not damage these modules; however, they may not meet all specifications listed.
All DC/DC converters should be externally fused at the front end for protection.
Specifications subject to change without notice.
Mechancial Drawing
Mechanical Dimensions
3.8 12.0 [0.47]
[0.15]
0.5 [0.02]
Output Power (%)
Pin Connections
Pin
1
11
12
13
15
23
24
11
12
Single Output
+Vin
No Pin
-Vout
+Vout
No Pin
-Vin
-Vin
Dual Output
+Vin
Common
No Pin
-Vout
+Vout
-Vin
-Vin
0.60 [0.024]
1
15.22 [0.60]
15
13
Bottom View
24
23
2.54
[0.10]
20.3 [0.80]
2.54
[0.10]
20.32 [0.80]
31.8 [1.25]
5.08
[0.20]
2.0
[0.08]
►All
dimensions in mm (inches)
►Tolerance:
X.X±0.25 (X.XX±0.01)
X.XX±0.13 ( X.XXX±0.005)
►Pin
diameter
⇔
0.6 ±0.05 (0.024±0.002)
Physical Outline
Case Size
Case Material
Weight
:
:
:
31.8x20.3x12.0mm (1.25x0.8x0.47 Inches)
Non-Conductive Black Plastic (flammability to UL 94V-0 rated)
18g
DS_DU06S/D_07192012
E-mail: DCDC@delta.com.tw
http://www.delta.com.tw/dcdc
P3
Part Numbering System
D
Form factor
D-DIP
P-SIP
S-SMD
U
Family series
A~Z
06
Watt
01:1W
02:2W
03:3W
04:4W
06:6W
S
Number of
Outputs
S - Single
D- Dual
12
Input Voltage
03:3.3V
05: 5V
12:12V
24: 24V
48:48V
05
Output Voltage
03:3.3V
05: 5V
12:12V
15: 15V
24: 24V
A
Option Code
A - Std. Functions
WARRANTY
Delta offers a three(3) years limited warranty. Complete warranty information is listed on our web site or is available upon request from Delta.
Information furnished by Delta is believed to be accurate and reliable. However, no responsibility is assumed by Delta for its use, nor for any
infringements of patents or other rights of third parties, which may result from its use. No license is granted by implication or otherwise under
any patent or patent rights of Delta. Delta reserves the right to revise these specifications at any time, without notice.
DS_DU06S/D_07192012
E-mail: DCDC@delta.com.tw
http://www.delta.com.tw/dcdc
P4
