RP-053.3D/P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Power management> RP-053.3D/P

RP-053.3D/P: Descriptionisolated DC/DC converters 1W DC/DC 5.2kv unreg 5vin +/-3.3vout; Categorysemiconductor Power management; File Size136KB，3 Pages; ManufacturerRECOM Power GmbH; Websitehttps://www.recom-power.com/; Environmental Compliance

Download Datasheet Parametric View All

RP-053.3D/P Overview

isolated DC/DC converters 1W DC/DC 5.2kv unreg 5vin +/-3.3vout

RP-053.3D/P Parametric

Parameter Name	Attribute value
Manufacture	RECOM
Product Category	Isolated DC/DC Converters
RoHS	Yes
Produc	Isolated
Output Powe	1 W
Input Voltage-nominal	5 V
Number of Outputs	2
Output Voltage-Channel 1	- 3.3 V
Output Voltage-Channel 2	3.3 V
Isolation Voltage	5.2 kV
Package / Case Size	SIP-7
Heigh	10.2 mm
Length	19.65 mm
Packaging	Tube
Factory Pack Quantity	25
Width	7.05 mm

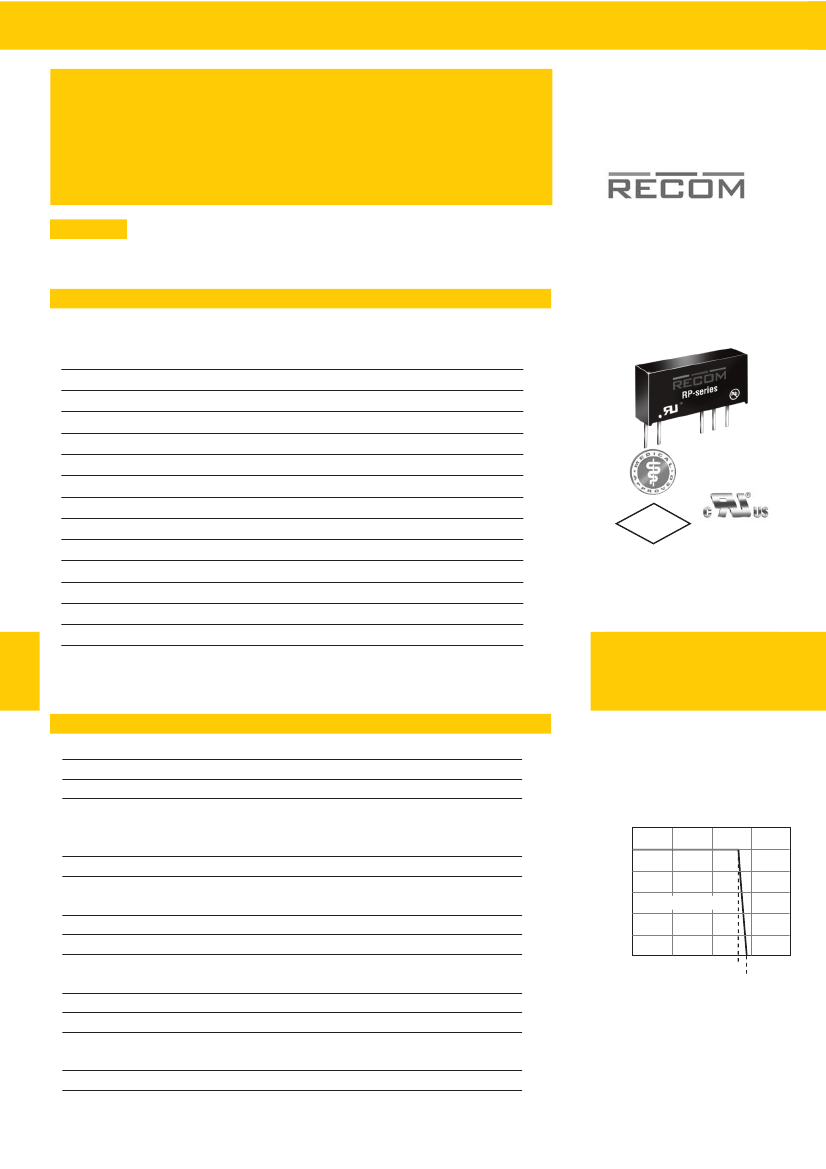

Preview

Download Datasheet

View All

Features

Unregulated

Converters

●

Pot-Core Transformer - separated windings

High 5.2kVDC Isolation in compact size

Optional Continuous Short Circuit Protected

Pin Compatible with RH and RK Series

Approved for Medical and IGBT Applications

UL and EN Certified

Efficiency to 82 %

ECONOLINE

DC/DC-Converter

with 3 year Warranty

Description

The RP series has very high isolation of 5.2 kVDC in a compact size. The converters are

EN-60601-1 certified, making them suitable for medical as well as IGBT driver applications.

The /X2 version has rearraged pins to permit an input output seperation of more than 9mm.

Selection Guide

Part

Number

SIP 7

RP-xx3.3S*

RP-xx05S*

RP-xx09S*

RP-xx12S*

RP-xx15S*

RP-xx24S*

RP-xx3.3D*

RP-xx05D*

RP-xx09D*

RP-xx12D*

RP-xx15D*

RP-xx24D*

RP-xx1509D

Input

Voltage

(VDC)

5, 9, 12, 15, 24

5, 12, 24

Output

Voltage

(VDC)

3.3

±3.3

±5

±9

±12

±15

±24

+15/-9

Output

Current

(mA)

303

200

111

±152

±100

±56

±42

±33

±21

±42

Efficiency

(%)

70-72

75-78

74-76

79-82

80-82

70-85

Max

Capacitive

Load

(1)

2200µF

1000µF

470µF

220µF

±1000µF

±470µF

±220µF

±100µF

±220µF

1 Watt

SIP 7 Single

Dual Output

2011/65/EU

6/6

RoHS

E-358085

EN-60950-1 Certified

IEC/EN-60601-1 Certified*

CSA/UL-60950-1 Certified*

* +15/-9 Version excluded

xx = Input Voltage. Other input and output voltage combinations available on request

* add Suffix “P” for Continuous Short Circuit Protection, e.g.

RP-0505S/P, RP-0505D/P

* add Suffix “/X2” for single output with alternative pinning e.g.

RP-0505S/X2, RP-0505S/P/X2

Derating-Graph

(Ambient Temperature)

100

Specifications

(

measured at TA = 25°C, nominal input voltage, full load and after warm-up)

Input Voltage Range

Output Voltage Accuracy

Line Voltage Regulation

Load Voltage Regulation

(10% to 100% full load)

Output Ripple and Noise (20MHz limited)

Operating Frequency

RP-xx1509D

Efficiency at Full Load

Minimum Load = 0%

Isolation Voltage

Isolation Capacitance

Isolation Resistance

Short Circuit Protection

P-Suffix

Operating Temperature Range (free air convection, without derating)

(tested for 1 second)

(rated for 1 minute**)

3.3V output types

5V output type

9V, 12V, 15V, 24V output types, RP-xx1509D

±10%

±5%

1.2%/1% of Vin typ.

20% max.

15% max.

10% max.

100mVp-p max.

Output Power (%)

50kHz min. / 100kHz typ. / 120kHz max.

50kHz min / 94kHz typ.

70% min. / 80% typ.

Specifications valid for 10% minimum load only.

5200VDC

2600VAC / 60Hz

4pF min. / 10pF max.

20 GΩ min.

1 Second

Continuous

-40°C to +90°C (see Graph)

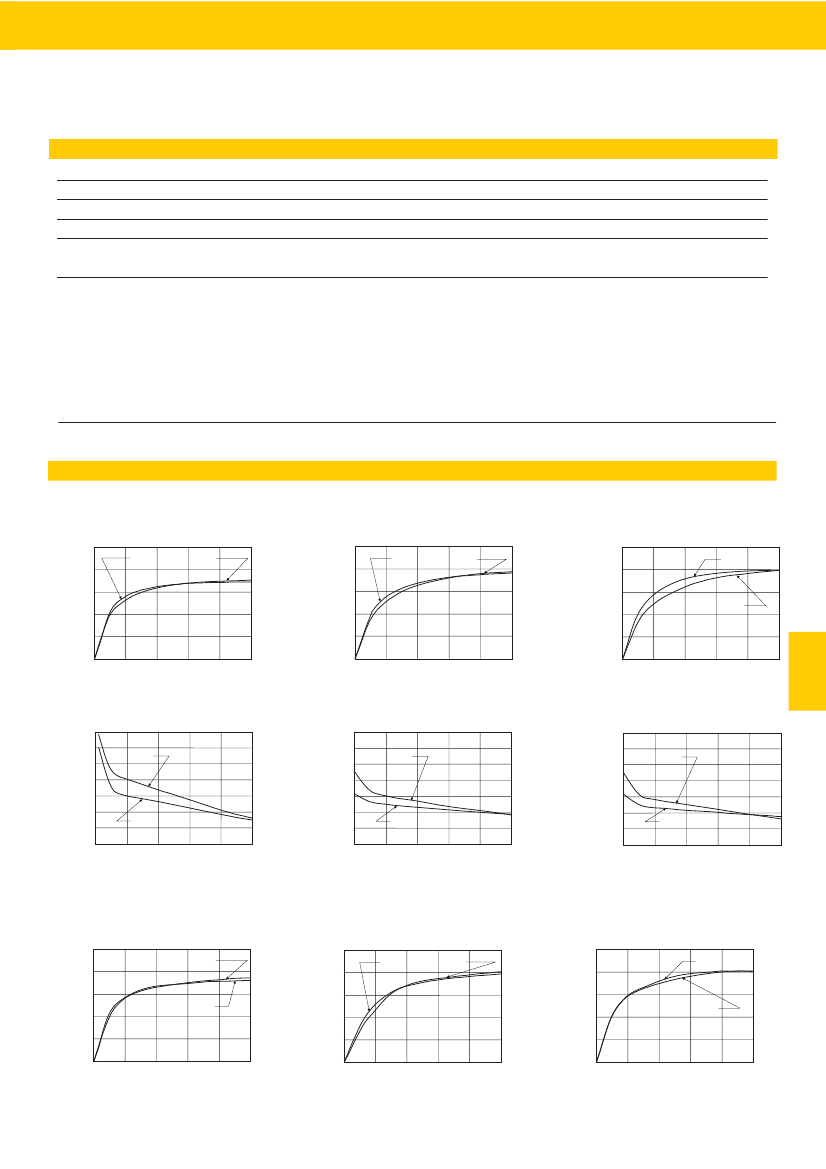

continued on next page

Safe Operating Area

90 100

Operating Temperature °C

-40

150

**Any data referred to in this datasheet are of indivative nature and

based on our practical experience only. For further details, please

refer to our Application Notes.

Refer to Application Notes

www.recom-power.com

E-66

REV: 0/2014
