855 Series
Split-Core Current Transformers
Short description:

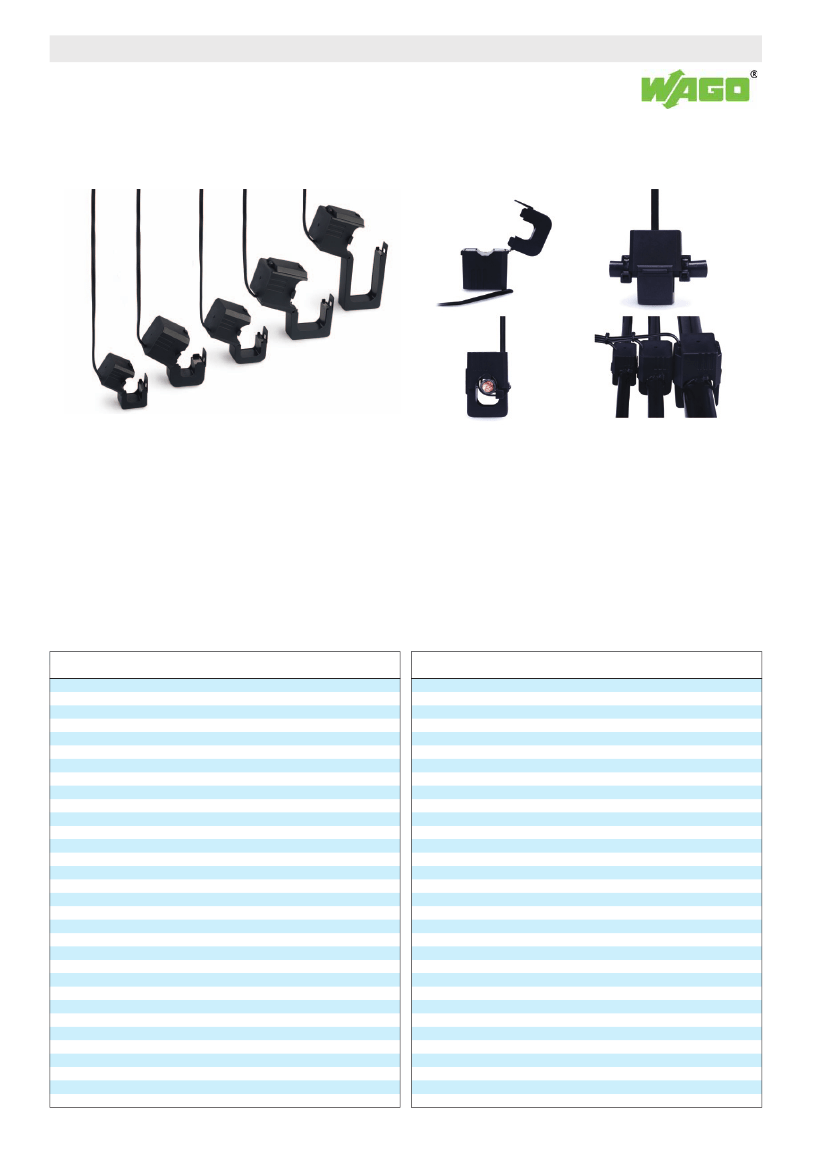

WAGO's compact split-core current transformers are ideal for retrofit applica-
tions in existing systems. They are particularly suited for applications in which
the current path may not be disrupted. The transformer's accuracy permits
extremely precise current measurements. The split-core current transformers
are capable of supplying the specified rated power at the end of the secon-
dary cable. All transformers are supplied with color-coded cables. Two
UV-resistant cable ties for reliable and easy mounting are also included.
Features:
• Current ratios from
60 A up to 1000 A (primary side) and
1 A or 5 A (secondary side)
• No interruption of the measuring cable
• Ideal for use in very confined spaces
• Superfast mounting
• For use around insulated cables up to Ø 42 mm
• Compact and hinged
• Color-coded connecting cables up to 5 m

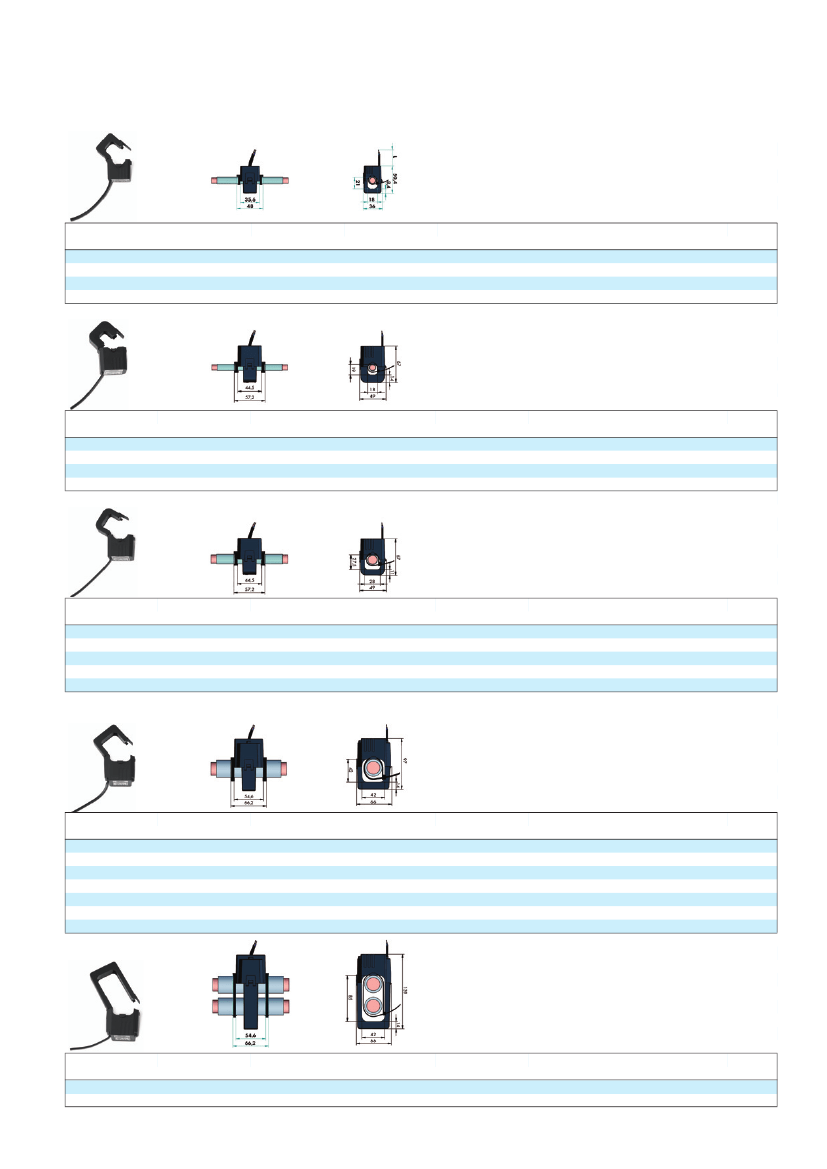

Technical Data
Input:
Rated continuous thermal current I
cth
Rated short-time thermal current I
th
Rated surge current I
dyn
Rated frequency f
R
Max. operating voltage V
m
Connection:
Conductor size
Conductor identification
100 %
60 x I
pr
/ 1 s
2.5 x I
th
50 Hz … 60 Hz
0.72/3/- kV
0.5 mm², fine-stranded (855-xxx1/…)
1.5 mm², fine-stranded (855-xxx5/…)
brown = S1, blue = S2 (855-xxx1/…)
black = S1, red = S2 (855-xxx5/…)
Technical Data
Environmental Requirements:
Ambient operating temperature
Storage temperature
Relative humidity
Max. operating altitude
Safety and protection:
Degree of protection
Insulation class
Housing material
Flammability rating
Standards and approvals:
Conformity marking
Standards/Specifications
-10 °C … +55 °C
-10 °C … +40 °C (855-5xxx/1000-000)
-20 °C … +70 °C
5 % … 85 % (non-condensing)
2000 m
IP20
E (120 °C)
PA 6.6
V2 (UL94)
1
EN 61869-2:2012
WAGO Kontakttechnik GmbH & Co. KG
Subject to design changes
04.09.2014
Postfach 2880 - D-32385 Minden
Hansastr. 27 - D-32423 Minden
Tel.: +49(0)571/887-0
E-Mail: info@wago.com
Fax: +49(0)571/887-169
www.wago.com
