196BCEAAFREQ datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> 196BCEAAFREQ

Preview

196BCEAAFREQ: DescriptionHCMOS Output Clock Oscillator, 2MHz Min, 26MHz Max; CategoryPassive components oscillator; File Size39KB，2 Pages; ManufacturerCTS; Related ProductsFound1parts with similar functions to 196BCEAAFREQ

Download Datasheet Parametric Compare View All

196BCEAAFREQ Overview

HCMOS Output Clock Oscillator, 2MHz Min, 26MHz Max

196BCEAAFREQ Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	SC CUT CRYSTAL
Ageing	0.1 PPM/FIRST YEAR
Frequency Adjustment - Mechanical	NO
frequency stability	0.02%
Frequency Stability - Voltage	0.005 ppm
Manufacturer's serial number	196
Installation features	THROUGH HOLE MOUNT
Maximum operating frequency	26 MHz
Minimum operating frequency	2 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-30 °C
Oscillator type	HCMOS
Oven power supply voltage	12V
physical size	36.068mm x 27.178mm x 13.462mm
Nominal supply voltage	12 V
surface mount	NO
Maximum warm-up time	10 Minute
Base Number Matches	1

Preview

Download Datasheet

View All

CTS

Reeves

FREQUENCY PRODUCTS

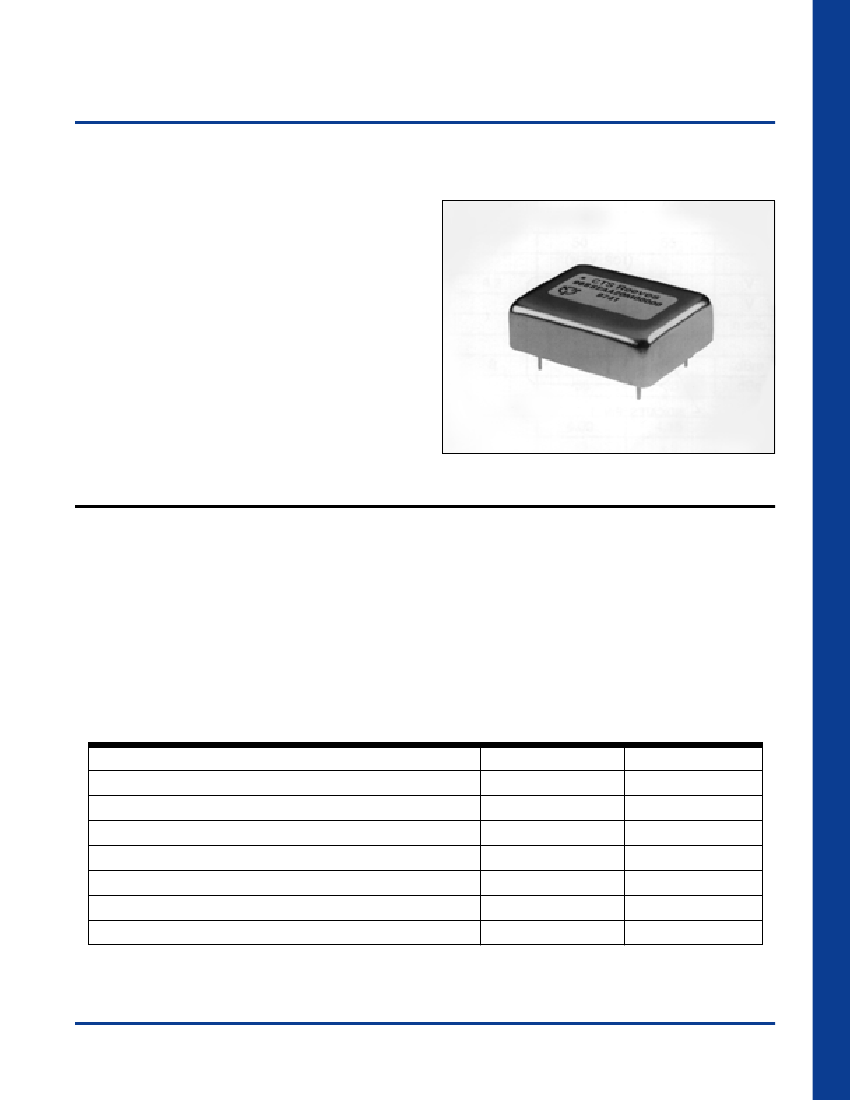

Model 196

Universal OCXO

CRYSTALS

High Performance, low-profile universal

ovenized crystal oscillator

Features:

• Low-profile European package

• SC Crystal for High Stability or

AT Crystal for Lower Cost

• Wide (2 to 26 MHz) frequency range

• Electrical Tuning

• 5.0 or 12 Volt operation

• HCMOS Compatible or

Sinewave Output

• IR Reflow Compatible

• Hermetic sealed

CLOCKS

VCXOs

Applications:

•

Telecommunications Switching

Telecommunications Transmission

Cellular Base Stations

Wireless and PCS Base Stations

Test and Measurement

Benefits:

•

Low Cost - High Performance

Low Profile - Fits Most Base Station Card Slots

5V Operation for Systems with Limited Supply

Platform Design for Shorter Lead Time

Standard Product with Variety of Choices

TCXOs

Frequency Stability

Daily Aging ppm/day (see Notes 1 & 3, page 3)

First Year Aging (ppm/year)

10 Years Aging Life

Temperature Stability -30°C to 70°C

Voltage Stability

Load Stability:

±10%

Variation

Warm up @ -30°C within 10 minutes (see Note 2, page 3)

SC Cut (Option B)

±0.001

ppm

±0.100

ppm

±0.300

ppm

±0.020

ppm

±0.005

ppm

±0.003

ppm

±0.050

ppm

AT Cut (Option A)

±0.005

ppm

±0.300

ppm

±0.900

ppm

±0.100

ppm

±0.010

ppm

±0.003

ppm

±

0.100 ppm

OCXOs

117

400 REIMANN AVE.

•

SANDWICH, IL 60548

Phone: 815-786-8411

•

Fax: 815-786-3600

•

E-Mail: www.ctsreeves.com

196BCEAAFREQ Related Products

	196BCEAAFREQ	196ACEAAFREQ	196BCDAAFREQ	196ASEAAFREQ	196BSEAAFREQ	196ACDAAFREQ	196BSDAAFREQ	196ASDAAFREQ
Description	HCMOS Output Clock Oscillator, 2MHz Min, 26MHz Max	HCMOS Output Clock Oscillator, 2MHz Min, 26MHz Max	HCMOS Output Clock Oscillator, 2MHz Min, 26MHz Max	Sine Output Oscillator, 2MHz Min, 26MHz Max	Sine Output Oscillator, 2MHz Min, 26MHz Max	HCMOS Output Clock Oscillator, 2MHz Min, 26MHz Max	Sine Output Oscillator, 2MHz Min, 26MHz Max	Sine Output Oscillator, 2MHz Min, 26MHz Max
Reach Compliance Code	unknow	unknow	unknow	unknow	unknown	unknown	unknown	unknown
Other features	SC CUT CRYSTAL	AT CUT CRYSTAL	SC CUT CRYSTAL	AT CUT CRYSTAL	SC CUT CRYSTAL	AT CUT CRYSTAL	SC CUT CRYSTAL	AT CUT CRYSTAL
Ageing	0.1 PPM/FIRST YEAR	0.3 PPM/FIRST YEAR	0.1 PPM/FIRST YEAR	0.3 PPM/FIRST YEAR	0.1 PPM/FIRST YEAR	0.3 PPM/FIRST YEAR	0.1 PPM/FIRST YEAR	0.3 PPM/FIRST YEAR
Frequency Adjustment - Mechanical	NO	NO	NO	NO	NO	NO	NO	NO
frequency stability	0.02%	0.1%	0.02%	0.1%	0.02%	0.1%	0.02%	0.1%
Frequency Stability - Voltage	0.005 ppm	0.01 ppm	0.005 ppm	0.01 ppm	0.005 ppm	0.01 ppm	0.005 ppm	0.01 ppm
Manufacturer's serial number	196	196	196	196	196	196	196	196
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Maximum operating frequency	26 MHz	26 MHz	26 MHz	26 MHz	26 MHz	26 MHz	26 MHz	26 MHz
Minimum operating frequency	2 MHz	2 MHz	2 MHz	2 MHz	2 MHz	2 MHz	2 MHz	2 MHz
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C
Oscillator type	HCMOS	HCMOS	HCMOS	SINE	SINE	HCMOS	SINE	SINE
Oven power supply voltage	12V	12V	5V	12V	12V	5V	5V	5V
physical size	36.068mm x 27.178mm x 13.462mm	36.068mm x 27.178mm x 13.462mm	36.068mm x 27.178mm x 13.462mm	36.068mm x 27.178mm x 13.462mm	36.068mm x 27.178mm x 13.462mm	36.068mm x 27.178mm x 13.462mm	36.068mm x 27.178mm x 13.462mm	36.068mm x 27.178mm x 13.462mm
Nominal supply voltage	12 V	12 V	5 V	12 V	12 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Maximum warm-up time	10 Minute	10 Minute	10 Minute	10 Minute	10 Minute	10 Minute	10 Minute	10 Minute
Base Number Matches	1	1	1	1	1	1	1	1

Recommended Resources

TA7230P power amplifier circuit diagram

Delay lamp circuit using bidirectional thyristor (1)

FM wireless microphone circuit

Four-channel remote control switch circuit a

Flash beat circuit once per second

196BCEAAFREQ Similar Products

Part Number	Manufacturer	Description
196ACEAAFREQ	CTS	HCMOS Output Clock Oscillator, 2MHz Min, 26MHz Max
