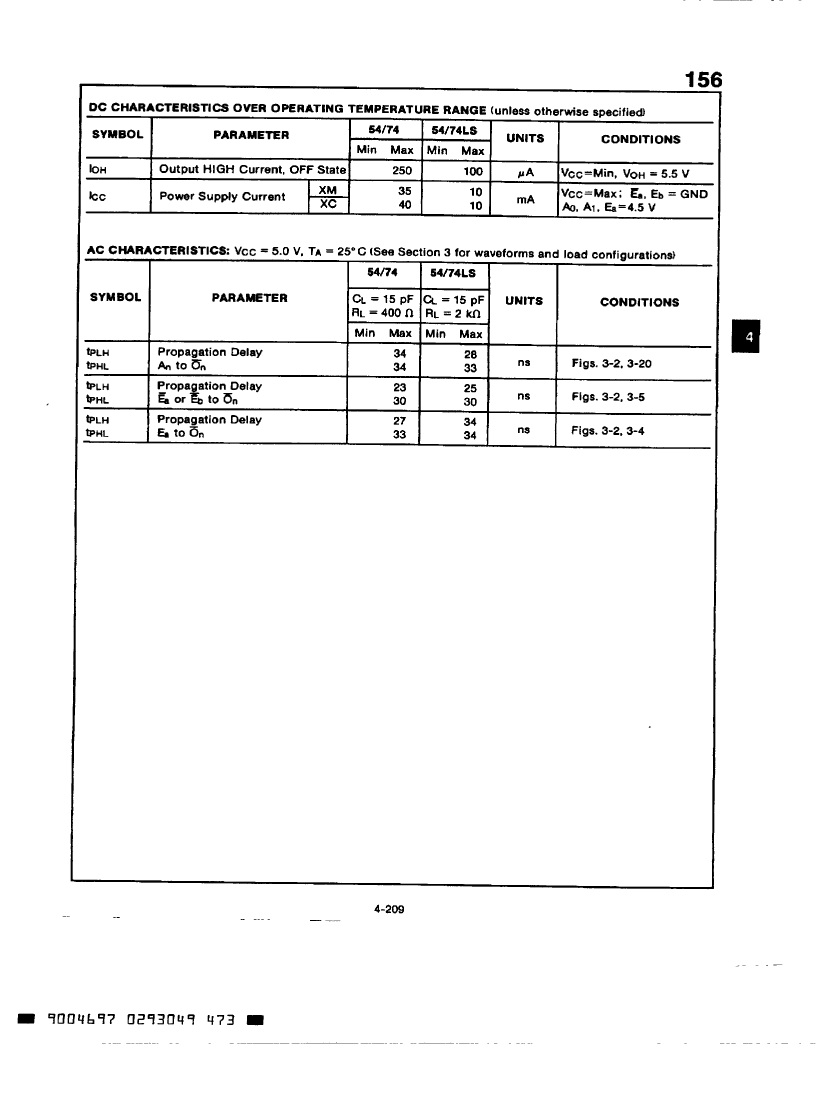

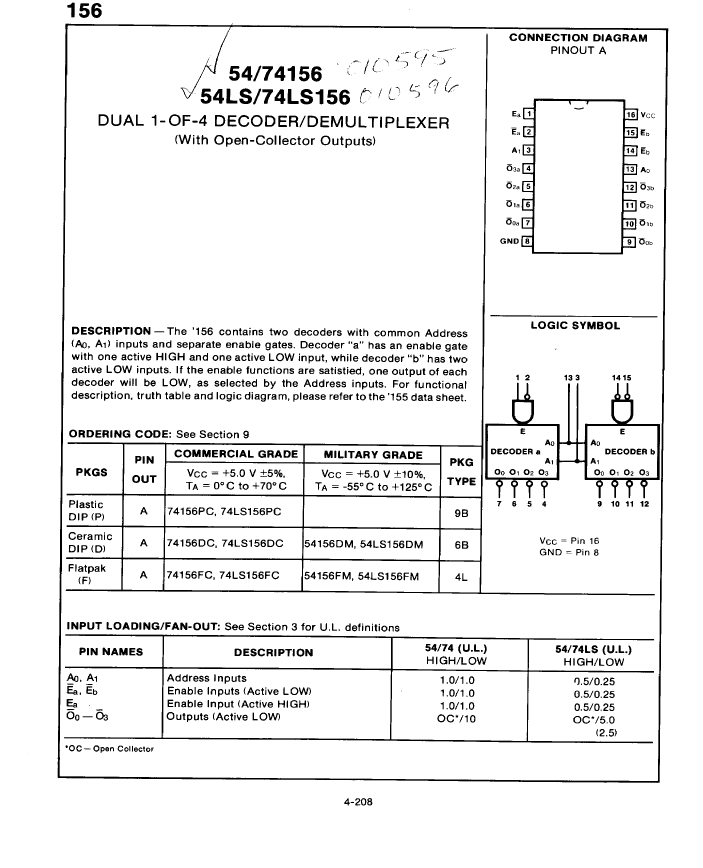

Decoder/Driver, TTL, CDFP16,
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Fairchild |
| Reach Compliance Code | compliant |
| JESD-30 code | R-XDFP-F16 |
| JESD-609 code | e0 |
| Logic integrated circuit type | OTHER DECODER/DRIVER |
| Number of functions | 2 |
| Number of terminals | 16 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output characteristics | OPEN-COLLECTOR |
| Package body material | CERAMIC |
| encapsulated code | DFP |
| Encapsulate equivalent code | FL16,.3 |
| Package shape | RECTANGULAR |
| Package form | FLATPACK |
| power supply | 5 V |
| Certification status | Not Qualified |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | FLAT |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| Base Number Matches | 1 |
| 54156FM | 54LS156FM | 54156DM | 54LS156DM | 74156DC | 74156FC | WBDDSS8-A-00-8872-F-C | 74LS156DC | 74LS156FC | 74LS156PC | |
|---|---|---|---|---|---|---|---|---|---|---|
| Description | Decoder/Driver, TTL, CDFP16, | Decoder/Driver, TTL, CDFP16, | Decoder/Driver, TTL, CDIP16, | Decoder/Driver, TTL, CDIP16, | Decoder/Driver, TTL, CDIP16, | Decoder/Driver, TTL, CDFP16, | Array/Network Resistor, Isolated, 0.1W, 88700ohm, 100V, 1% +/-Tol, -300,300ppm/Cel, 1408, | Decoder/Driver, TTL, CDIP16, | Decoder/Driver, TTL, CDIP16, | Decoder/Driver, TTL, PDIP16 |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant | compliant | compliant | compliant | compliant | unknown |
| Number of terminals | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 70 °C | 70 °C | 150 °C | 70 °C | 70 °C | 70 °C |
| Package form | FLATPACK | FLATPACK | IN-LINE | IN-LINE | IN-LINE | FLATPACK | SMT | IN-LINE | IN-LINE | IN-LINE |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | - | incompatible | incompatible | - |
| Maker | Fairchild | Fairchild | Fairchild | Fairchild | Fairchild | Fairchild | - | Fairchild | Fairchild | Fairchild |
| JESD-30 code | R-XDFP-F16 | R-XDFP-F16 | R-XDIP-T16 | R-XDIP-T16 | R-XDIP-T16 | R-XDFP-F16 | - | R-XDIP-T16 | R-XDIP-T16 | R-PDIP-T16 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 | - | e0 | e0 | - |
| Logic integrated circuit type | OTHER DECODER/DRIVER | OTHER DECODER/DRIVER | OTHER DECODER/DRIVER | OTHER DECODER/DRIVER | OTHER DECODER/DRIVER | OTHER DECODER/DRIVER | - | OTHER DECODER/DRIVER | OTHER DECODER/DRIVER | OTHER DECODER/DRIVER |
| Number of functions | 2 | 2 | 2 | 2 | 2 | 2 | - | 2 | 2 | 2 |
| Output characteristics | OPEN-COLLECTOR | OPEN-COLLECTOR | OPEN-COLLECTOR | OPEN-COLLECTOR | OPEN-COLLECTOR | OPEN-COLLECTOR | - | OPEN-COLLECTOR | OPEN-COLLECTOR | OPEN-COLLECTOR |
| Package body material | CERAMIC | CERAMIC | CERAMIC | CERAMIC | CERAMIC | CERAMIC | - | CERAMIC | CERAMIC | PLASTIC/EPOXY |
| encapsulated code | DFP | DFP | DIP | DIP | DIP | DFP | - | DIP | DIP | DIP |
| Encapsulate equivalent code | FL16,.3 | FL16,.3 | DIP16,.3 | DIP16,.3 | DIP16,.3 | FL16,.3 | - | DIP16,.3 | DIP16,.3 | DIP16,.3 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | - | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| power supply | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | - | 5 V | 5 V | 5 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | - | Not Qualified | Not Qualified | Not Qualified |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | - | 5 V | 5 V | 5 V |
| surface mount | YES | YES | NO | NO | NO | YES | - | NO | NO | NO |
| technology | TTL | TTL | TTL | TTL | TTL | TTL | - | TTL | TTL | TTL |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY | COMMERCIAL | COMMERCIAL | - | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | - | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | - |
| Terminal form | FLAT | FLAT | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | FLAT | - | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 1.27 mm | 1.27 mm | 2.54 mm | 2.54 mm | 2.54 mm | 1.27 mm | - | 2.54 mm | 2.54 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | - | DUAL | DUAL | DUAL |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 | - | 1 | 1 | 1 |
