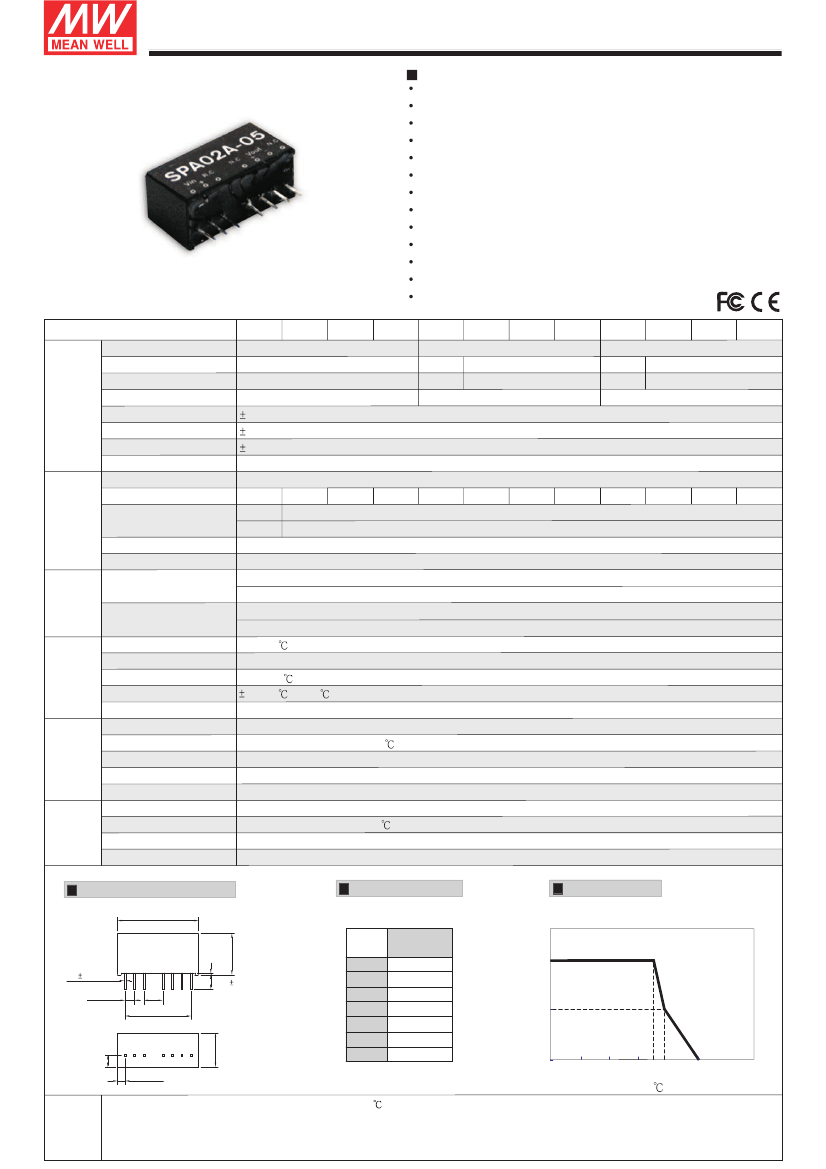

2W DC-DC Regulated Single Output Converter
S PA 0 2
series
SPECIFICATION
ORDER NO.
DC VOLTAGE
CURRENT RANGE
RATED POWER
OUTPUT
5V
40 ~ 400mA
2W
¡E
¡E
¡E
¡E
¡E
¡E
¡E
¡E
¡E
¡E
¡E
¡E
¡E
¡Ó
Note.4
¡Ó
0.5%
¡Ó
2.0%
71%
No load
¡½
Features :
2:1 wide input range
4:1 wide input range (Option)
1000VDC I/O isolation
3000VDC I/O isolation (Option)
Built-in remote ON/OFF control
Built-in EMI filter
Protections: Short circuit / Overload
Cooling by free air convection
Single in line package
100% full load burn-in test
Low cost / High reliability
Modified models available: output 3.3V/9V
2 years warranty
SPA02E-05 SPA02A-05 SPA02B-05 SPA02C-05 SPA02E-12 SPA02A-12 SPA02B-12 SPA02C-12 SPA02E-15 SPA02A-15 SPA02B-15 SPA02C-15
12V
15 ~ 150mA 17 ~ 167mA
1.8W
60mVp-p
2W
15V
12 ~ 120mA 13 ~ 133mA
1.8W
60mVp-p
2W
RIPPLE & NOISE (max.)
Note.2
60mVp-p
LINE REGULATION
Note.3
0.5%
LOAD REGULATION
VOLTAGE ACCURACY
VOLTAGE RANGE
EFFICIENCY (Typ.)
SWITCHING FREQUENCY
100KHz min.
E: 4.5 ~ 9VDC
76%
A: 9 ~ 18VDC
76%
A: 25mA
B: 18 ~ 36VDC
74%
74%
C: 36 ~ 72VDC
80%
80%
82%
76%
80%
80%
78%
INPUT
DC CURRENT
FILTER
PROTECTION
OVERLOAD
Full load E: 600mA
E: 50mA
Pi network
Fuse recommended
A: 225mA B: 115mA
B: 15mA
C: 60mA
C: 8mA
PROTECTION
(Note. 5)
150 ~ 250% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
All output equipped with short circuit
Protection type : Hiccup mode, recovers automatically after fault condition is removed
-40 ~ +85
SHORT CIRCUIT
WORKING TEMP.
¢J
(Refer to output load derating curve)
¢J
ENVIRONMENT
WORKING HUMIDITY
20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +105 , 10 ~ 95% RH
0.05% / (0 ~ 50 )
TEMP. COEFFICIENT
¡Ó
¢J
¢J
VIBRATION
WITHSTAND VOLTAGE
SAFETY
ISOLATION RESISTANCE
ISOLATION CAPACITANCE
EMC EMISSION
EMC IMMUNITY
REMOTE CONTROL
OTHERS
MTBF
DIMENSION
WEIGHT
10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes
I/P-O/P:1KVDC
I/P-O/P: 100M Ohms / 500VDC / 25 / 70% RH
80pF max.
Compliance to EN55022 Class B, FCC part 15 Class B
Compliance to EN61000-4-2,3,4,5,6,8 light industry level, criteria A
Power ON : R.C. ~ +Vin < 1VDC or open ; Power OFF : R.C. ~ +Vin > 4VDC or short
600Khrs min. MIL-HDBK-217F(25 )
21.8*9.2*11.1mm or 0.86"*0.36"*0.44" inch (L*W*H)
4.8g
¢J
¢J
Mechanical Specification
21.8(0.86)
11.1(0.44)
Pin Configuration
Unit:mm(inch)
Derating Curve
FRONT VIEW
0.5
(0.02)
Pin No.
1
2
3
5
6
7
8
Output
- Vi n
+ Vi n
R.C.
N.C.
+ Vo u t
- Vo u t
N.C.
100
0.5 0.05(0.02)
2.54(0.1)
5.08
(0.2)
3.81 0.5(0.15)
LOAD (%)
¡Ó
1 2 3
5 6 7 8
¡Ó
17.78(0.7)
50
BOTTOM VIEW
3.2(0.13)
2.01(0.08)
9.2(0.36)
-40
0
25
50 70 85
NOTE
1.All parameters are specified at normal input, rated load, 25 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 10% to 100% rated load.
5.Please prevent the converter from operating in overload or short circuit condition for more than 30 seconds.
File Name:SPA02-SPEC 2012-07-18
