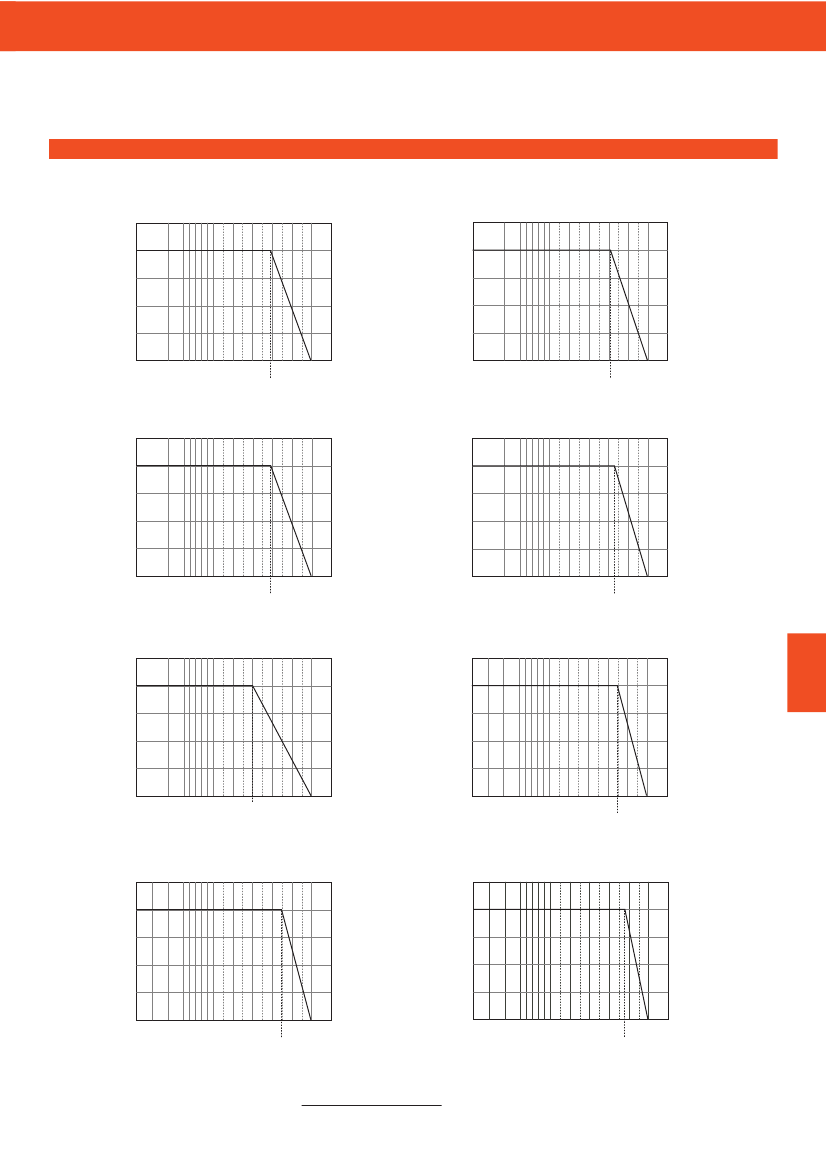

Derating graphs are valid only for the shown part numbers. If you need detailed derating-information about a part-number not shown here
please contact our technical support service at info@recom-development.at
www.recom-international.com
REV: 0/2014
P-11
POWERLINE
DC/DC-Converter
Specifications
(typical at nominal input and 25°C unless otherwise noted)
Input Voltage Range
12V nominal input
24V nominal input
48V nominal input
Input Filter
Input Surge Voltage (100 ms max.)
12V Input
24V Input
48V Input
Input Reflected Ripple (nominal Vin and full load)
(3)
Start Up Time (nominal Vin and constant resistor load)
Remote ON/OFF
(7)
(Positive logic)
(Negative logic)
Remote OFF input current
Output Power
Output Voltage Accuracy (full Load and nominal Vin)
Minimum Load
(1)
Line Regulation (low line, high line at full load)
Load Regulation (25% to 100% full load)
Single
Dual
Cross Regulation (asymmetrical25% <>100% load)
DC-DC ON
DC-DC OFF
DC-DC ON
DC-DC OFF
Nominal input
RP10-S_DE
Series
9-18VDC
18-36VDC
36-75VDC
Pi Type
36VDC
50VDC
100VDC
30mAp-p
20ms typ.
Open or 3.5V < Vr < 12V
Short or 0V < Vr < 1.2V
Short or 0V < Vr < 1.2V
Open or 3.5V < Vr < 12V
20mA
10W max.
±2%
10% of full load
±1%
±1%
±2%
±5%
Single
Dual
50mVp-p
75mVp-p
±0.02%/°C max.
500µs
3.3V output
5V output
12V output
15V output
3.9V
6.2V
15V
18V
150% typ
none
Hiccup, automatic recovery
see „Selection Guide“ table
1600VDC
1 GΩ min.
300pF max.
300kHz typ.
UL 1950, EN60950
Standard
M1
-25°C to +85°C(with derating)
-40°C to +85°C(non derating)
+100°C
-55°C to +125°C
continued on next page
RP10-E
Ripple and Noise (20MHz bandwith, with 1µF MLCC on output)
Temperature Coefficient
Transient Response (25% load step change)
Over Voltage Protection
Zener diode clamp
Over Load Protection (% of full load at nominal Vin)
Undervoltage Lockout
Short Circuit Protection
Efficiency
Isolation Voltage (rated for one minute)
Isolation Resistance
Isolation Capacitance
Operating Frequency
Approved to Safety Standards
(9)
Operating Temperature Range
(Reference Derating Curve)
(10)
Maximum Case Temperature
Storage Temperature Range
P-12
REV: 0/2014
www.recom-power.com
POWERLINE
DC/DC-Converter
Specifications
(typical at nominal input and 25°C unless otherwise noted)
Thermal Impedance
(8)
Thermal Shock
Vibration
Relative Humidity
Case Material
Base Material
Potting Material
Conducted Emissions
(11)
Radiated Emissions
ESD
Radiated Immunity
Fast Transient
Surge
Conducted Immunity
Weight
Packing Quantity
Dimensions
MTBF
(2)
EN55022
EN55022
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
EN61000-4-6
Natural convection
Natural convection with Heat Sink
RP10-S_DE
Series
12°C/Watt
10°C/Watt
MIL-STD-810D
10-55Hz, 10G, 30 Min. along X, Y and Z
5% to 95% RH
Nickel plated copper
Non-conductive black plastic
Epoxy (UL94-V0)
Level A
Level A
Perf. Criteria B
Perf. Criteria B
Perf. Criteria B
Perf. Criteria B
Perf. Criteria B
27g
Refer to App Notes for tube dimensions
9 pcs per Tube
50.8 x 25.4 x 10.2mm
1976 x 10
3
hours
Package Style and Pinning (mm)
50.80
25.40
10.20
dia.
1.0
15.20
20.30
5.6
RP10-E
2.50
5.10
Pin Connections
Pin #
Single
1
+Vin
2
-Vin
3
+Vout
4
No Pin
5
-Vout
6*
CTRL*
*Optional. See Note 7.
Dual
+Vin
-Vin
+Vout
Com
-Vout
CTRL*
3
1
2
6
Bottom View
10.20
4
10.20
5
12.70
Pin Pitch Tolerance ±0.35 mm
Notes :
1. The RP10 (W) series required a minimum 10% loading on the output to maintain specified regulation.
Operation under no-load condition will not damage these devices, however they may not meet all listed specification.
2. BELLCORE TR-NWT-000332. Case I: 50% Stress, Temperature at 40ºC. (Ground fixed and controlled environment).
3. Simulated source impedance of 12µH. 12µH inductor in series with +Vin.
4. Maximum value at nominal input voltage and full load of standard type.
5. Typical value at nominal input voltage and full load.
6. Test by minimum Vin and constant resistor load.
7. The ON/OFF control function can be positive or negative logic. The pin voltage is referenced to negative input.
Positive logic ON/OFF is marked with suffix-P (eg. RP10-2405SE/P), Negative logic ON/OFF is marked with suffix-N (eg. RP10-2405SE/N).
If no suffix is specified, the control pin will be omitted.
8. Heat sink is optional and P/N: 7G-0020C. Powerline DC/DC Converters can be ordered with pre-mounted heatsinks including antivibration fixing clips
(add suffix -HC). See Application Notes for heatsink details.
9. The M1 version (RP10-xxxxSE/M1, RP10-xxxxDE/M1) does not carry the UL certification.
10. M1 version is more efficient, therefore, it can be operated in a more extensive temperature range than standard version.
11. See application notes for EMI-filtering.
The product information and specifications are subject to change without prior notice. All products are designed for non-safety critical commercial and industrial applications.
The Buyer agrees to implement safeguards that anticipate the consequences of any failures that might cause harm, loss of life and/or damage property.
