3.2x1.6mm SMD CHIP LED LAMPS
KPTD-3216EC HIGH EFFICIENCY RED
KPTD-3216SGC SUPER BRIGHT GREEN
KPTD-3216YC YELLOW
Features
!
3.2mmx1.6mm SMT LED, 1.8mm THICKNESS.
!
LOW POWER CONSUMPTION.
!
WIDE VIEWING ANGLE.
!
IDEAL FOR BACKLIGHT AND INDICATOR.
!
VARIOUS COLORS AND LENS TYPES AVAILABLE.
!
PACKAGE
Description
The High Efficiency Red source color devices are
made with Gallium Arsenide Phosphide on Gallium
Phosphide Orange Light Emitting Diode.
The Super Bright Green source color devices are
made with Gallium Phosphide Green Light Emitting
Diode.
The Yellow source color devices are made with
Gallium Arsenide Phosphide on Gallium Phosphide
Yellow Light Emitting Diode.
: 2000PCS / REEL.
Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.2(0.0079")
unless otherwise noted.
3. Lead spacing is measured where the lead emerge package.
4. Specifications are subject to change without notice.
SPEC NO: KDA0149
APPROVED: J.LU
REV NO: V.1
CHECKED:
DATE: SEP/08/2001
DRAWN: S. H. CHEN
PAGE: 1 OF 5
Selection Guide
Iv (m c d )
@ 20 m A
Min .
KPTD-3216EC
KPTD-3216SGC
KPTD-3216YC
HIGH EFFICIENCY RED(GaAsP/GaP)
SUPER BRIGHT GREEN (GaP)
YELLOW (GaAsP/GaP)
WATER CLEAR
WATER CLEAR
WATER CLEAR
10
5
3
Ty p .
50
20
30
V i ew i n g
An g l e
2θ1/2
40 °
40°
40°
Par t No .
Dic e
L en s Ty p e
Note:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
Electrical / Optical Characteristics at T
)
=25°C
°
Sy m b o l
λ
peak
Par am et er
Peak Wavelength
D ev i c e
High Efficiency Red
Super Bright Green
Yellow
High Efficiency Red
Super Bright Green
Yellow
High Efficiency Red
Super Bright Green
Yellow
High Efficiency Red
Super Bright Green
Yellow
High Efficiency Red
Super Bright Green
Yellow
High Efficiency Red
Super Bright Green
Yellow
Ty p .
627
565
590
625
568
588
45
30
35
15
15
20
2.0
2.2
2.1
2.5
2.5
2.5
10
Max .
Un it s
nm
Tes t Co n d it io n s
IF=20mA
λ
D
Dominate Wavelength
nm
IF=20mA
∆λ
1/2
Spectral Line Halfwidth
nm
IF=20mA
C
Capacitance
pF
VF=0V;f=1MHz
V
F
I
R
Forward Voltage
V
IF=20mA
Reverse Current
uA
V R = 5V
Absolute Maximum Ratings at T
)
=25°C
°
Par am et er
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating Temperature
Storage Temperature
Note:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
H i g h E f f i c i en c y r ed
105
30
160
5
Su p er B r ig h t Gr een
105
25
140
5
-40
°
C To +85
°C
-40
°
C To +85
°C
Yello w
105
30
140
5
Un it s
mW
mA
mA
V
SPEC NO: KDA0149
APPROVED: J.LU
REV NO: V.1
CHECKED:
DATE: SEP/08/2001
DRAWN: S. H. CHEN
PAGE: 2 OF 5

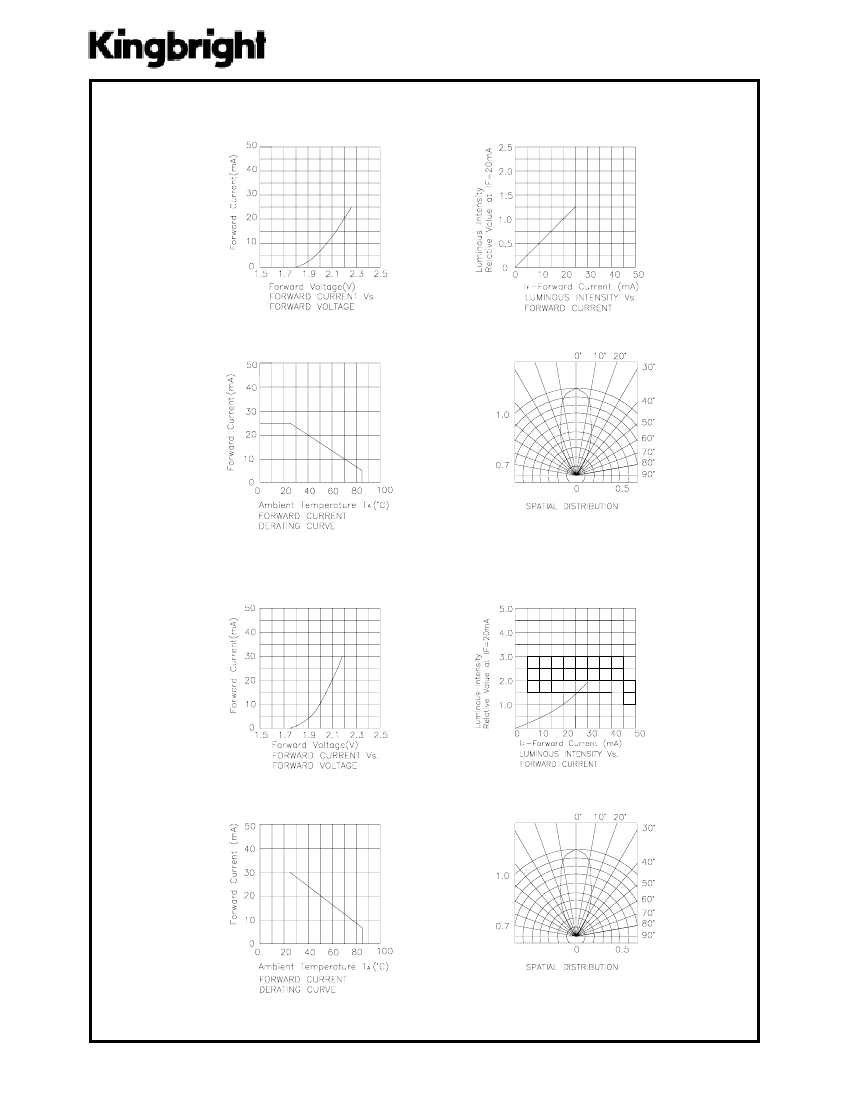

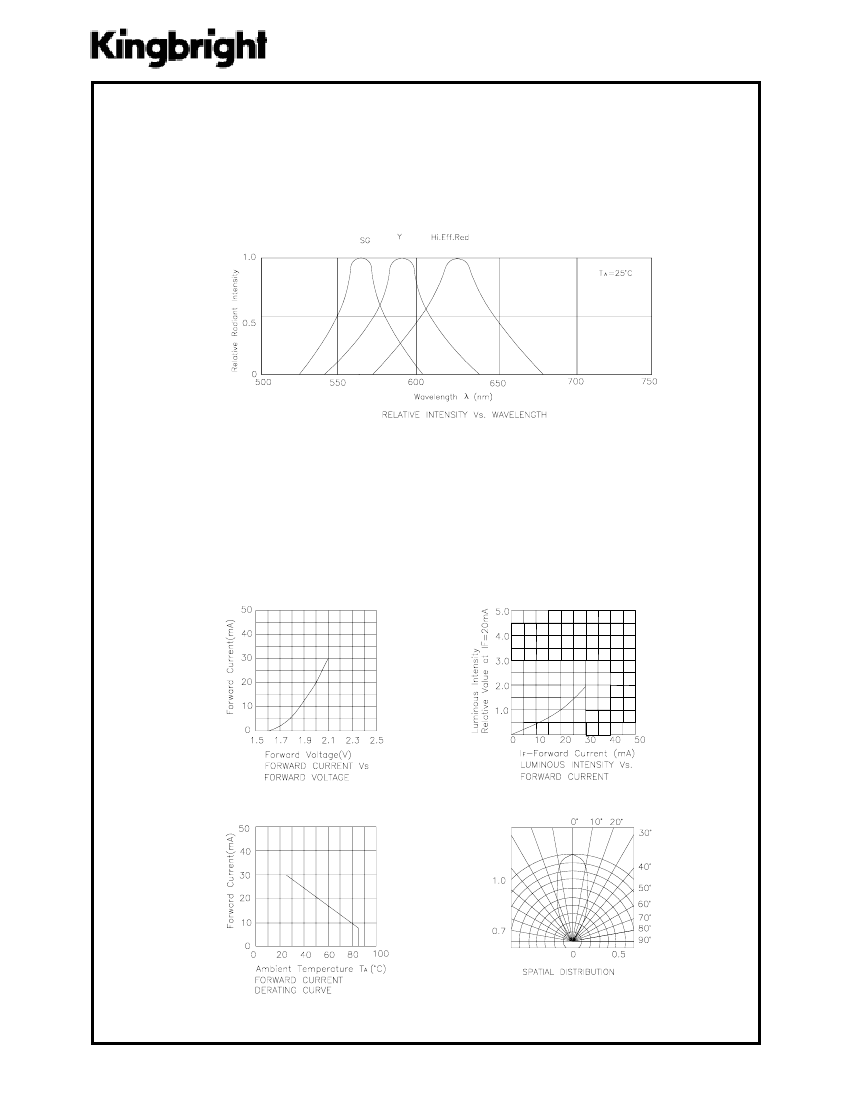

KPTD-3216

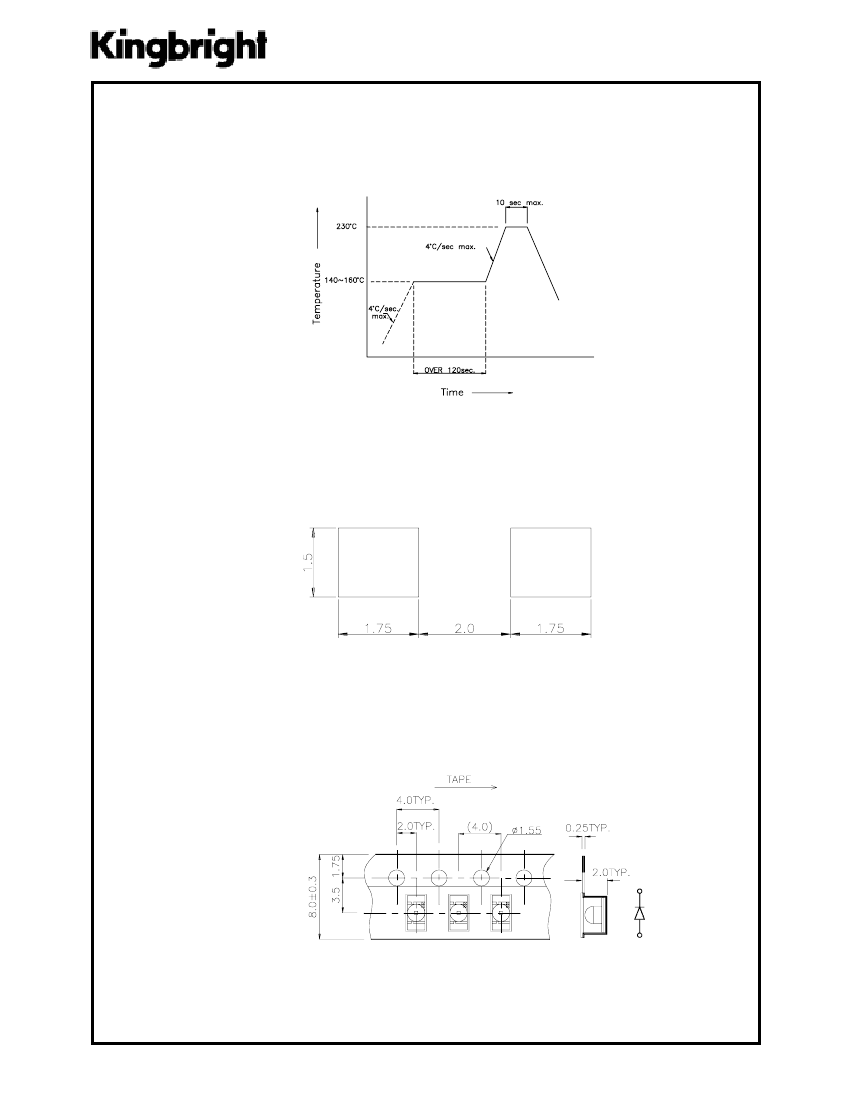

SMT Reflow Soldering Instructions
Number of reflow process shall be less than 2 times and cooling
process to normal temperature is required between first and
second soldering process.
Recommended Soldering Pattern
(Units : mm)
Tape Specifications
(Units : mm)
SPEC NO: KDA0149
APPROVED: J.LU
REV NO: V.1
CHECKED:
DATE: SEP/08/2001
DRAWN: S. H. CHEN
PAGE: 5 OF 5
