Features
Unregulated
Converter
●
●
●
●
●
●
●
Industry Standard Pinout
1kVDC
or
2kVDC Isolation
UL94V-0 Package Material
Optional Continuous Short Circuit Protected
Fully Encapsulated
Custom Solutions Available
Efficiency to 85 %
ECONOLINE
DC/DC-Converter
with 3 year Warranty
Description
The RE DC/DC converters are typically used in general purpose power isolation and
voltage matching applications, and feature a full industrial operating temperature
range of -40°C to +85°C without derating.
Selection Guide
Part
Number
SIP 7
RE-xx3.3S
RE-xx05S
RE-xx09S
RE-xx12S
RE-xx15S
RE-xx24S
Input
Voltage
(VDC)
3.3, 5, 12, 15, 24
3.3, 5, 12, 15, 24
3.3, 5, 12, 15, 24
3.3, 5, 12, 15, 24
3.3, 5, 12, 15, 24
3.3, 5, 12, 15, 24
Output
Voltage
(VDC)
3.3
5
9
12
15
24
Output
Current
(mA)
303
200
111
83
66
42
Efficiency
(%)
75
78-80
78-80
80-84
80-84
78-85
Max
Capacitive
Load
(1)
2200µF
1000µF
1000µF
470µF
470µF
220µF
(2kV)
(H)
(H)
(H)
(H)
(H)
(H)
1 Watt
SIP7
Single Output
xx = Input Voltage (other input and output voltage combinations available on request)
* add Suffix “P” for Continuous Short Circuit Protection, e.g.
RE-0505S/P, RE-0505S/HP
RoHS
Specifications
(
measured at TA = 25°C, nominal input voltage, full load and after warm-up)
Input Voltage Range
Output Voltage Accuracy
Line Voltage Regulation
Load Voltage Regulation
(10% to 100% full load)
Output Ripple and Noise (20MHz limited)
Operating Frequency
Efficiency at Full Load
Minimum Load = 0%
Isolation Voltage
Isolation Voltage
Isolation Capacitance
Isolation Resistance
Short Circuit Protection
P-Suffix
Operating Temperature Range (free air convection)
Storage Temperature Range
Relative Humidity
Package Weight
Packing Quantity
MTBF (+25°C)
(+85°C)
H-Suffix
H-Suffix
(tested for 1 second)
(rated for 1 minute**)
(tested for 1 second)
(rated for 1 minute**)
3.3V output type
5V output type
9V, 12V, 15V, 24V output types
±10%
±5%
1.2%/1% of Vin typ.
20% max.
15% max.
10% max.
100mVp-p max.
50kHz min. / 100kHz typ. / 105kHz max.
70% min. / 80% typ.
Specifications valid for 10% minimum load only.
1000VDC
500VAC / 60Hz
2000VDC
1000VAC / 60Hz
20pF min. / 75pF max.
10 GΩ min.
1 Second
Output Power (%)
100
80
60
40
30
20
0
E-358085
EN-60950-1 Certified
UL-60950-1 Certified
2011/65/EU
6/6
RE
Derating-Graph
(Ambient Temperature)
Continuous
-40°C to +85°C (see Graph)
-55°C to +125°C
95% RH
2.2g
25 pcs per Tube
using MIL-HDBK 217F
Detailed Information see
Application Notes chapter "MTBF"
using MIL-HDBK 217F
992 x 10
3
hours
145 x 10
3
hours
continued on next page
Safe Operating Area
85
Operating Temperature °C
-40
0
50
100
150
}
**Any data referred to in this datasheet are of indivative nature and based on our practical experience only. For further details, please refer
to our Application Notes.
Refer to Application Notes
www.recom-international.com
REV: 0/2014
E-53
ECONOLINE
DC/DC-Converter
Specifications
(
measured at TA = 25°C, nominal input voltage, full load and after warm-up)
Certifications
CB Test Report
UL General Safety
EN General Safety
Notes
Note 1
Report: US/15348/UL
Report: E358085
Report: SPCLVD1109103
RE
Series
IEC 60950-1:2005 2nd Edition
UL 60950-1 2nd Edition
EN60950-1:2006 + A12:2011
Maximum capacitive load is defined as the capacitive load that will allow start up in under 1 second without damage to the converter.

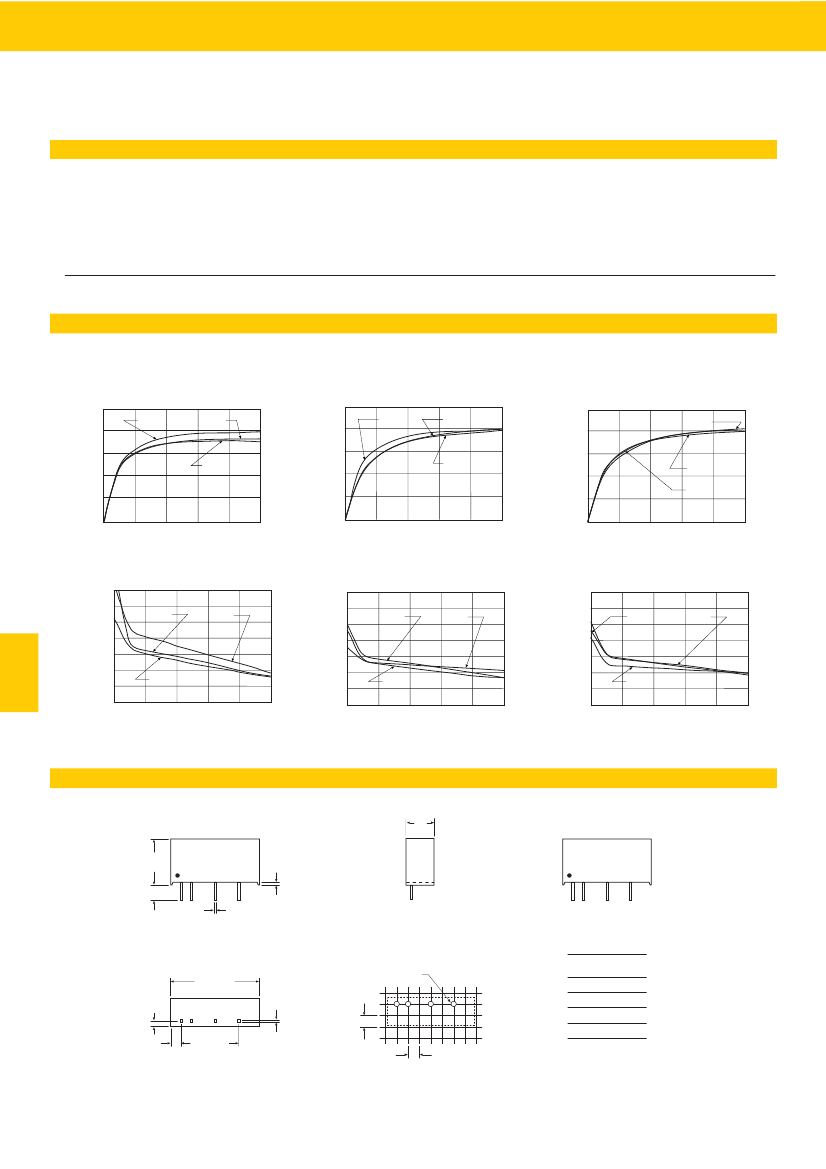

Typical Characteristics
RE-xx05S
Efficiency / Load
100
80
60
100
RE-xx12S
Efficiency / Load
80
60
RE-xx15S
Efficiency / Load
100
80
3.305
1205
0512
1212
1215
Efficiency %
Efficiency %
40
20
0
0505
40
20
0
3.312
Efficiency %
60
40
20
0
0515
3.315
0% 20%
40%
60%
Total Output current (%)
80%
100%
0%
20%
40%
60%
80%
100%
0%
20%
40%
60%
80%
100%
Total Output current (%)
Total Output current (%)
Deviation / Load
25.000
20.000
25.000
Deviation / Load
25.000
20.000
20.000
Deviation / Load
Deviation from Nominal (%)
Deviation from Nominal (%)
15.000
10.000
5.000
0.000
-5.000
-10.000
Deviation from Nominal (%)
15.000
10.000
5.000
0.000
-5.000
-10.000
3.305
0505
0512
1212
15.000
10.000
5.000
0.000
-5.000
-10.000
0515
3.315
RE
1205
3.312
0% 20%
40%
60%
Total Output current (%)
80%
100%
1215
0% 20%
40%
60%
Total Output current (%)
80%
100%
0% 20%
40%
60%
Total Output current (%)
80%
100%
Package Style and Pinning (mm)
7 PIN SIP Package
6.00
RECOM
RE-0505S
****
RECOM
RE-0505S
****
10.20
0.51 typ.
4.10
0.51 typ.
1 2
4
6
Recommended Footprint Details
19.60
1.27
2.0
Bottom View
RE Pin Connections
Pin #
1
2
4
Single
+Vin
–Vin
–Vout
1.00 ø+0.15/0
0.25
2.54
12.70
2.54
Top View
6
+Vout
XX.X ± 0.5 mm
XX.XX ± 0.25 mm
The product information and specifications are subject to change without prior notice. All products are designed for non-safety critical commercial and industrial applications.
The Buyer agrees to implement safeguards that anticipate the consequences of any failures that might cause harm, loss of life and/or damage property.
E-54
REV: 0/2014
www.recom-power.com
