Features
Unregulated
Converter
●
●
●
●
●
●
1 : 1 Input Range
0.5W SMD Package
Efficiency up to 80%
Approved for Medical Applications
1kVDC and 3 kVDC Isolation Option
Operating Temperature from -40°C to +100°C
ECONOLINE
DC/DC-Converter
with 3 year Warranty
Specifications
(
measured at TA = 25°C, nominal input voltage, full load and after warm-up)
Part
Number
SMD
R0.5S**-3.305*
R0.5S**-3.312*
R0.5S**-3.315*
R0.5S**-0505*
R0.5S**-0512*
R0.5S**-0515*
R0.5S**-1205*
R0.5S**-1212*
R0.5S**-1215*
R0.5S**-2405*
R0.5S**-2412*
R0.5S**-2415*
R0.5D**-3.305*
R0.5D**-3.312*
R0.5D**-3.315*
R0.5D**-0505*
R0.5D**-0512*
R0.5D**-0515*
R0.5D**1205*
R0.5D**1212*
R0.5D**1215*
R0.5D**2405*
R0.5D**2412*
R0.5D**2415*
Input
Voltage
(VDC)
3.3
3.3
3.3
5
5
5
12
12
12
24
24
24
3.3
3.3
3.3
5
5
5
12
12
12
24
24
24
Output
Voltage
(VDC)
5
12
15
5
12
15
5
12
15
5
12
15
±5
±12
±15
±5
±12
±15
±5
±12
±15
±5
±12
±15
Output
Current
(mA)
100
42
33
100
42
33
100
42
33
100
42
33
±50
±21
±17
±50
±21
±17
±50
±21
±17
±50
±21
±17
Efficiency
typ.
(%)
80
77
77
72
77
79
74
75
75
75
77
77
79
76
77
79
77
79
76
75
75
77
75
75
Max
Capacitive
Load
(1)**
1000µF
150µF
150µF
1000µF
150µF
150µF
1000µF
150µF
150µF
1000µF
150µF
150µF
±470µF
±68µF
±68µF
±470µF
±68µF
±68µF
±470µF
±68µF
±68µF
±470µF
±68µF
±68µF
0.5 Watt SMD
Isolated
Single or Dual
Output
2011/65/EU
6/6
RoHS
E358085
UL-60950-1 Certified
R0.5S_D
Derating-Graph
(Ambient Temperature)
100
80
*add Suffix “/H” for 3kVDC Isolation Voltage
*add Suffix “/P“ for continuous short circuit protection
*add Suffix “-R“ for tape & reel packing
For more details and dimensions of the tapes and reels see Application Notes
R0.5S**:
**without marking denotes 5 pins out of 8 fitted (includes „/H“ option)
**with marking 8 denotes 8 pins out of 8 fitted („/H“ option not available)
**with marking 12 denotes 10 pins out of 12 fitted (includes „/H“ option)
R0.5D**:
**without marking denotes 6 pins out of 10 fitted (includes „/H“ option)
**with marking 10 denotes 10 pins out of 10 fitted („/H“ option not available)
**with marking 12 denotes 10 pins out of 12 fitted (includes „/H“ option)
Output Power (%)
60
40
20
0
-40
Safe Operating Area
0
50
100
150
Operating Temperature °C
Refer to Application Notes
E-16
REV: 0/2015
www.recom-power.com
ECONOLINE
DC/DC-Converter
Specifications
(
measured at TA = 25°C, nominal input voltage, full load and after warm-up)
Input Voltage Range
Voltage Set Accuracy
Line Regulation
Load Regulation
(10% to 100% Load)
Ripple & Noise @ 20MHz BW
Efficiency at Full Load
Operating Temperature
Storage Temperature
Isolation Voltage
Isolation Voltage
Isolation Capacitance
Isolation Resistance
Humidity
Operating Frequency
Short-Circuit Protection
MTBF
Using MIL-HDBK 217F (+25°C)
Weight
Certification
UL General Safety
Report: E358085
Using MIL-HDBK 217F (+100°C)
3962 x 10³ hours
Single Types
Dual Types
Vin (nom.)
Viso = 500V
H-Suffix
H-Suffix
(tested for 1 second)
(rated for 1 minute***)
(tested for 1 second)
(rated for 1 minute***)
100% Load/nominal Vin
Low Line to High Line @ max. Load
5V output
12/15V output
R0.5S_D
Series
±10% max.
-1% typ. / ±5% max.
1.2% typ.
6% typ. / 15% max.
5%typ. / 10% max.
50 mVp-p typ. / 100mVp-p max.
70% min.
-40°C to +100°C
-55°C to +125°C
1000VDC
500VAC / 60Hz
3000VDC
1500VAC / 60Hz
75pF max.
10 GΩ min.
95% max.
20kHz min. / 50 kHz typ. / 90 kHz max.
1 Second
1003 x 10³ hours
1.0 g
1.2 g
UL 60950-1 2nd Ed.
Detailed Information see Application Notes chapter „MTBF“
R0.5S_D
***Any data referred to in this datasheet are of indicative nature and based on our practical experience only. For further details, please refer to our Application Notes.
Notes
Note1:
Maximum capacitive load is defined as the capacitive load that will allow start up in under 1second without damage to the converter.

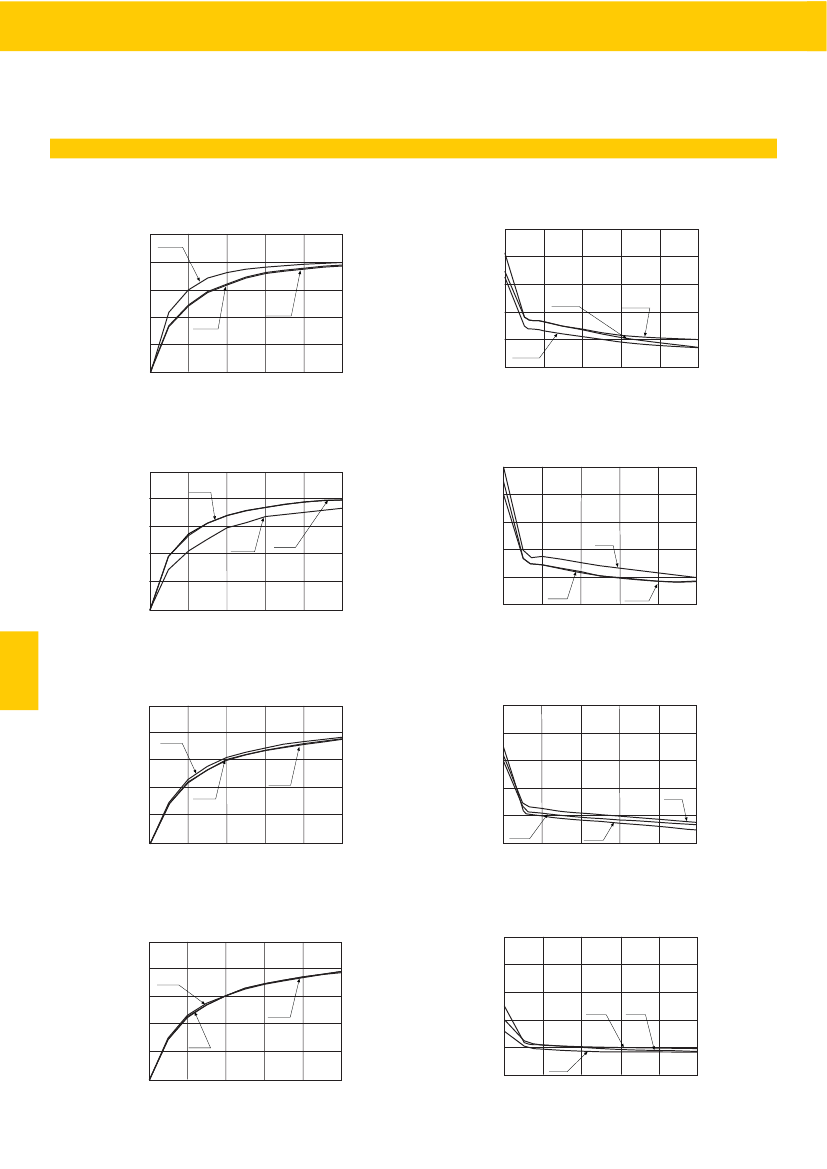

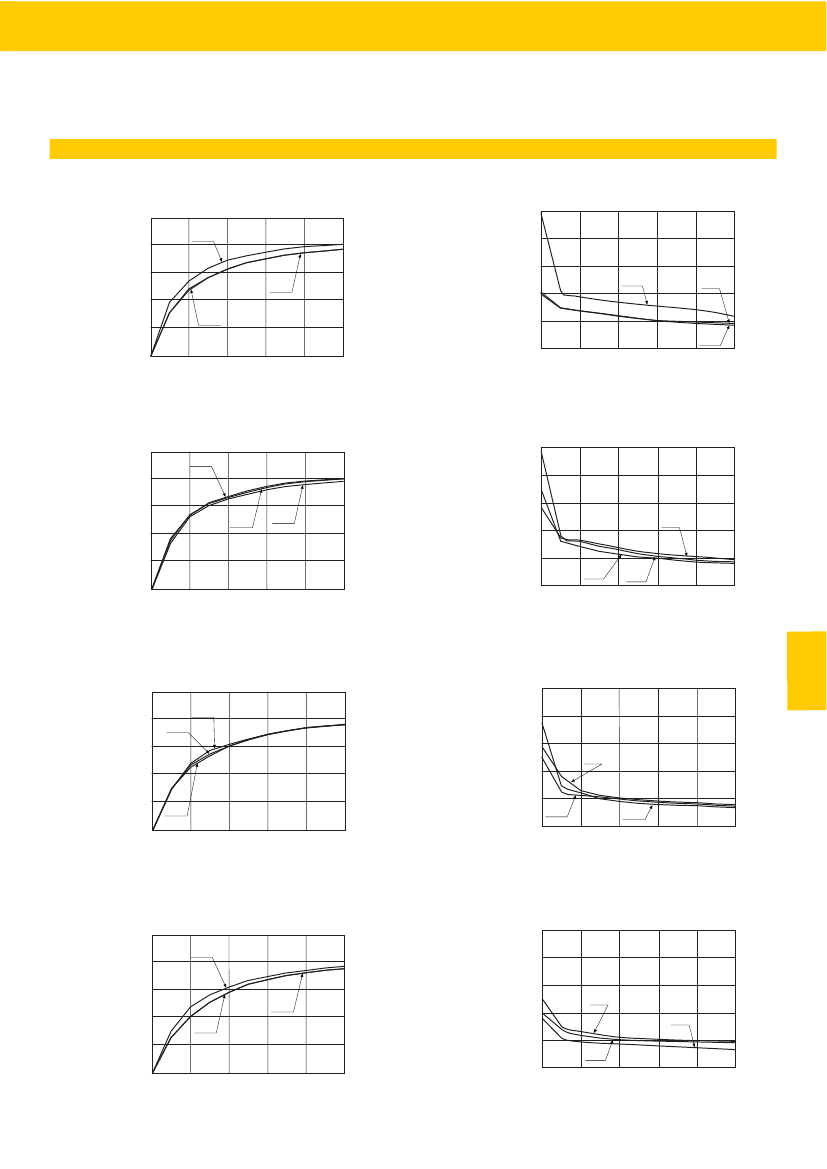

Typical Characteristics
Tolerance Envelope
Tolerance Envelopes
+10%
VNOM
+5%
Typical load
line
+5%
-1%
-5%
Output Voltage
10%
50%
100%
+Vout and -Vout load current (%)
www.recom-power.com
REV: 0/2015
E-17
