51-712-063 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> 51-712-063

51-712-063: Descriptionemi feedthrough filters 5500pf Pi 8-32 tur. 5 amp; CategoryPassive components; File Size238KB，11 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

51-712-063 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	51-712-063	-	-	View	Buy Now

51-712-063 Overview

emi feedthrough filters 5500pf Pi 8-32 tur. 5 amp

51-712-063 Parametric

Parameter Name	Attribute value
Manufacture	API Technologies
Product Category	EMI Feedthrough Filters
RoHS	Yes
Produc	EMI Filters
Capacitance	5500 pF
Voltage Rating	100 V
Maximum DC Curre	10 A
Operating Temperature Range	- 55 C to + 125 C
Circuit Type	Pi Filte
Case Diamete	7.92 mm
Case Length	12.70 mm
Dimensions	7.92 mm Dia. x 12.70 mm L
Insertion Loss	70 dB
Lead Diamete	0.81 mm
Packaging	Bulk
Test Frequency	100 MHz
Type	Hermetically Sealed Threaded Case Filters

Preview

Download Datasheet

View All

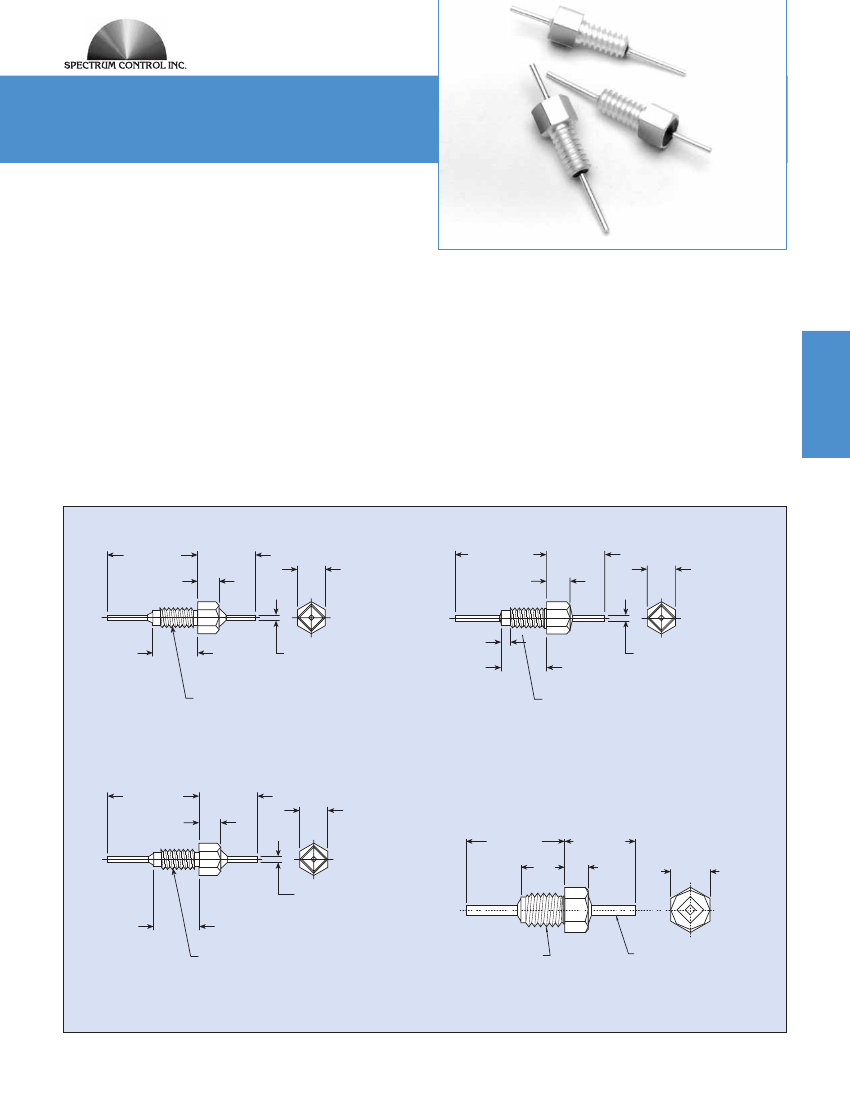

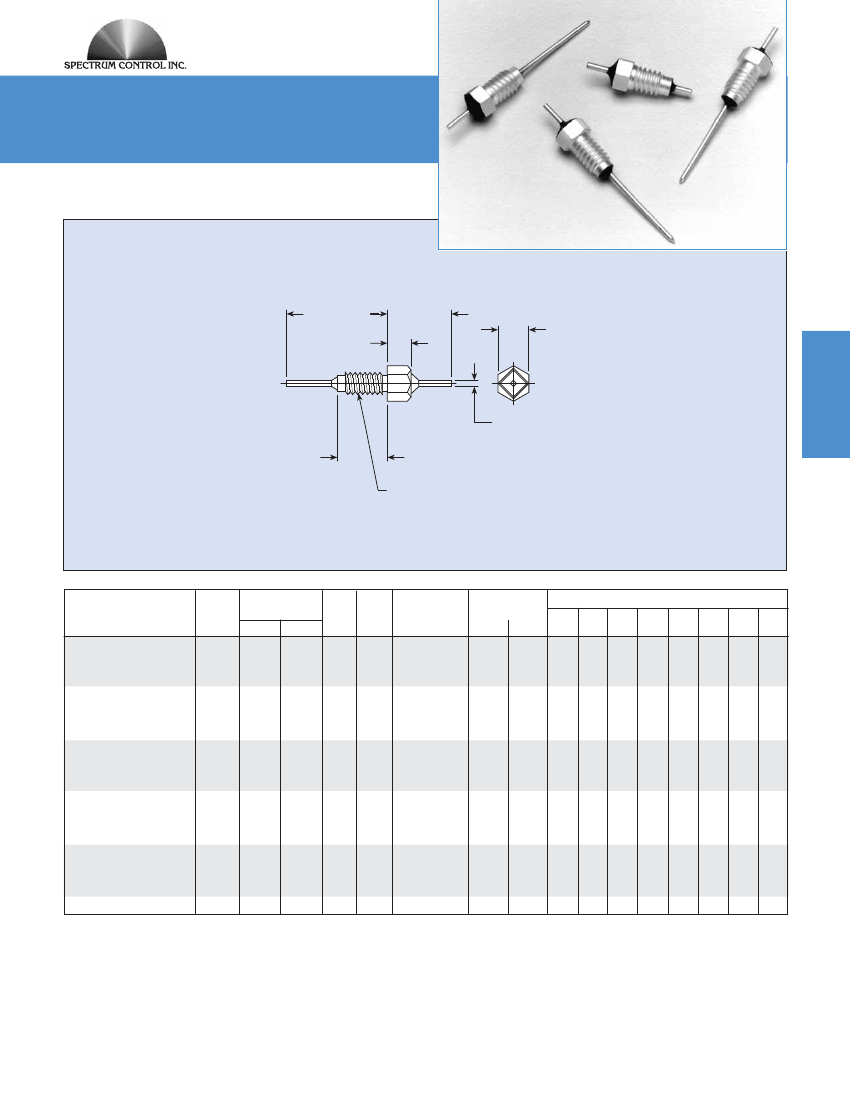

Resin Sealed Bolt-in Filters

These filters are easily mounted in a tapped hole or

thru-hole with supplied nut and lock-washer. The rugged

case with resin seals at both ends provides excellent

environmental protection. Primarily used in filtering

signal/data lines and DC power lines.

Features

Wide range of sizes: 4-40 thread through

5/16-24 thread

Voltage ratings to 500 VDC/220 VAC (400 Hz)

MIL-F-15733 QPL filters available

Multiple circuit configurations: C, L and Pi

Metric threaded filters available, consult factory

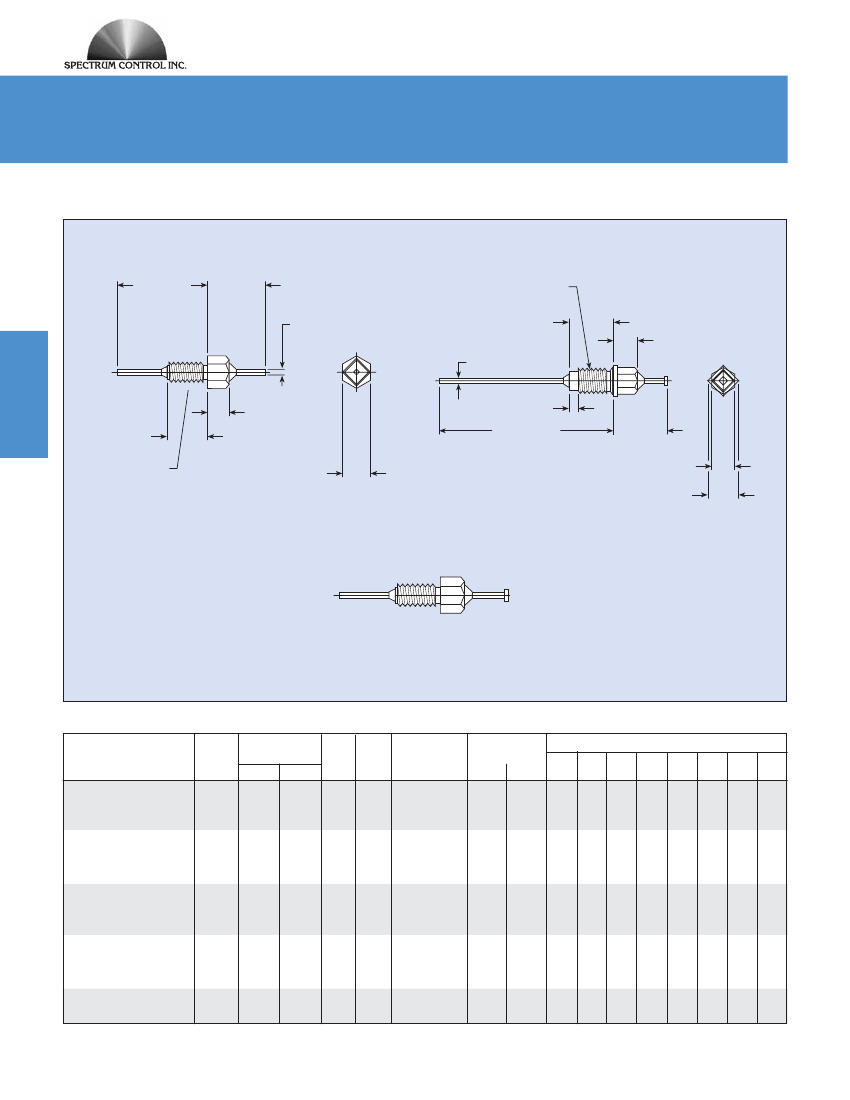

4-40 C Circuit

.510

.031

(13.0

.79)

.120

(3.05)

.310

.031

(7.87

.79)

.156 Hex.

(3.96)

.368

.031

(9.347

.79)

.120

(3.05)

.275

.031

(6.99

.79)

.156 Hex.

(3.96)

.220

(5.59)

ø .025

.005

(.64

.13)

#4–40 Unc–2A Thd.

.050

(1.27)

.220

(5.59)

#4–40 Unc–2A Thd.

ø .032

.005

(.810

.13)

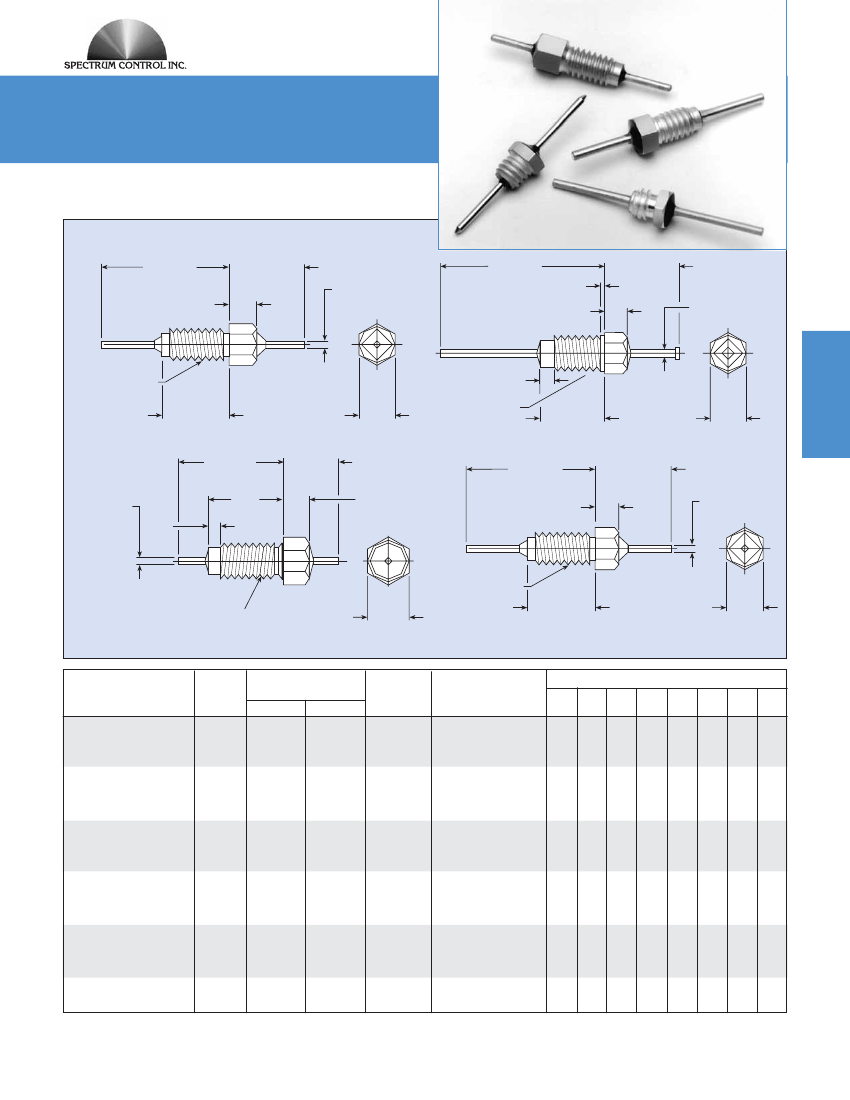

Figure 1

Figure 2

.360

.031

(9.144

.79)

.120

(3.05)

.240

.031

(6.10

.79)

.156 Hex.

(3.96)

.315

.031

(8.00

0.79)

.140

(3.56)

ø A

.005

(± .13)

.225

.031

(5.72

0.79)

.075

(1.91)

.125 Hex.

(3.18)

.220

(5.59)

#4–40 Unc–2A Thd.

ø .032

(ø 0.81)

Figure 3

Figure 4

Dimensions in inches

(mm)

SPECTRUM CONTROL INC.

• 8031 Avonia Rd. • Fairview, PA 16415 • Phone: 814-474-2207 • Fax: 814-474-2208 • Web site: www.spectrumcontrol.com

SPECTRUM CONTROL GmbH

• Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58

Low Pass Filters

51-712-063 Related Products

	51-712-063	54F-713-105	54F-785-005	1293F-001	SCIF-3513-000	51F-744-002	SCI-3223-000
Description	emi feedthrough filters 5500pf Pi 8-32 tur. 5 amp	emi feedthrough filters emi filter	emi feedthrough filters bolt IN .05uf 8-32 C circuit	emi feedthrough filters .060uf Pi 8-32	emi feedthrough filters .1uf 100v 25a	emi feedthrough filters 5500pf Pi 8-32 tur.	emi feedthrough filters .012uf 200v 10amp
Manufacture	API Technologies	API Technologies	API Technologies	API Technologies	API Technologies	API Technologies	API Technologies
Product Category	EMI Feedthrough Filters	EMI Feedthrough Filters	EMI Feedthrough Filters	EMI Feedthrough Filters	EMI Feedthrough Filters	EMI Feedthrough Filters	EMI Feedthrough Filters
RoHS	Yes	Yes	Yes	Yes	In Transiti	Yes	N
Produc	EMI Filters	EMI Filters	EMI Filters	Bolt In Filters	EMI Filters	EMI Filters	Bolt In Filters
Operating Temperature Range	- 55 C to + 125 C	- 25 C to + 85 C	- 55 C to + 125 C	- 55 C to + 125 C	- 55 C to + 125 C	- 55 C to + 125 C	- 55 C to + 125 C
Capacitance	5500 pF	-	0.05 uF	0.06 uF	0.1 uF	5500 pF	2000 pF
Voltage Rating	100 V	-	100 V	-	100 V	200 V	200 V
Maximum DC Curre	10 A	-	10 A	10 A	25 A	10 A	10 A
Circuit Type	Pi Filte	-	Pi Filte	Pi Filte	-	Pi Filte	Pi Filte
Case Diamete	7.92 mm	-	4.75 mm	-	9.53 mm	-	5.54 mm
Case Length	12.70 mm	2 mm	-	8.13 mm	33.32 mm	-	12.7 mm
Dimensions	7.92 mm Dia. x 12.70 mm L	2 mm L	4.75 mm Dia.	8.13 mm L	9.53 mm Dia. x 9.53 mm W x 33.32 mm L x 9.53 mm H	-	5.54 mm Dia. x 4.34 mm W x 12.7 mm L
Type	Hermetically Sealed Threaded Case Filters	Resin Sealed Bolt-In Filte	-	Resin Sealed Filters	Resin Sealed Bolt-In Filte	Resin Sealed Bolt-in Filters	Resin Seal Filte
Factory Pack Quantity	-	178	250	10	-	5	50
