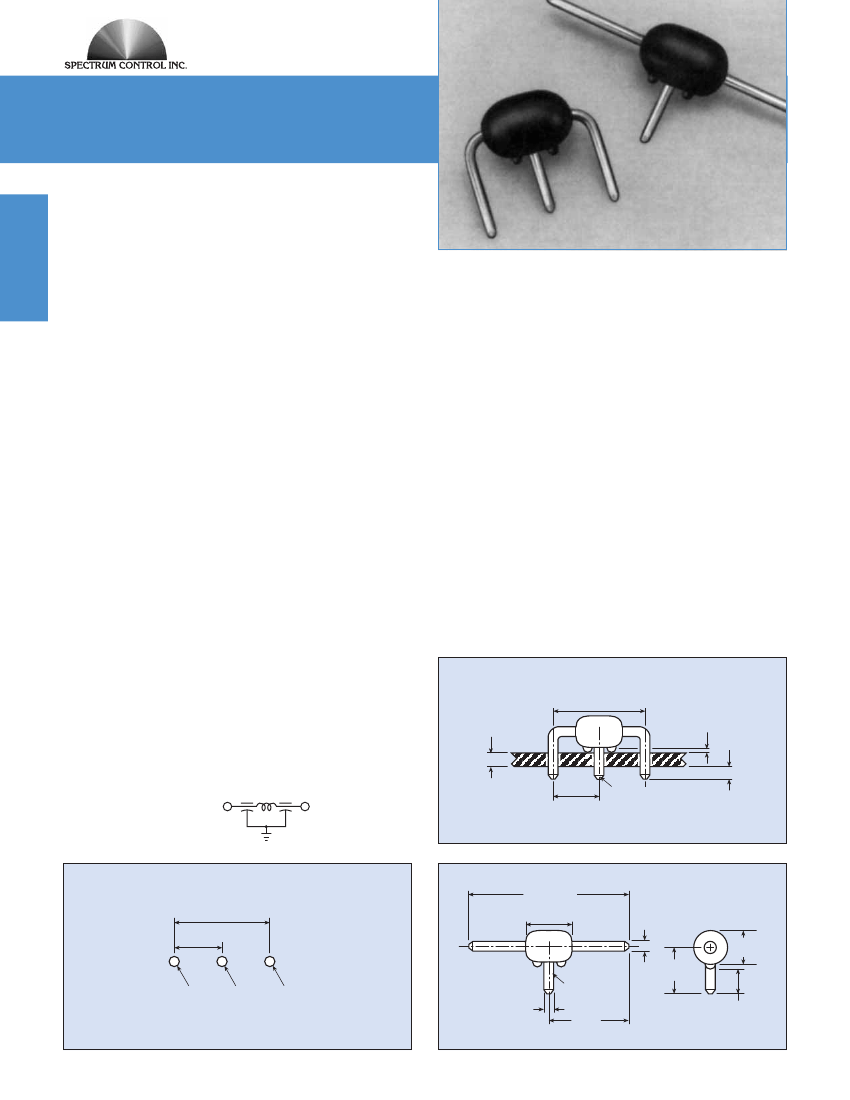

Thru-hole Filters
High Frequency PCB Filters
The economical High Frequency PCB Filter offers
electrical characteristics which allow many devices
to meet most government and industry specifications
for EMI control, while providing good electrostatic
discharge protection.
A lossy ferrite filter with a center ground lead is
terminated within the filter’s thermoset epoxy body.
Typical Electrical Characteristics
Current
. . . . . . . . . . . . . . . Max. 10A DC; 0.3A RF
Operating Voltage
. . . . . . . . Max. 50 VDC, -25°C +85°C
Capacitance
. . . . . . . . . . . . 800 pF min.
Dissipation Factor
. . . . . . . . 0.1 Max.
Dielectric
Withstanding Voltage
. . . . . 125 VDC for 5 seconds
Insulation Resistance.
. . . . . Min. 100 MegOhms at 100 VDC
. . . . . . . . . . . . . . . . . . . . .
for 2 minutes and 25°C
Direct Current
Resistance.
. . . . . . . . . . . . . 0.002 ohms Max.
Minimum No-Load
Insertion Loss
. . . . . . . . . . . Per MIL-STD-220 at 25°C; PCB
mounted, 50 ohm strip line
3dB @ 8 MHz
10dB @ 25 MHz
15dB @ 50 MHZ
20dB @ 100 MHz-1GHz
Surface Mount Filters & Inductors
The High Frequency PCB Filter offers savings
three ways. First is the low cost of the filter assembly.
Second is the economy of installation. Three silver
plated leads are inserted into holes in a printed circuit
board which has a ground path circuit, for conventional
flows-soldering with other components. No special
mounting plate or brackets are needed and when the
holes are placed as recommended in a .062 (1.57mm)
thick board, no lead trimming is required. Elimination
of hand soldering provides opportunities for improved
quality in addition to applied-cost benefits.
A third savings results from placing a filter at the
source of an EMI problem, potentially eliminating the
need for additional filtering at other points in the circuit.
Features
s
s
s
s
s
Provides EMI filtering to protect low power digital
circuits - helps equipment meet FCC and VDE
specifications
Mounts directly to printed circuit board with no bracket
or plate for lower applied costs - can be flow soldered
with other components
Encapsulated for environmental protection
Mounts on PCB to begin filtering at the source
of the problem
Built-in standoffs permit cleaning or coating under
the filter
Pi
Output
Preformed to Recommended Mounting Configuration
Part Number 842448-2
Recommended Mounting Configuration
.600
±.030
(15.24
±0.76
)
.062
(1.57)
Ref.
.015
(0.38)
Ref.
Circuit Schematic
Input
.300
±.015
(7.62
±0.38
)
Ground
Lead
.062
(1.57)
Ref.
Dimensions in inches
(mm)
Ground
Recommended PCB Hole Layout
.600
±.010
(15.24
±0.25
)
.300
±.005
(7.62
±0.13
)
+
.055
±.002
(1.4
±0.05
)
Dia.
+
.040
±.002
(1.02
±0.05
)
Dia.
+
.055
±.002
(1.4
±0.005
)
Dia.
Standard Configuration
1.040
(26.42)
.300
±.010
(7.62
±0.25
)
Part Number 842448-1
.200
±.010
(5.08
±0.25
)
±.020
.040 .240
±0.51
(6.10 )
(1.02)
Dia.
.032
(0.81)
Dia.
Ground
Lead
.520
(13.21)
Ref.
.125
±.025
(3.18
±0.64
)
Dimensions in inches
(mm)
62
Dimensions in inches
(mm)
SPECTRUM CONTROL INC.
• 8031 Avonia Rd. • Fairview, PA 16415 • Phone: 814-474-2207 • Fax: 814-474-2208 • Web site: www.spectrumcontrol.com
SPECTRUM CONTROL GmbH
• Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58
