ABS09-32.768KHZ-9-T datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> ABS09-32.768KHZ-9-T

Preview

ABS09-32.768KHZ-9-T: Descriptioncrystals 32.768khz 9pf; CategoryPassive components Crystal/resonator; File Size113KB，1 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric Compare View All

ABS09-32.768KHZ-9-T Overview

crystals 32.768khz 9pf

ABS09-32.768KHZ-9-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
package instruction	ROHS COMPLIANT, CERAMIC, SMD, 2 PIN
Reach Compliance Code	compli
Factory Lead Time	28 weeks
Other features	TAPE AND REEL
Ageing	5 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	1 µW
frequency stability	0.0122%
frequency tolerance	20 ppm
JESD-609 code	e4
load capacitance	9 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	0.032768 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L4.1XB1.5XH0.9 (mm)/L0.161XB0.059XH0.035 (inch)
Series resistance	70000 Ω
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrie

Preview

Download Datasheet

View All

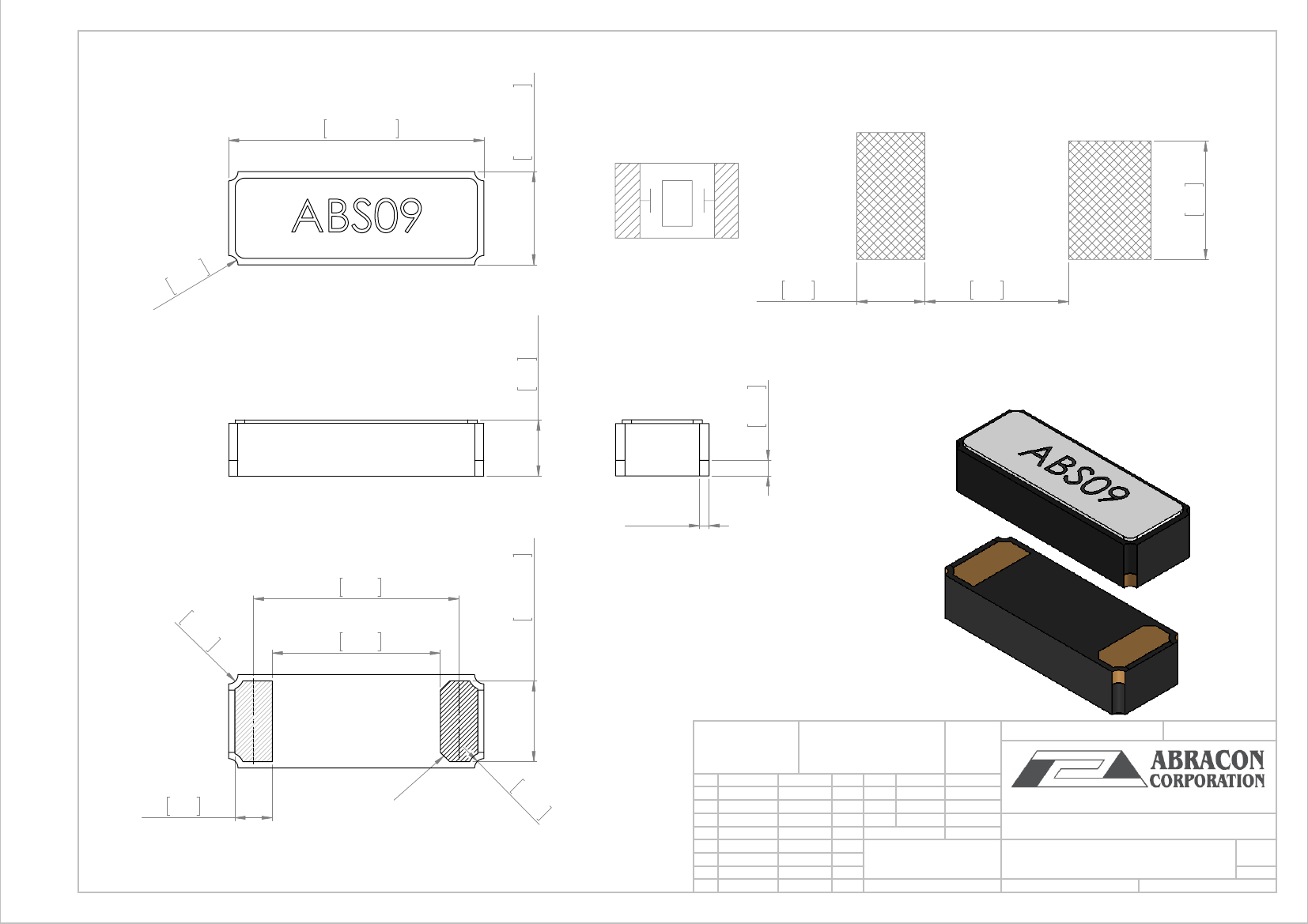

0.16 ±0.004

4.10 ±0.1

0.059 ±0.004

1.50 ±0.1

Recommended land pattern

CONNECTIONS

6

.00

R0 15

4X 0.

0.035 MAX

0.9

2X 0.043

1.1

0.09

2.3

2X 0.004

[0.1]

0.130

3.30

0.051 ±0.004

1.3 ±0.1

0.106

2.70

0.010

0.25

UNLESS OTHERWISE SPECIFIED:

DIMENSIONS ARE IN INCH(MM)

SURFACE FINISH:

TOLERANCES:

LINEAR:

ANGULAR:

FINISH:

DEBUR AND

BREAK SHARP

EDGES

0.075

1.9

2X 0.024

0.6

06

.0

R0 .15

0

DO NOT SCALE DRAWING

REVISION

-

06

.0

R0 .15

0

C0.012

(0.3)

NAME

DRAWN

CHK'D

APPV'D

MFG

Q.A

SAAZVAT

XXXXXX

SIGNATURE

DATE

30332 Esperanza, Rancho Santa margarita, California 92688

TITLE:

CRYSTAL

MATERIAL:

DWG NO.

TOP PACKAGE MARKING IS

FOR ILLUSTRATION PURPOSES ONLY

ABS09

SHEET 1 OF 1

A3

WEIGHT:

SCALE:20:1

ABS09-32.768KHZ-9-T Related Products

	ABS09-32.768KHZ-9-T	ABS09-32.768KHz-1-T	ABS09-32.768KHZ-4-T
Description	crystals 32.768khz 9pf	crystals 32.768khz 12.5pf -40c +85c 10ppm	CRYSTAL 32.7680KHZ 12.5PF SMD
Is it lead-free?	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to
Maker	Abracon	Abracon	Abracon
package instruction	ROHS COMPLIANT, CERAMIC, SMD, 2 PIN	ROHS COMPLIANT, CERAMIC, SMD, 2 PIN	ROHS COMPLIANT, CERAMIC, SMD, 2 PIN
Reach Compliance Code	compli	compli	compliant
Factory Lead Time	28 weeks	28 weeks	28 weeks
Other features	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
Ageing	5 PPM/FIRST YEAR	5 PPM/FIRST YEAR	5 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL
Drive level	1 µW	1 µW	1 µW
frequency stability	0.0122%	0.0122%	0.0122%
frequency tolerance	20 ppm	10 ppm	30 ppm
JESD-609 code	e4	e4	e4
load capacitance	9 pF	12.5 pF	12.5 pF
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Nominal operating frequency	0.032768 MHz	0.032768 MHz	0.032768 MHz
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
physical size	L4.1XB1.5XH0.9 (mm)/L0.161XB0.059XH0.035 (inch)	L4.1XB1.5XH0.9 (mm)/L0.161XB0.059XH0.035 (inch)	L4.1XB1.5XH0.9 (mm)/L0.161XB0.059XH0.035 (inch)
Series resistance	70000 Ω	70000 Ω	70000 Ω
surface mount	YES	YES	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrie	Gold (Au) - with Nickel (Ni) barrie	Gold (Au) - with Nickel (Ni) barrier
