54-874-010 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> 54-874-010

54-874-010: Descriptionemi feedthrough filters 10pf 50v 5A; CategoryPassive components; File Size82KB，1 Pages; ManufacturerAll Sensors

Download Datasheet Parametric View All

54-874-010 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	54-874-010	-	-	View	Buy Now

54-874-010 Overview

emi feedthrough filters 10pf 50v 5A

54-874-010 Parametric

Parameter Name	Attribute value
Manufacture	API Technologies
Product Category	EMI Feedthrough Filters
RoHS	N
Produc	EMI Filters
Capacitance	10 pF
Voltage Rating	50 V
Maximum DC Curre	5 A
Operating Temperature Range	- 55 C to + 125 C
Circuit Type	C Filte
Thread Size	2-56 UNC-2A
Type	Resin Sealed Bolt-in Filters

Preview

Download Datasheet

View All

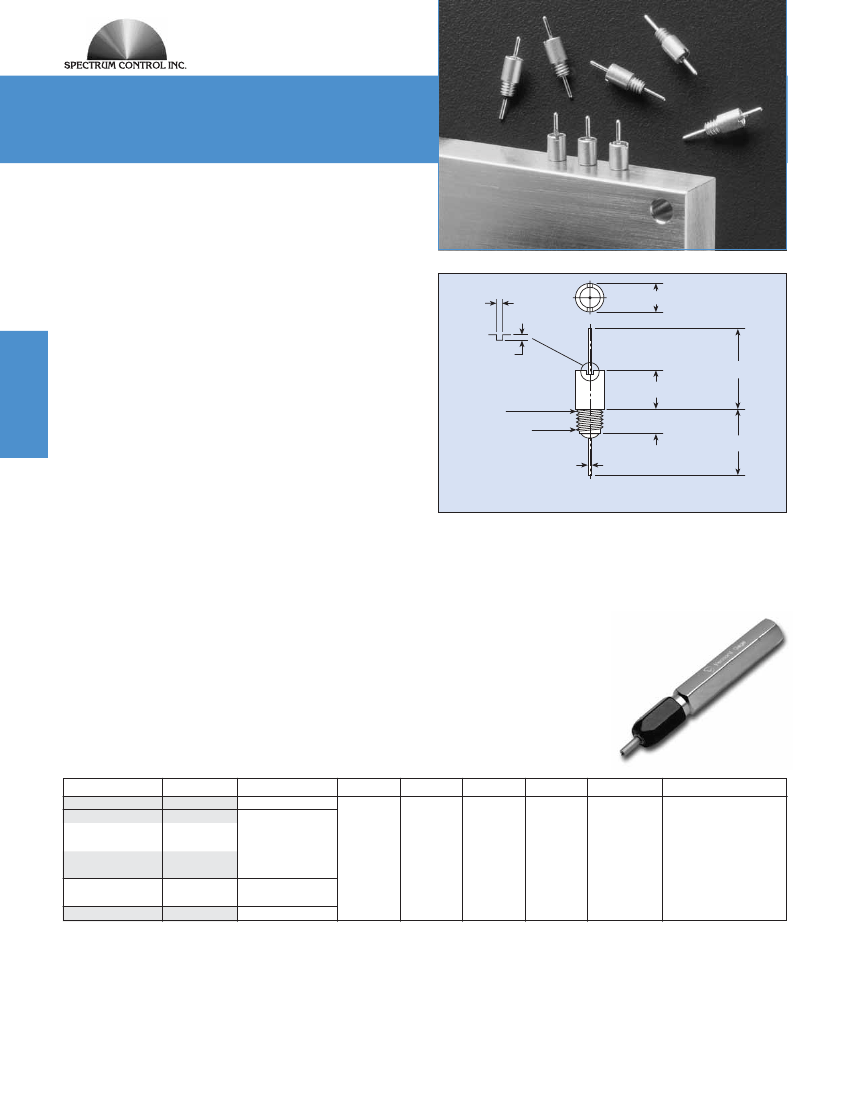

Spec Spin Filters

Spectrum Control Inc. introduces the new space saving

#2-56 threaded miniature EMI spanner filter. This new

threaded filter is designed without a hex and does not

require soldering for installation. These features make

it an excellent selection for applications that require

many lines to be filtered in close proximity. The easy

swap out also allows for flexibility in filter replacement

and capacitance substitution. Easy filter substitution

also allows for flexibility in filter placement. Custom

design queries are always welcome.

.020

(0.51)

.020

(0.51)

ø.105

.005

(2.67)

Applications

Spectrum Control’s spanner filter offers superior inser-

tion loss over a broad frequency range when compared

to surface mount components. The filter is available in

capacitance values up to 10,000 pF, and is featured in

a microcircuit package used in microwave applications

such as frequency synthesizers, power amplifiers,

MMW radio, and is ideal for commercial and hi-reliability

applications.

1-1/2 Imperfect

Threads

#2-56 Unc-2A

.024

(0.61)

.290

(7.36)

.140

(3.57)

.081

(2.06)

.240

(6.11)

Low Pass Filters

Built and tested in accordance with MIL-F-15733.

Dimensions in inches

(mm)

Electrical Specifications

Operating Temperature

. . . . -55°C to +125°C

Voltage Rating

. . . . . . . . . . 50 VDC

Current Rating

. . . . . . . . . . 5 A

Effective Filtering From

. . . . 1 MHz to 10 GHz

Capacitance

. . . . . . . . . . . . to 10,000 pF

Dielectric Withstanding

Voltage . . . . . . . . . . . . . .

. . . 125 VDC

Mechanical Specifications

Center Spacing

. . . . . . . . . . .0.110"

Lead Finish

. . . . . . . . . . . . . Gold

Bushing Finish

. . . . . . . . . . Gold

Tightening Torque

. . . . . . . . 14 oz-in (± 2)

(0.11Nm)

Insertion Tool

Part Number: 54-874-020

Part Number*

54-874-010

54-874-011

54-874-012

54-874-013

54-874-014

54-874-015

54-874-016

54-874-017

54-874-018

Cap (pF)

100

390

1,000

2,000

3,300

4,700

10,000

Max. Tolerance

+0%/-20%

+50%/-20%

Circuit

Current

Voltage

DWV

I.R.

Temperature Range

50 VDC

125 VDC

1,000 MΩ

-55°C to +125°C

+100%/-0%

+80%/-20%

SPECTRUM CONTROL INC.

• 8031 Avonia Rd. • Fairview, PA 16415 • Phone: 814-474-2207 • Fax: 814-474-2208 • Web site: www.spectrumcontrol.com

SPECTRUM CONTROL GmbH

• Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58
