Power-over-Ethernet (PoE)/PD
Configurable Transformer
Applications
• For IEEE 802.3af-compliant Power-over-Ethernet applications
• UPS, VoiP Phone, wireless LAN access point, Bluetooth access point,
network camera, building access systems
• Retail point-of-information systems
• Vending/gaming machines
Environmental Data
• Storage temperature range: -40°C to +125°C
• Operating ambient temperature range: -40°C to +85°C
(range is application specific)
• Solder reflow temperature: +260°C max. for 10 seconds max.
Description
•
•
•
•
•
•
•
•
Versatile design allows multiple output variations
Flyback topology, 250kHz switching frequency
Input range from 29.5-60V
1500Vac isolation between primary and secondary
Three power levels: 4, 7 and 13watts
Low leakage inductance
11.0 Volt @ 0.10 amp feedback winding
Ferrite core material
Induct-
ance
Watts (µH)
4
200
4
200
4
200
7
7
7
13
13
13
100
100
100
100
100
100
DCR/
PRI
(Ω)
0.500
0.500
0.500
0.275
0.275
0.275
0.250
0.250
0.250
DCR/
PRI
(Ω)
0.250
0.250
DCR/
SEC
(Ω)
0.07
0.27
0.740
0.03
0.095
0.250
0.032
0.075
0.280
DCR/
SEC (Ω)
V1/V2/V3
0.085
0.042
0.025
0.038/
0.027/na
Packaging
• Packaging Information: 4 and 7 Watts - 200 parts per 13" reel,
13 Watts - 140 parts per 13" diameter reel
Output
(3)x3.3V@0.45A
(3)x5.0V@0.30A
(2)x12.0V@0.20A
(3)x3.3V@0.75A
(3)x5.0V@0.50A
(2)x12.0V@0.30A
(3)x3.3V@1.35A
(3)x5.0V@0.90A
(2)x12.0V@0.60A
Part Number
PoE4W3x3.3-R
PoE4W3x5.0-R
PoE4W2x12-R
PoE7W3x3.3-R
PoE7W3x5.0-R
PoE7W2x12-R
PoE13W3x3.3-R
PoE13W3x5.0-R
PoE13W2x12-R
Leakage
Pri
Turn Ratio
Inductance Current Schematic 1: Pins pri(1-3):fb(5-6):v1(12-7):v2(11-8):v3(10-9)
(µH) typ. Pk (Adc)
Schematic 2: Pins pri(1-3):fb(5-6):v1(12-10):v2(11-9)
2.75
0.65
1 : 0.52 : 0.16 : 0.16 : 0.16 ±1%
2.50
0.65
1 : 0.52 : 0.26 : 0.26 : 0.26 ±1%
1.40
0.65
1 : 0.52 : 0.60 : 0.60 ±1%
1.00
1.00
1.00
1.50
1.20
1.00
1.00
1.00
1.00
1.60
1.60
1.70
1 : 0.529 : 0.176 : 0.176 : 0.176 ±1%
1 : 0.529 : 0.265 : 0.265 : 0.265 ±1%
1 : 0.529 : 0.588 : 0.588 ±1%
1 : 0.529 : 0.176 : 0.176 : 0.176 ±3%
1 : 0.529 : 0.265 : 0.265 : 0.265 ±3%
1 : 0.529 : 0.647 : 0.647 ±3%
Sche-
matic
1
1
2
1
1
2
1
1
2
Dimen-
sions
Size 1
Size 1
Size 1
Size 1
Size 1
Size 1
Size 2
Size 2
Size 2
Part Number
PoE13W3VERS-R
PoE13W2VERS-R
Induct-
ance
Watts (µH)
13
13
100
100
Output
V1:7.0V@1.1A,
V2:(1)x3.3V@1.1A,
V3:1.8V@1.1A
V1:5.0V@1.6A,
V2:3.3V@1.6A
Leakage
Pri
Turn Ratio
Inductance Current
Schematic 2: Pins pri(1-3):fb(5-6):v1(12-10):v2(11-9)
(µH) typ. Pk (Adc) Schematic 3: Pins pri(1-3):fb(5-6):v1(12-11):v2(10-9):v3(8-7)
1.00
1.20
1.70
1.70
1 : 0.529 : 0.350 : 0.176 : 0.088 ±3%
1 : 0.529 : 0.265 : 0.176 ±3%
Sche-
matic
3
2
Dimen-
sions
Size 2
Size 2
1) Test Parameters: 100kHz, 0.100 Vrms, 0.0Adc
2) DCR limits maximum @ 20°C
3) Leakage Inductance 200kHz, 0.01Vrms, 0.0Adc
4) Feedback DCR 1.0Ω maximum @20°C
0909
BU-SB09865
Page 1 of 3
Data Sheet 4316

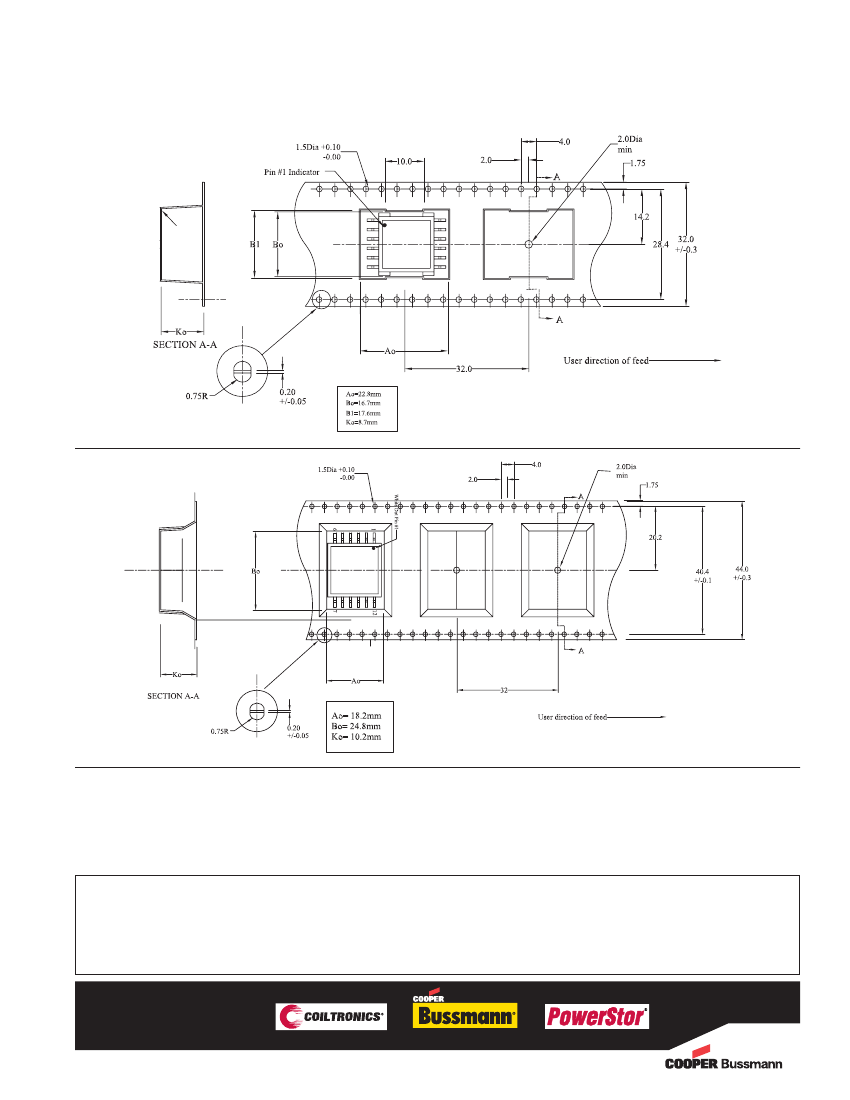

Packaging Information
PoE 4 and 7 Watt
PoE 13 Watt
