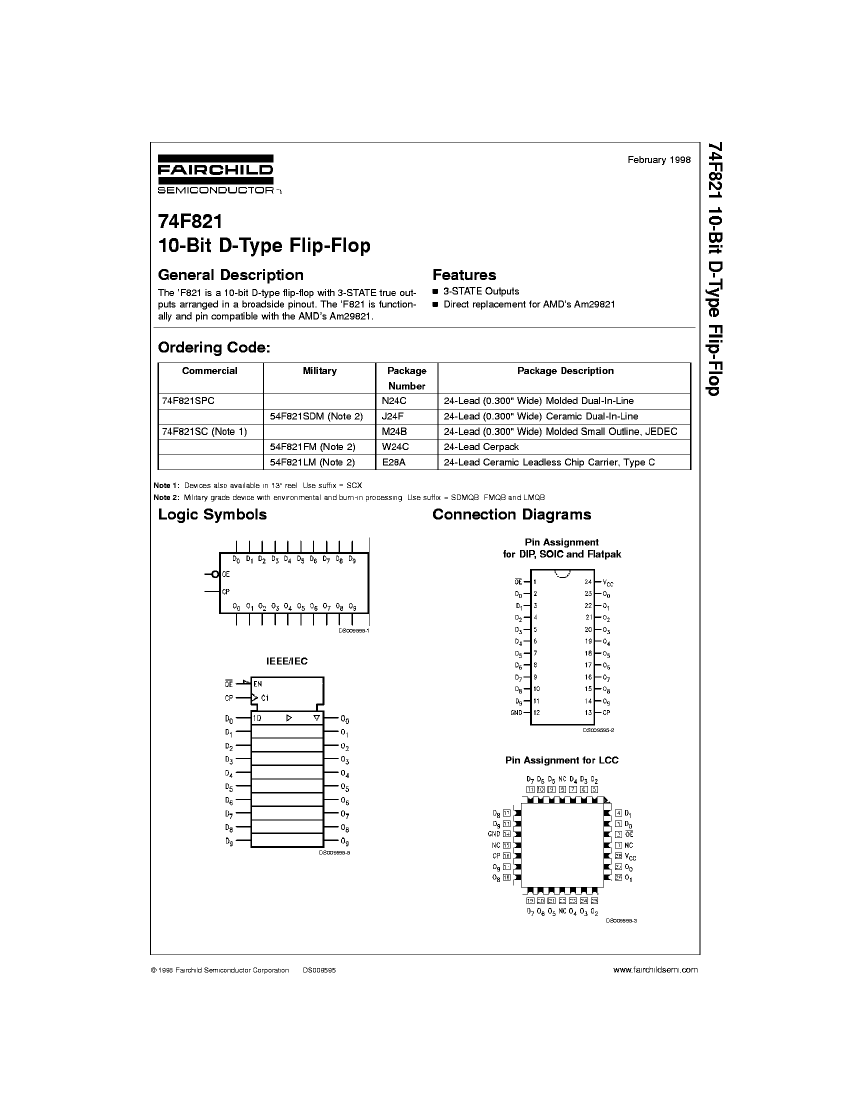

Bus Driver, F/FAST Series, 1-Func, 10-Bit, True Output, TTL, CDIP24, 0.300 INCH, SLIM, CERAMIC, DIP-24

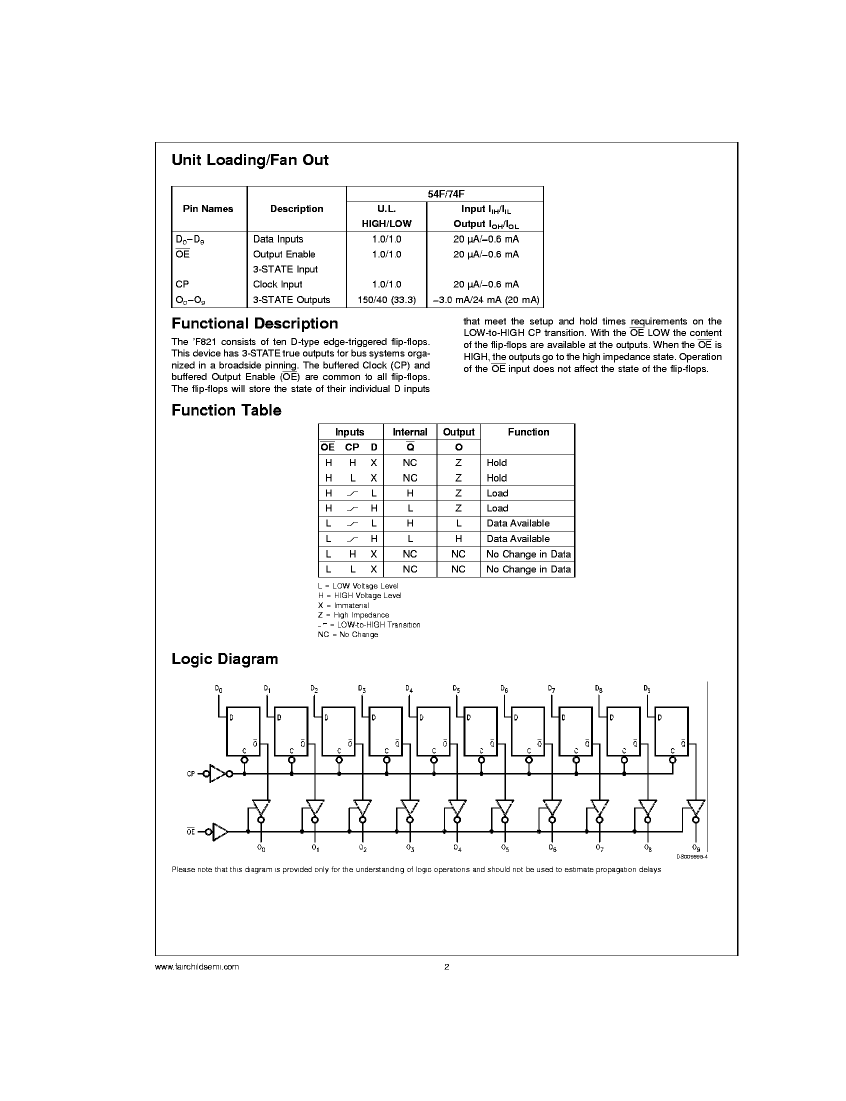

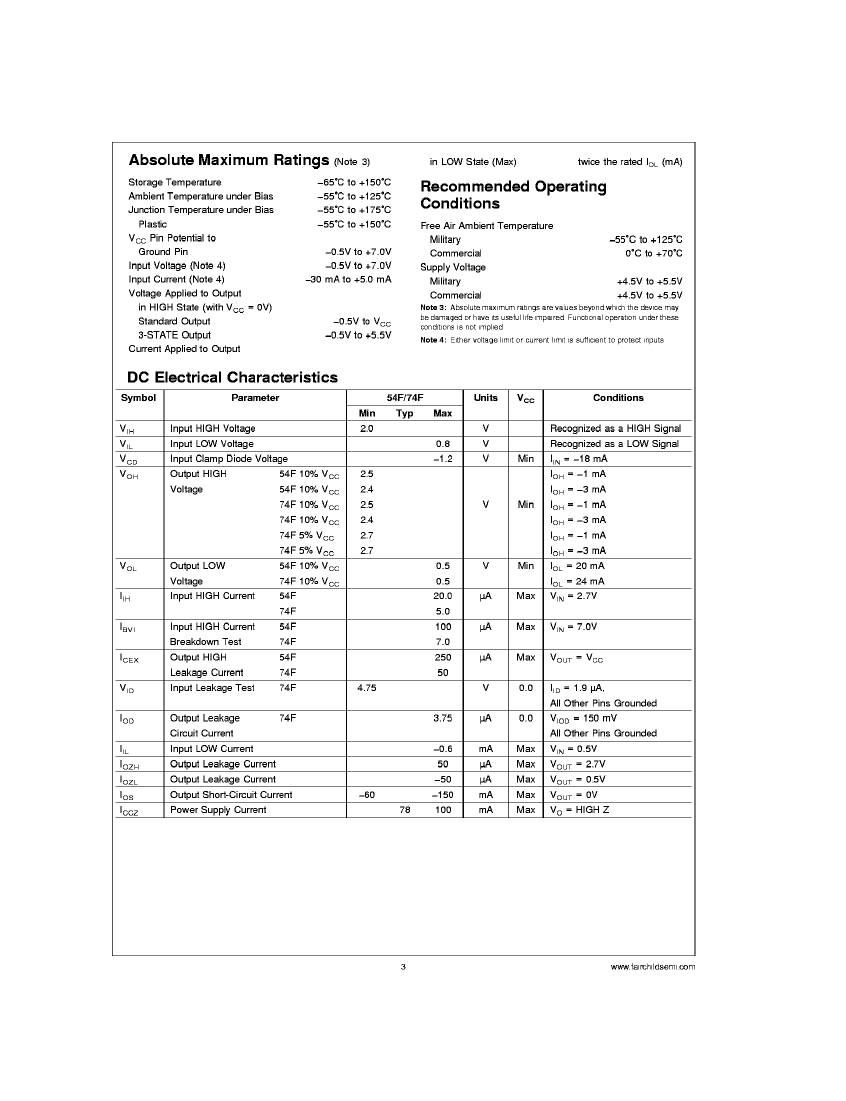

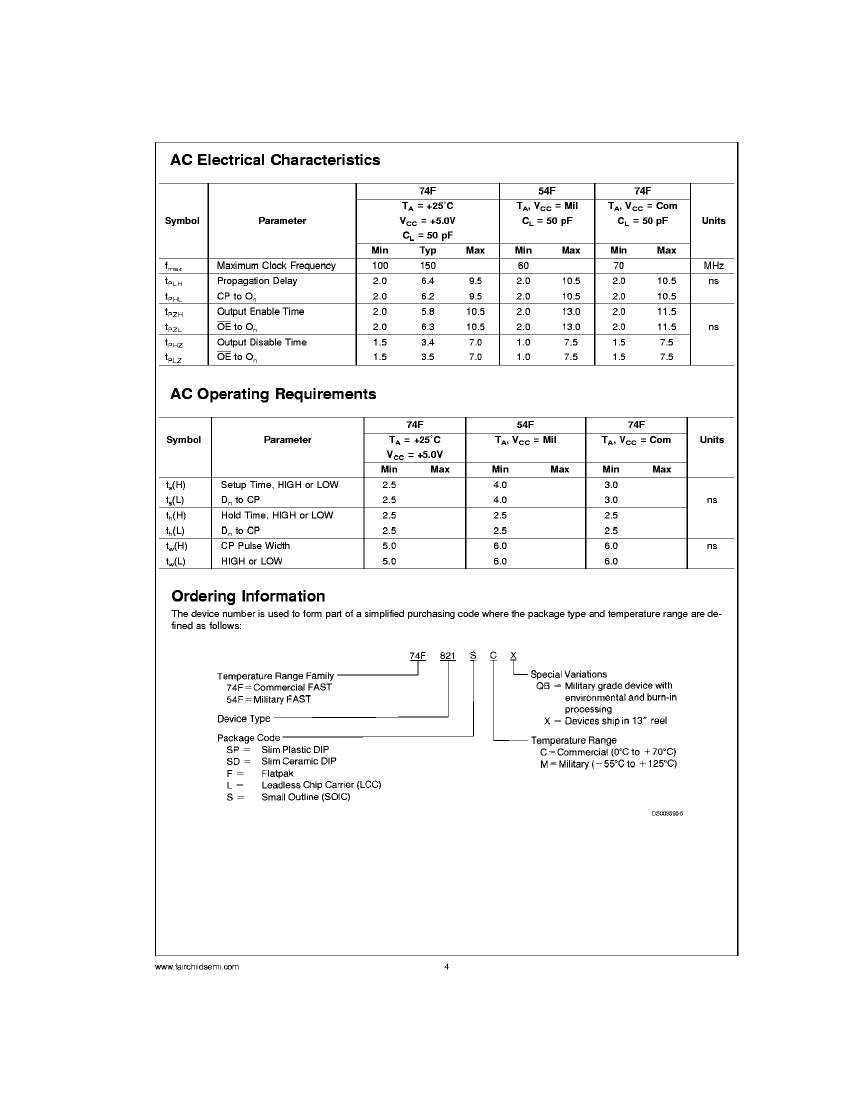

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Parts packaging code | DIP |
| package instruction | DIP, DIP24,.3 |
| Contacts | 24 |
| Reach Compliance Code | unknow |
| series | F/FAST |
| JESD-30 code | R-GDIP-T24 |
| JESD-609 code | e0 |
| Load capacitance (CL) | 50 pF |
| Logic integrated circuit type | BUS DRIVER |
| Maximum Frequency@Nom-Su | 60000000 Hz |
| MaximumI(ol) | 0.02 A |
| Number of digits | 10 |
| Number of functions | 1 |
| Number of ports | 2 |
| Number of terminals | 24 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output characteristics | 3-STATE |
| Output polarity | TRUE |
| Package body material | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP24,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | 5 V |
| Maximum supply current (ICC) | 100 mA |
| Prop。Delay @ Nom-Su | 10.5 ns |
| propagation delay (tpd) | 10.5 ns |
| Certification status | Not Qualified |
| Filter level | 38535Q/M;38534H;883B |
| Maximum seat height | 5.72 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | TTL |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Trigger type | POSITIVE EDGE |
| width | 7.62 mm |
| Base Number Matches | 1 |
| 54F821SDMQB | 54F821FMQB | 54F821LMQB | |
|---|---|---|---|
| Description | Bus Driver, F/FAST Series, 1-Func, 10-Bit, True Output, TTL, CDIP24, 0.300 INCH, SLIM, CERAMIC, DIP-24 | Bus Driver, F/FAST Series, 1-Func, 10-Bit, True Output, TTL, CDFP24, CERPACK-24 | Bus Driver, F/FAST Series, 1-Func, 10-Bit, True Output, TTL, CQCC28, CERAMIC, LCC-28 |
| Is it Rohs certified? | incompatible | incompatible | incompatible |
| Parts packaging code | DIP | DFP | QLCC |
| package instruction | DIP, DIP24,.3 | DFP, FL24,.4 | QCCN, LCC28,.45SQ |
| Contacts | 24 | 24 | 28 |
| Reach Compliance Code | unknow | unknown | unknown |
| series | F/FAST | F/FAST | F/FAST |
| JESD-30 code | R-GDIP-T24 | R-GDFP-F24 | S-CQCC-N28 |
| JESD-609 code | e0 | e0 | e0 |
| Load capacitance (CL) | 50 pF | 50 pF | 50 pF |
| Logic integrated circuit type | BUS DRIVER | BUS DRIVER | BUS DRIVER |
| MaximumI(ol) | 0.02 A | 0.02 A | 0.02 A |
| Number of digits | 10 | 10 | 10 |
| Number of functions | 1 | 1 | 1 |
| Number of ports | 2 | 2 | 2 |
| Number of terminals | 24 | 24 | 28 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE |
| Output polarity | TRUE | TRUE | TRUE |
| Package body material | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | DIP | DFP | QCCN |
| Encapsulate equivalent code | DIP24,.3 | FL24,.4 | LCC28,.45SQ |
| Package shape | RECTANGULAR | RECTANGULAR | SQUARE |
| Package form | IN-LINE | FLATPACK | CHIP CARRIER |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| power supply | 5 V | 5 V | 5 V |
| Maximum supply current (ICC) | 100 mA | 100 mA | 100 mA |
| propagation delay (tpd) | 10.5 ns | 10.5 ns | 10.5 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified |
| Filter level | 38535Q/M;38534H;883B | 38535Q/M;38534H;883B | 38535Q/M;38534H;883B |
| Maximum seat height | 5.72 mm | 2.286 mm | 1.905 mm |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V |
| surface mount | NO | YES | YES |
| technology | TTL | TTL | TTL |
| Temperature level | MILITARY | MILITARY | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | FLAT | NO LEAD |
| Terminal pitch | 2.54 mm | 1.27 mm | 1.27 mm |
| Terminal location | DUAL | DUAL | QUAD |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Trigger type | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE |
| Base Number Matches | 1 | 1 | 1 |
| width | 7.62 mm | - | 11.43 mm |
| length | - | 15.4305 mm | 11.43 mm |
| Maximum Frequency@Nom-Sup | - | 60000000 Hz | 60000000 Hz |
| Prop。Delay @ Nom-Sup | - | 10.5 ns | 10.5 ns |
