74HL33648DB-T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 74HL33648DB-T

74HL33648DB-T: DescriptionIC HL SERIES, 8-BIT REGISTERED TRANSCEIVER, INVERTED OUTPUT, PDSO28, Bus Driver/Transceiver; Categorylogic logic; File Size210KB，8 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

74HL33648DB-T Overview

IC HL SERIES, 8-BIT REGISTERED TRANSCEIVER, INVERTED OUTPUT, PDSO28, Bus Driver/Transceiver

74HL33648DB-T Parametric

Parameter Name	Attribute value
Maker	NXP
package instruction	SSOP,
Reach Compliance Code	unknown
Other features	WITH SELECT INPUT FOR MULTIPLEXED TRANSMISSION OF REGISTERED/REAL TIME DATA
series	HL
JESD-30 code	R-PDSO-G28
length	10.2 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	28
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
propagation delay (tpd)	6.7 ns
Certification status	Not Qualified
Maximum seat height	2 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	1.2 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
width	5.3 mm
Base Number Matches	1

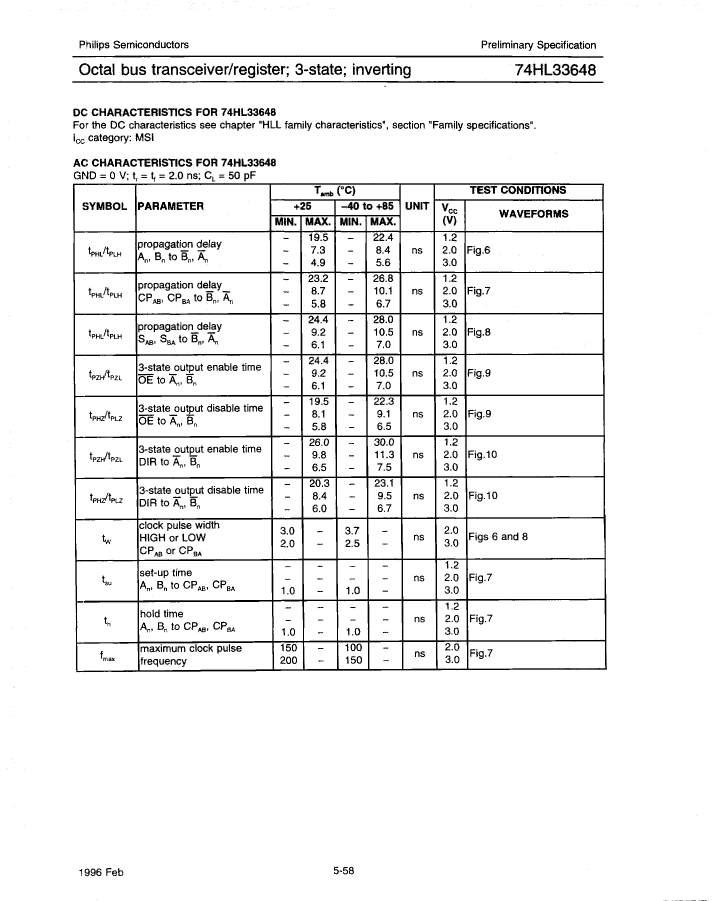

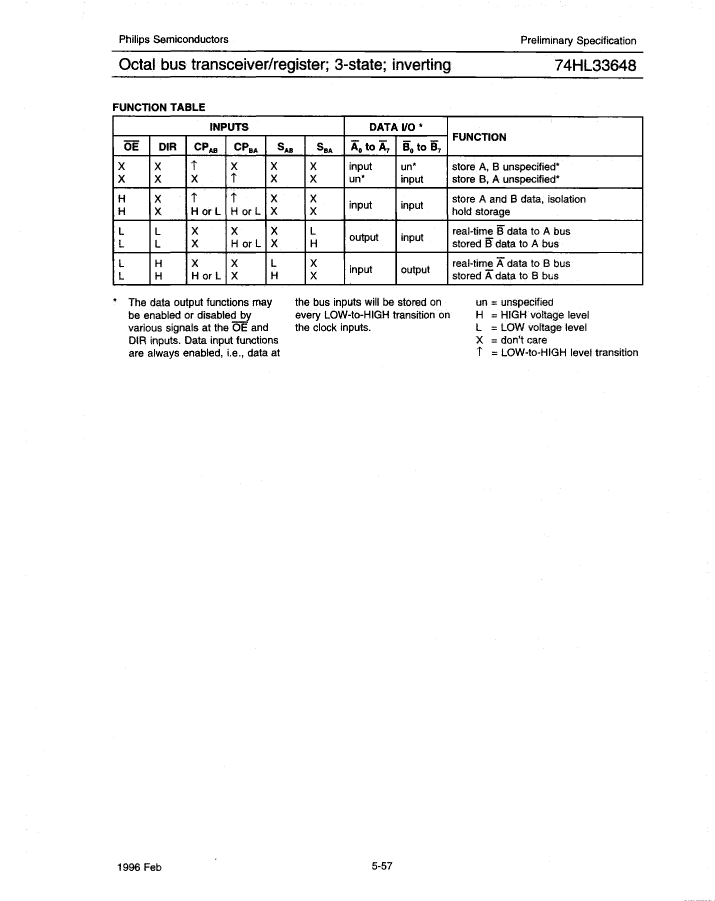

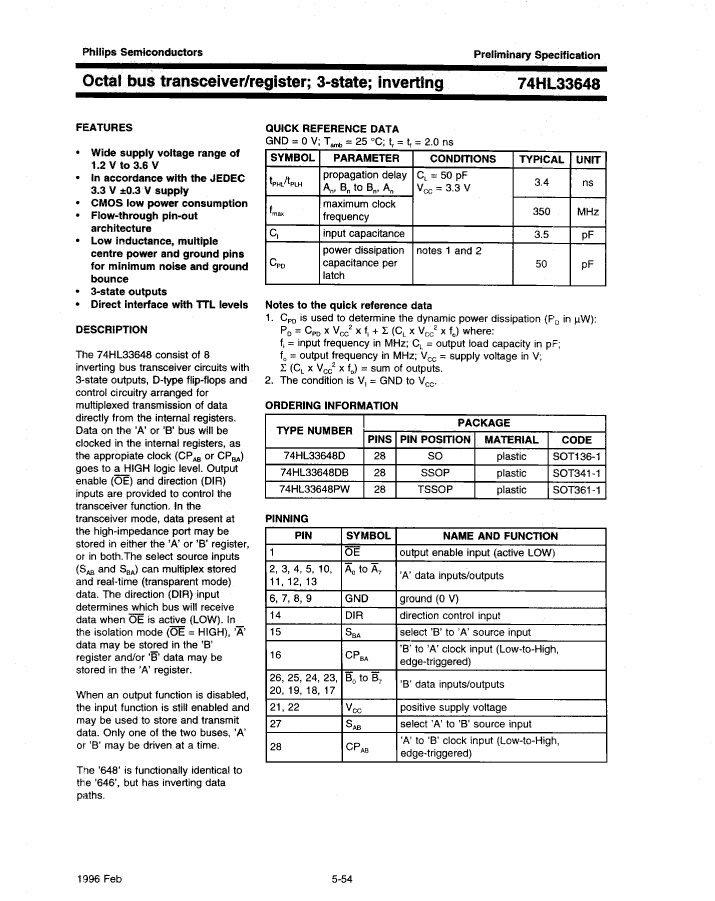

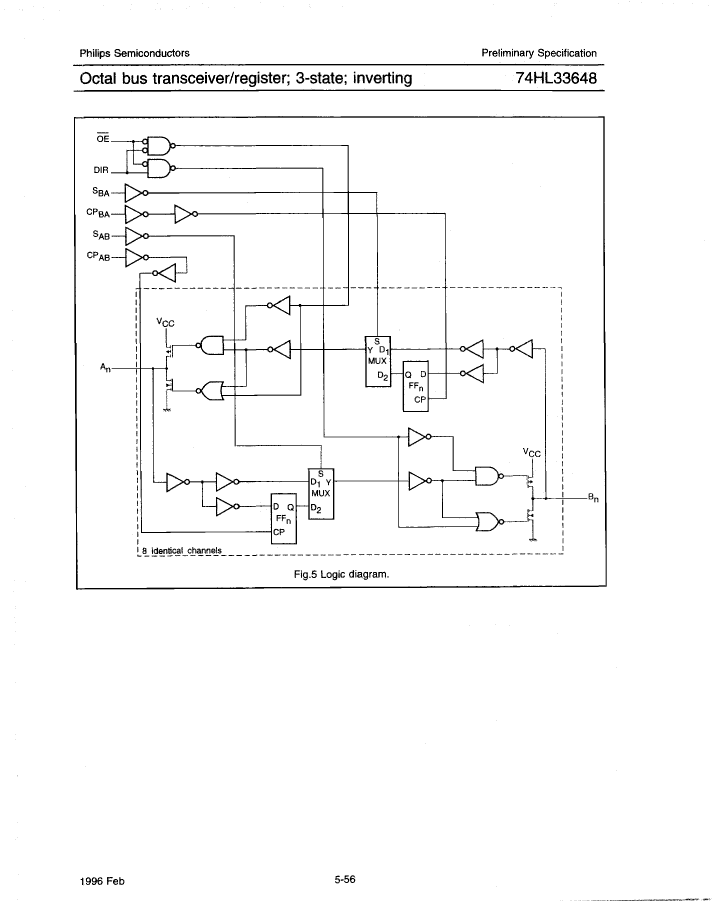

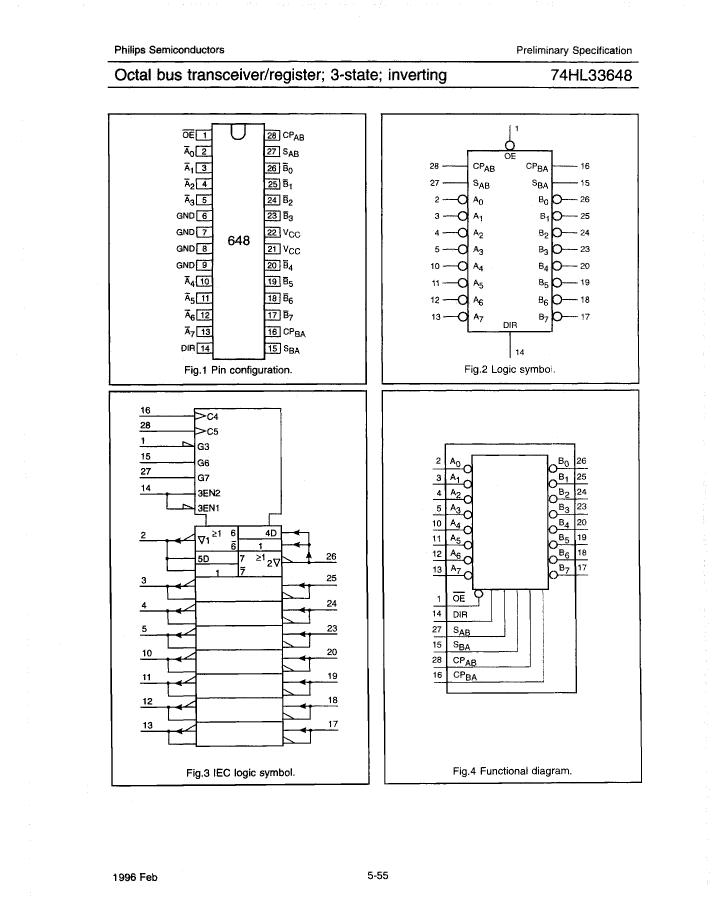

Preview

Download Datasheet

View All

74HL33648DB-T Related Products

	74HL33648DB-T	74HL33648D-T	74HL33648PW-T
Description	IC HL SERIES, 8-BIT REGISTERED TRANSCEIVER, INVERTED OUTPUT, PDSO28, Bus Driver/Transceiver	IC HL SERIES, 8-BIT REGISTERED TRANSCEIVER, INVERTED OUTPUT, PDSO28, Bus Driver/Transceiver	IC HL SERIES, 8-BIT REGISTERED TRANSCEIVER, INVERTED OUTPUT, PDSO28, Bus Driver/Transceiver
Maker	NXP	NXP	NXP
package instruction	SSOP,	SOP,	TSSOP,
Reach Compliance Code	unknown	unknown	unknown
Other features	WITH SELECT INPUT FOR MULTIPLEXED TRANSMISSION OF REGISTERED/REAL TIME DATA	WITH SELECT INPUT FOR MULTIPLEXED TRANSMISSION OF REGISTERED/REAL TIME DATA	WITH SELECT INPUT FOR MULTIPLEXED TRANSMISSION OF REGISTERED/REAL TIME DATA
series	HL	HL	HL
JESD-30 code	R-PDSO-G28	R-PDSO-G28	R-PDSO-G28
length	10.2 mm	17.9 mm	9.7 mm
Load capacitance (CL)	50 pF	50 pF	50 pF
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER
Number of digits	8	8	8
Number of functions	1	1	1
Number of ports	2	2	2
Number of terminals	28	28	28
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE
Output polarity	INVERTED	INVERTED	INVERTED
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	SOP	TSSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
propagation delay (tpd)	6.7 ns	6.7 ns	6.7 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2 mm	2.65 mm	1.1 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	1.2 V	1.2 V	1.2 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	0.65 mm	1.27 mm	0.65 mm
Terminal location	DUAL	DUAL	DUAL
width	5.3 mm	7.5 mm	4.4 mm
Base Number Matches	1	1	1
