54AC258LM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54AC258LM

54AC258LM: DescriptionMultiplexer, AC Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, CMOS, CQCC20, CERAMIC, LCC-20; Categorylogic logic; File Size418KB，10 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

54AC258LM Overview

Multiplexer, AC Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, CMOS, CQCC20, CERAMIC, LCC-20

54AC258LM Parametric

Parameter Name	Attribute value
package instruction	QCCN,
Reach Compliance Code	unknow
series	AC
JESD-30 code	S-CQCC-N20
length	8.89 mm
Logic integrated circuit type	MULTIPLEXER
Number of functions	4
Number of entries	2
Output times	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
propagation delay (tpd)	14 ns
Maximum seat height	2.54 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
width	8.89 mm
Base Number Matches	1

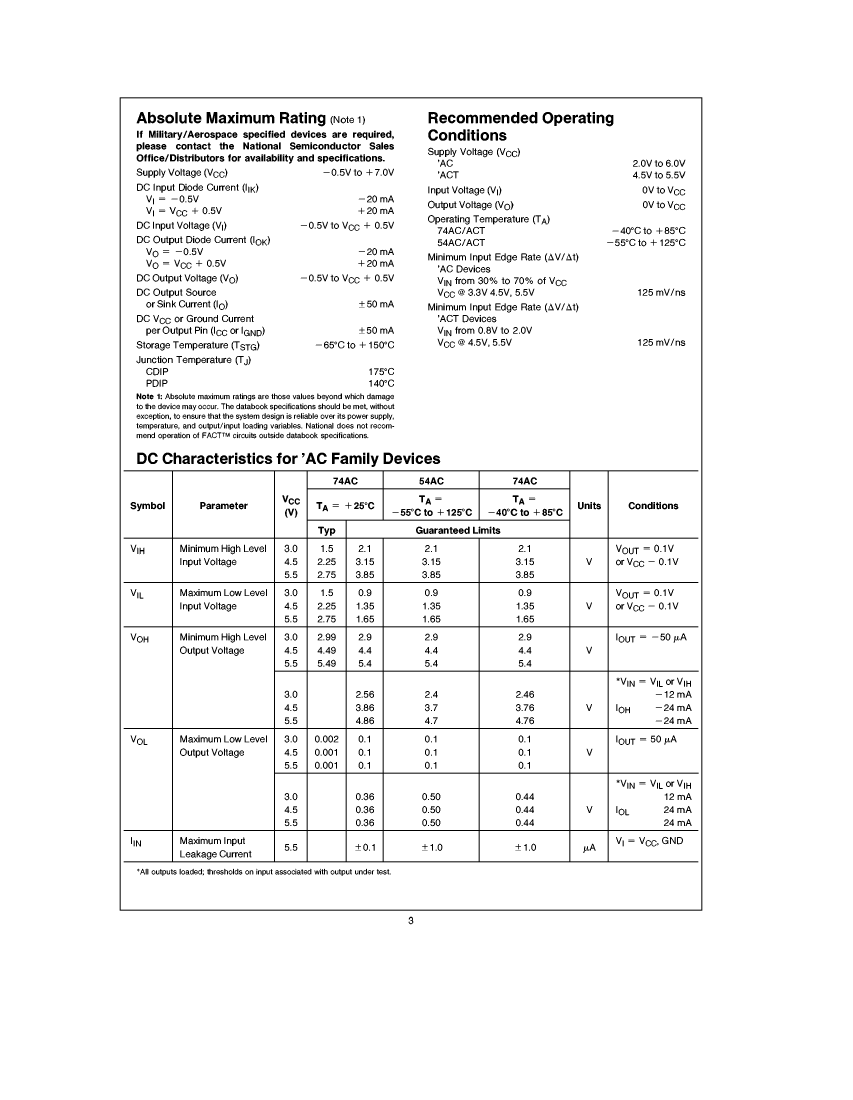

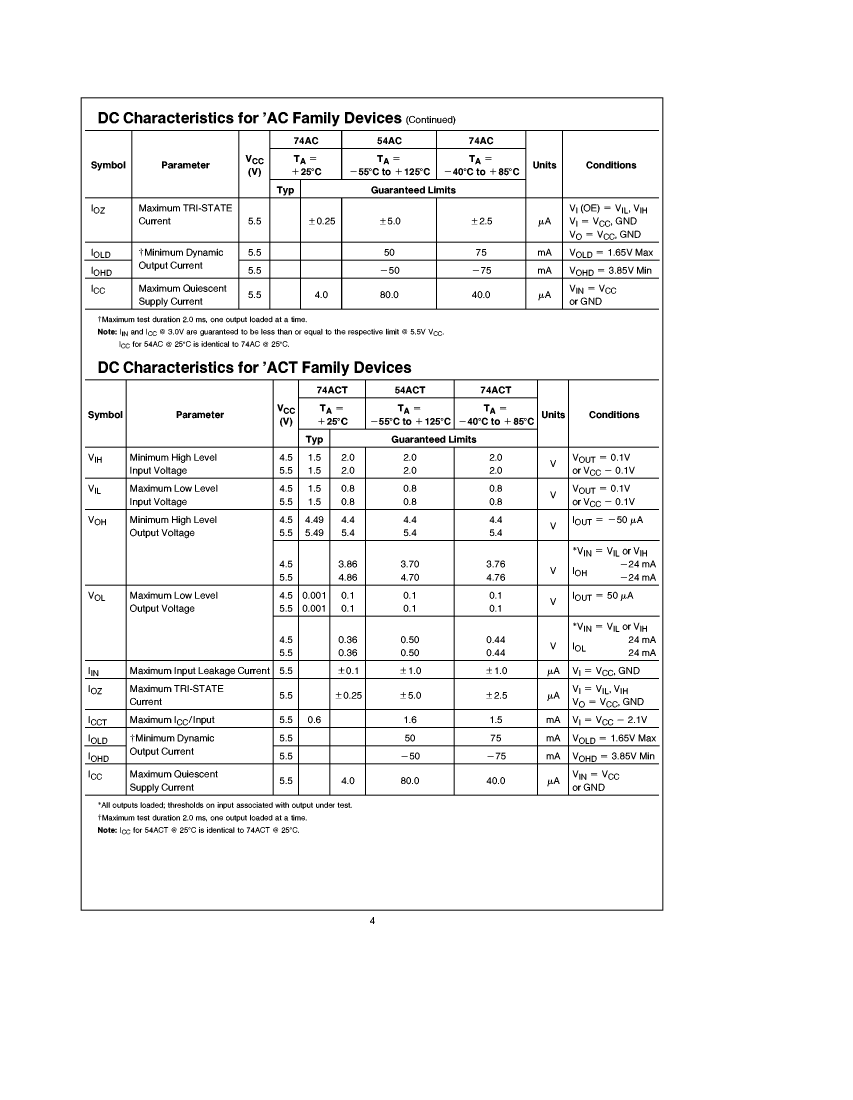

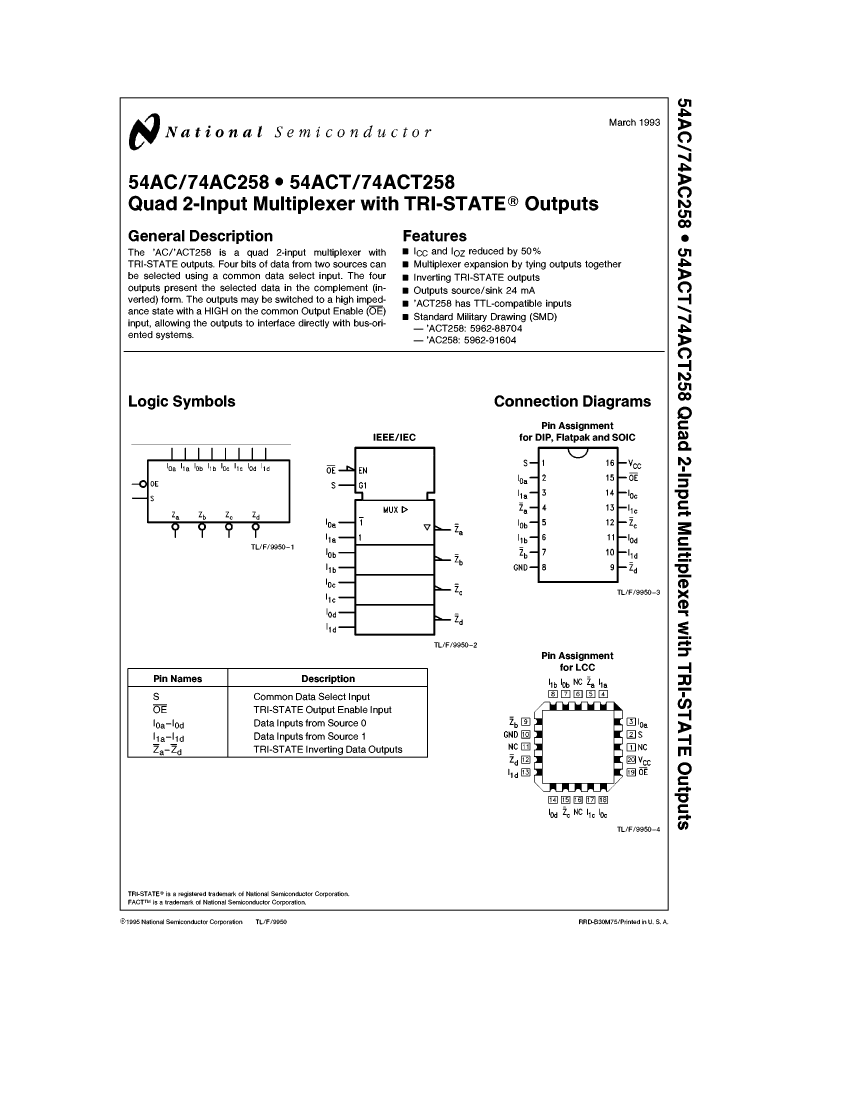

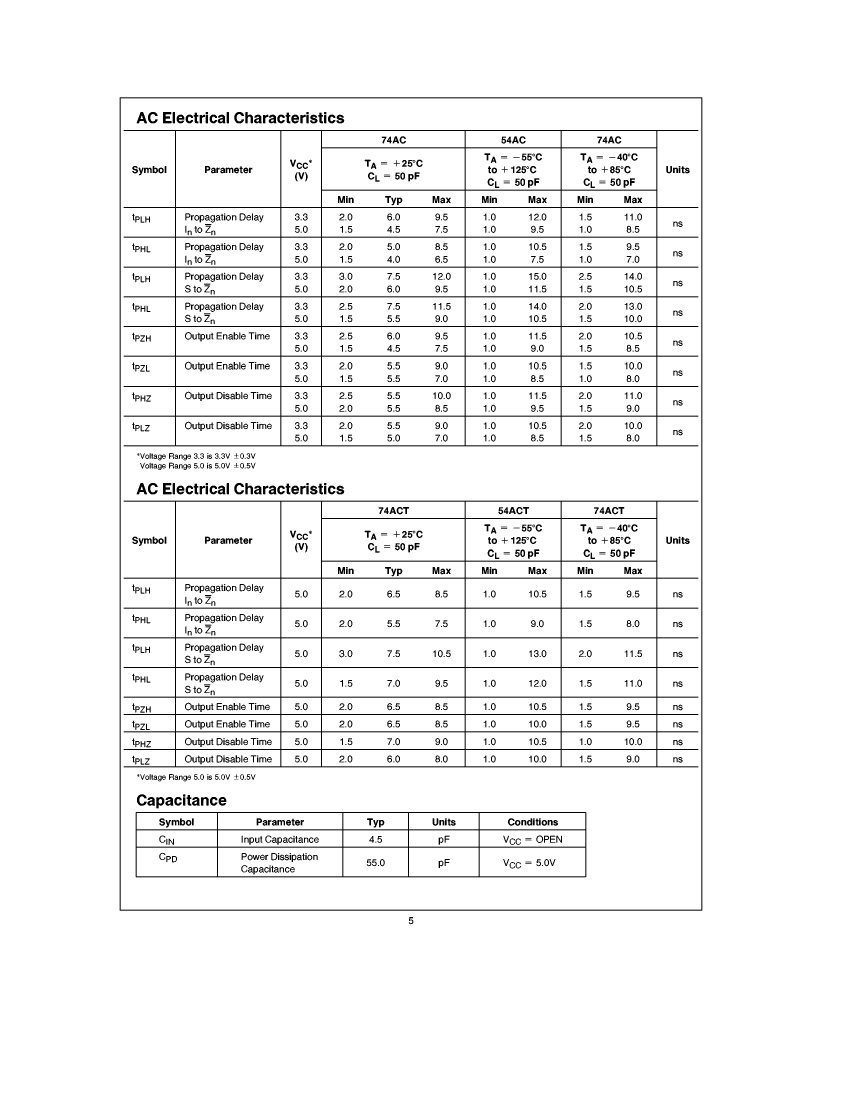

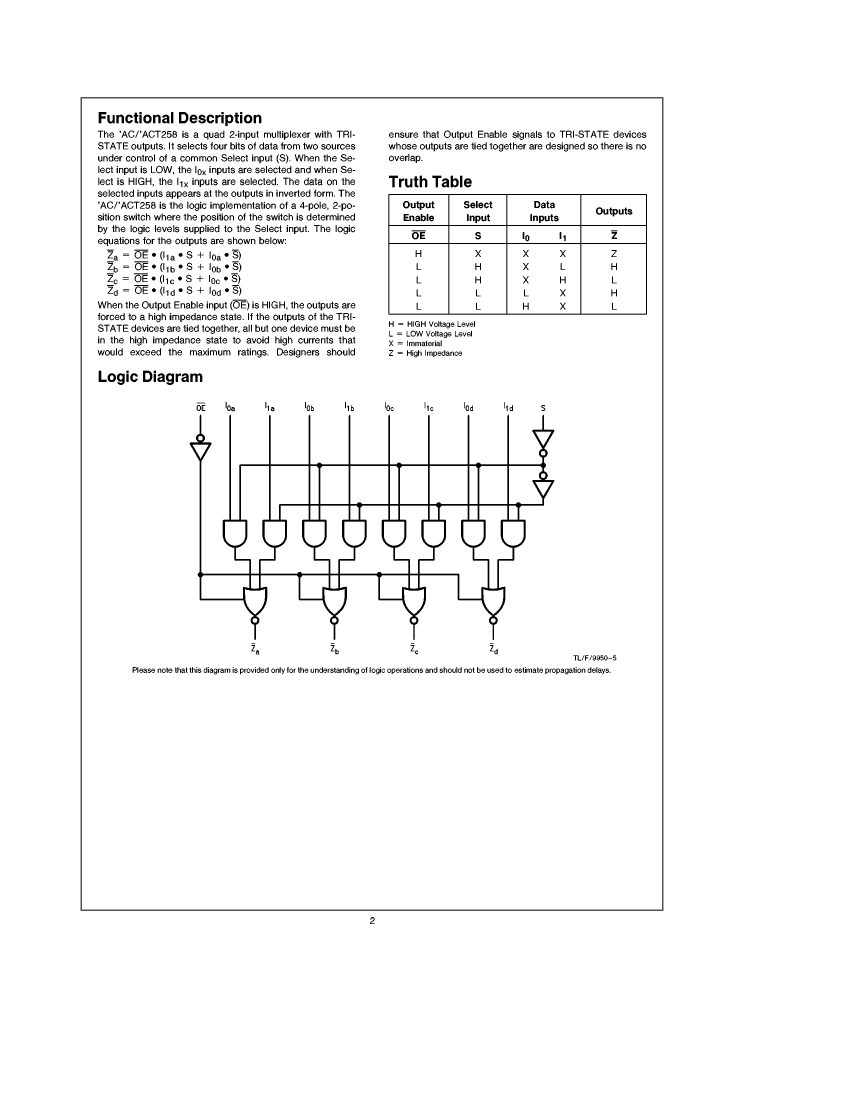

Preview

Download Datasheet

View All

54AC258LM Related Products

	54AC258LM	74ACT258PCQR	74AC258PCQR	74AC258SC	74AC258SCQR
Description	Multiplexer, AC Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, CMOS, CQCC20, CERAMIC, LCC-20	Multiplexer, ACT Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, CMOS, PDIP16, PLASTIC, DIP-16	Multiplexer, AC Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, CMOS, PDIP16, PLASTIC, DIP-16	Multiplexer, AC Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, CMOS, PDSO16, SOIC-16	Multiplexer, AC Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, CMOS, PDSO16, SOIC-16
package instruction	QCCN,	DIP,	DIP,	SOP,	SOP,
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown
series	AC	-	AC	AC	AC
JESD-30 code	S-CQCC-N20	-	R-PDIP-T16	R-PDSO-G16	R-PDSO-G16
length	8.89 mm	-	19.05 mm	9.9 mm	9.9 mm
Logic integrated circuit type	MULTIPLEXER	-	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER
Number of functions	4	-	4	4	4
Number of entries	2	-	2	2	2
Output times	1	-	1	1	1
Number of terminals	20	-	16	16	16
Maximum operating temperature	125 °C	-	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE	-	3-STATE	3-STATE	3-STATE
Output polarity	INVERTED	-	INVERTED	INVERTED	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCN	-	DIP	SOP	SOP
Package shape	SQUARE	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	-	IN-LINE	SMALL OUTLINE	SMALL OUTLINE
propagation delay (tpd)	14 ns	-	13 ns	13 ns	13 ns
Maximum seat height	2.54 mm	-	5.08 mm	1.75 mm	1.75 mm
Maximum supply voltage (Vsup)	6 V	-	6 V	6 V	6 V
Minimum supply voltage (Vsup)	2 V	-	2 V	2 V	2 V
surface mount	YES	-	NO	YES	YES
technology	CMOS	-	CMOS	CMOS	CMOS
Temperature level	MILITARY	-	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	NO LEAD	-	THROUGH-HOLE	GULL WING	GULL WING
Terminal pitch	1.27 mm	-	2.54 mm	1.27 mm	1.27 mm
Terminal location	QUAD	-	DUAL	DUAL	DUAL
width	8.89 mm	-	7.62 mm	3.9 mm	3.9 mm
Base Number Matches	1	1	1	1	-
Maker	-	Rochester Electronics	Rochester Electronics	-	Rochester Electronics
