Printview: Female connector with gripping plate; Cable bundle function and unlocking aid; 3-pole; Pin
spacing 3.5 mm / 0.138 in - Item No.: 2091-1103/002-1000
.
Female connector with gripping plate; Cable bundle function and
unlocking aid; 3-pole; Pin spacing 3.5 mm / 0.138 in
Item No.: 2091-1103/002-1000
.
Female connector with gripping plate; Cable bundle function and unlocking aid; 3-pole; Pin spacing 3.5 mm / 0.138 in
.
Marking
.
Business data
Supplier
Item no.
GTIN / EAN
Content
Order amount
Customer item number
.
Notes
WAGO
2091-1103/002-1000
4050821487173
1
100
Item description:Universal connection of all conductor types Simple, push-in termination of solid and ferruled
conductorsEasy-to-use design does not require special toolsAbility to wire while mated or unmatedTesting parallel to
conductor entry – tip contactAlso available with gripping plates Integrated locking latches prevent accidental
disconnection
Technical data
Miscellaneous
No. of poles
Pin spacing
Total number of connection points
Total number of potentials
Color
Ratings according to 1
3
3.5 mm (0.138 in %)
3
3
light gray
IEC/EN 60664-1
WAGO Kontakttechnik GmbH & Co. KG
1
Printview: Female connector with gripping plate; Cable bundle function and unlocking aid; 3-pole; Pin
spacing 3.5 mm / 0.138 in - Item No.: 2091-1103/002-1000
Technical data
Rated voltage (III / 3) [V]
Rated surge voltage (III / 3) [kV]
Rated voltage (III / 2) [V]
Rated surge voltage (III / 2) [kV]
Rated voltage (II / 2) [V]
Rated surge voltage (II / 2) [kV]
Nominal current [A]
Number of individual connection objects at the product
Number of levels
Connection technology
Number of connection points
Actuation type
Solid sizes
Fine-stranded wires
Fine-stranded wires with insulated ferrule
Fine-stranded wires with uninsulated ferrule
Strip length
Material group
Insulating material
Flammability rating per UL 94
Limit temperature range
Clamping spring material
Contact material
Contact plating
Fire load [MJ]
Weight [g]
Width
Height
Length
160 [V]
2.5 [kV]
160 [V]
2.5 [kV]
320 [V]
2.5 [kV]
10 [A]
1
1
Push-in CAGE CLAMP®
1
Betätigungsdrücker
0.2 … 1.5 mm² / 24 … 14 AWG
0.2 … 1.5 mm² / 24 … 14 AWG
0.25 … 0.75 mm² / …
0.25 … 1.5 mm² / …
8 … 9 mm / 0.31 … 0.35 in
I
Polyphthalamide (PPA GF)
V0
-60 … 100 C
Chrome-nickel spring steel (CrNi)
Electrolytic copper (Ecu)
tin-plated
0.039 [MJ]
1.568 [g]
10.5 mm / 0.413 in
31 mm / 1.22 in
12.4 mm / 0.488 in
WAGO Kontakttechnik GmbH & Co. KG
2
Printview: Female connector with gripping plate; Cable bundle function and unlocking aid; 3-pole; Pin
spacing 3.5 mm / 0.138 in - Item No.: 2091-1103/002-1000

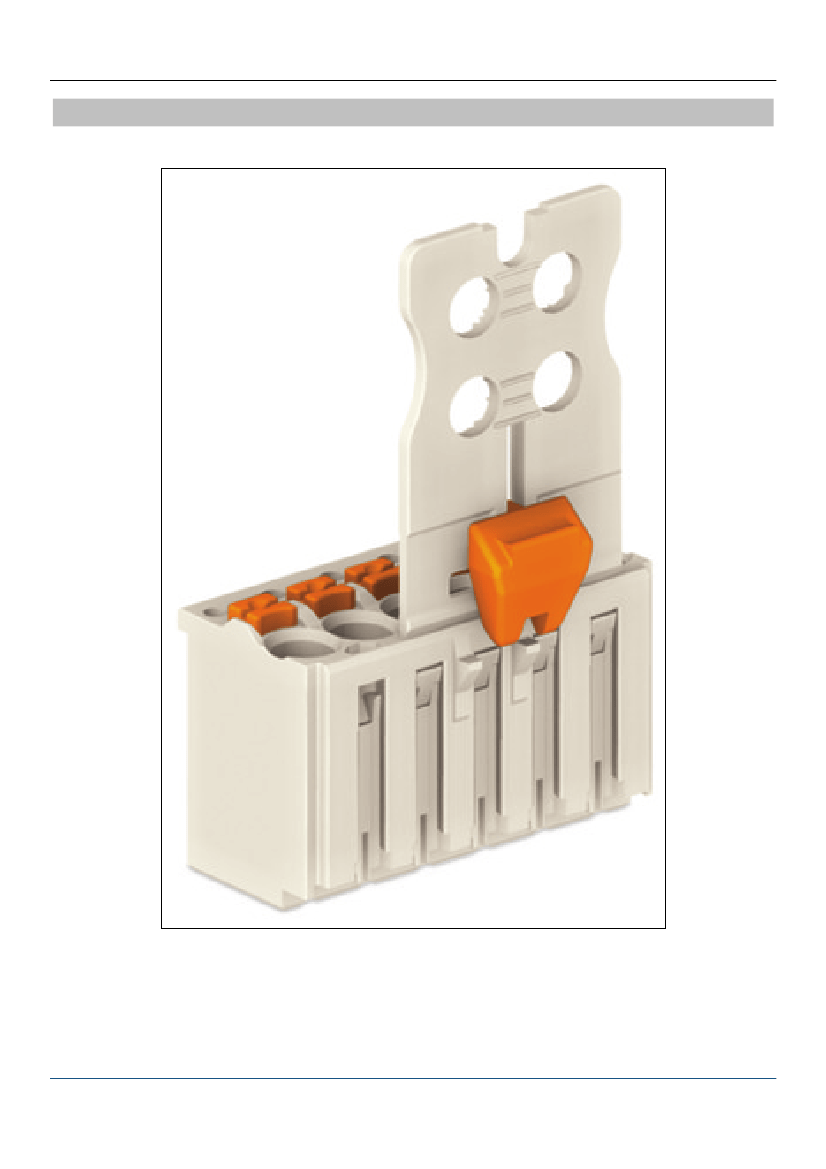

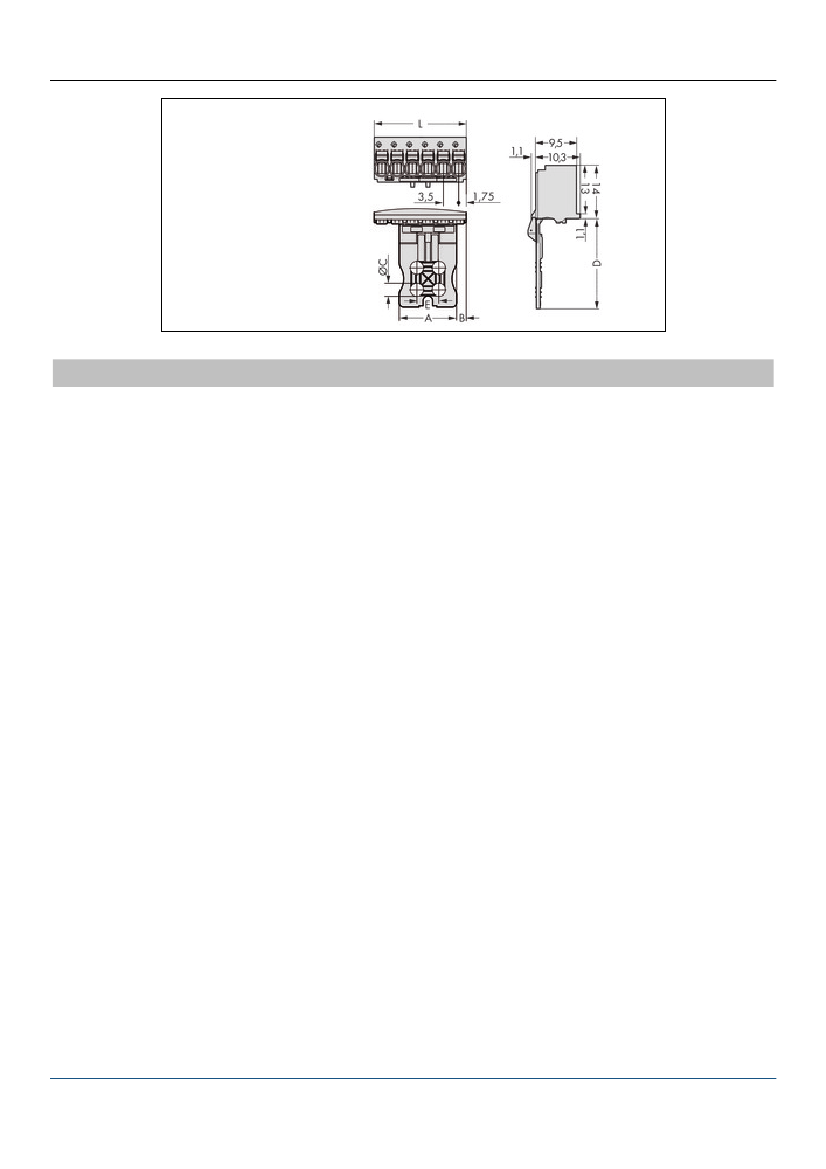

Images & drawings
WAGO Kontakttechnik GmbH & Co. KG
3
Printview: Female connector with gripping plate; Cable bundle function and unlocking aid; 3-pole; Pin
spacing 3.5 mm / 0.138 in - Item No.: 2091-1103/002-1000
.
Address
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Telefon: 0571/887-0
Fax: 0571/887-169
http://www.wago.com
© WAGO Kontakttechnik GmbH & Co. KG
Technische Änderungen und Irrtümer vorbehalten.
WAGO Kontakttechnik GmbH & Co. KG
4
