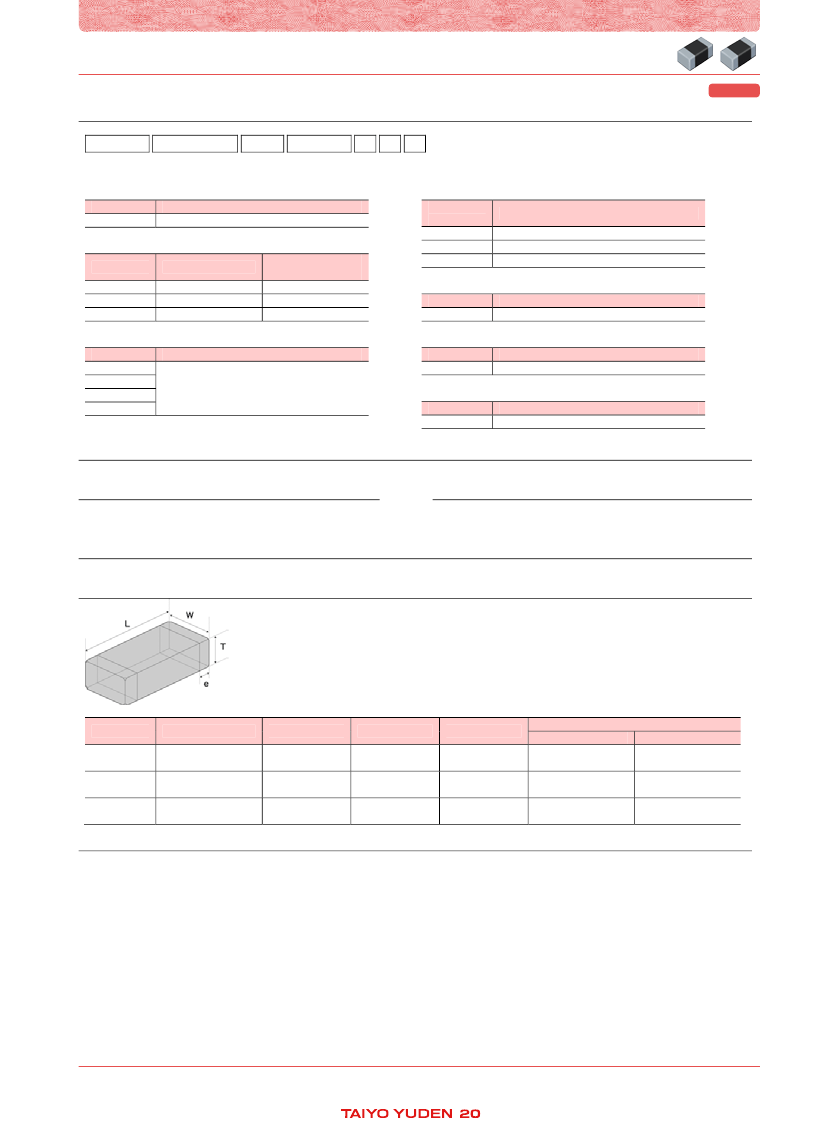

MULTILAYER CHIP BEAD INDUCTORS FOR POWER LINES(BK SERIES P TYPE)
MULTILAYER CHIP BEAD INDUCTORS FOR POWER LINES (BK SERIES P TYPE)
■PARTS
NUMBER
REFLOW
B
K P
①
1
6
②
0
8
H
③
S
1
8 1
④
－ T V
⑤ ⑥ ⑦
△＝Blank space
①Series name
Code
BKP
Series name
Multilayer chip bead inductor for power line
②Dimensions（L×W）
Code
1005
1608
2125
③Material
Code
HS
HM
TS
TM
Type（inch）
1005（0402）
1608（0603）
2125（0805）
Dimensions
（L×W）［mm½
1.0×0.5
1.6×0.8
2.0×1.25
④Nominal impedance
Code
（example）
330
101
391
⑤Characteristics
Code
－
⑥Packaging
Code
T
⑦Internal code
Code
V
Nominal impedance［Ω½
33
100
390
Characteristics
Standard
Material

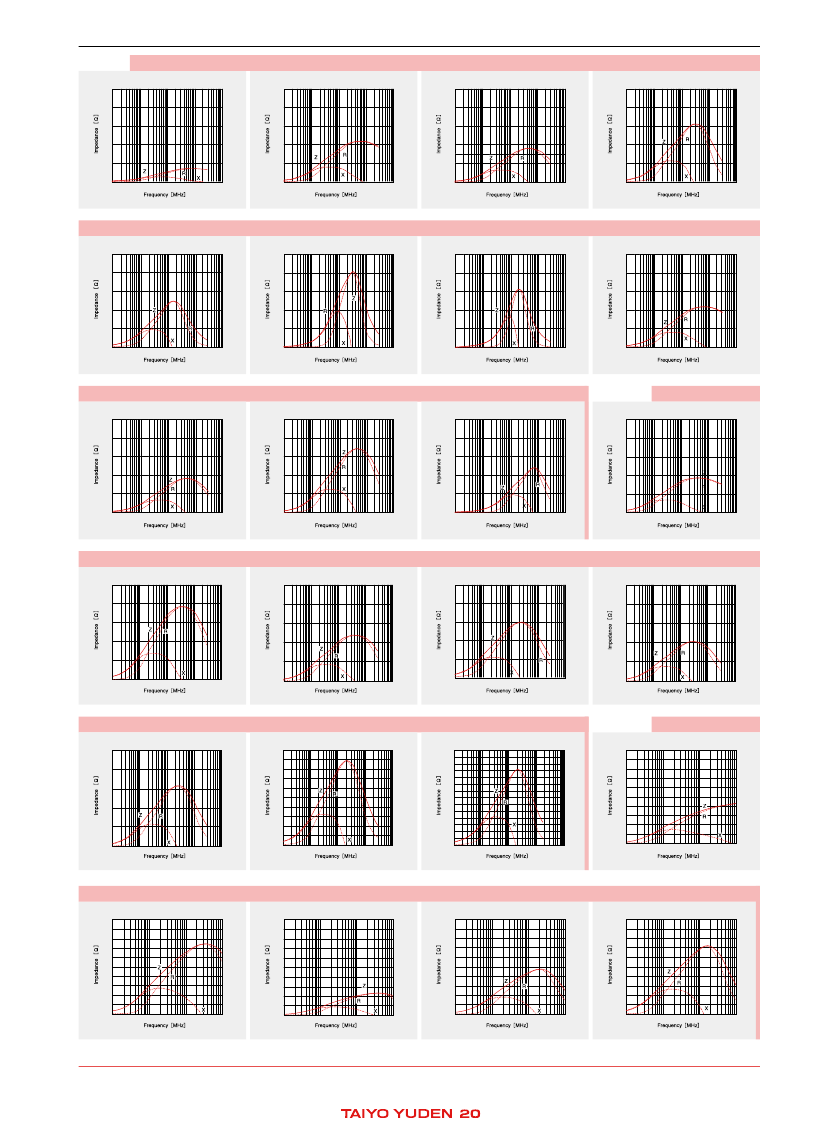

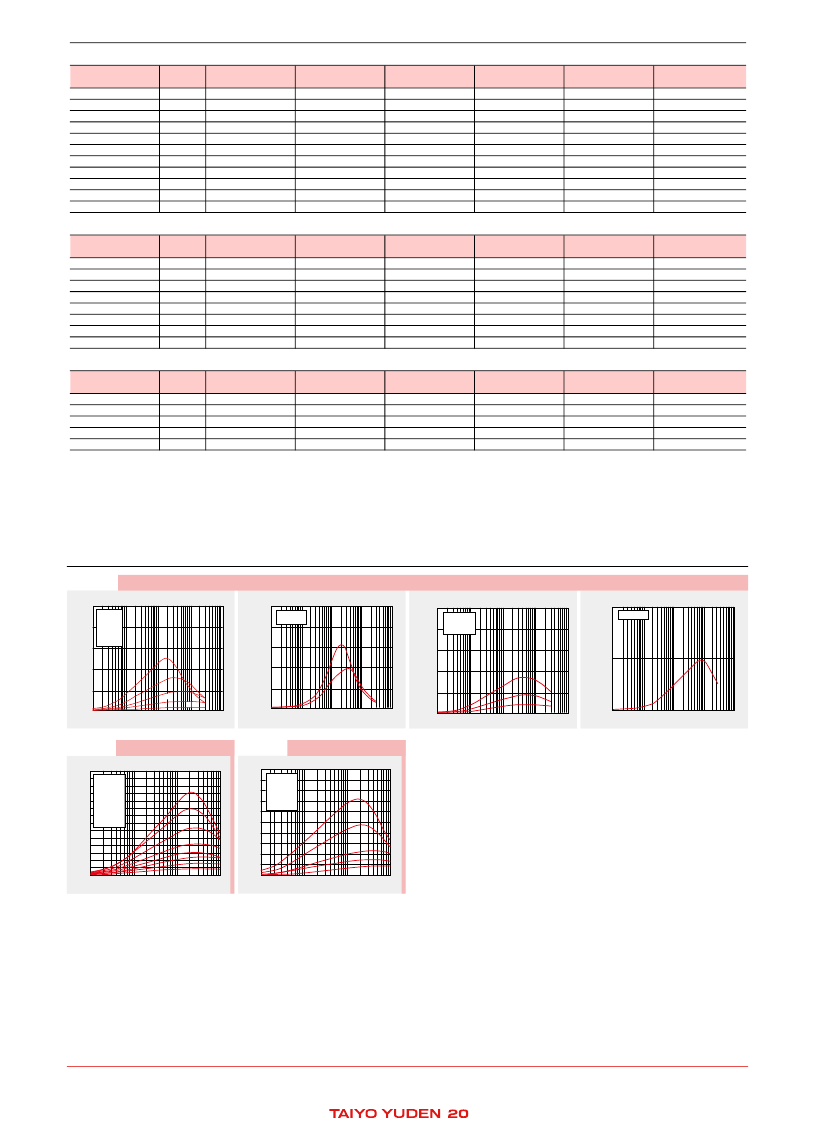

Refer to impedance curves
for material differences
Packaging
Taping
Internal code
Industrial、Automotive Comfort、and Safety
■FEATURES
●HS：For
broadband noise suppression
●HM：For
upper 20MHz noise suppression
●TS：Low
DC resistance HS version.
●TM：Low
DC resistance HM version.
■OPERATING
TEMP.
●-55½125℃（Including
self-generated heat）
■STANDARD
EXTERNAL DIMENSIONS / STANDARD QUANTITY
Type
BKP1005
（0402）
BKP1608
（0603）
BKP2125
（0805）
L
1.0±0.05
（0.039±0.002）
1.6±0.15
（0.063±0.006）
2.0＋0.3/－0.1
（0.079＋0.012/－0.004）
W
0.5±0.05
（0.020±0.002）
0.8±0.15
（0.031±0.006）
1.25±0.2
（0.049±0.008）
T
0.5±0.05
（0.020±0.002）
0.8±0.15
（0.031±0.006）
0.85±0.2
（0.033±0.008）
e
0.25±0.1
（0.010±0.004）
0.3±0.2
（0.012±0.008）
0.5±0.3
（0.020±0.012）
Standard quantity [pcs]
Paper tape
Embossed tape
10000
4000
4000
－
－
－
Unit：mm（inch）
hq_i_mlci_BKP_e-E02R01
▶
This catalog contains the typical specification only due to the limitation of space. When you consider the purchase of our products, please check our specification.
For details of each product (characteristics graph, reliability information, precautions for use, and so on), see our Web site (http://www.ty-top.com/) .
