DS1085Z-25+ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> DS1085Z-25+

DS1085Z-25+: Descriptionprogrammable oscillators econoscillator f synthesizer; CategoryThe embedded processor and controller Microcontrollers and processors; File Size348KB，21 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html; Environmental Compliance

Download Datasheet Parametric Compare View All

DS1085Z-25+ Overview

programmable oscillators econoscillator f synthesizer

DS1085Z-25+ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Maxim
Parts packaging code	SOIC
package instruction	SOP,
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	6 weeks
Samacsys Description	EconOscillator Frequency Synthesizer
JESD-30 code	R-PDSO-G8
JESD-609 code	e3
length	4.9 mm
Humidity sensitivity level	1
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum output clock frequency	133 MHz
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	3.9 mm
uPs/uCs/peripheral integrated circuit type	CLOCK GENERATOR, OTHER
Base Number Matches	1

Preview

Download Datasheet

View All

DS1085

EconOscillator Frequency Synthesizer

www.maxim-ic.com

FEATURES

User-Programmable Frequency Synthesizer

Programmable From 8.1kHz to 133MHz

Dual Synchronous Outputs

8.2MHz to 133MHz Reference Oscillator

Output

8.1kHz to 133MHz Main Oscillator Output

Three Resolution Options

2-Wire Serial Interface

0.75% Absolute Accuracy

Nonvolatile (NV) Frequency Settings

Single 5V Supply

No External Timing Components

Power-Down Mode

PIN ASSIGNMENT

OUT1

OUT0

GND

SCL

SDA

CTRL1

CTRL0

SO (150mil)

PIN DESCRIPTION

OUT1

- Main Oscillator Output

OUT0

- Reference Oscillator Output

- Power-Supply Voltage

GND

- Ground

CTRL1 - Control Pin for OUT1

CTRL0 - Control Pin for OUT0

SDA

- 2-Wire Serial Data Input/Output

SCL - 2-Wire Serial Clock

OSCILLATOR

OUTPUT RANGE

8.1kHz to 133MHz

ORDERING INFORMATION

DEVICE

DS1085Z-10

DS1085Z-25

DS1085Z-50

PACKAGE

150mil SO

STEP

SIZE

10kHz

25kHz

50kHz

DESCRIPTION

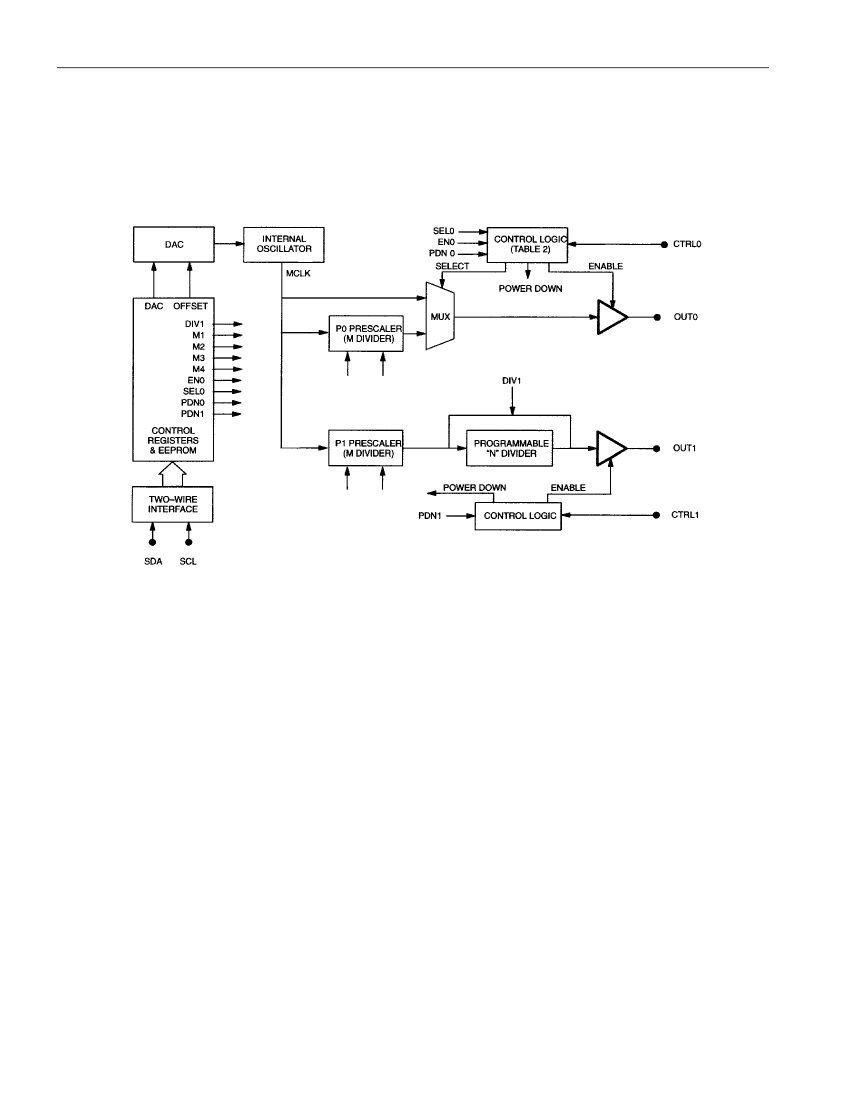

The DS1085 is a dual-output frequency synthesizer requiring no external timing components for

operation. It can be used as a standalone oscillator or as a dynamically programmed, processor-controlled

peripheral device. An internal master oscillator can be programmed from 66MHz to 133MHz with three

resolution options of 10kHz, 25kHz, and 50kHz. A programmable, 3-bit prescaler (divide-by-1, 2, 4, or 8)

permits the generation of a reference oscillator output (OUT0) from the master, ranging from 8.2MHz to

133MHz. A second independent prescaler and a 1-to-1025 divider allows the generation of a main

oscillator output (OUT1) from 8.1kHz to 133MHz. The two outputs, although synchronous with the

master, can be independently programmed. The combination of programmable master oscillator,

prescalers, and dividers allows the generation of thousands of user-specified frequencies. All master

oscillator, prescaler, and divider settings are stored in NV (EEPROM) memory, providing a default value

on power-up that allows it to be used as a standalone oscillator. A 2-wire serial interface allows in-circuit,

on-the-fly programming of the master oscillator, prescalers (P0 and P1), and divider (N). This allows

dynamic frequency modification, if required, or, for fixed-frequency applications, the DS1085 can be

used with factory- or user-programmed values.

EconOscillator is a trademark of Dallas Semiconductor.

1 of 21

051506
